2012 SSANGYONG RODIUS steering wheel

02-70000-00
4620-02 Power Steering Gear
- Changed tie rod end
Newly Installed Equipment
Located in left quarter trim
Repair kit
Sealant
Front
Front
2WD
(A/T, M/T)4WD (A/T)2WD
(A/T, M/T)
Wheel and Tire Repair Kit
4170-07 Wheel
- For 4WD vehicle, installed new wheel
- New wheel
- Installed tire repair kit
3170-01Manual Transmission
- Installed 6-speed manual
transmission
1990-10Transmission Cross Member
- Changed cross member

06-4
4WD Switch, Headlamp
Leveling Switch, Rear Wipe
Switch
Outside Rearview
Mirror
Adjusting/Folding
Switches
Remote Control Switches on Steering Wheel
Window switch
1. LAYOUT
Volume button
Seek buttonManual gear shift
down switch
Power buttonManual gear shift
up switch
Mode button
Mute button
Bluetooth switch

06-58510-00
Passenger’s Window Switch
(same with rear window
switches)
Multifunction Switch and Steering Wheel Angle
Sensor
Room Lamp and Sunroof Switch (w/
multimeter)
Defogger switchPassenger’s seat
warmer switch Rear fog lamp
switch Driver’s seat warmer
switchFront fog
lamp switch
Hazard warning
flasher switchESP OFF
switch
Door coupled
room lamp switch
Sunroof switch
Multimeter
Front room lamp switch

09-34891-01
1. SPECIFICATIONS
1) Pressure Sensor
UnitDescription
Location
ABS ESP
HECU
(Hydraulic &
Electronic Control
Unit) CPU:MCU60 (32bit)
Clock Frequency: 28MHz
Memory: 128~256 KB CPU:MCU60 (32bit)
Clock Frequency: 28MHz
Memory:256~512 KB Under the front
washer reservoir
Wheel Speed
SensorActive type wheel speed
sensorActive type wheel speed
sensorOn each wheel
Front air gap:
0.335~0.945mm,
Rear air gap:
0.309~0.958
Steering Wheel
Angle SensorN/AMaximum angular speed:
1500°/sec
Operating voltage: 9~16VUnder the steering
wheel
Sensor ClusterN/AIntegrated with yaw rate
sensor and lateral sensorUnder the audio
assembly
Pressure Sensor
N/A Analog outputUnder the master
cylinder
Description Specification
Supplying voltage approx. 5V (4.75~5.25V)
Max. pressure 350bar

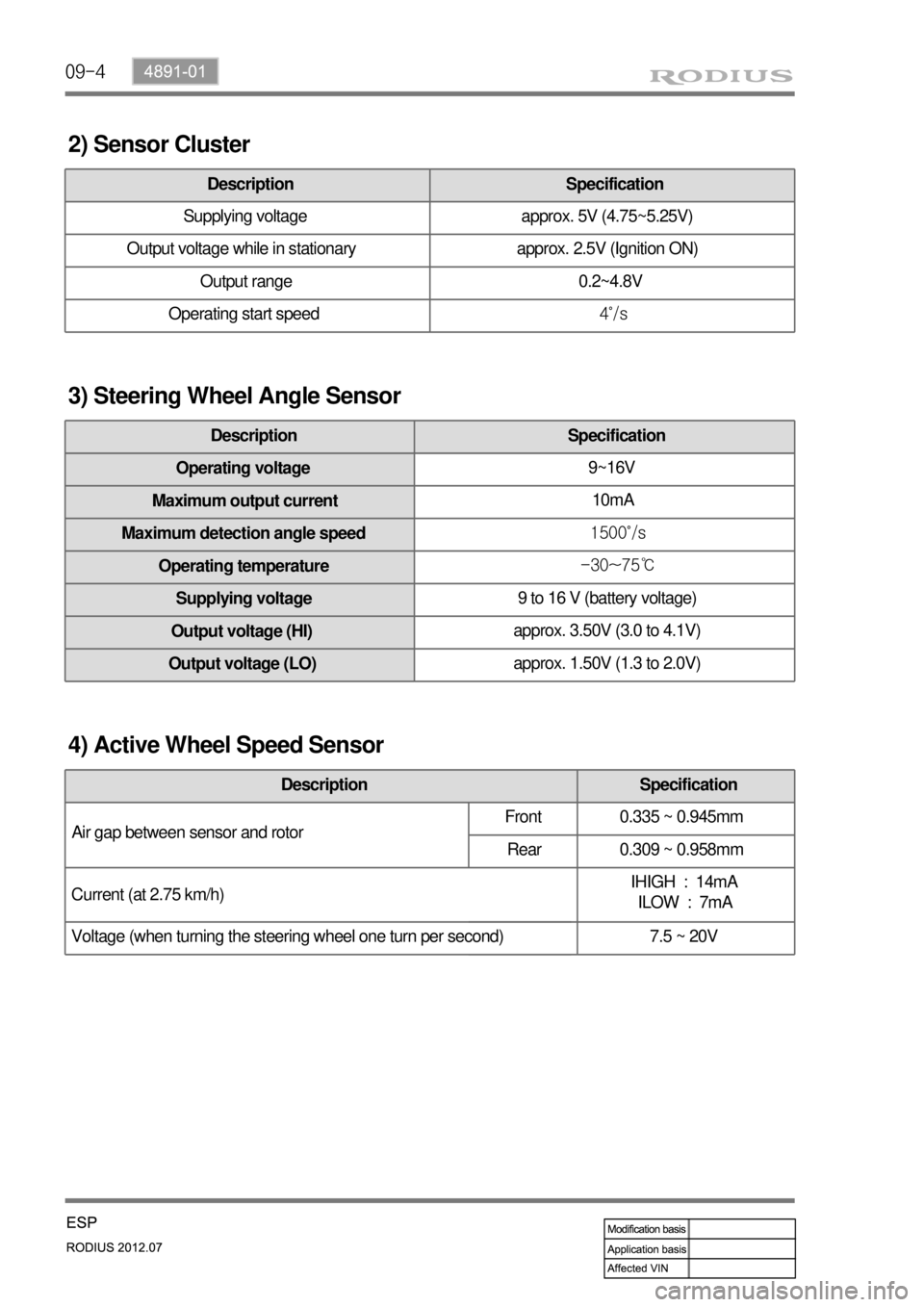

09-4
2) Sensor Cluster
3) Steering Wheel Angle Sensor
Air gap between sensor and rotorFront 0.335 ~ 0.945mm
Rear 0.309 ~ 0.958mm
Current (at 2.75 km/h)IHIGH : 14mA
ILOW : 7mA
Voltage (when turning the steering wheel one turn per second) 7.5 ~ 20V
4) Active Wheel Speed Sensor
Operating voltage 9~16V
Maximum output current 10mA
Maximum detection angle speed 1500˚/s
Operating temperature -30~75℃
Supplying voltage 9 to 16 V (battery voltage)
Output voltage (HI) approx. 3.50V (3.0 to 4.1V)
Output voltage (LO) approx. 1.50V (1.3 to 2.0V)
Description Specification
Description Specification
Description Specification
Supplying voltage approx. 5V (4.75~5.25V)
Output voltage while in stationary approx. 2.5V (Ignition ON)
Output range 0.2~4.8V
Operating start speed4˚/s

09-54891-01
1. ESP (Electronic Stability Program)
ESP system contains the ABS (Anti-Lock Brake System), ABD (Automatic Braking Differential),
ASR (Acceleration Slip Regulation), Cornering Control and HBA (Hydraulic Brake Assist System)
functions.
▶Cornering Control (Understeer and Overersteer) Function
This function controls the vehicle stability by applying the braking pressure on each wheel
according to the yaw rate, lateral sensing value and driver’s steering wheel control.
▶HBA (Hydraulic Brake Assist System) Function
HBA (Hydraulic Brake Assist) system helps in an emergency braking situation when the driver
applies the brake fast, but not with sufficient pressure, which leads to dangerously long braking
distance. ECU recognizes the attempt at full braking and transmits the signal calling for full brake
pressure from the hydraulic booster.

09-6
HECU(Hydraulic & Electronic Control Unit)
ESP ABS
2. LAYOUT
Name ESP ABS Location
1 HECU O O Under the battery
2 Pressure Sensor O X Under the master cylinder
3 Wheel Speed Sensor O O On wheels
4 Sensor Cluster O X Under the audio assembly
5 Steering Wheel Angle Sensor O X Under the steering wheel
Pressure Sensor
Installed Removed

09-74891-01
1. ESP Indicator2. Steering Wheel Angle
Sensor
3. ESP OFF Switch 4. Sensor Cluster
Front Wheel Speed Sensor
4WD 2WDRear Wheel Speed
Sensor
