218Fuses and bulbs
–Fit the replacement bulb in the bulb holder and turn clockwise
as far as it will go.
– Check that the new bulb works properly. 

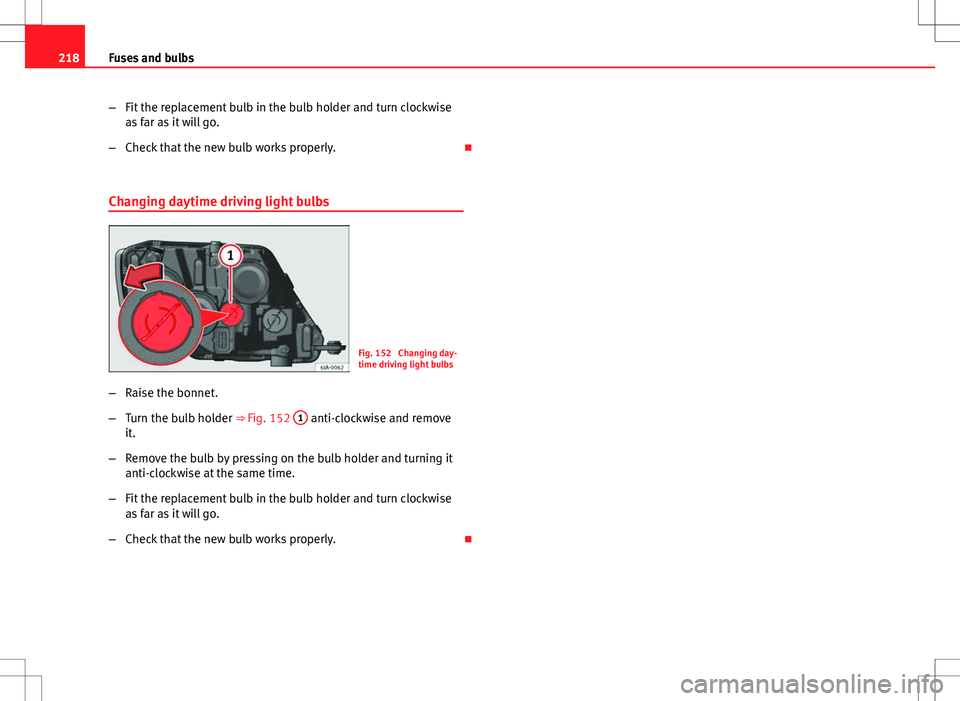

Changing daytime driving light bulbs
Fig. 152 Changing day-
time driving light bulbs
– Raise the bonnet.
– Turn the bulb holder ⇒ Fig. 152 1
anti-clockwise and remove
it.
– Remove the bulb by pressing on the bulb holder and turning it
anti-clockwise at the same time.
– Fit the replacement bulb in the bulb holder and turn clockwise
as far as it will go.
– Check that the new bulb works properly. 

219
Fuses and bulbs
Changing front fog light bulbs
Front fog light bulb
Fig. 153 Front fog light
Fig. 154 Front fog light –
Remove the screw ⇒ Fig. 153 A
from the fog light grill with a
screwdriver.
– Subsequently, remove the clips located on the edge of the grill
with gentle leverage.
– Remove the screws (3x) ⇒ Fig. 154 B
to remove the front fog
light.
– Remove the metal clip located at the top of the front fog light by
pulling it towards you ⇒ Fig. 154 C
. 
Removing the bulb holder
Fig. 155 Front fog light
– Remove the connector ⇒ Fig. 155 A
from the bulb.
– Turn the bulb holder ⇒ Fig. 155 A
anti-clockwise and pull it out
of the fog light housing. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

220Fuses and bulbs
–Remove the bulb by pressing on the bulb holder and turning it
anti-clockwise at the same time.
– Installation involves all of the above steps in reverse sequence.
– Check that the bulb works properly. 
Changing bulbs for rear lights (in side panel) Removing tail light
Fig. 156 Remove rear
light unit from side panel
Check which of the bulbs is defective.
– Open the luggage compartment to access the rainduct area.
– Take the screwdriver or a Torx 20 key (T20) from the vehicle tool
kit and loosen (turning anti-clockwise) and remove the two re-
taining screws that secure the front of the light ⇒ Fig. 156 1
,
taking care not to lose them. –
Pull the rear light unit backwards ( ⇒ Fig. 156 2
) to remove the
light from its housing. 
Removing the bulb holder
Fig. 157 Light connector
at the rear of the rear
light unit
Fig. 158 Retaining
screws on reverse side of
rear light unit
– Disconnect the light connector A
⇒ Fig. 157 by moving its side
levers (arrows) and pulling the connector outwards.
– Place the light on a level, horizontal surface on top of a soft
cloth so as not to scratch the outer glass. 

221
Fuses and bulbs
– Unscrew the four retaining screws from the bulb holder anti-
clockwise using a screwdriver or a Torx 20 key (T20) from the ve-
hicle tool kit ⇒ Fig. 158. Take care not to lose the bulb holder
retaining screws. 
Changing bulbs
All bulbs can be changed easily in the bulb holder.
Fig. 159 Position of the
bulbs in the bulb holder
The bulbs are secured with a bayonet fastener. The table below
gives an overview of the bulbs.
– Lightly press the defective bulb into the bulb holder, then turn it
anti-clockwise and remove it.
– Fit the new bulb, pressing it into the bulb holder and turn it
clockwise as far as it will go.
– Use a cloth to remove any fingerprints from the glass part of the
bulb. –
Check that the new bulb works properly.
– Replace the bulb holder.
– Screw in the bulb holder using the four screws, turning them
clockwise.
List of bulbs
Position: ⇒ Fig. 159Bulb functionATurn signals: PY21W NA LLBSide lights-brake lights: P21/5WCSide lights: P21/5W
Note
Check the condition of the seal. If damaged, a replacement can be acquired
from an Official Service. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

222Fuses and bulbs
Fitting rear light
Fig. 160 Fitting tail light
unit
Fig. 161 Fitting tail light
unit
– Make sure the connector is correctly in place.
– Press the rear light unit backwards (driving direction) by fitting
the fastenings into the rubber mountings ⇒ Fig. 160 A
.
– Take the screwdriver or a Torx 20 key (T20) from the vehicle tool
kit and tighten (turning clockwise ⇒ 
Fig. 161) the two retaining
screws that secure the front of the light. 

223
Fuses and bulbs
Changing rear lights (in rear lid) Removing the bulb holder
The rear lid must be open to change the bulbs.
Fig. 162 Remove the
cover from the rear lid
Fig. 163 Remove the bulb holder You can access the bulb holder for the inner rear lights from the in-
side of the rear lid.
–
Check which of the bulbs is defective.
– Open the cover to access the lights, turning it by hand in the di-
rection indicated by the arrows.
– Access the lights by disconnecting the connector 1
⇒ Fig. 163
 and unscrewing the bulb holder ⇒ Fig. 163 . Take care not
to lose the bulb holder retaining screw.
– Change the bulbs ⇒ page 223. 
Changing bulbs
All bulbs can be changed easily in the bulb holder.
Fig. 164 Position of the
bulbs in the bulb holder
The bulbs are secured with a bayonet fastener. The table below
gives an overview of the bulbs ⇒ table on page 224. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

224Fuses and bulbs
–Lightly press the defective bulb into the bulb holder, then turn it
anti-clockwise and remove it.
– Fit the new bulb, pressing it into the bulb holder and turn it
clockwise as far as it will go.
– Use a cloth to remove any fingerprints from the glass part of the
bulb.
– Check that the new bulb works properly.
– Re-install the bulb holder ⇒ page 224.
– Screw in the bulb holder.
List of bulbs
Pos.
⇒ Fig. 164Bulb function
AReverse lightP21WBSide lightsR5W LLCFog lightsP21W
Note
One of the two sides might not be fitted with a fog light, depending on the
country and type of driving. In this case, the hole for the light is covered. 
Fitting the bulb holder
The bulb holder is easy to fit. – Position the bulb holder on the rear light unit and align it so
that it is securely seated. –
Screw in the bulb holder using the corresponding screw.
– Make sure the connector is correctly in place.
– Close the inner trim cover.
Note
Check the condition of the seal. If damaged, a replacement can be acquired
from an Official Service. 

225
Fuses and bulbs
Changing bulb for the number plate light
Fig. 165 Removing num-
ber plate light
Fig. 166 Changing bulb
– Unscrew the screws to remove the bulb ⇒ Fig. 165.
– Remove the bulb, moving it in the direction of the arrow and
outwards ⇒ Fig. 166. –
Installation involves all of the above steps in reverse sequence. 
