Checking and refilling levels
Charging the battery
Terminals for charging the battery are fitted in the engine
compartment.
– Note the warnings ⇒ 
in Important safety warnings for han-
dling a vehicle battery on page 218 and ⇒ .
– Switch off all electrical equipment. Remove the ignition key.
– Raise the bonnet ⇒ page 210.
– Open the battery cover.
– Connect the charger clamps as described to the positive pole of
the battery (+) and, exclusively to an earth on the bodywork
(–).
– Only use a charger which is compatible for use with 12 V nomi-
nal voltage batteries. The charge must not exceed a voltage of
15 V.
– Now connect the battery charger to the power socket and switch
on.
– After charging the battery: switch off the battery charger and
disconnect the power socket cable.
– Finally disconnect the charger cables from the battery.
– Replace the battery cover correctly.
– Close the bonnet ⇒ page 210.
Important: Before you charge the battery make sure you read the manufac-
turer's instructions for using the battery charger.
WARNING
Never charge a battery that has frozen: replace battery! Failure to do so
may lead to an explosion.
Note
Use only the terminals in the engine compartment to charge the battery. 
Replacing the battery
The new battery should have the same specifications (am-
perage, load and voltage) as the used battery.
Your vehicle is equipped with an intelligent power management system to
control the distribution of electrical energy ⇒ page 187. The power manage-
ment function ensures that the battery is charged much more efficiently
than on vehicles without a power management system. To maintain this
function after replacing the battery, we recommend that the replacement
battery used is of the same make and type as the original fitted battery. To
make proper use of the power management function after the battery has
been changed, have the battery coded to the power management mode at a
specialised workshop.
CAUTION
● Some vehicles, for example those with the Start-Stop system* are fitted
with a special battery (AGM-type or EFB-type battery). If any other type of
battery is fitted, the Start-Stop function may be considerably reduced and
the vehicle may not stop on repeated occasions.
● Make sure that the vent hose is always attached to the original opening
on the side of the battery. Gases or battery acid can otherwise escape and
possibly cause damage.
● The battery holder and clamps must always be correctly secured. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

253
Fuses and bulbs
LED rear lightTypeReverse lightsP21W LLThe remaining functions work with LEDs
WARNING
● Take particular care when working on components in the engine com-
partment if the engine is warm. Risk of burns.
● Bulbs are highly sensitive to pressure. The glass can break when you
touch the bulb, causing injury.
● When changing bulbs, please take care not to injure yourself on sharp
edges, in particular on the headlight housing.
CAUTION
● Remove the ignition key before working on the electric system. Other-
wise, a short circuit could occur.
● Switch off the lights or parking lights before you change a bulb.
● Take good care to avoid damaging any components.
For the sake of the environment
Please ask your specialist retailer how to dispose of used bulbs in the prop-
er manner.
Note
● Please check at regular intervals that all lighting (especially the exterior
lighting) on your vehicle is functioning properly. This is not only in the inter-
est of your own safety, but also that of all other road users.
● Before changing a bulb, make sure you have the correct new bulb.
● Do not touch the glass part of the bulb with your bare hands, use a cloth
or paper towel instead. Otherwise, the fingerprints left on the glass will va-
porise as a result of the heat generated by the bulb, they will be deposited
on the reflector and will impair its surface. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

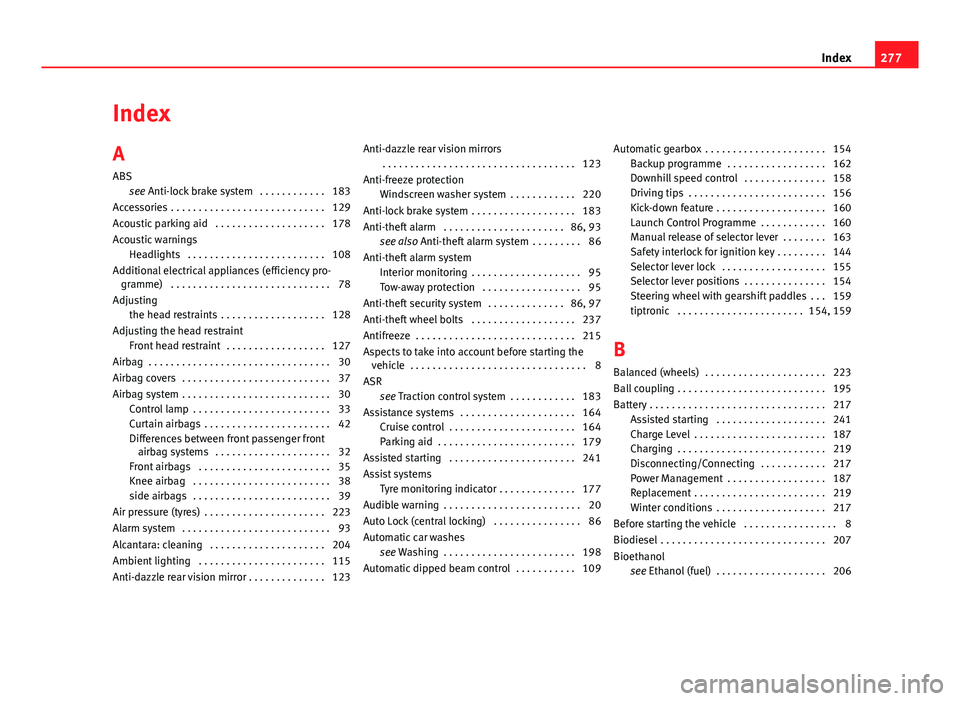

Index
A
ABSsee Anti-lock brake system . . . . . . . . . . . . 183
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Acoustic parking aid . . . . . . . . . . . . . . . . . . . . 178
Acoustic warnings Headlights . . . . . . . . . . . . . . . . . . . . . . . . . 108
Additional electrical appliances (efficiency pro- gramme) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Adjusting the head restraints . . . . . . . . . . . . . . . . . . . 128
Adjusting the head restraint Front head restraint . . . . . . . . . . . . . . . . . . 127
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 33
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 42
Differences between front passenger frontairbag systems . . . . . . . . . . . . . . . . . . . . . 32
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 35
Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . 38
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 39
Air pressure (tyres) . . . . . . . . . . . . . . . . . . . . . . 223
Alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Alcantara: cleaning . . . . . . . . . . . . . . . . . . . . . 204
Ambient lighting . . . . . . . . . . . . . . . . . . . . . . . 115
Anti-dazzle rear vision mirror . . . . . . . . . . . . . . 123 Anti-dazzle rear vision mirrors
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Anti-freeze protection Windscreen washer system . . . . . . . . . . . . 220
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 183
Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . 86, 93 see also Anti-theft alarm system . . . . . . . . . 86
Anti-theft alarm system Interior monitoring . . . . . . . . . . . . . . . . . . . . 95
Tow-away protection . . . . . . . . . . . . . . . . . . 95
Anti-theft security system . . . . . . . . . . . . . . 86, 97
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . 237
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Aspects to take into account before starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ASR see Traction control system . . . . . . . . . . . . 183
Assistance systems . . . . . . . . . . . . . . . . . . . . . 164 Cruise control . . . . . . . . . . . . . . . . . . . . . . . 164
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 179
Assisted starting . . . . . . . . . . . . . . . . . . . . . . . 241
Assist systems Tyre monitoring indicator . . . . . . . . . . . . . . 177
Audible warning . . . . . . . . . . . . . . . . . . . . . . . . . 20
Auto Lock (central locking) . . . . . . . . . . . . . . . . 86
Automatic car washes see Washing . . . . . . . . . . . . . . . . . . . . . . . . 198
Automatic dipped beam control . . . . . . . . . . . 109 Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 154
Backup programme . . . . . . . . . . . . . . . . . . 162
Downhill speed control . . . . . . . . . . . . . . . 158
Driving tips . . . . . . . . . . . . . . . . . . . . . . . . . 156
Kick-down feature . . . . . . . . . . . . . . . . . . . . 160
Launch Control Programme . . . . . . . . . . . . 160
Manual release of selector lever . . . . . . . . 163
Safety interlock for ignition key . . . . . . . . . 144
Selector lever lock . . . . . . . . . . . . . . . . . . . 155
Selector lever positions . . . . . . . . . . . . . . . 154
Steering wheel with gearshift paddles . . . 159
tiptronic . . . . . . . . . . . . . . . . . . . . . . . 154, 159
B
Balanced (wheels) . . . . . . . . . . . . . . . . . . . . . . 223
Ball coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217 Assisted starting . . . . . . . . . . . . . . . . . . . . 241
Charge Level . . . . . . . . . . . . . . . . . . . . . . . . 187
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Disconnecting/Connecting . . . . . . . . . . . . 217
Power Management . . . . . . . . . . . . . . . . . . 187
Replacement . . . . . . . . . . . . . . . . . . . . . . . . 219
Winter conditions . . . . . . . . . . . . . . . . . . . . 217
Before starting the vehicle . . . . . . . . . . . . . . . . . 8
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Bioethanol see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . 206
277
Index

Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 217
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 185
New brake pads . . . . . . . . . . . . . . . . . . . . . 185
Braking Brake assist system . . . . . . . . . . . . . . . . . . 183
Moving off on a hill . . . . . . . . . . . . . . . . . . 148
C
Carbon components: Cleaning . . . . . . . . . . . . 200
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Care of vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 198
Care (paint care) . . . . . . . . . . . . . . . . . . . . . . . . 200
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 190
CD-ROM reader (navigation) . . . . . . . . . . . . . . 130
Central locking Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . 93
Central locking switch . . . . . . . . . . . . . . . . . 93
Electric windows . . . . . . . . . . . . . . . . . . . . . 101
Programming . . . . . . . . . . . . . . . . . . . . . . . . 92
Remote control key . . . . . . . . . . . . . . . . . . . . 91
Selective unlocking system . . . . . . . . . . . . . 91
Sliding/tilting sunroof . . . . . . . . . . . . . . . . 101
Central locking system . . . . . . . . . . . . . . . . . . . . 86 Manual locking in an emergency . . . . . . . . 97
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Cetane number (Diesel fuel) . . . . . . . . . . . . . . 207
Changing Windscreen and rear window wiper blades . .221
Changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . 252 Bulb sizes . . . . . . . . . . . . . . . . . . . . . . . . . . 252 Changing gear
Engaging gears (manual gearbox) . . . . . . 152
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 152
Changing main headlight main beam . . . . . . . . . . . . . . . . . . . . . . . . . 255
turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Changing main headlight bulbs daylight bulb . . . . . . . . . . . . . . . . . . . . . . . 254
Dipped beam . . . . . . . . . . . . . . . . . . . . . . . 254
Changing the battery of the vehicle key . . . . . . . . . . . . . . . . . . . . . 90
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 264
Child-proof lock Electric windows . . . . . . . . . . . . . . . . . . . . . 100
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Child seat Categorisation in groups . . . . . . . . . . . . . . . 49
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 49
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 47
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 54
on the front passenger seat . . . . . . . . . . . . . 31
Top Tether system . . . . . . . . . . . . . . . . . 54, 55
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198 Alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Carbon components . . . . . . . . . . . . . . . . . . 200
Display/Easy Connect control panel . . . . . 202
Exhaust pipe . . . . . . . . . . . . . . . . . . . . . . . . 201 Leather . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Plastic parts . . . . . . . . . . . . . . . . . . . . 200, 202
Radio display . . . . . . . . . . . . . . . . . . . . . . . 202
Rims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Trim parts . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Washing the vehicle . . . . . . . . . . . . . . . . . . 198
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Windscreen and rear window wiper blades . .221
Cleaning/De-icing the windows . . . . . . . . . . . 201
Cleaning the rims . . . . . . . . . . . . . . . . . . . . . . . 201
Cleaning the upholstery Natural leather . . . . . . . . . . . . . . . . . . . . . . 203
Closing Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Panoramic sliding sunroof . . . . . . . . . . . . . 103
Panoramic sunroof . . . . . . . . . . . . . . . . . . . 103
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Clutch (warning lamp) . . . . . . . . . . . . . . . . . . . 162
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . 129
Consumption (fuel) . . . . . . . . . . . . . . . . . . . . . 264
Control lamp Airbag system . . . . . . . . . . . . . . . . . . . . . . . . 33
Cruise control . . . . . . . . . . . . . . . . . . . . . . . 164
Tyre monitor indicator warning lamp . . . . 175
Tyre monitoring systems . . . . . . . . . . . . . . 175
Windscreen wiper fluid level . . . . . . . . . . . 117
Control lamps Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Control of function Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . 120
278 Index

Gearshift paddles (automatic gearbox) . . . . . 159
General overview of the engine compartment 267
GlassCleaning/De-icing . . . . . . . . . . . . . . . . . . . 201
Glove compartment . . . . . . . . . . . . . . . . . . . . . 130 Multiple CD loader . . . . . . . . . . . . . . . . . . . 130
Glove compartment lighting . . . . . . . . . . . . . . 115
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 147
Hazard warning lights . . . . . . . . . . . . . . . . . . . 110
Headlight range control . . . . . . . . . . . . . . . . . . 114
Headlights Changing a bulb . . . . . . . . . . . . . . . . . . . . . 252
Dipped beam headlights . . . . . . . . . . . . . . 108
Driving abroad . . . . . . . . . . . . . . . . . . . . . . 112
Headlight control . . . . . . . . . . . . . . . . . . . . 108
Headlight washers . . . . . . . . . . . . . . . . . . . 119
Side light . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Heated rear window . . . . . . . . . . . . . . . . . 136, 138
Hill hold assist . . . . . . . . . . . . . . . . . . . . . . . . . 148 see also Hill hold assist . . . . . . . . . . . . . . . 148
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
How to jump start description . . . . . . . . . . . . . 242
I
Identification plate . . . . . . . . . . . . . . . . . . . . . . 264
Identifying letters of engine . . . . . . . . . . . . . . 264
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 Increase capacity
of luggage compartment . . . . . . . . . . . . . . 132
Indicator Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Inertia mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Information on emissions . . . . . . . . . . . . . . . . 264
Inspection service . . . . . . . . . . . . . . . . . . . . . . 211
Installation of exhaust gas filtration systems Catalytic converter . . . . . . . . . . . . . . . . . . . 190
Particulate filter Diesel . . . . . . . . . . . . . . . . 190
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . 61
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . 61 Display . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 62
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . 61
Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Service interval display . . . . . . . . . . . . . . . . 65
Instrument panel lighting . . . . . . . . . . . . . . . . 114
Interior anti-dazzle rear vision mirrors . . . . . . 123
Interior monitoring . . . . . . . . . . . . . . . . . . . . . . . 95
Interior rear vision mirror see Rear vision mirrors . . . . . . . . . . . . . . . . 123
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
J
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232 Mounting points . . . . . . . . . . . . . . . . . . . . . 238
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . 241 K
Key Driver messages (mechanical contact) . . . 145
Unlocking/Locking . . . . . . . . . . . . . . . . . . . . 91
Keys Assigning a key . . . . . . . . . . . . . . . . . . . . . . 88
Changing the battery (vehicle key) . . . . . . . 90
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Locking/Unlocking . . . . . . . . . . . . . . . . . . . . 97
Remote control . . . . . . . . . . . . . . . . . . . . . . . 88
Spare key . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Kick-down Manual gearbox . . . . . . . . . . . . . . . . . . . . . 146
Kick-down feature Automatic gearbox . . . . . . . . . . . . . . . . . . . 160
Knee airbag See "Airbag system" . . . . . . . . . . . . . . . . . . 38
L
Lamps Audible warnings . . . . . . . . . . . . . . . . . . . . . 69
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . 69
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . 69
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168 Cleaning the camera area . . . . . . . . . . . . . 199
Lane Assist system see Lane Assist . . . . . . . . . . . . . . . . . . . . . . 168
Launch Control Programme (automatic gear- box) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
281
Index

Outside temperature . . . . . . . . . . . . . . . . . . . . . 64
Outside temperature display . . . . . . . . . . . . . . . 73
OverviewTurn signal and main beam lever . . . . . . . 107
Overview (controls and displays) . . . . . . . . . . . 59
P Paint code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Paint damage . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Panoramic sliding sunroof . . . . . . . . . . . . . . . . 103 Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Convenience closing . . . . . . . . . . . . . . . . . 104
Convenience opening . . . . . . . . . . . . . . . . 104
Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Roll-back function . . . . . . . . . . . . . . . . . . . 104
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Parking aid Adjusting the display/audible warnings . 181
Environment warning . . . . . . . . . . . . . . . . . 179
Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Plus parking aid . . . . . . . . . . . . . . . . . . . . . 179
Rear parking aid . . . . . . . . . . . . . . . . . . . . . 179
Sensors/Camera: cleaning . . . . . . . . . . . . 199
Towing bracket . . . . . . . . . . . . . . . . . . . . . . 182
Parking aid system see Parking aid . . . . . . . . . . . . . . . . . . . . . . 179
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Parking (automatic gearbox) . . . . . . . . . . 156, 157
Particulate filter (Diesel) . . . . . . . . . . . . . . . . . 190 Passenger
see Correct sitting position . . . . . . . 11, 12, 13
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Physical principles of a frontal collision . . . . . . 21
Plastic parts: Cleaning . . . . . . . . . . . . . . . 200, 202
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Power Management . . . . . . . . . . . . . . . . . . . . . 187
Power socket . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Pressure (tyres) . . . . . . . . . . . . . . . . . . . . . . . . . 223
R Racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Radio display: cleaning . . . . . . . . . . . . . . . . . . 202
Radio transmitters . . . . . . . . . . . . . . . . . . . . . . 230
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Control of function . . . . . . . . . . . . . . . . . . . 120
Rear lid automatic locking . . . . . . . . . . . . . . . . . . . . . 99
Central locking system . . . . . . . . . . . . . . . . . 98
Manual release in an emergency . . . . . . . . 99
Rear lights Changing a bulb . . . . . . . . . . . . . . . . . . . . . 252
Rear vision mirror . . . . . . . . . . . . . . . . . . . . . . . 122
Rear vision mirrors Adjusting the exterior mirrors . . . . . . . . . . 122
see also Rear vision mirrors . . . . . . . . . . . . 123
Reflective vests . . . . . . . . . . . . . . . . . . . . . . . . . 232
Remote control See "Keys" . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Remote control key
Unlocking/Locking . . . . . . . . . . . . . . . . . . . . 91
Remove the wheel cover . . . . . . . . . . . . . . . . . 236
Removing the head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230 Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Replacement parts . . . . . . . . . . . . . . . . . . . . . . 230
Reservoir capacity Windscreen washer water reservoir . . . . . 122
Reset button (trip recorder) . . . . . . . . . . . . . . . . 67
Reset the trip recorder to zero . . . . . . . . . . . . . . 67
Retrofitting a towing bracket . . . . . . . . . . . . . . 196
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 66
Reverse gear (automatic gearbox) . . . . . . . . . 154
Rims Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
RME (fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Roll-back function Panoramic sliding sunroof . . . . . . . . . . . . . 104
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Roof carrier (roof load) . . . . . . . . . . . . . . . . . . . 131
Running in New brake pads . . . . . . . . . . . . . . . . . . . . . 185
New engine . . . . . . . . . . . . . . . . . . . . . . . . . 190
New tyres . . . . . . . . . . . . . . . . . . . . . . . . . . 223
S Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safelock see Anti-theft security system . . . . . . . . . . . 86
283
Index

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8child safety . . . . . . . . . . . . . . . . . . . . . . . . . . 47
child seats . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety first . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety interlock for ignition key . . . . . . . . . . . . 144
Safety notes Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 43
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 37
Seat belt tensioners . . . . . . . . . . . . . . . . . . . 29
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 41
Using child seats . . . . . . . . . . . . . . . . . . . . . 47
Using seat belts . . . . . . . . . . . . . . . . . . . . . . 23
Saving fuel Conscientious driving . . . . . . . . . . . . . . . . 191
Inertia mode . . . . . . . . . . . . . . . . . . . . . . . . 161
Saving tips (efficiency programme) . . . . . . . . . 78
Seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 125
Seat adjuster . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Seat belt control lamp . . . . . . . . . . . . . . . . . . . . 19
Seat belt position Pregnant women . . . . . . . . . . . . . . . . . . . . . 27
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Seat belt protection . . . . . . . . . . . . . . . . . . . . . . 23
Seat belt release . . . . . . . . . . . . . . . . . . . . . . . . 27
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 19
Incorrectly fastened . . . . . . . . . . . . . . . . . . . 28 Not worn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 23
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . 28
SEAT Drive Mode . . . . . . . . . . . . . . . . . . . . . . . 171
Selective unlocking system . . . . . . . . . . . . . . . . 91
Selector lever Automatic gearbox . . . . . . . . . . . . . . . . . . . 154
Function fault . . . . . . . . . . . . . . . . . . . . . . . 155
Selector lever (automatic gearbox) Manual release . . . . . . . . . . . . . . . . . . . . . . 163
Service interval display . . . . . . . . . . . . . . . . . . . 65
Service intervals . . . . . . . . . . . . . . . . . . . . . . . . 211
Service notification: read . . . . . . . . . . . . . . . . . . 66
Setting Headlight range . . . . . . . . . . . . . . . . . . . . . 114
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 41
side assist Cleaning the sensors . . . . . . . . . . . . . . . . . 199
Side light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Sitting position driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sitting position for vehicle occupants . . . . . . . 10
Sliding/tilting sunroof Convenience opening/closing . . . . . . . . . 101
Snow chains . . . . . . . . . . . . . . . . . . . . . . . 229, 266
Spanner symbol . . . . . . . . . . . . . . . . . . . . . . . . . 65
Special features Windscreen wipers . . . . . . . . . . . . . . . . . . . 118
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Speed warning function . . . . . . . . . . . . . . . . . . 149
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . . 149
Driver messages . . . . . . . . . . . . . . . . . . . . . 152
Stop/Start the engine . . . . . . . . . . . . . . . . 150
Switching on/off . . . . . . . . . . . . . . . . . . . . . 152
The engine does not switch off . . . . . . . . . 151
The engine starts by itself . . . . . . . . . . . . . 151
Warning lamps . . . . . . . . . . . . . . . . . . . . . . 150
Starting up (engine) . . . . . . . . . . . . . . . . . . . . . 144
Steering Electro-mechanical steering . . . . . . . . . . . 186
Engage the steering lock (ignitionkey) . . . . . . . . . . . . . . . . . . . . . . . . . . 144, 146
Steering wheel Gearshift paddles (automatic gearbox) . . 159
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Storage compartment . . . . . . . . . . . . . . . . . . . 130
Storage compartments Glove compartment lighting . . . . . . . . . . . 115
Sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Switch Hazard warning lights . . . . . . . . . . . . . . . . 110
Switching ignition on/off . . . . . . . . . . . . . . . . . 144
Switching off using inertia . . . . . . . . . . . . . . . . 191
Switching off (engine) With the key . . . . . . . . . . . . . . . . . . . . . . . . 146
Symbols See "Lamps" . . . . . . . . . . . . . . . . . . . . . . . . . 69
System Automatic dipped beam control . . . . . . . . 109
System Easy Connect . . . . . . . . . . . . . . . . . . . . . 79
284 Index

SystemsCruise control . . . . . . . . . . . . . . . . . . . . . . . 164
Tiredness detection . . . . . . . . . . . . . . . . . . 173
Tyre monitoring indicator . . . . . . . . . . . . . . 177
Tyre monitoring systems . . . . . . . . . . . . . . 175
T Technical data Reservoir capacity . . . . . . . . . . . . . . . . . . . 122
Technical modifications . . . . . . . . . . . . . . . . . . 230
Technical specifications . . . . . . . . . . . . . . . . . . 263
Temperature display Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Outside temperature . . . . . . . . . . . . . . . 64, 73
The danger of not using the seat belt . . . . . . . . 22
Tightening torque of wheel bolts . . . . . . . . . . 266
tiptronic (automatic gearbox) . . . . . . . . . . . . . 154
Tiptronic (automatic gearbox) . . . . . . . . . . . . . 159
Tiredness detection . . . . . . . . . . . . . . . . . . . . . 173
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Top Tether system . . . . . . . . . . . . . . . . . . . . 54, 55
Tow-away protection . . . . . . . . . . . . . . . . . . . . . 95
Tow-starting the engine . . . . . . . . . . . . . . . . . . 244
Tow-starting the vehicle . . . . . . . . . . . . . . . . . . 244
Towing Retrofitting a towing bracket . . . . . . . . . . . 196
Towing a trailer . . . . . . . . . . . . . . . . . . . . . 194, 265
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 195
Towline anchorage . . . . . . . . . . . . . . . . . . . . . . 232
Traction control system . . . . . . . . . . . . . . . . . . 183 Trailer
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 182
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . 265
Transporting children . . . . . . . . . . . . . . . . . . . . . 47
Trim parts: cleaning . . . . . . . . . . . . . . . . . . . . . 202
Trims: Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 200
Trip recorder . . . . . . . . . . . . . . . . . . . . . . . . . 61, 67
Turning off the lights . . . . . . . . . . . . . . . . . . . . 108
Turning on the headlights . . . . . . . . . . . . . . . . 108
Turn signal convenience function . . . . . . . . . . 107
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . 107
Tyre Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . 223
Useful life . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Tyre Mobility System (Tyre repair kit) . . . . . . . 233
Tyre monitoring indicator . . . . . . . . . . . . . . . . . 177
Tyre monitoring system . . . . . . . . . . . . . . . . . . 175
Tyre monitoring systems Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 175
Tyre monitoring indicator . . . . . . . . . . . . . . 177
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Tyres Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 223
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Indications of wear . . . . . . . . . . . . . . . . . . . 225
Repair kit . . . . . . . . . . . . . . . . . . . . . . . 232, 233
With compulsory direction of rotation . . . 239 U
Unlocking/Locking With remote control . . . . . . . . . . . . . . . . . . . 91
With the central locking switch . . . . . . . . . . 93
Upholstery: Cleaning Alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
V
Vehicle Identification number . . . . . . . . . . . . . . . . 264
Raising . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Sticker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Vehicle identification data . . . . . . . . . . . . . 264
Vehicle battery Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Vehicle care Changing wiper blades of the windscreenand rear window . . . . . . . . . . . . . . . . . . . 221
Cleaning windscreen and rear window wip- er blades . . . . . . . . . . . . . . . . . . . . . . . . . 221
Service position . . . . . . . . . . . . . . . . . . . . . 119
Vehicle interior monitoring and anti-tow system Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Vehicle key Synchronising . . . . . . . . . . . . . . . . . . . . . . . . 90
Vehicle tools . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . 18
285
Index
