4Table of Contents

85
Cockpit
Bulb monitor 
The bulb monitor checks whether the lights on the vehicle
are working.
If a defective bulb is detected, or if one of the lights has failed for any rea-
son, the bulb monitor symbol  will appear in the display together with an
additional message (which goes out after 5 seconds). For instance, if the
rear left turn signal is not working, the display in the instrument panel will
show the following message:
Left rear turn signal
The message disappears after 5 seconds. Press the CHECK button briefly if
you wish to call up the message again.
If the display indicates that one of the lights is not working, this can have a
number of causes:
● Bulb failure ⇒ page 272.
● A blown fuse ⇒ page 270, Changing fuses.
● Faulty electrical wiring.
It is not necessary to have lamps replaced in a specialised workshop, how-
ever the use of Xenon lamps is recommended.
LED lamps
If any of the LED (Light Emitting Diode) functions fail, the complete lamp
should be replaced.
The failure of the lamp is only shown when the LED function goes out com-
pletely. Sometimes, a LED will stop working, without displaying the warning
as the function continues to operate.WARNING
● Bulbs are highly sensitive to pressure. The glass can break when you
touch the bulb, causing injury.
● The high voltage element of gas discharge bulbs* (xenon light) must
be handled correctly. Otherwise, there is a risk of death.

Speed warning*  Introduction
The speed warning function can help prevent you exceeding
a particular pre-set maximum speed.
Fig. 56 Display: Speed
warning function
The speed warning function will warn the driver if a pre-set maximum speed
is exceeded. The system gives a warning buzzer signal if the set speed is 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

223
Vehicle maintenance and cleaning
WARNING
Vehicle care products may be toxic and hazardous. Using unsuitable car-
care products or, using them in the wrong way, may cause accidents, se-
rious injury, burns or intoxication.
● Keep your car-care products in their original containers.
● Read the instructions.
● Never keep car-care products in empty food containers, bottles or
other similar containers, other people may confuse them.
● Keep all car-care products out of the reach of children.
● Some products may give off harmful vapours during use. Therefore,
they should be used outdoors in well-ventilated places.
● Never use fuel, turpentine, engine oil, nail-varnish remover or any
other volatile product for washing, maintenance or cleaning. These are
toxic and highly flammable.
WARNING
Unsuitable maintenance and cleaning of vehicle components may impair
proper operation of safety equipment and cause serious injury.
● Maintain and clean vehicle components according to the manufactur-
er's instructions.
● Only use approved or recommended cleaning products.
CAUTION
● Cleaning products which contain solvents have a corrosive effect and
may damage the material irreparably.
● Stains and dirt containing aggressive substances or solvents attack the
material and may damage it irreparably, even when they are cleaned quick-
ly. ●
Dirt and stains should not be allowed to dry and should be cleaned as
quickly as possible.
● In the case of stubborn stains, take the vehicle to a specialised work-
shop to avoid damage. 
Treating your upholstery
Checklist
To treat and maintain your seat upholstery, keep the following in mind ⇒ 
:
 Before entering the vehicle, close any velcro fasteners that might
snag on the upholstery or trim fabric. Any open velcro fasteners may
damage the trim or upholstery fabrics.
 To prevent damage, avoid direct contact between sharp decorative
objects and the upholstery and trim fabrics. Decorative objects in-
clude zips, rivets and rhinestones on clothing and belts.
 From time to time, clean the dust that gathers in the perforations,
folds and seams so that the surfaces of the seats are not damaged
by its abrasive effect.
 Make sure clothes are colour-fast to avoid them running and staining
the upholstery. This is especially important if the upholstery is light
in colour.
CAUTION
If you ignore this checklist, which is important for maintaining your seat up-
holstery, the fabric may be damaged or stained.
● Consult the checklist and carry out the operations it describes.
Note
SEAT recommends you take the vehicle to a specialised workshop to treat
any stains on the upholstery caused by the discolouration of clothing. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

270If and when
Fuses
Changing fuses
If a fuse has blown, it must be replaced.
Fig. 202 Left side of
dash panel: Fuse box cov-
er
Fig. 203 Schematic
drawing of fuse box at
the left-hand end of dash
panel: Fuses (without
fuse cover) –
Switch off the ignition and its failed electrical component.
– Remove the fuse cover using a screwdriver ⇒ Fig. 202.
– Identify the fuse corresponding to the damaged electric con-
sumer ⇒ page 271, Fuse assignment.
– Take the plastic clip from inside the fuse cover, fit it onto the
blown fuse, and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip)
with a new fuse of the same amp rating.
– Fit the fuse cover back on.
The individual electrical circuits are protected by fuses. The fuses are loca-
ted behind a cover at the left-hand end of the dash panel.
Two spare fuses and a sticker identifying the fuses are provided on the in-
side of the fuse cover. There is also a crank handle for operating the sun-
roof* by hand (if the electrical system fails).
CAUTION
Never “repair” damaged fuses and never replace them with fuses with a
higher rating. Failure to comply could result in fire. It could also cause dam-
age to other parts of the electrical system.
Note
If a newly replaced fuse blows again after a short time, the electrical system
must be checked by a specialised workshop as soon as possible. 

271
If and when
Fuse assignment
This list shows the fuses which can be replaced relatively
easily by the owner.
No.ConsumerAmps1Air conditioner102Footwell lamps53Heated washer jets54Radiator fan55Parking aid, automatic gearbox106Air conditioner (air purity sensor), pressure sensor5
7Electronic Stability Control (ESC), brake light switch,
clutch pedal switch, steering angle sensor10
8Telephone59Lambda probe heater1010Adaptive headlights right5
11Airbag and disconnection of the front passenger air-
bag5
12Diagnostic socket1013Steering column unit1014Brake lights1015Instrument panel1016Vacant 17Tyre pressure control, rain/light sensor1018Adaptive headlights left519Start-Stop control unit1020Engine management1521Start/Stop battery power management522Vacant 23Vacant
No.ConsumerAmps24Central electrics unit for convenience equipment2025Heater blower3026Rear window heater3027Power socket for trailer (control unit)3028Fuel pump, auxiliary pump for diesel2029Radio, amplifier (with Start-Stop)2030Sliding/tilting sunroof20
31Diagnosis connection, automatic anti-dazzle interior
mirror, reverse light, automatic gearbox15
32Towing socket1533Lighter2034Rear electric windows3035Luggage compartment power socket*2036Wiper system30
37Pump for windscreen washer and headlight washer
system30
38Luggage compartment illumination, alarm1539Radio, amplifier (without Start-Stop)2040Horn2541230 volt socket3042Electronic Stability Control (ESC)2543Front electric windows3044Seat heating35
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

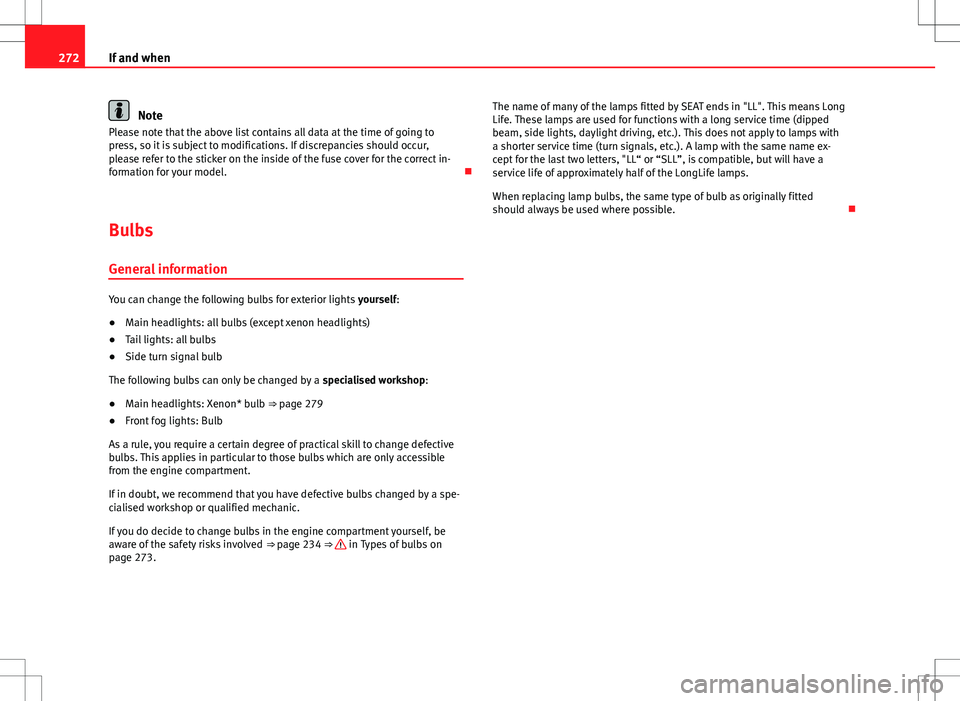

272If and when
Note
Please note that the above list contains all data at the time of going to
press, so it is subject to modifications. If discrepancies should occur,
please refer to the sticker on the inside of the fuse cover for the correct in-
formation for your model. 
Bulbs
General information
You can change the following bulbs for exterior lights yourself:
● Main headlights: all bulbs (except xenon headlights)
● Tail lights: all bulbs
● Side turn signal bulb
The following bulbs can only be changed by a specialised workshop:
● Main headlights: Xenon* bulb ⇒ page 279
● Front fog lights: Bulb
As a rule, you require a certain degree of practical skill to change defective
bulbs. This applies in particular to those bulbs which are only accessible
from the engine compartment.
If in doubt, we recommend that you have defective bulbs changed by a spe-
cialised workshop or qualified mechanic.
If you do decide to change bulbs in the engine compartment yourself, be
aware of the safety risks involved ⇒ page 234 ⇒ 
in Types of bulbs on
page 273. The name of many of the lamps fitted by SEAT ends in "LL". This means Long
Life. These lamps are used for functions with a long service time (dipped
beam, side lights, daylight driving, etc.). This does not apply to lamps with
a shorter service time (turn signals, etc.). A lamp with the same name ex-
cept for the last two letters, "LL“ or “SLL”, is compatible, but will have a
service life of approximately half of the LongLife lamps.
When replacing lamp bulbs, the same type of bulb as originally fitted
should always be used where possible.


EmergenciesChanging a wheel . . . . . . . . . . . . . . . . . . . 262
Disconnecting the battery . . . . . . . . . . . . . 246
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . 259, 264
Sunroof emergency activation . . . . . . . . . . 116
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Tyre mobility system . . . . . . . . . . . . . . . . . . 260
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . 201
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Engine compartment Safety instructions . . . . . . . . . . . . . . . . . . . 234
Engine coolant G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 238
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Specifications . . . . . . . . . . . . . . . . . . . . . . . 238
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235 Checking oil level . . . . . . . . . . . . . . . . . . . . 237
Checking the level . . . . . . . . . . . . . . . . . . . . 83
Consumption . . . . . . . . . . . . . . . . . . . . . . . 237
Engine oil pressure too low . . . . . . . . . . . . . 81
Oil properties . . . . . . . . . . . . . . . . . . . . . . . 236
Oil sensor defective . . . . . . . . . . . . . . . . . . . 83
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 238
Engine speed governing . . . . . . . . . . . . . . . . . . 83
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 203 Environmental friendliness . . . . . . . . . . . . 205
Roof racks . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Environmentally friendly driving . . . . . . . . . . . 203
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . 231 ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
see also Electronic Stability Control . . . . . 172
Exhaust gas purification system . . . . . . . . . . . 202
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 219
F
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 36
Front drink holder . . . . . . . . . . . . . . . . . . . . . . . 153
Front passenger airbag deactivation . . . . . . . . 45
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Fuel level low . . . . . . . . . . . . . . . . . . . . . . . . 83
Instantaneous fuel consumption . . . . . . . . 88
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Fuel consumption . . . . . . . . . . . . . . . . . . . 203, 301
Fuel tank opening the fuel tank flap . . . . . . . . . . . . . 230
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Fuse Assignment . . . . . . . . . . . . . . . . . . . . . . . . . 271
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 270 G
Gear display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 186
General overview of the engine compartment 304
Glove compartment . . . . . . . . . . . . . . . . . . . . . 159 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 72
Hazard warning lights . . . . . . . . . . . . . . . . . . . 123
Headlight range control . . . . . . . . . . . . . . . . . . 121 Dynamic . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Headlights Adaptive headlights . . . . . . . . . . . . . . . . . . 123
Automatic headlight control . . . . . . . . . . . 118
Automatic headlight control photosensors . .118
Driving abroad . . . . . . . . . . . . . . . . . . . . . . 205
Front fog lights . . . . . . . . . . . . . . . . . . . . . . 119
Headlight range control . . . . . . . . . . . . . . . 121
Headlight washer system . . . . . . . . . . . . . 132
Head restraint Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Head restraints Front seats . . . . . . . . . . . . . . . . . . . . . . . . . 141
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Removing and fitting . . . . . . . . . . . . . . . . . 141
Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Heated rear window . . . . . . . . . . . . . . . . . . . . . 128
316 Index
