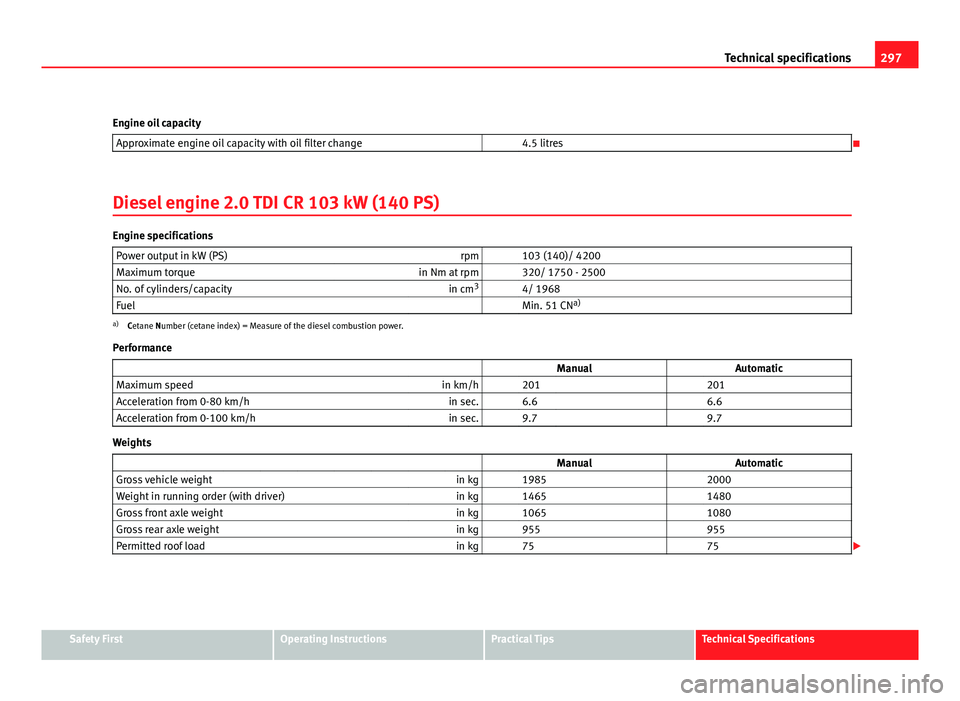

Page 299 of 313
297
Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 4.5 litres
Diesel engine 2.0 TDI CR 103 kW (140 PS)
Engine specifications Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders/capacity in cm3
4/ 1968
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance ManualAutomatic
Maximum speed in km/h 201 201
Acceleration from 0-80 km/h in sec. 6.6 6.6
Acceleration from 0-100 km/h in sec. 9.7 9.7
Weights
Manual Automatic
Gross vehicle weight in kg 1985 2000
Weight in running order (with driver) in kg 1465 1480
Gross front axle weight in kg 1065 1080
Gross rear axle weight in kg 955 955
Permitted roof load in kg 75 75
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 300 of 313
298Technical specifications
Trailer weight Manual Automatic
Trailer without brakes in kg 730 740
Trailer with brakes, gradients up to 8% in kg 1500 1500
Trailer with brakes, gradients up to 12% in kg 1500 1500
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.5 litres
Page 301 of 313
299
Technical specifications
Dimensions and capacities
Dimensions
Length, width 4282 mm/ 1768 mm
Height at kerb weight 1546 mm
Front and rear projection 916 mm/ 788 mm
Wheelbase 2578 mm
Turning circle 10.7 m
Track width a) Front
Rear
1525 mm 1509 mm
1539 mm 1523 mm
Capacities
Fuel tank 55 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
a) This data will change depending on the type of wheel rim.
