2012 Seat Altea technical specifications

289
Technical specifications
Petrol engine 1.6 75 kW (102 PS)
Engine specifications Running on LPG Running on petrol or E-85a)
Power output in kW (PS) rpm 72 (98)/ 5600 75 (102)/ 5600
Maximum torque in Nm at rpm 144/ 3800 148/ 3800
No. of cylinders/capacity in cm3
4/ 1595 4/ 1595
Fuel LPG Super 95 RON
b)
/ Normal 91
RON c)
/ E-85
a) Ethanol at 85%.
b) Research Octane Number = Anti-detonation rating of the petrol.
c) Slight power loss.
Performance Running
on LPG Running
on petrol Running
on petrol or E-85
Maximum speed in km/h 178 181 181
Acceleration from 0-80 km/h in sec. 9.2 8.6 8.6
Acceleration from 0-100 km/h in sec. 13.8 12.8 12.8
Weights
Running on LPG Running on petrol or E-85
Gross vehicle weight in kg 1951 1920
Weight in running order (with driver) in kg 1456 1395
Gross front axle weight in kg 965 967
Gross rear axle weight in kg 1000 980
Permitted roof load in kg 75 75
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

290Technical specifications
Trailer weight Running on LPGRunning on petrol or E-85
Trailer without brakes in kg 720 690
Trailer with brakes, gradients up to 8% in kg 1500 1500
Trailer with brakes, gradients up to 12% in kg 1200 1200
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.1 litres

Petrol engine 1.2 77 kW (105 PS)
Engine specifications Power output in kW (PS) rpm 77 (105)/5000
Maximum torque in Nm at rpm 175/1550-4100
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
Performance without Start-Stopwith Start-Stop
Maximum speed in km/h 184 184
Acceleration from 0-80 km/h in sec. 7.3 7.3
Acceleration from 0-100 km/h in sec. 11.3 11.3

291
Technical specifications
Weights without Start-Stop with Start-Stop
Gross vehicle weight in kg 1875 1880
Weight in running order (with driver) in kg 1355 1360
Gross front axle weight in kg 970 970
Gross rear axle weight in kg 980 980
Permitted roof load in kg 75 75
Trailer weight
without Start-Stopwith Start-Stop
Trailer without brakes in kg 670 680
Trailer with brakes, gradients up to 8% in kg 1500 1500
Trailer with brakes, gradients up to 12% in kg 1200 1200
Engine oil capacity
Approximate engine oil capacity with oil filter change 3.6 litres

Petrol engine 1.4 92 kW (125 PS)
Engine specifications Power output in kW (PS) rpm 92 (125)/ 5000
Maximum torque in Nm at rpm 200/ 1500-4000
No. of cylinders/capacity in cm3
4/ 1390
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

292Technical specifications
Performance Maximum speed in km/h 194
Acceleration from 0-80 km/h in sec. 6.9
Acceleration from 0-100 km/h in sec. 10.3
Weights
Gross vehicle weight in kg 1959
Weight in running order (with driver) in kg 1439
Gross front axle weight in kg 1008
Gross rear axle weight in kg 987
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 710
Trailer with brakes, gradients up to 8% in kg 1500
Trailer with brakes, gradients up to 12% in kg 1300
Engine oil capacity
Approximate engine oil capacity with oil filter change 3.3 litres

Petrol engine 1.8 118 kW (160 PS)
Engine specifications Power output in kW (PS) rpm 118 (160)4500-6200
Maximum torque in Nm at rpm 250/1500-4500
No. of cylinders/capacity in cm3
4/1798
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss. 

293
Technical specifications
Performance ManualAutomatic
Maximum speed in km/h 210 210
Acceleration from 0-80 km/h in sec. 5.9 5.8
Acceleration from 0-100 km/h in sec. 8.4 8.4
Weights
Manual Automatic
Gross vehicle weight in kg 1995 2015
Weight in running order (with driver) in kg 1475 1495
Gross front axle weight in kg 1062 1062
Gross rear axle weight in kg 994 994
Permitted roof load in kg 75 75
Trailer weight
ManualAutomatic
Trailer without brakes in kg 730 740
Trailer with brakes, gradients up to 8% in kg 1500 1500
Trailer with brakes, gradients up to 12% in kg 1400 1400
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.6 litres

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

294Technical specifications
Diesel engine 1.6 TDI CR 66 kW (90 PS) with/without DPF
Engine specifications
Power output in kW (PS) rpm 66 (90)/ 4200
Maximum torque in Nm at rpm 230/ 1500-2500
No. of cylinders/capacity in cm3
4/ 1598
Fuel Min 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance Maximum speed in km/h 172
Acceleration from 0-80 km/h in sec. 9.1
Acceleration from 0-100 km/h in sec. 13.8
Weights
Gross vehicle weight in kg 1975
Weight in running order (with driver) in kg 1455
Gross front axle weight in kg 1045
Gross rear axle weight in kg 960
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 720
Trailer with brakes, gradients up to 8% in kg 1500
Trailer with brakes, gradients up to 12% in kg 1400
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.3 litres


295
Technical specifications

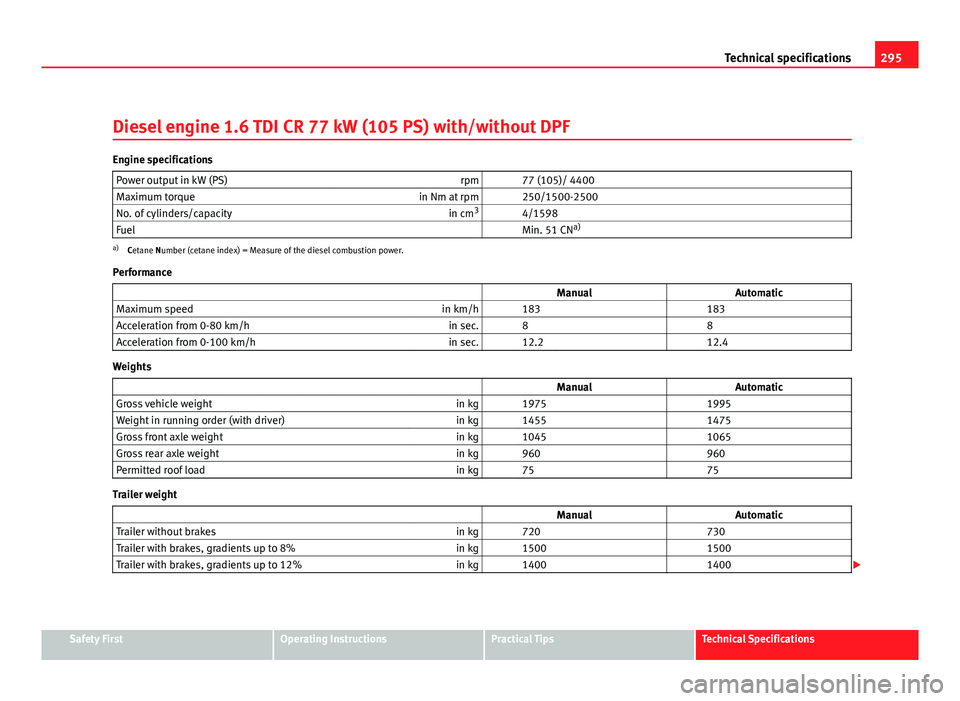

Diesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPF
Engine specifications Power output in kW (PS) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/1500-2500
No. of cylinders/capacity in cm3
4/1598
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance ManualAutomatic
Maximum speed in km/h 183 183
Acceleration from 0-80 km/h in sec. 8 8
Acceleration from 0-100 km/h in sec. 12.2 12.4
Weights
Manual Automatic
Gross vehicle weight in kg 1975 1995
Weight in running order (with driver) in kg 1455 1475
Gross front axle weight in kg 1045 1065
Gross rear axle weight in kg 960 960
Permitted roof load in kg 75 75
Trailer weight
ManualAutomatic
Trailer without brakes in kg 720 730
Trailer with brakes, gradients up to 8% in kg 1500 1500
Trailer with brakes, gradients up to 12% in kg 1400 1400
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

296Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 4.5 litres

Diesel engine 1.6 TDI CR 77 kW (105 PS) DPF Start-Stop
Engine specifications Power output in kW (PS) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/1500-2500
No. of cylinders/capacity in cm3
4/1598
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
Performance Maximum speed in km/h 183
Acceleration from 0-80 km/h in sec. 8
Acceleration from 0-100 km/h in sec. 12.2
Weights
Gross vehicle weight in kg 1970
Weight in running order (with driver) in kg 1450
Gross front axle weight in kg 1045
Gross rear axle weight in kg 960
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 720
Trailer with brakes, gradients up to 8% in kg 1500
Trailer with brakes, gradients up to 12% in kg 1400 
