2012 RENAULT WIND display

1.27
ENG_UD21752_3
Sécurité enfants : désactivation/activation airbag passager avant (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
deactivating/activating the front passenger air bag
The passenger air bag must
be activated or deactivated
with the ignition off .
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.

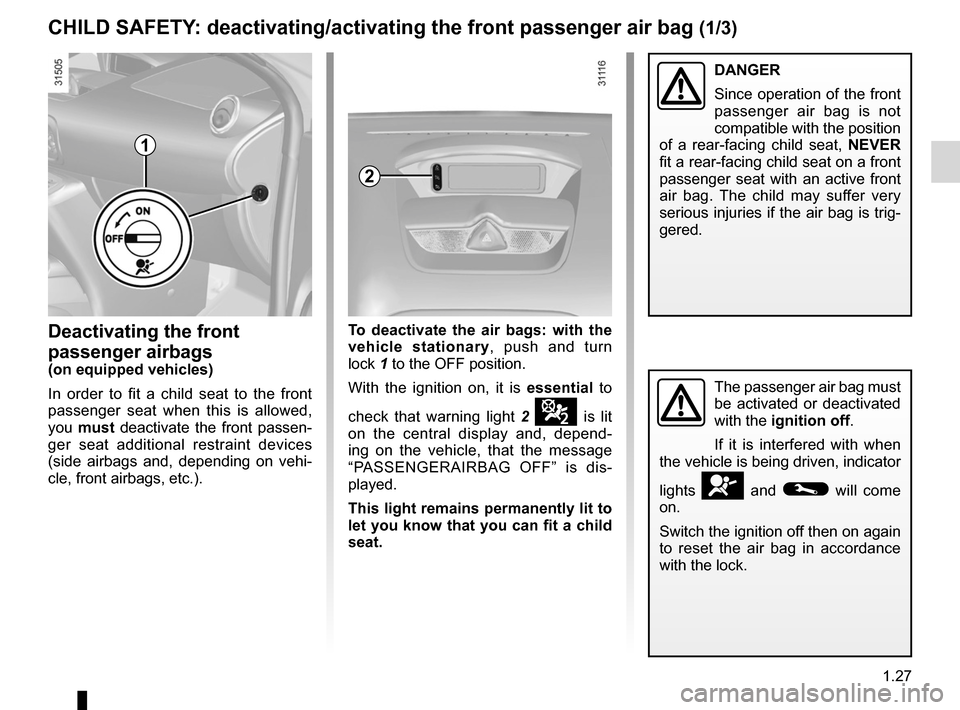

CHILD SAFETY : deactivating/activating the front passenger air bag (1/3)
Deactivating the front
passenger airbags
(on equipped vehicles)
In order to fit a child seat to the front
passenger seat when this is allowed,
you must deactivate the front passen-
ger seat additional restraint devices
(side airbags and, depending on vehi -
cle, front airbags, etc.).
2
To deactivate the air bags: with the
vehicle stationary , push and turn
lock 1 to the OFF position.
With the ignition on, it is essential to
check that warning light 2
¹ is lit
on the central display and, depend -
ing on the vehicle, that the message
“ PASSENGERAIRBAG OFF ” is dis-
played.
This light remains permanently lit to
let you know that you can fit a child
seat.
1
DANGER
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, NEVER
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.

JauneNoirNoir texte
1.31
ENG_UD11168_1
Poste de conduite direction à gauche (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
DRIVING pOSITION: LEFT -HAND DRIVE (2/2)
1 Side air vent.
2 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog light,
– horn.
3 Instrument panel.
4 Location for driver’s air bag.
5 – Windscreen wash/wipe stalk.
–
Trip computer information readout
control and vehicle settings person-
alisation menu.
6 –
Time, temperature, radio information
display…
– Driver and front passenger seat
belt unfastened and passen -
ger air bag activated/deactivated
warning lights
The equipment fitted, described below, DEpENDS ON THE VERSION AND COUNTRY.
16 Handbrake.
17 Cruise control/speed limiter control.
18 Hazard warning lights switch.
19 Traction control system activation/
deactivation controls.
20 Steering wheel height adjustment
control.
21 Cruise control/speed limiter controls.
22 Door mirror adjustment control.
23 Bonnet release.
7
Centre air vents.
8 Location for passenger air bag.
9 Side air vent.
10 Storage compartment.
11 Heating and ventilation controls.
12 Location for radio or storage com -
partment.
13 Gear lever.
14 Electric window controls, rotating
hard roof opening/closing control.
15 Central door locking/unlocking con -
trols.

JauneNoirNoir texte
1.33
ENG_UD11169_1
Poste de conduite direction à droite (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
DRIVING pOSITION: RIGHT -HAND DRIVE (2/2)
The equipment fitted, described below, DEpENDS ON THE VERSION AND COUNTRY.
1 Side air vent.
2 Location for passenger air bag.
3 Centre air vents.
4 –
Time, temperature, radio information
display…
– Driver and front passenger seat
belt unfastened and passen -
ger air bag activated/deactivated
warning lights
5 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog light,
– horn.
6 Location for driver’s air bag. 7
Instrument panel.
8 – Windscreen wash/wipe stalk.
–
Trip computer information readout
control and vehicle settings person-
alisation menu.
9 Side air vent.
10 Door mirror adjustment control.
11 Cruise control/speed limiter controls.
12 Steering wheel height adjustment
control.
13 Traction control system activation/
deactivation controls.
14 Hazard warning lights switch. 15
Central door locking/unlocking con -
trols.
16 Handbrake.
17 Central door locking/unlocking con -
trols.
18 Electric window controls, rotating
hard roof opening/closing control.
19 Gear lever.
20 Location for radio or storage com -
partment.
21 Heating and ventilation controls.
22 Storage compartment.
23 Bonnet release.

instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
trip computer and warning system ........(up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
display .................................................. (up to the end of the DU)
operating faults ..................................... (up to the end of the DU)
control instruments ............................... (up to the end of the DU)
indicators ............................................................... (current page)
lights: fog lights .......................................................... (current page)
lights: dipped beam headlights ................................... (current page)
lights: direction indicators ........................................... (current page)
lights: main beam headlights ...................................... (current page)
handbrake .............................................................. (current page)
1.34
ENG_UD20502_3
Tableau de bord : témoins lumineux (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
Jaune NoirNoir texte
Warning lights
Instrument panel A: you can adjust
the brightness from the trip computer
and warning system.
W ARNING LIGHTS (1/4)
LLow fuel level warning light
This comes on when the igni -
tion is switched on and goes out after a
few seconds. If it comes on when driv-
ing accompanied by a beep, fill up with
fuel as soon as possible.
åAir bag warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it remains lit or comes on when the
engine is running, it indicates a system
fault.
Contact your approved dealer as soon
as possible.
?Gear change indicator light
This light comes on to signal
that an upshift is necessary.
Note: the engine speed at which the
light flashes may vary depending on
certain conditions (engine temperature,
etc.).
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
The © warning light means
you should drive very carefully to
an approved Dealer as soon as pos-
sible. If you fail to follow this recom-
mendation, you risk damaging your
vehicle.
Warning light ® re -
quires you to stop immedi -
ately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re-
start it. Contact an approved Dealer.
The presence and operation of the warning lights DEpEND ON THE EQUIpMENT AND COUNTRY.
A

JauneNoirNoir texte
1.37
ENG_UD20502_3
Tableau de bord : témoins lumineux (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
The presence and operation of the warning lights DEpEND ON THE EQUIpMENT AND COUNTRY.
W ARNING LIGHTS (4/4)
\bElectronic Stability program
(ES p) and traction control
(ASR) indicator light.
There are several reasons why the light
may come on: refer to the information
on the “Electronic stability program:
ESP” and “traction control system:
ASR” in Section 2.
™Seat belt reminder light
If the driver’s seat belt is not
fastened the light remains lit when
the vehicle is started, then when the
car reaches a speed of approximately
6 mph (10 km/h), it flashes and a beep
sounds for approximately 2 minutes.
Central display 1
™ seat belt reminder light.

¹ passenger air bag deactivation
warning light.
1

1.38
ENG_UD17412_2
Tableau de bord : afficheurs et indicateurs (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
Jaune NoirNoir texte
DISpLAYS AND INDICATORS (1/2)
Rev counter 2
(rpm x 1000)Speedometer 1
(km or miles per hour).
Overspeed buzzer
Depending on the vehicle, a beep
sounds for 10 seconds approximately
every 40 seconds as long as the ve -
hicle is travelling at over 72 miles per
hour (120 km/h).
Note: depending on the vehicle, the de-
sired speed may be programmed; con-
sult an approved Dealer.
1
The presence and operation of the display and indicators DEpENDS ON THE LEVEL OF EQUIpMENT AND THE COUNTRY.
2

JauneNoirNoir texte
1.39
ENG_UD17412_2
Tableau de bord : afficheurs et indicateurs (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
DISpLAYS AND INDICATORS (2/2)
3
The presence and operation of the display and indicators DEpENDS ON THE LEVEL OF EQUIpMENT AND THE COUNTRY.
Fuel gauge 3
The needle shows the fuel level. When
it is at the minimum level, the
L
fuel warning light comes on, accompa -
nied by a beep.
Fill up as soon as possible. Coolant temperature indicator 4
In normal use, the needle should be po-
sitioned before zone
A . Under “inten -
sive” operating conditions, the needle
may approach this zone. This is not se-
rious unless the
® warning light
comes on, accompanied by a message
on the instrument panel and a beep.
Information display 5
Depending on the vehicle, it includes:
– the time;
– the exterior temperature;
– radio information.
4
A
5

control instruments ............................... (up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
trip computer and warning system ........(up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
instrument panel messages ..................(up to the end of the DU)
1.40
ENG_UD25518_3
Ordinateur de bord : généralités (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
on-board computer
TRIp COMpUTER: general information
Selection key 1 on display A
Press button 1 to repeatedly to scroll
through the following information:
a) total mileage and trip mileage re -
corder;
b) journey parameters:
– fuel used;
– average fuel consumption;
– current fuel consumption;
– estimated range;
– distance travelled;
– average speed;
c) oil change interval;
d) cruise control and speed limiter pro-
grammed speed;
e) dashboard and instrument panel
brightness management;
f) trip log, operating faults and informa-
tion message readout.
Refer to the tables on the following
pages for display examples.
Trip computer and warning
system A
This includes the following functions:
– distance travelled;
– instrument brightness;
– journey parameters;
– information messages;
– operating fault messages (associ -
ated with the
© warning light);
– warning messages (connected to the
® warning light).
All these functions are described on the
following pages.
General reset and trip
mileage recorder reset key 1
Press and hold button 1 to reset the trip
mileage recorder. The display must be
set to “Trip mileage recorder”.
Note: resetting is automatic when
the maximum capacity of any of the
memories is exceeded.
1
A
