13B-79
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF027
CONTINUED 4
1.DEFNOTESNone.
Check the condition and connection of the injector no. 2 connectors (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 194).
Check the condition and connection of the engine management computer connector (see Wiring Diagram
Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code
120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the continuity, insulation, and the absence of interference resistance on the following connections:
•3KX between components 120 and 194,
•3CS between components 120 and 194.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check for the absence of a short circuit between the earth (injector body) and the following connections using
a multimeter in the ohmmeter setting:
•3KX of component 194
•3CS of component 194.
If the check is not correct, replace the injector no. 2, component code 194 (see MR 402 (Vel Satis ph2), MR 395
(Laguna II ph2), MR 364 (Mégane II ph2), MR 370 (Scénic II ph2), MR 405 (Espace IV ph2) Mechanical, 13B
Diesel injection, Diesel injector, Removal - Refitting and consult the section Replacement of components).
If the fault is still present, contact the Techline.

13B-80
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF028
PRESENT
OR
STOREDCYLINDER 3 INJECTOR CONTROL CIRCUIT
CO: Open circuit
CC: Short circuit
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
the fault becomes present after:
– the ignition is switched on.
– the engine is started.
Special notes:
If the fault is present:
–the EOBD (European On Board Diagnostic) warning light is lit
–the level 2 warning light is lit for CC and 1.DEF,
–the level 1 warning light is lit for CO
Use bornier Elé.1681 for all operations on the engine management computer.
After replacing an injector, run commands SC002 Enter injector codes (the IMA*
codes are read from left to right) and SC036 Reinitialise programming and follow the
procedure.
IMPORTANT:
– cylinder no.1 is located at the timing end.
– please observe the cleanliness guidelines and safety advice.
– do not disconnect the injectors with the engine running as this may damage the
engine
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
EDC16CP33_V18_DF028 / EDC16CP33_V1C_DF028 / EDC16CP33_V54_DF028 / EDC16CP33_V20_DF028 / EDC16CP33_V58_DF028 /
EDC16CP33_V5C_DF028 / EDC16CP33_V24_DF028 / EDC16CP33_V04_DF028 / EDC16CP33_V08_DF028 / EDC16CP33_V44_DF028 /
EDC16CP33_V4C_DF028 / EDC16CP33_V34_DF028 / EDC16CP33_V38_DF028 / EDC16CP33_V74_DF028 / EDC16CP33_V28_DF028 /
EDC16CP33_V62_DF028 / EDC16CP33_V26_DF028 / EDC16CP33_V60_DF028

13B-81
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
IMA*: Individual injector correction
DF028
CONTINUED 1
CONOTESNone.
Check the condition and connection of the injector no. 3 connectors (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 195).
Check the condition and connection of the engine management computer connector (see Wiring Diagram
Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code
120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the continuity of the following connections:
•3KY between components 120 and 195,
•3CT between components 120 and 195.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Measure the resistance between connections 3CT and 3KY of component 195.
If the resistance of the injector no. 3 is not between 150 kΩ < X < 210 kΩ, replace the injector no. 3, component
code 195 (see MR 402 (Vel Satis ph2), MR 395 (Laguna II ph2), MR 364 (Mégane II ph2), MR 370 (Scénic II
ph2), MR 405 (Espace IV ph2) Mechanical, 13B Diesel injection, Diesel injector, Removal - Refitting and
consult the section Replacement of components).

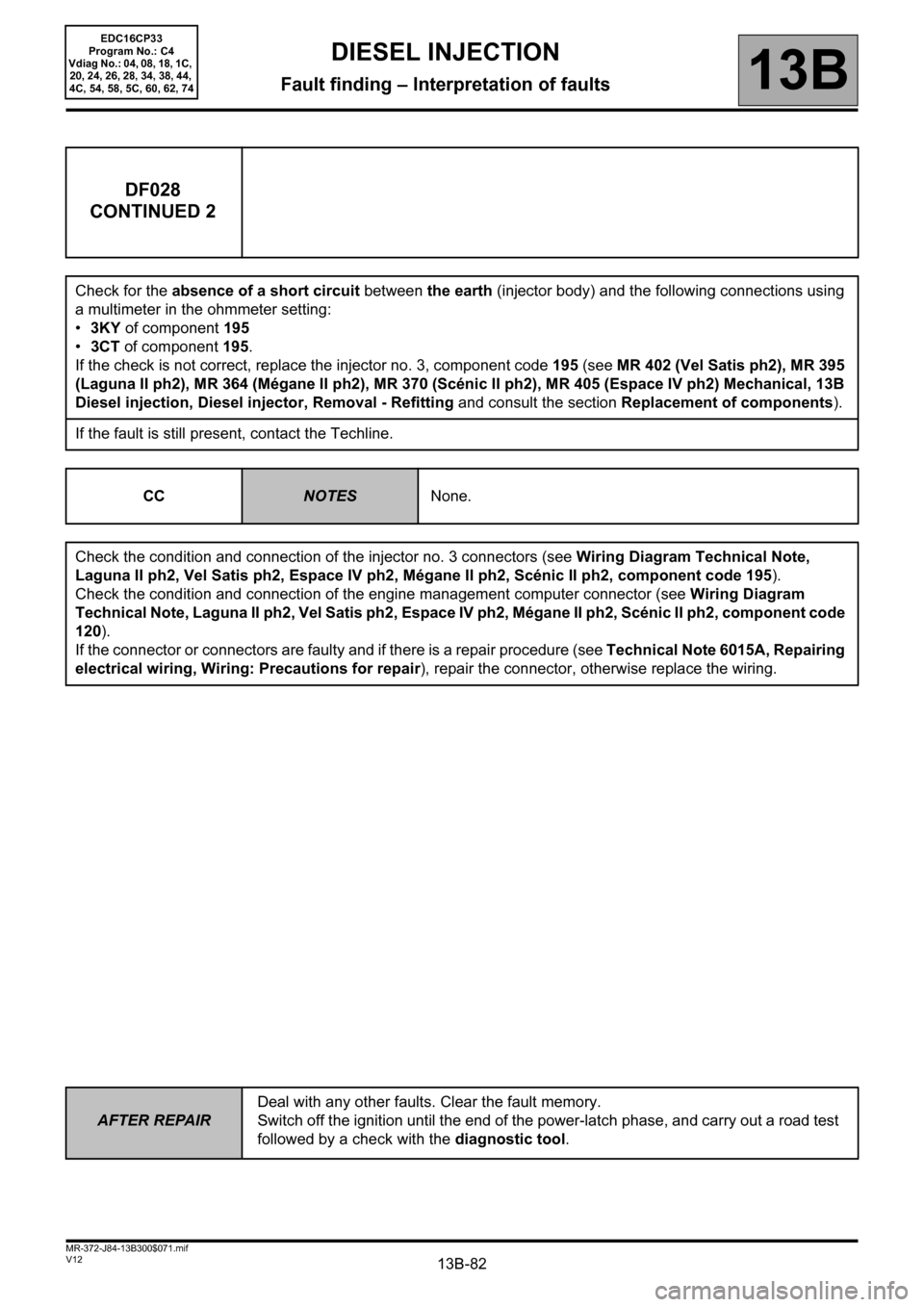

13B-82
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF028
CONTINUED 2
Check for the absence of a short circuit between the earth (injector body) and the following connections using
a multimeter in the ohmmeter setting:
•3KY of component 195
•3CT of component 195.
If the check is not correct, replace the injector no. 3, component code 195 (see MR 402 (Vel Satis ph2), MR 395
(Laguna II ph2), MR 364 (Mégane II ph2), MR 370 (Scénic II ph2), MR 405 (Espace IV ph2) Mechanical, 13B
Diesel injection, Diesel injector, Removal - Refitting and consult the section Replacement of components).
If the fault is still present, contact the Techline.
CC
NOTESNone.
Check the condition and connection of the injector no. 3 connectors (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 195).
Check the condition and connection of the engine management computer connector (see Wiring Diagram
Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code
120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.

13B-84
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF028
CONTINUED 4
1.DEFNOTESNone.
Check the condition and connection of the injector no. 3 connectors (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 195).
Check the condition and connection of the engine management computer connector (see Wiring Diagram
Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code
120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the continuity, insulation, and the absence of interference resistance on the following connections:
•3KY between components 120 and 195,
•3CT between components 120 and 195.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check for the absence of a short circuit between the earth (injector body) and the following connections using
a multimeter in the ohmmeter setting:
•3KY of component 195
•3CT of component 195.
If the check is not correct, replace the injector no. 3, component code 195 (see MR 402 (Vel Satis ph2), MR 395
(Laguna II ph2), MR 364 (Mégane II ph2), MR 370 (Scénic II ph2), MR 405 (Espace IV ph2) Mechanical, 13B
Diesel injection, Diesel injector, Removal - Refitting and consult the section Replacement of components).
If the fault is still present, contact the Techline.

13B-85
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF029
PRESENT
OR
STOREDCYLINDER 4 INJECTOR CONTROL CIRCUIT
CO: Open circuit
CC: Short circuit
1.DEF: Internal electronic fault
NOTESConditions for applying the fault finding procedure to a stored fault:
the fault becomes present after:
– the ignition is switched on.
– the engine is started.
Special notes:
If the fault is present:
–the EOBD (European On Board Diagnostic) warning light is lit
–the level 2 warning light is lit for CC and 1.DEF,
–the level 1 warning light is lit for CO
Use bornier Elé. 1681 for all operations on the engine management computer
connectors.
After replacing an injector, run commands SC002 Enter injector codes (the IMA*
codes are read from left to right) and SC036 Reinitialise programming and follow the
procedure.
IMPORTANT:
– cylinder no.1 is located at the timing end.
– please observe the cleanliness guidelines and safety advice.
– do not disconnect the injectors with the engine running as this may damage the
engine
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
EDC16CP33_V18_DF029 / EDC16CP33_V1C_DF029 / EDC16CP33_V54_DF029 / EDC16CP33_V20_DF029 / EDC16CP33_V58_DF029 /
EDC16CP33_V5C_DF029 / EDC16CP33_V24_DF029 / EDC16CP33_V04_DF029 / EDC16CP33_V08_DF029 / EDC16CP33_V44_DF029 /
EDC16CP33_V4C_DF029 / EDC16CP33_V34_DF029 / EDC16CP33_V38_DF029 / EDC16CP33_V74_DF029 / EDC16CP33_V28_DF029 /
EDC16CP33_V62_DF029 / EDC16CP33_V26_DF029 / EDC16CP33_V60_DF029

13B-86
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
IMA*: Individual injector correction
DF029
CONTINUED 1
CONOTESNone.
Check the condition and connection of the injector no. 4 connectors (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 196).
Check the condition and connection of the engine management computer connector (see Wiring Diagram
Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code
120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the continuity of the following connections:
•3KZ between components 120 and 196,
•3CU between components 120 and 196.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Measure the resistance between connections 3CU and 3KZ of component 196.
If the resistance of the injector no. 4 is not between 150 kΩ < X < 210 kΩ, replace the injector no. 4, component
code 196 (see MR 402 (Vel Satis ph2), MR 395 (Laguna II ph2), MR 364 (Mégane II ph2), MR 370 (Scénic II
ph2), MR 405 (Espace IV ph2) Mechanical, 13B Diesel injection, Diesel injector, Removal - Refitting and
consult the section Replacement of components).

13B-87
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF029
CONTINUED 2
Check for the absence of a short circuit between the earth (injector body) and the following connections using
a multimeter in the ohmmeter setting:
•3KZ of component 196
•3CU of component 196.
If the check is not correct, replace injector no. 4, component code 196 (see MR 402 (Vel Satis ph2), MR 395
(Laguna II ph2), MR 364 (Mégane II ph2), MR 370 (Scénic II ph2), MR 405 (Espace IV ph2) Mechanical, 13B
Diesel injection, Diesel injector, Removal - Refitting and consult the section Replacement of components).
If the fault is still present, contact the Techline.
CC
NOTESNone.
Check the condition and connection of the injector no. 4 connectors (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 196).
Check the condition and connection of the engine management computer connector (see Wiring Diagram
Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code
120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
