2012 RENAULT LAGUNA COUPE tailgate

starting the engine ................................ (up to the end of the DU)
engine start/stop button ........................ (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
driving ................................................... (up to the end of the DU)
stopping the engine .............................. (up to the end of the DU)
2.3
ENG_UD29087_2
Démarrage, arrêt du moteur (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_2
Starting, stopping the engine
StaRtING/StoPPING the eNGINe (1/3)
Starting the engine
Remote control ReNaUL t card
When you get into the vehicle, insert
the RENAULT card fully into the card
reader 2.
To start, press button 1. If a gear is en-
gaged, depress the clutch pedal to start
the vehicle. ReNaUL
t card in hands-free mode
The RENAULT card must be inserted
in the card reader 2 or in the detection
zone 3.
To start, depress the brake or clutch
pedal and press button 1 . If a gear
is engaged, the vehicle may only be
started by depressing the clutch pedal.
Starting the vehicle
– For vehicles with automatic gear -
boxes, set the lever to position P.
– If one of the starting conditions is not
met, the message “ Press brake +
START”, “Press clutch + START” or
“Gear leverto P” is displayed on the
instrument panel.
– In some cases, it will be necessary
to move the steering wheel while
pressing the start button 1 to assist
in unlocking the steering column;
the message “Turn steering wheel +
START” warns you of this.
Special note: if starting the engine
when the outdoor temperature is very
low (below - 10 ° C): hold down the
clutch pedal until the engine starts.
Starting with the tailgate open (in
hands-free mode)
If the card is in the boot, the vehicle
cannot be started unless there is a
hands-free RENAULT card in the pas -
senger compartment.
12
3

rear bench seat..................................... (up to the end of the DU)
rear seats functions .......................................................... (current page)
3.21
ENG_UD19873_3
Banquette arrière (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_3
luggage compartment
To open
Press button 2 and lift the tailgate.
To close
Lower the tailgate using the handles
inside the tailgate to help you.
To put the seatback back in position,
raise it then check that it is locked cor-
rectly.
Rear bench seat
REAR BENch SEAT/luggAgE coMPARTMENT
When refitting the seatback, make sure it is correctly locked in place.
If seat covers are fitted, make sure these do not prevent the seatback
latch from locking in.
Make sure that the seat belts are positioned correctly.
Reposition the headrests.
Rear bench seat
The seatbacks can be folded down in
order to transport large objects.
Pull control 1, the seatback folds down
automatically.
1
In all situations, lower the rear head-
rests (refer to the information on the
“Rear headrests” in Section 1).
2
When moving the rear
bench seat, check that
the bench seat anchor -
age points are clean (they
should be free from grit, cloths or
any other item which may prevent
the bench seat from locking se -
curely).

storage compartments .......................... (up to the end of the DU)
tailgate .................................................. (up to the end of the DU)
3.22
ENG_UD22221_3
Rangements, aménagements coffre à bagages (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_3

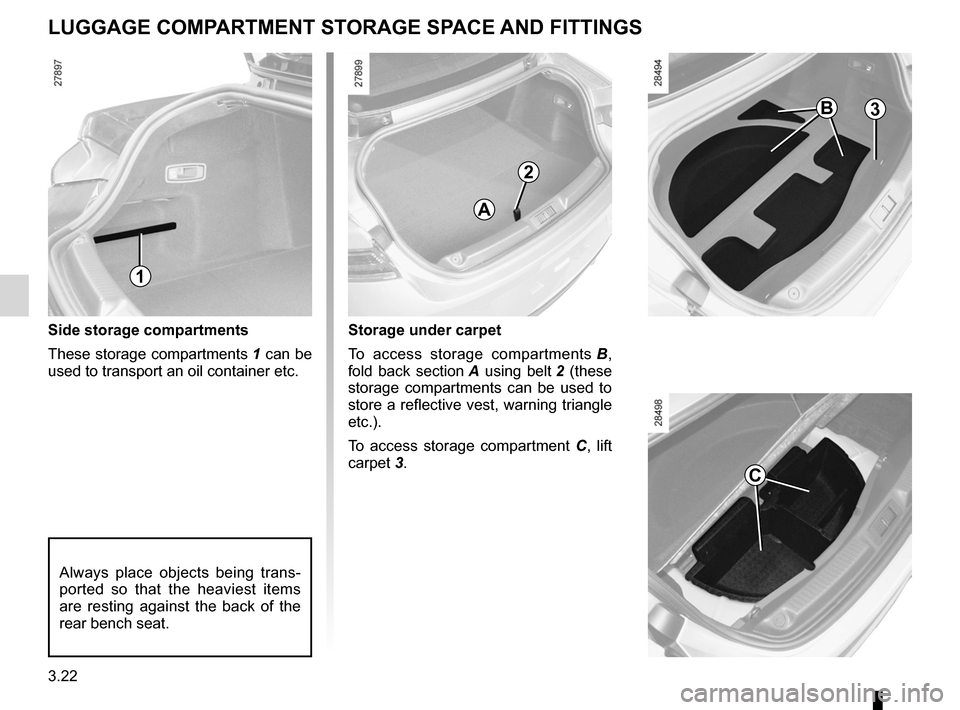

Luggage compartment storage space and fittings
Side storage compartments
These storage compartments 1 can be
used to transport an oil container etc.
luggAgE coMPARTMENT ST oRAgE SPAcE AND FITTINgS
1
Storage under carpet
To access storage compartments B ,
fold back section A using belt 2 (these
storage compartments can be used to
store a reflective vest, warning triangle
etc.).
To access storage compartment C , lift
carpet 3.
A
2
B3
Always place objects being trans -
ported so that the heaviest items
are resting against the back of the
rear bench seat.
c

7.1
FRA_UD29933_4
Index (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_7
AlphAbeticAl index (1/5)
A
ABS .............................................................. 1.49, 2.22 → 2.26
accessories........................................................................ 5.24
accessories socket ............................................................ 3.19
additional methods of restraint .....................1.23 → 1.26, 1.29
side protection ............................................................. 1.28
to the rear seat belts ........................................ 1.23 → 1.27
adjusting your driving position .................................. 1.15, 1.20
advice on antipollution ........................................... 2.15 → 2.17
air bag ........................................................... 1.23 → 1.29, 1.48
activating the front passenger air bags ........................ 1.40
deactivating the front passenger air bags .................... 1.38
air conditioning ........................................................ 3.4 → 3.10
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.15 → 6.19
anti-corrosion protection .................................................... 4.14
anti-lock braking system: ABS ...............................2.22 → 2.26
antipollution advice .......................................................................... 2.15
armrest: front .............................................................................. 3.16
rear .............................................................................. 3.17
ashtray ............................................................................... 3.19
ASR (traction control) ............................................ 2.22 → 2.26
automatic gearbox (use) ........................................ 2.37 → 2.39
automatic gearbox selector lever ...........................2.37 → 2.39
b
battery ............................................................ 1.47, 4.12 – 4.13
troubleshooting ................................................. 5.21 – 5.22
bonnet ......................................................................... 4.2 – 4.3
brake fluid ............................................................................ 4.9
bulbs changing .......................................................... 5.14 → 5.16c
catalytic converter
..................................................... 2.9 – 2.10
central door locking ........................................ 1.8, 1.12 → 1.14
changing a bulb ..................................................... 5.14 → 5.16
changing a wheel ...................................................... 5.9 – 5.10
changing gear ............................................... 2.11, 2.37 → 2.39
child restraint/seat ............................. 1.30 – 1.31, 1.33 → 1.37
child safety .........1.2, 1.6, 1.11, 1.30 – 1.31, 1.33 → 1.37, 3.11
child seats .......................................... 1.30 – 1.31, 1.33 → 1.37
children ................................................................... 1.30 – 1.31
children (safety) ........................................ 1.2, 1.6, 3.11 – 3.12
cigar lighter ........................................................................ 3.19
cleaning: inside the vehicle .............................................. 4.16 – 4.17
clock .................................................................................. 1.62
closing the doors ................................................... 1.11 → 1.13
control instruments ............................ 1.46 → 1.49, 1.51 – 1.52
controls .................................................................. 1.42 → 1.45
coolant ........................................................................ 1.50, 4.8
courtesy light ...................................... 3.13 – 3.14, 5.17 – 5.18
cruise control ................................................ 1.48, 2.27 → 2.33
cruise control-speed limiter.................................... 2.27 → 2.33
customised vehicle settings .............................................. 1.61
customising the vehicle settings ....................................... 1.61
d
dashboard .............................................................. 1.42 → 1.45
daytime running lights ........................................................ 1.66
deadlocking the doors ......................................................... 1.8
dimensions .......................................................................... 6.5
display ................................................................... 1.46 → 1.50
doors .............................................................. 1.10 – 1.11, 1.14
doors/tailgate ....................................................................... 1.8
driver’s position ..................................................... 1.42 → 1.49
driving .............................. 2.2 → 2.5, 2.9 → 2.17, 2.19 → 2.39

7.4
FRA_UD29933_4
Index (X91 - D91 - Renault)
ENG_NU_939-3_D91_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (4/5)
rear seats
functions ...................................................................... 3.21
rear view mirrors ..................................................... 1.63 – 1.64
RENAULT ANTI-INTRUDER DEVICE (RAID) ...................1.14
RENAULT card battery .......................................................................... 5.23
use ....................................................................... 1.2 → 1.9
RENAULT card battery ...................................................... 5.23
replacement parts ................................................................ 6.8
reverse gear selecting .................................................. 2.11, 2.37 → 2.39
reversing sensor .................................................... 2.34 → 2.36
roof bars ................................................................. 3.23 – 3.24
running in ............................................................................. 2.2
S
seat belt pretensioners .......................................... 1.23 → 1.26
seat belts ............................................. 1.20 → 1.26, 1.28, 1.48
see-me-home lighting ........................................................ 1.67
service sheets .......................................................... 6.9 → 6.14
side protection devices ...................................................... 1.28
signals and lights ................................................... 1.66 → 1.68
special features of diesel versions .....................................2.10
special features of petrol vehicles ....................................... 2.9
speed limiter ................................................. 1.48, 2.27 → 2.29
starting the engine ..................................................... 2.3 → 2.8
steering wheel adjustment ................................................................... 1.41
Stop & Start ............................................................... 2.6 → 2.8
Stop & Start function .................................................. 2.6 → 2.8
stopping the engine ................................................... 2.3 → 2.5
storage compartment ............................................. 3.15 → 3.18
storage compartments .................................. 3.15 → 3.18, 3.22
switching on the vehicle ignition .......................................... 2.4t
tailgate
............................................................................... 3.22
tanks and reservoirs brake fluid ...................................................................... 4.9
coolant ........................................................................... 4.8
tanks and reservoirs: windscreen washer ...................................................... 4.10
technical specifications .............................................. 6.2 → 6.8
telephone ........................................................................... 3.25
temperature regulation .............................................. 3.6 → 3.9
tool kit .................................................................................. 5.8
towing breakdown ........................................................ 5.26 – 5.27
towing equipment .............................................. 3.23 – 3.24
towing a caravan ............................................. 3.23 – 3.24, 6.7
towing equipment fitting ................................................................. 3.23 – 3.24
towing hitch ...................................................... 5.8, 5.26 – 5.27
towing rings ................................................... 1.31, 3.23 – 3.24
towing weights ..................................................................... 6.7
traction control: ASR .............................................. 2.22 → 2.26
traction control system: ASR .................................2.22 → 2.26
transporting children .......................... 1.30 – 1.31, 1.33 → 1.37
transporting objects in the luggage compartment ............................. 3.23 – 3.24
trip computer and warning system ...1.46 → 1.49, 1.51 → 1.60
tyre inflation kit ........................................................... 5.3 → 5.7
tyre pressure ........................................ 2.19 → 2.21, 4.11, 5.12
tyre pressure monitor ............................................. 2.19 → 2.21
tyre pressures .................................................................... 4.11
tyres ........................................ 2.19 → 2.21, 4.11, 5.11 → 5.13
U
unlocking the doors ................................................ 1.12 – 1.13
