Poste de conduite direction gauche (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
dRIvINg pOsITION: LEfT -hANd dRIvE (2/2)
The equipment fitted, described below, dEpENds ON ThE vERsION ANd cOUNTRY.
9 Display (depending on the vehicle)
of time, temperature, radio informa -
tion, navigation system information,
etc.
10 Hazard warning lights switch.
11 Central door locking switch.
12 Passenger seat belt indicator light.
13 Location for passenger air bag.
14 Vents.
15 Glovebox.
16 Heating and ventilation controls.
17 Audio equipment.
18 Cigar lighter.
19 Gear lever.
20 Navigation system.
21 Manual or electronic parking brake. 22
Switch for:
– Hill Descent Control (HDC);
– Cruise control and speed limiter.
23 Card reader.
24 Ignition switch.
25 Front passenger airbag deactivation
warning light.
26 Cruise control/speed limiter con -
trols.
27 Tailgate release.
28 Bonnet release.
29 Switches:
– Headlight adjustment control knob;
– Instrument panel and dashboard
brightness control knob;
– Parking distance control deactivation
switch;
– Electronic stability control deactiva -
tion switch.
1
Vents
2 Stalk for:
– Direction indicator lights;
– Exterior lights;
– Front fog lights;
– Rear fog light.
3 Location of driver’s air bag and horn.
4 Instrument panel.
5 Stalk for:
– Windscreen and rear screen wash/
wiper;
– Trip computer and warning system
information readout control.
6 Centre air vents.
7 Seat belt unfastened and passenger
air bag deactivated warning lights.
8 Windscreen demister outlet.

JauneNoirNoir texte
1.43
ENG_UD27145_6
Poste de conduite direction droite (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
dRIvINg pOsITION: RIghT -hANd dRIvE (2/2)
The fittings described below dEpENd ON ThE vEhIcLE EQUIpMENT ANd cOUNTRY.
11 Instrument panel.
12 Location of driver’s air bag and horn.
13 Stalk for:
– Windscreen and rear screen wash/
wiper;
– Trip computer and warning system
information readout control;
14 Vents.
15 Switches:
– Headlight adjustment control knob;
– Instrument panel and dashboard
brightness control knob;
– Parking distance control deactivation
switch;
– Electronic stability control deactiva -
tion switch.
16 Bonnet release.
17 Tailgate release. 18
Cruise control/speed limiter con -
trols.
19 Passenger seat belt indicator light.
20 Heating and ventilation controls.
21 Ignition switch.
22 Card reader.
23 Switch for:
– Hill Descent Control (HDC);
– Cruise control and speed limiter.
24 Navigation system.
25 Manual or electronic parking brake.
26 Gear lever.
27 Cigar lighter.
28 Audio equipment.
29 Glovebox.
1
Vents
2 Location for passenger air bag.
3 Front passenger airbag deactivation
warning light.
4 Central door locking switch.
5 Hazard warning lights switch.
6 Seat belt unfastened and passenger
air bag deactivated warning lights.
7 Display (depending on the vehicle)
of time, temperature, radio informa -
tion, navigation system information,
etc.
8 Windscreen demister outlet.
9 Centre air vents.
10 Stalk for:
– Direction indicator lights;
– Exterior lights;
– Front fog lights;
– Rear fog light.

JauneNoirNoir texte
1.45
ENG_UD23307_5
Témoins lumineux (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
W ARNINg LIghTs (2/4)
ÚBattery charge warning light
If the light comes on accompa -
nied by the
® warning light, this in-
dicates that the electrical circuit is over-
charged or undercharged.
ÀOil pressure warning light
If it comes on when you are
driving accompanied by the
®
warning light and a beep, it is essential
to stop and switch off the ignition.
Check the oil level (refer to the informa-
tion on the “Engine oil level” in Section
4). If the level is normal, the light has
come on for another reason: contact an
authorised dealer.
A
®sTOp light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It comes on with
other warning lights and/or messages,
and is accompanied by a beep.
It requires you to stop immediately, for
your own safety, as soon as traffic con-
ditions allow. Switch off the engine and
do not restart it.
Contact an approved Dealer.
DElectronic parking brake
and brake circuit fault warn-
ing light
If it lights up while braking, accompa -
nied by the
® warning light, this in-
dicates a low level in one of the circuits
or a fault in the braking system.
Stop as soon as traffic conditions allow
and contact an authorised dealer.©Warning light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It can light up in
conjunction with other indicator lights
and/or messages on the instrument
panel.
It means you should drive very care-
fully to an authorised dealer as soon
as possible. If you fail to follow this rec-
ommendation, you risk damaging your
vehicle. The presence and operation of the warning lights dEpENd ON ThE EQUIpMENT ANd cOUNTRY.

JauneNoirNoir texte
1.47
ENG_UD23307_5
Témoins lumineux (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
W ARNINg LIghTs (4/4)
™front seat belt reminder
warning light
This comes on when the engine is
started then, if the driver’s or front pas-
senger’s seat belt (if this seat is occu-
pied) is not fastened and the vehicle
has reached approximately 12 mph
(20 km/ h), it flashes and a bleep sounds
for around 120 seconds.
Note: an object placed on the passen-
ger seat base may activate the warning
light in some cases.
\bdriver correction devices in-
dicator light
Refer to information on “Driver correc -
tion devices” in Section 2.
xAnti-lock braking warning
light
This comes on when the ignition is
switched on and goes out after a few
seconds. If it does not go out after the
ignition is switched on, or lights up
when driving, there is a fault with the
ABS. The braking system then oper -
ates as it would on a vehicle without
the ABS system: Contact an authorised
dealer as soon as possible.
}h andbrake “on” or elec -
tronic parking brake warn -
ing light
Refer to the information on the
“Handbrake” or “Electronic parking
brake” in Section 2.
uside light tell-tale light
áh eadlight main beam tell -
tale light
kd ipped beam headlight tell -
tale light
gfront fog light tell-tale light
fRear fog light tell-tale light
˜Right-hand direction indica -
tor tell-tale light
–Left-hand direction indicator
tell-tale light
The presence and operation of the warning lights dEpENd ON ThE EQUIpMENT ANd cOUNTRY.

JauneNoirNoir texte
1.57
ENG_UD27277_8
Ordinateur de bord (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Operating fault messages
These appear with the © warning light and mean that you should drive very carefully to an authorised dealer as
soon as possible. If you fail to follow this recommendation, you risk damaging your vehicle.
They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The
©
warning light stays on. Examples of operating fault messages are given in the following pages.
Examples of messages Interpretation of messages
“check vehicle” Indicates a fault in one of the pedal sensors, battery management system or oil
level sensor.
“check power steering” Indicates a fault in the power-assisted steering system.
“check parking brake” Indicates a fault on the parking brake.
“check exhaust emission” Indicates a fault in the vehicle’s particle filter system.
“check 4Wd” Indicates a fault in the vehicle’s all-wheel drive (4WD) transmission system.
“check airbag” Indicates a fault in the air bag system (air bag, pretensioners, etc.).
TRIp cOMpUTER ANd WARNINg sYsTEM (8/10)

1.58
ENG_UD27277_8
Ordinateur de bord (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Jaune NoirNoir texte
TRIp cOMpUTER ANd WARNINg sYsTEM (9/10)
Warning messages
These appear with the ® warning light and require you to stop immediately, for your own safety, as soon as traffic
conditions allow. stop your engine and do not restart it. contact an approved dealer.
Examples of warning messages are given in the following pages. Note: the messages appear on the display either individually
or alternately (when there are several messages to be displayed), and may be accompanied by a warning light and/or a beep.
Examples of messages Interpretation of messages
“Injection system fault” Indicates that the vehicle has a serious engine fault.
“Oil pressure fault” Indicates an engine oil pressure fault.
“Brake system fault ” Indicates a fault in the braking system.
“Battery charging fault” Indicates a fault with the vehicle’s battery charging circuit.
“power steering fault” Indicates a fault in the power-assisted steering system.
“parking brake fault” Indicates a fault in the parking brake system.

JauneNoirNoir texte
1.59
ENG_UD27277_8
Ordinateur de bord (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
TRIp cOMpUTER ANd WARNINg sYsTEM (10/10)
Warning messages
These appear with the ® warning light and require you to stop immediately, for your own safety, as soon as traffic
conditions allow. stop your engine and do not restart it. contact an approved dealer.
Examples of warning messages are given in the following pages. Note: the messages appear on the display either individually
or alternately (when there are several messages to be displayed), and may be accompanied by a warning light and/or a beep.
Examples of messages Interpretation of messages
“stop vehicle” Indicates an electronic parking brake fault. Apply the electronic parking brake
manually and ensure that the vehicle is immobilised using a chock.
“Engine overheating ” Indicates that the engine is overheating.
“puncture” Indicates a puncture affecting the tyre shown on the display.
“Underinflation critical ”Indicates major under-inflation of the tyre shown on the display .
“Risk of steering locking ”Indicates a fault in the steering.

gear lever.............................................. (up to the end of the DU)
changing gear ....................................... (up to the end of the DU)
reverse gear selecting .......................................... (up to the end of the DU)
driving ................................................... (up to the end of the DU)
handbrake ............................................. (up to the end of the DU)

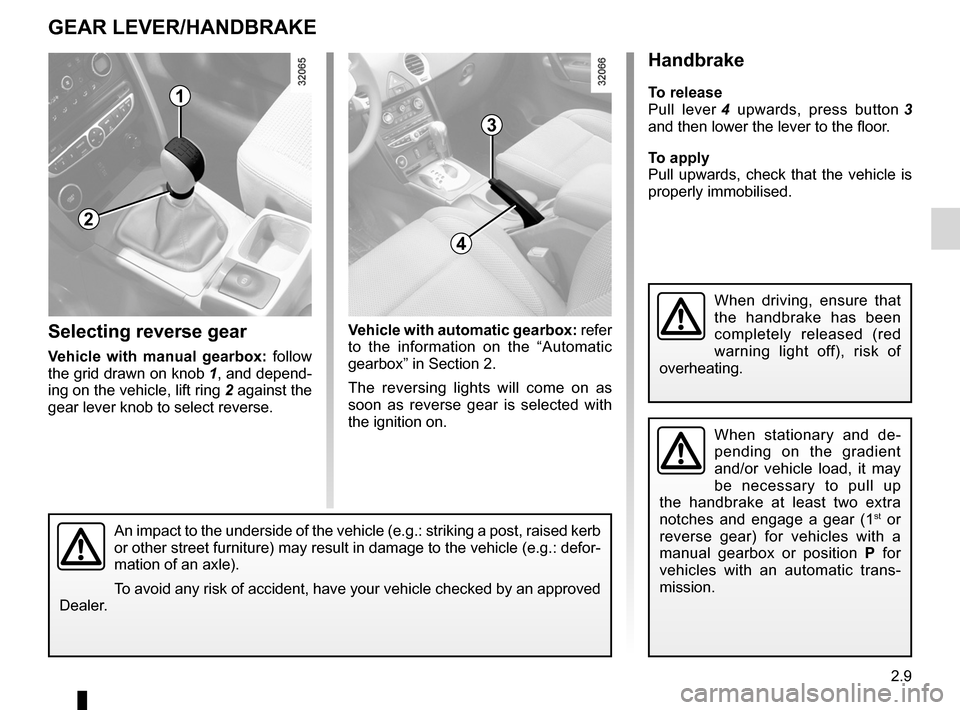

2.9
ENG_UD23642_4
Levier de vitesses/Frein à main (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_2
Gear lever
Handbrake
GEAR LEvER/HANDBRAKE
1
3
Selecting reverse gear
v ehicle with manual gearbox: follow
the grid drawn on knob 1, and depend -
ing on the vehicle, lift ring 2 against the
gear lever knob to select reverse.
Handbrake
To release
Pull lever 4 upwards, press button 3
and then lower the lever to the floor.
To apply
Pull upwards, check that the vehicle is
properly immobilised.
When stationary and de -
pending on the gradient
and/or vehicle load, it may
be necessary to pull up
the handbrake at least two extra
notches and engage a gear (1
st or
reverse gear) for vehicles with a
manual gearbox or position P for
vehicles with an automatic trans -
mission.
4
2
When driving, ensure that
the handbrake has been
completely released (red
warning light off), risk of
overheating.
v ehicle with automatic gearbox: refer
to the information on the “Automatic
gearbox” in Section 2.
The reversing lights will come on as
soon as reverse gear is selected with
the ignition on.
An impact to the underside of the vehicle (e.g.: striking a post, raised kerb
or other street furniture) may result in damage to the vehicle (e.g.: defor-
mation of an axle).
To avoid any risk of accident, have your vehicle checked by an approved
Dealer.
