Fuses
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap -
proved Dealer.

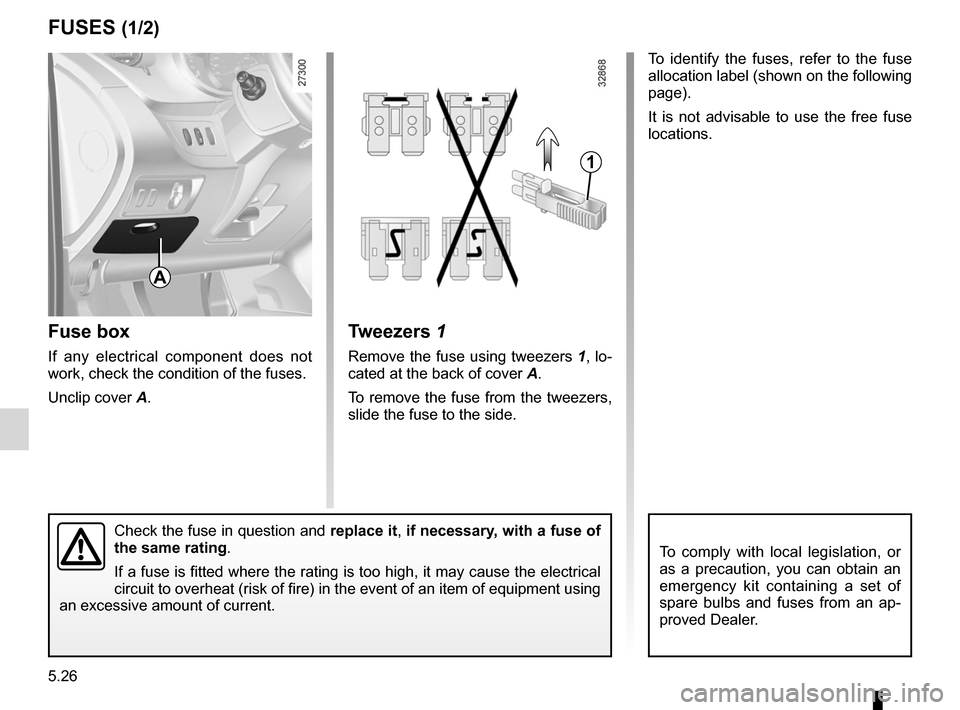

Fuses (1/2)
Fuse box
If any electrical component does not
work, check the condition of the fuses.
Unclip cover A. To identify the fuses, refer to the fuse
allocation label (shown on the following
page).
It is not advisable to use the free fuse
locations.
Check the fuse in question and
replace it, if necessary, with a fuse of
the same rating.
If a fuse is fitted where the rating is too high, it may cause the electrical
circuit to overheat (risk of fire) in the event of an item of equipment using
an excessive amount of current.
a
1
t weezers 1
Remove the fuse using tweezers 1, lo-
cated at the back of cover A.
To remove the fuse from the tweezers,
slide the fuse to the side.
