2012 RENAULT CLIO SPORT TOURER trip computer

1.68
ENG_UD26845_2
Ordinateur de bord : paramètres de voyage (X85 - B85 - C85 - S85 - K\
85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte
ON-BOARD COMPUTER: trip settings (3/4)
Examples of display selections
by pressing button 2 Interpreting the display selected
Display A Display Bc) Distance before service
Distance remaining until the next service.
There are several scenarios:
–
remaining mileage less than 900 miles (1,500 km) or next serv-
ice due within two months. When the display selected is “mile-
age before service”, symbol
Ê appears on display A . The
message “Service due” appears on display B.
– mileage before service equal to 0 miles/km or date of serviced
reached. When the display selected is “mileage before service”,
symbol
Ê flashes on display A accompanied by warning light
©. The message “Service vehicle” is shown on display B
accompanied by the symbol
Ê and warning light ©.
12000 SERVICE DUE IN

KMÊ12000 KM
NB: depending on the vehicle, the mileage before service changes according to the driving style (frequent driving at low speed,
door-to-door journeys, extensive use at idle speed, towing a trailer etc.). The distance remaining until the next service can there-
fore decrease more quickly in some cases than the actual distance travel\
led.
Resetting the display after the service in accordance with the maintenan\
ce schedule.
The mileage before service must only be reset after a service which complies with the recommendations in the maintenance
schedule.
If you decide to change the oil more frequently, do not reset this data each time the oil is changed to avoid exceeding the replace -
ment intervals for other parts in the maintenance schedule.
Special note: to reset the distance before service, press and hold one of the display reset buttons for approximately 10 seconds
until the display shows the mileage permanently.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

JauneNoirNoir texte
1.69
ENG_UD26845_2
Ordinateur de bord : paramètres de voyage (X85 - B85 - C85 - S85 - K\
85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
ON-BOARD COMPUTER: trip settings (4/4)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of display selections
by pressing button 2
Interpreting the display selected
Display A Display B
70 SPEED LIMITER
d) Cruise control/speed limiter programmed speed (depend -
ing on vehicle) Refer to the information on the “Cruise control - Speed limiter”
in Section 2.
KM
70 KM/H
CRUISE CONTROL 70 KM/H
AUTO LIGHTS
DEACTIVATED
e) On-board log Successive display:
– information messages (depending on the vehicle: auto -
matic headlights, etc.),
– of operating fault messages (check the injection system,
etc.).

1.70
ENG_UD24931_1
Ordinateur de bord : messages d’information (X85 - B85 - C85 - S85 -\
K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1

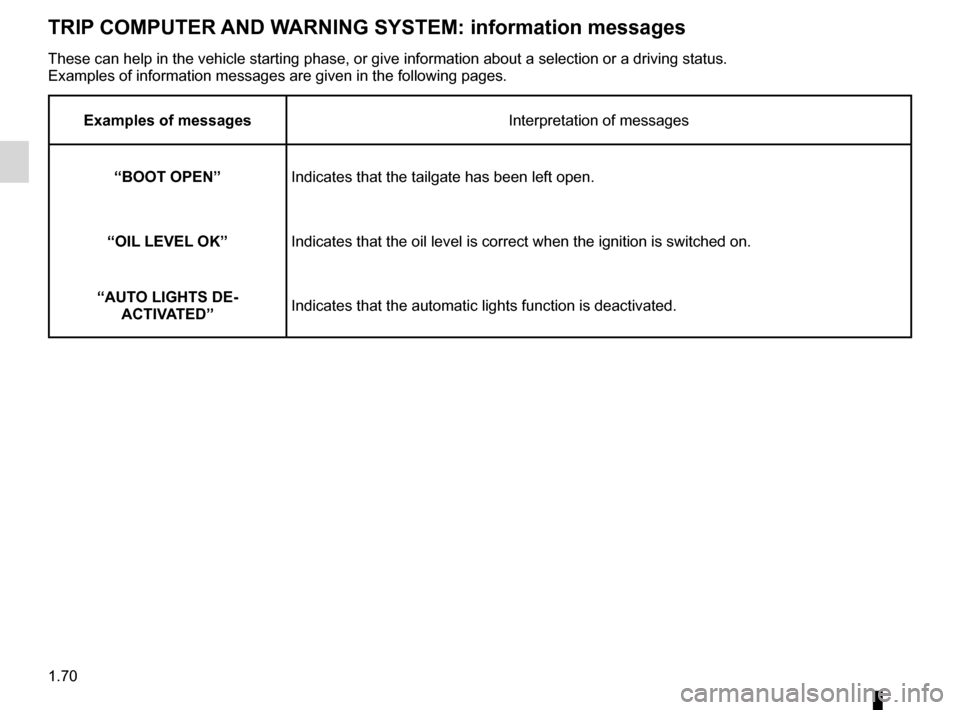

TRIP COMPUTER AND WARNING SYSTEM: information messages
These can help in the vehicle starting phase, or give information about \
a selection or a driving status.
Examples of information messages are given in the following pages.
Examples of messages Interpretation of messages
“BOOT OPEN ”Indicates that the tailgate has been left open.
“OIL LEVEL OK” Indicates that the oil level is correct when the ignition is switched on\
.
“AUTO LIGHTS DE- ACTIVATED” Indicates that the automatic lights function is deactivated.

1.71
ENG_UD24930_1
Ordinateur de bord : messages d’anomalies de fonctionnement (X85 - \
B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
TRIP COMPUTER AND WARNING SYSTEM: operating fault messages
These appear with the © warning light and mean that you should drive very carefully to an authorised dealer as
soon as possible. If you fail to follow this recommendation, you risk da\
maging your vehicle.
They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The
©
warning light stays on. Examples of operating fault messages are given i\
n the following pages.
Examples of messages Interpretation of messages
« CHECK ESP »Indicates a fault in the ESP system. Please refer to the information on the “Electronic
Stability Program: ESP” in Section 2.
« CHECK FUEL FILTER » Indicates that there is water present in the diesel fuel.
Contact an approved dealer as soon as possible.
« ELECTRONIC FAULT » Indicates a fault in the electronic management of your vehicle.
Contact an approved dealer as soon as possible.
« CHECK GEARBOX »Indicates that a fault has occurred in the gearbox; contact an approved dealer as soon as
possible.
« CHECK AUTO LIGHTS »Indicates an automatic lighting operating fault; contact an approved dea\
ler.
« CHECK STEERING » Indicates a power-assisted steering system operating fault.

1.72
ENG_UD24929_1
Ordinateur de bord : messages d’alerte (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_1
TRIP COMPUTER AND WARNING SYSTEM: warning message
These appear with the ® warning light and require you to stop immediately, for your own safety, as soon as traffic
conditions allow. Stop your engine and do not restart it. Contact an approved Dealer.
Examples of warning messages are given in the following pages. Note: the messages appear on the display either individually
or alternately (when there are several messages to be displayed), and \
may be accompanied by a warning light and/or a beep.
Examples of messages Interpretation of messages
« INJECTION FAULT » Indicates that the vehicle has a serious engine fault.
« ENGINE OVERHEATING » Indicates that the engine is overheating.
« LOW BATTERY »Indicates a fault with the battery charging circuit.
« STEERING FAULT » Indicates a fault in the vehicle’s power-assisted steering.
« GEARBOX OVERHEATING » Indicates that the gearbox is overheating.
« BRAKING FAULT » Indicates a fault in the braking circuit.
« OIL PRESSURE FAULT » Indicates an oil pressure fault.

maintenance:mechanical ...................................... (up to the end of the DU)
engine oil level ...................................... (up to the end of the DU)
engine oil .............................................. (up to the end of the DU)
4.4
ENG_UD22490_3
Niveau huile moteur : généralités (X85 - B85 - C85 - S85 - K85\
- Renault)
ENG_NU_853-8_BCSK85_Renault_4
Jaune NoirNoir texte

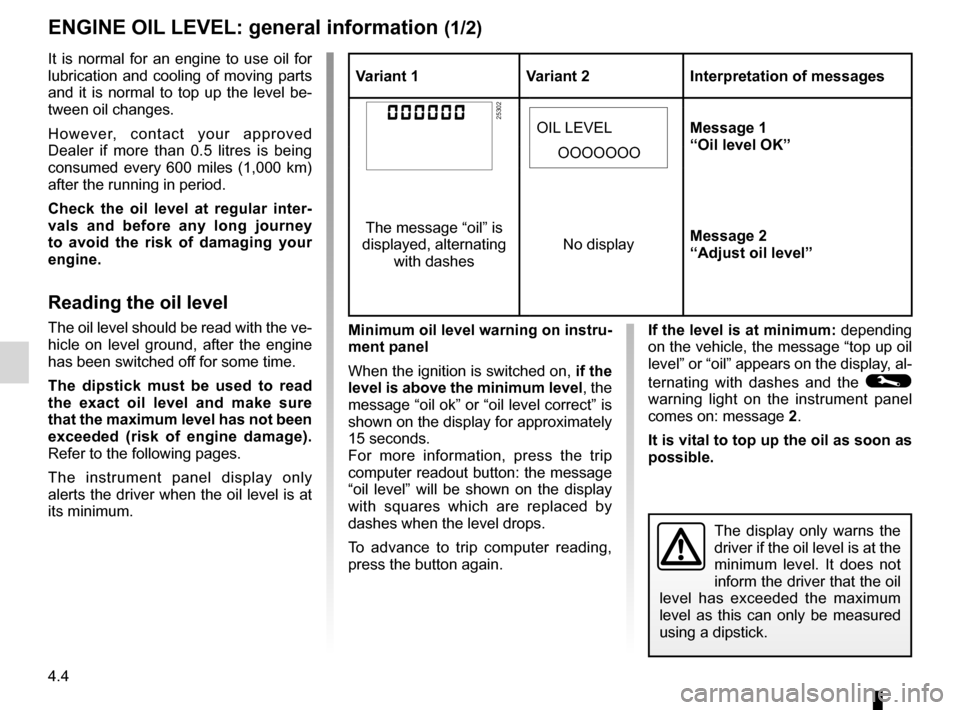

Variant 1 Variant 2Interpretation of messages
25302Message 1
“Oil level OK”
OIL LEVEL
OOOOOOO
The message “oil” is
displayed, alternating with dashes No display
Message 2
“Adjust oil level”
If the level is at minimum: depending
on the vehicle, the message “top up oil
level” or “oil” appears on the display, al-
ternating with dashes and the
©
warning light on the instrument panel
comes on: message 2.
It is vital to top up the oil as soon as
possible.
Engine oil level: general information
The display only warns the
driver if the oil level is at the
minimum level. It does not
inform the driver that the oil
level has exceeded the maximum
level as this can only be measured
using a dipstick.
Minimum oil level warning on instru-
ment panel
When the ignition is switched on, if the
level is above the minimum level, the
message “oil ok” or “oil level correct” is
shown on the display for approximately
15 seconds.
For more information, press the trip
computer readout button: the message
“oil level” will be shown on the display
with squares which are replaced by
dashes when the level drops.
To advance to trip computer reading,
press the button again.
It is normal for an engine to use oil for
lubrication and cooling of moving parts
and it is normal to top up the level be-
tween oil changes.
However, contact your approved
Dealer if more than 0.5 litres is being
consumed every 600 miles (1,000 km)
after the running in period.
Check the oil level at regular inter
-
vals and before any long journey
to avoid the risk of damaging your
engine.
Reading the oil level
The oil level should be read with the ve-
hicle on level ground, after the engine
has been switched off for some time.
The dipstick must be used to read
the exact oil level and make sure
that the maximum level has not been
exceeded (risk of engine damage).
Refer to the following pages.
The instrument panel display only
alerts the driver when the oil level is at
its minimum.
ENGINE OIL LEVEL: general information (1/2)

7.4
FRA_UD27585_9
Index (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (4/5)
use ................................................... 1.7 → 1.12, 2.5 → 2.8
RENAULT card battery ...................................................... 5.33
replacement parts ................................................................ 6.8
reverse gear selecting ....................................................................... 2.12
reversing sensor ..................................................... 2.34 – 2.35
roof bars ................................................................. 3.40 – 3.41
roof rack roof bars ............................................................ 3.40 – 3.41
running in ........................................................................\
..... 2.2
S
seat belt pretensioners front seat belt ...................................................1.29 → 1.32
seat belts ............................................................... 1.25 → 1.28
service sheets .......................................................... 6.9 → 6.14
signals and lights .......................................... 1.51, 1.77 → 1.82
speakers location ........................................................................ 5.34
special features of diesel vehicles with particle filter ......... 2.11
special features of diesel versions .....................................2.10
special features of petrol vehicles ....................................... 2.9
speed limiter .......................................................... 2.24 → 2.26
starting the engine ..................................................... 2.3 → 2.7
steering wheel adjustment ................................................................... 1.24
stopping the engine ................................................... 2.4 → 2.8
storage compartment ............................................. 3.24 → 3.27
storage compartments ........................................... 3.24 → 3.27
sun visor ........................................................................\
.... 3.22
sunroof .................................................................... 3.20 – 3.21
switching on the vehicle ignition ................................... 2.3, 2.7
t
tailgate .......................................................... 3.32, 3.35 → 3.37tanks and reservoirs
brake fluid ...................................................................... 4.9
coolant ........................................................................... 4.8
tanks and reservoirs: windscreen washer ...................................................... 4.10
technical specifications .............................................. 6.4 → 6.8
temperature regulation ............................................ 3.4 → 3.16
tool kit ........................................................................\
.......... 5.9
towing breakdown .......................................................5.38 → 5.40
towing a caravan .......................................................... 5.40
towing equipment ......................................................... 5.40
towing a caravan ................................................................. 6.7
towing equipment fitting ............................................................................ 5.40
towing hitch ..................................................... 5.9, 5.38 → 5.40
towing rings ............................................................ 3.35 – 3.36
towing weights ..................................................................... 6.7
traction control: ASR ............................................... 2.21 – 2.22
transporting children .......................... 1.36 – 1.37, 1.39 → 1.48
transporting objects in the luggage compartment ........................................ 3.37
luggage net ....................................................... 3.38 – 3.39
on the roof ...................................................................... 6.7
trims ........................................................................\
........... 5.10
trip computer and warning system .........................1.63 → 1.65
tyre inflation kit ........................................................... 5.6 → 5.8
tyre pressure ...................................................................... 5.14
tyres ....................................................................... 5.13 → 5.15
U
unlocking the doors ............................................... 1.15 → 1.17
V
variable power-assisted steering ....................................... 1.24
ventilation ................................................................ 3.2 → 3.16
