2012 RENAULT CLIO check engine

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.69
ENG_UD24936_1
Ordinateur de bord : paramètres de voyage (X85 - B85 - C85 - S85 - K\
85 - Renault)
ENG_NU_853-7_BCSK85_Renault_1
ON-BOARD COMPUTER: trip settings (4/4)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of display selections
by pressing button 2
Interpreting the display selected
Display A Display B
70 SPEED LIMITER
d) Cruise control/speed limiter programmed speed (depend -
ing on vehicle) Refer to the information on the “Cruise control - Speed limiter”
in Section 2.
KM
70 KM/H
CRUISE CONTROL 70 KM/H
AUTO LIGHTS
DEACTIVATED
e) On-board log Successive display:
– information messages (depending on the vehicle: auto -
matic headlights, etc.),
– of operating fault messages (check the injection system,
etc.).

Downloaded from www.Manualslib.com manuals search engine 1.71
ENG_UD24930_1
Ordinateur de bord : messages d’anomalies de fonctionnement (X85 - \
B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_1

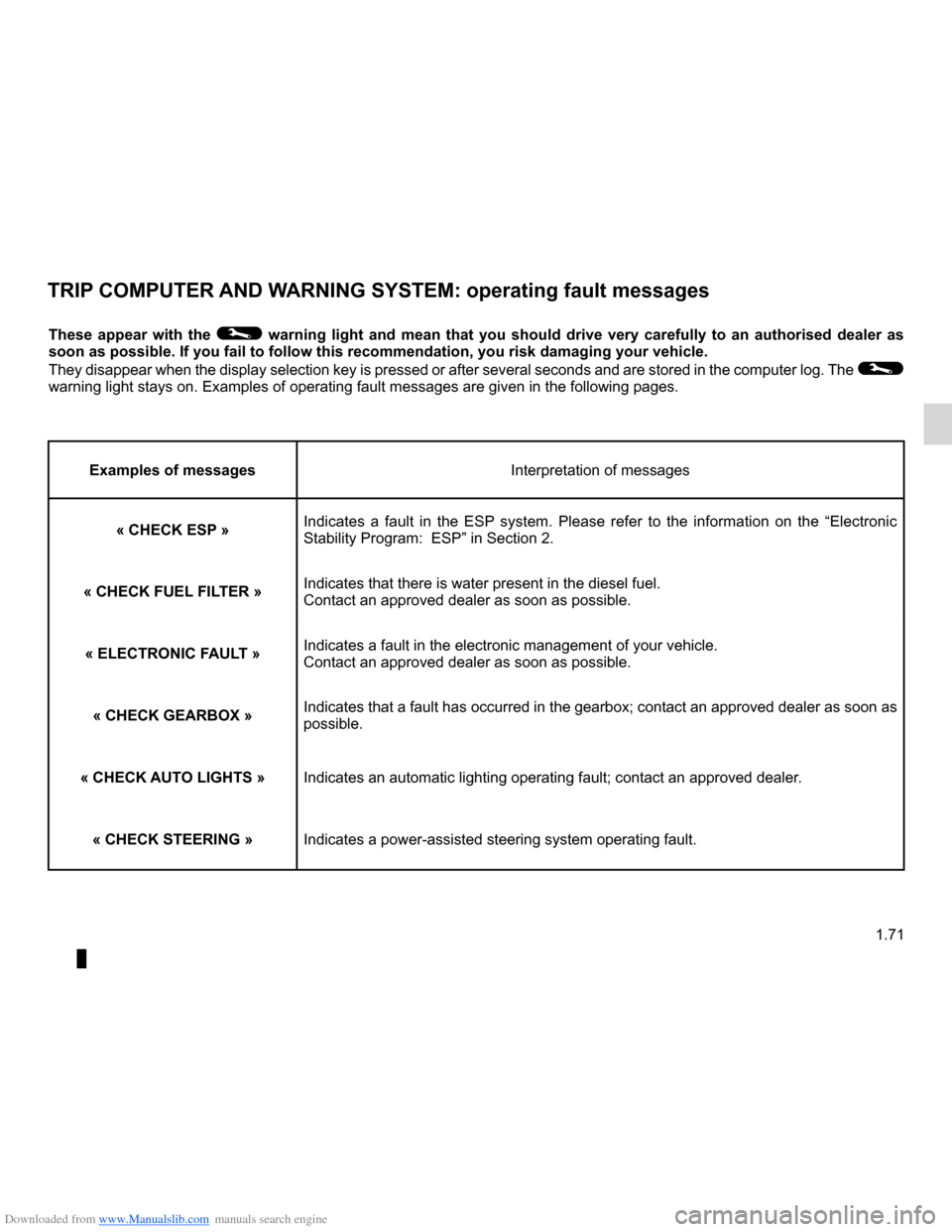

TRIP COMPUTER AND WARNING SYSTEM: operating fault messages
These appear with the © warning light and mean that you should drive very carefully to an authorised dealer as
soon as possible. If you fail to follow this recommendation, you risk da\
maging your vehicle.
They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The
©
warning light stays on. Examples of operating fault messages are given i\
n the following pages.
Examples of messages Interpretation of messages
« CHECK ESP »Indicates a fault in the ESP system. Please refer to the information on the “Electronic
Stability Program: ESP” in Section 2.
« CHECK FUEL FILTER » Indicates that there is water present in the diesel fuel.
Contact an approved dealer as soon as possible.
« ELECTRONIC FAULT » Indicates a fault in the electronic management of your vehicle.
Contact an approved dealer as soon as possible.
« CHECK GEARBOX »Indicates that a fault has occurred in the gearbox; contact an approved dealer as soon as
possible.
« CHECK AUTO LIGHTS »Indicates an automatic lighting operating fault; contact an approved dea\
ler.
« CHECK STEERING » Indicates a power-assisted steering system operating fault.

Downloaded from www.Manualslib.com manuals search engine lighting:exterior ............................................ (up to the end of the DU)
lights: side lights ......................................................... (current page)
signals and lights .................................. (up to the end of the DU)
lighting: instrument panel .............................................. (current page)
1.77
ENG_UD10541_1
Éclairages et signalisations extérieures (X85 - B85 - C85 - S85 -\
K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_1
Exterior lighting and signals
EXTERIOR LIGHTING AND SIGNALS (1/5)
uSide lights
Turn the end of stalk 1 until the
symbol is opposite mark 2.
An indicator light on the instrument
panel will come on.
Adjusting the brightness of
the instrument panel lighting
Turn control 3 downwards to reduce the
brightness and upwards to increase it.
1132
Before driving at night,
check that the electrical
equipment is operating cor-
rectly and adjust the head -
light beams (if your vehicle is not
carrying its normal load). As a gen-
eral precaution, check that the lights
are not obscured (by dirt, mud,
snow or objects being transported).

Downloaded from www.Manualslib.com manuals search engine 1.84
ENG_UD19811_2
Essuie-vitre / lave-vitre avant (X85 - B85 - C85 - S85 - K85 - Renault)\
ENG_NU_853-7_BCSK85_Renault_1
Before any action involving
the windscreen (washing
the vehicle, de-icing, clean -
ing the windscreen, etc.)
return stalk 1 to position A (park).
Risk of injury and/or damage.
Windscreen washer,
headlight washers
(depending on vehicle)
With the ignition on, pull stalk 1 to -
wards you.
– Headlights off
A short press triggers one sweep
cycle of the wiper.
A longer press triggers three sweeps
followed by a final sweep after sev-
eral seconds.
– Headlights on
The headlight washers will be acti -
vated at the same time.
WINDSCREEN WASH/WIPE (2/2)
A
B
C
D
11In freezing or snowy weather, ensure
they are not stuck to the windscreen
(including the central area located
behind the interior rear-view mirror)
and the rear screen before starting
the wipers (risk of motor overheat -
ing).
Check the condition of the wiper
blades. You are responsible for their
service life:
– they must remain clean: clean
the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind-
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.
In all cases, replace them as soon
as they begin to lose efficiency: ap-
proximately once a year.
Before using the rear wiper, check
that no object obstructs the travel of
the blade.
Do not use the wiper arm to open or
close the tailgate.

Downloaded from www.Manualslib.com manuals search engine wipers ................................................... (up to the end of the DU)
windscreen washer ............................... (up to the end of the DU)
1.85
ENG_UD10544_1
Essuie-vitre / Lave-vitre arrière (X85 - B85 - C85 - S85 - K85 - Ren\
ault)
ENG_NU_853-7_BCSK85_Renault_1
pRear screen wash/wipe
With the ignition on, turn the
end of stalk 1 to align mark 2 with the
symbol.
When the stalk is released, it returns to
the rear wipe position.
Special note
If the windscreen wipers are operat -
ing or are in automatic mode, the rear
screen wiper wipes intermittently when
reverse gear is engaged.
YSpeed-dependent
timed rear screen
wiper
With the ignition on, turn the end of
stalk 1 to align mark 2 with the symbol.
Wiping frequency varies with speed.
REAR SCREEN WASH/WIPE
12
In freezing or snowy weather, ensure
they are not stuck to the windscreen
(including the central area located
behind the interior rear-view mirror)
and the rear screen before starting
the wipers (risk of motor overheat -
ing).
Check the condition of the wiper
blades. You are responsible for their
service life:
– they must remain clean: clean
the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind -
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.
In all cases, replace them as soon
as they begin to lose efficiency: ap-
proximately once a year.
Before using the rear wiper, check
that no object obstructs the travel of
the blade.
Do not use the wiper arm to open or
close the tailgate.
Before any action on the
windscreen (washing the
vehicle, de-icing, cleaning
the windscreen, etc.) return
stalk 1 to the park position.
Risk of injury or damage.
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in the park position.
Risk of injury.

Downloaded from www.Manualslib.com manuals search engine fuel tank capacity .................................. (up to the end of the DU)
fuel grade ............................................... (up to the end of the DU)
fuel filling ................................................ (up to the end of the DU)
fuel tank capacity ............................................................ (current page)
fuel filler cap ......................................... (up to the end of the DU)
1.86
ENG_UD24919_5
Réservoir carburant (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_1
Jaune NoirNoir texte
Fuel grade
Use a high grade fuel that complies
with the standards currently in force in
each country.
Diesel version
It is essential to use diesel fuel that
conforms to the specifications given on
the label inside fuel filler flap A.
Make sure that no water accidentally
enters the fuel tank during filling. The
closure and its surrounding area must
be dust-free.
Fuel tank (filling with fuel)
Filling the tank
To open cover A, place your finger into
recess B.
When filling, use the cap holder 1 on
the cover A to secure the cap 2.
FUEL TANK (1/2)
A
B2
After filling, check that the cap and
cover are closed.
Fuel filler cap: this is spe-
cific.
If you have to replace it,
make sure it is identical
to the original cap. Contact an ap -
proved Dealer.
Never place the cap near a source
of heat or flame.
Do not wash the filler area with a
high-pressure washer.
1
Useful capacity of the fuel tank:
55 litres approximately.
The engine 1.2 TCe has a fuel tank
capacity of approximately 40 litres or
55 litres (depending on the vehicle).
Do not mix even small
amounts of petrol (un -
leaded or E85) with diesel.
Do not use ethanol-based
fuel if your vehicle is not compatible
with this fuel.
Do not add additive to the fuel –
otherwise you risk damaging the
engine.

Downloaded from www.Manualslib.com manuals search engine stopping the engine .............................. (up to the end of the DU)
engine start/stop button ........................ (up to the end of the DU)
RENAULT card use .................................................. (up to the end of the DU)
driving ................................................... (up to the end of the DU)
2.8
ENG_UD12574_2
Arrêt moteur : véhicule avec carte Renault (X85 - B85 - C85 - S85\
- K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_2
When you leave your vehi -
cle, especially if you have
your RENAULT card with
you, check that the engine
is completely switched off.
To ensure that the engine is completely
stopped, press button 3 twice.
The steering locks. Check that it is cor-
rectly locked in position.
With the engine switched off, any ac -
cessories being used (radio, heating
and air conditioning, etc.) will continue
to function for a few minutes.
When the driver’s door is opened, the
accessories stop working.Conditions for stopping the
engine
Before stopping the engine, make
sure you have your card.
When the vehicle is stationary, press
button 3.
If the card is not in the detection zone
after pressing once, the messages
‘Confirm engine stop’ and ‘Press STOP
twice’ appear on instrument panel 2.

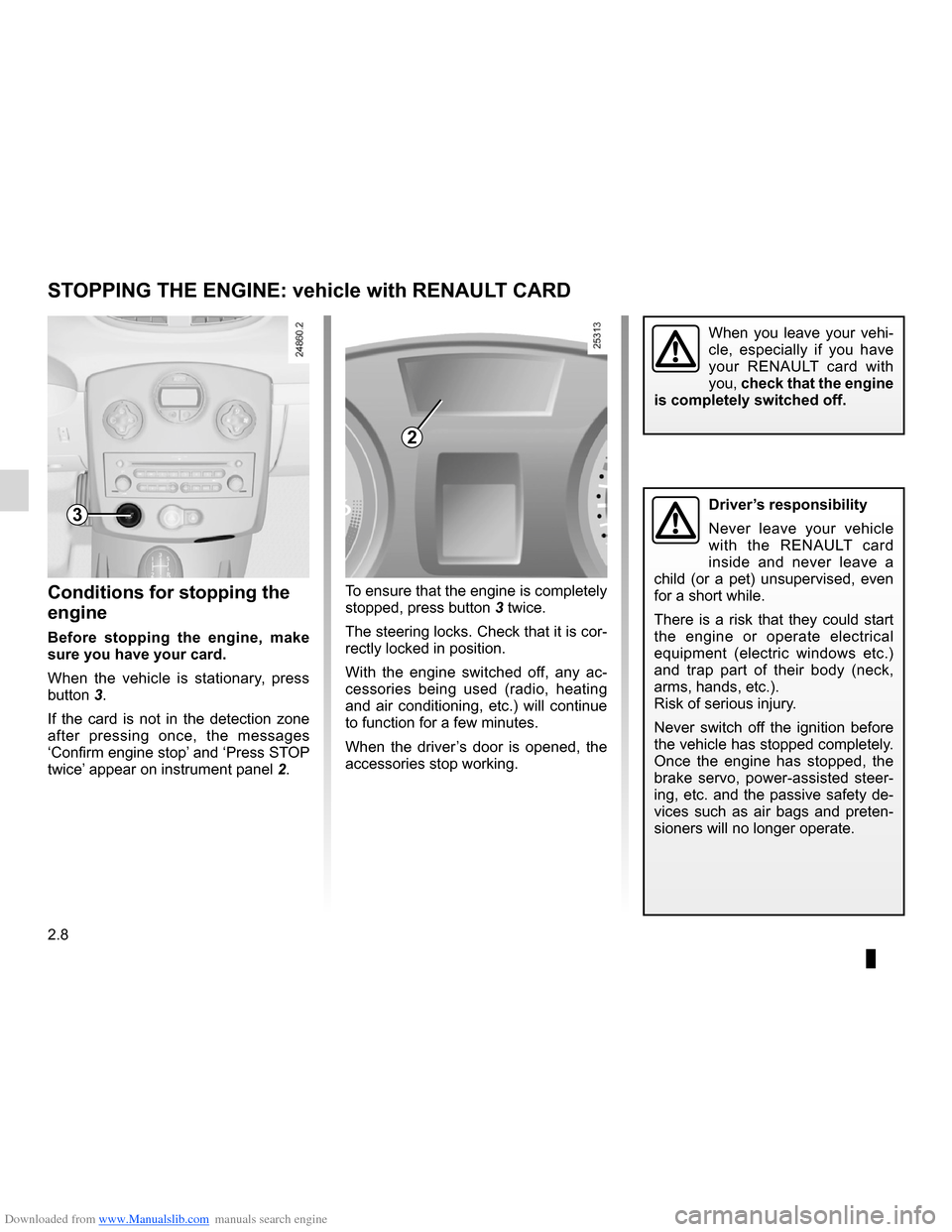

STOPPING THE ENGINE: vehicle with RENAULT CARD
3
2
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
There is a risk that they could start
the engine or operate electrical
equipment (electric windows etc.)
and trap part of their body (neck,
arms, hands, etc.).
Risk of serious injury.
Never switch off the ignition before
the vehicle has stopped completely.
Once the engine has stopped, the
brake servo, power-assisted steer -
ing, etc. and the passive safety de-
vices such as air bags and preten -
sioners will no longer operate.

Downloaded from www.Manualslib.com manuals search engine driving ................................................... (up to the end of the DU)
filter particle filter .................................... (up to the end of the DU)
special features of diesel vehicles with particle filter
(up to the end of the DU)
2.11
ENG_UD19899_2
Particularités des versions diesel avec filtre à particules (X85 \
- B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_2
As a guide, this type of cleaning should
take up to 20 minutes.
If the
© warning light comes on,
accompanied by the message “Check
antipollution”, consult an approved
Dealer as soon as possible.
Diesel engine speed
Diesel engines are fitted with injection
equipment which prevents the engine
speed being exceeded irrespective of
the gear selected.
Special features of diesel versions fitted with a particle filter
Do not park the vehicle or
run the engine in locations
where combustible sub -
stances or materials such
as grass or leaves can come into
contact with the hot exhaust system.
When driving, depending on the grade
of fuel used, it is possible that white
smoke may be emitted.
This is due to the exhaust particle filter
being cleaned automatically, and does
not affect the way the vehicle runs.
Depending on the vehicle, warning
light 1
Ü comes on to indicate a
filter saturation risk.
To clean the particle filter, for 60 miles
(100 km) after the message appears,
drive at an average speed of at least
24 mph (40 km/h), where suitable traf-
fic conditions and the speed limit will
allow, until the warning light goes out.
You may need to restart the operation if
the vehicle has to stop before the warn-
ing light goes out.
DIESEL VERSIONS WITH PARTICLE FILTER
1
