5.17
ENG_UD14672_3
Projecteurs avant avec lampes halogènes : remplacement des lampes (X\
85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
It is essential to use anti-U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
Do not touch the bulb glass. Hold it
by its base.
Mark the bulb’s position before removal
to ensure correct positioning when re -
placing.
When the bulb has been changed,
make sure you refit the cover correctly.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
HALOGEN HEADLIGHTS: changing bulbs (2/3)
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
However, because parts need to be
removed, you are advised to have
your bulbs replaced by an approved
dealer.
Vehicle with additional
cornering lights
Dipped beam headlight
Remove cover C.
Tilt bulb holder 4 to release it and then
replace the bulb.
Bulb type: H7
Main beam headlight
Remove cover D.
Pull out connector 5.
Unclip the spring and take out the bulb.
Bulb type: H7
CD
4
5

Downloaded from www.Manualslib.com manuals search engine 5.18
ENG_UD14672_3
Projecteurs avant avec lampes halogènes : remplacement des lampes (X\
85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
Additional cornering light
Due to their reduced accessibility
(sometimes requiring the removal of
bodywork or mechanical components),
we advise you to have your bulbs 7 re-
placed by an approved Dealer.
Bulb type: H7.
Front side light
Remove cover E, then pull bulb holder 6
to access the bulb.
Bulb type: W5W.
Direction indicator lights
Turn bulb holder F a quarter of a turn
and take out the bulb.
Bulb type: orange PY21 W.
Once the bulb has been replaced,
check that it is properly secured.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
HALOGEN HEADLIGHTS: changing bulbs (3/3)
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap -
proved dealer.
E
6
F
7

Downloaded from www.Manualslib.com manuals search engine bulbschanging ......................................... (up to the end of the DU)
fog lights ............................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: fog lights ......................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights additional ........................................ (up to the end of the DU)
lights front ................................................. (up to the end of the DU)
lights fog lights ......................................... (up to the end of the DU)
5.19
ENG_UD12616_2
Projecteurs avant : feux de brouillard avant / additionnels (X85 - B85 \
- C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
Additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved Dealer.
Front fog lights 1
Changing a bulb:
Consult an approved Dealer.
Bulb type: H11.
HEADLIGHTS: additional/front fog lights
1
Any operation on (or modi -
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.

Downloaded from www.Manualslib.com manuals search engine bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
indicators .............................................. (up to the end of the DU)
lights: fog lights .......................................................... (current page)
lights: direction indicators ........................................... (current page)
lights: side lights ......................................................... (current page)
lights: reversing lights ................................................. (current page)
lights: brake lights ..................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.20
ENG_UD16854_3
Feux arrière : remplacement des lampes (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-7_BCSK85_Renault_5
Jaune NoirNoir texte
Release the rear light assembly from
outside the vehicle by pulling towards
the rear.
Unclip bulb holder 2 to access the
bulbs.
Rear lights and side lights (changing bulbs)
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
3 Side lights and stop lights
Bulb type: P21/5W.
4 Direction indicator lights
Bulb type: PY21.
5 Reversing light
Bulb type: P21W.
3 and 5 door versions
After opening the tailgate, remove
bolts 1.
REAR LIGHTS AND SIDE LIGHTS:
changing bulbs (1/4)
3
4
5
12

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
5.21
ENG_UD16854_3
Feux arrière : remplacement des lampes (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-7_BCSK85_Renault_5
Sport tourer Versions
After opening the tailgate, unscrew
bolts 1.
REAR LIGHTS AND SIDE LIGHTS: changing bulbs (2/4)
3 Direction indicator lights
Bulb type: P21W.
4 Side light and brake light
Bulb type: P21/5W.
5 Reversing light
Bulb type: P21W.
Release the rear light assembly from
outside the vehicle by pulling towards
the rear.
Remove the clips 2 from the bulb holder
to access the bulbs.
1
2
43
5

Downloaded from www.Manualslib.com manuals search engine 5.22
ENG_UD16854_3
Feux arrière : remplacement des lampes (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-7_BCSK85_Renault_5
Jaune NoirNoir texte

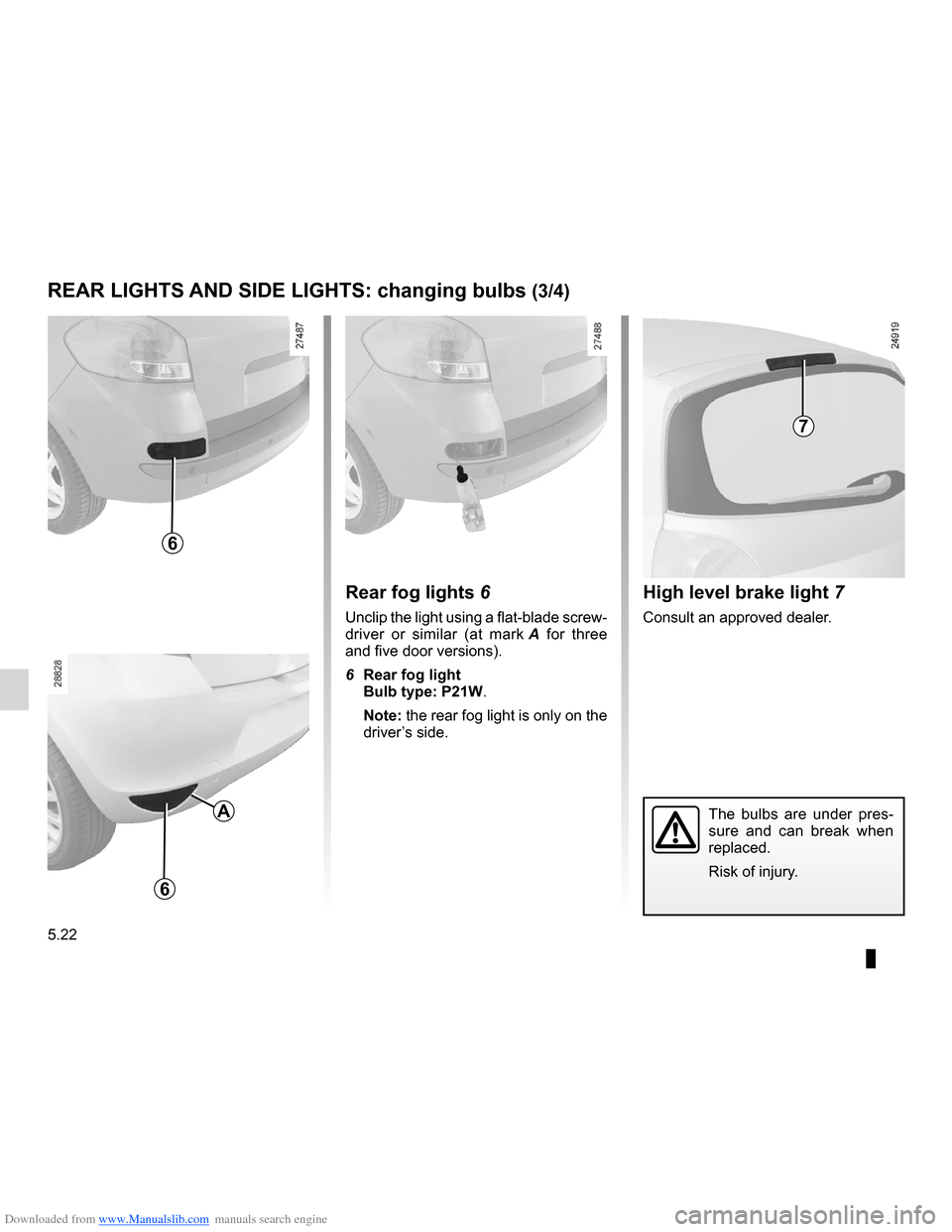

Rear fog lights 6
Unclip the light using a flat-blade screw-
driver or similar (at mark A for three
and five door versions).
6 Rear fog light
Bulb type: P21W.
Note: the rear fog light is only on the
driver’s side.
REAR LIGHTS AND SIDE LIGHTS: changing bulbs (3/4)
7
6
High level brake light 7
Consult an approved dealer.
6
AThe bulbs are under pres -
sure and can break when
replaced.
Risk of injury.

Downloaded from www.Manualslib.com manuals search engine lights:number plate lights .......................................... (current page)
indicator lights ........................................................ (current page)
JauneNoirNoir texte
5.23
ENG_UD16854_3
Feux arrière : remplacement des lampes (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-7_BCSK85_Renault_5
Indicator lights (changing bulbs)
Side-mounted indicator
lights 9
Unclip the side mounted indicator light
(using a flat-blade screwdriver or simi-
lar).
Turn the bulb holder a quarter of a turn
and take out the bulb.
Bulb type: WY5W.
Number plate lights 8
3 and 5 door versions
Unclip light 8 by pressing the tab.
Remove the light cover to gain access
to the bulb.
Bulb type: festoon type bulb W5W.
REAR LIGHTS AND SIDE LIGHTS: changing bulbs (4/4)
9
8
Sport tourer versions
Unclip light 8 by pressing the tab.
Remove the light cover to gain access
to the bulb.
Bulb type: festoon type bulb W5W.
8

Downloaded from www.Manualslib.com manuals search engine bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lighting: interior ............................................. (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
courtesy light ......................................................... (current page)
5.24
ENG_UD10606_1
Eclairage intérieur : remplacement des lampes (X85 - B85 - C85 - S85\
- K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
Jaune NoirNoir texte
Interior lighting (changing bulbs)
Door lights 2
Unclip the light and remove the bulb
using a pen or a flat-blade screwdriver.
Bulb type: C5W.
Courtesy light
Unclip the lens (using a flat-blade
screwdriver or similar).
Remove the bulb concerned.
Bulb type 1: W5W.
INTERIOR LIGHTING: changing bulbs (1/2)
2
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
1
