2012 Ram 5500 Chassis Cab windshield wipers

▫Headlights On With Wipers (Available With
Automatic Headlights Only)............ 149
▫Headlight Delay..................... 149
▫Parking Lights And Panel Lights......... 150
▫Fog Lights — If Equipped.............. 150
▫Interior Lights...................... 151
▫CargoLight ........................ 152
▫Lights-On Reminder.................. 152
▫Battery Saver....................... 152
▫Daytime Running Lights — If Equipped.... 153
▫Multifunction Lever.................. 153
Windshield Wipers And Washers.......... 154
▫Windshield Wipers................... 154
▫Windshield Wiper Operation............ 155▫Intermittent Wiper System.............. 155
▫Windshield Washers.................. 156
▫Mist Feature........................ 156
Tilt Steering Column................... 157
Driver Adjustable Pedals — If Equipped..... 158
Heated Steering Wheel — If Equipped...... 159
Electronic Speed Control................ 160
▫To Activate......................... 161
▫To Set A Desired Speed................ 162
▫To Deactivate....................... 162
▫To Resume Speed.................... 162
▫To Vary The Speed Setting.............. 162
▫To Accelerate For Passing.............. 163
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

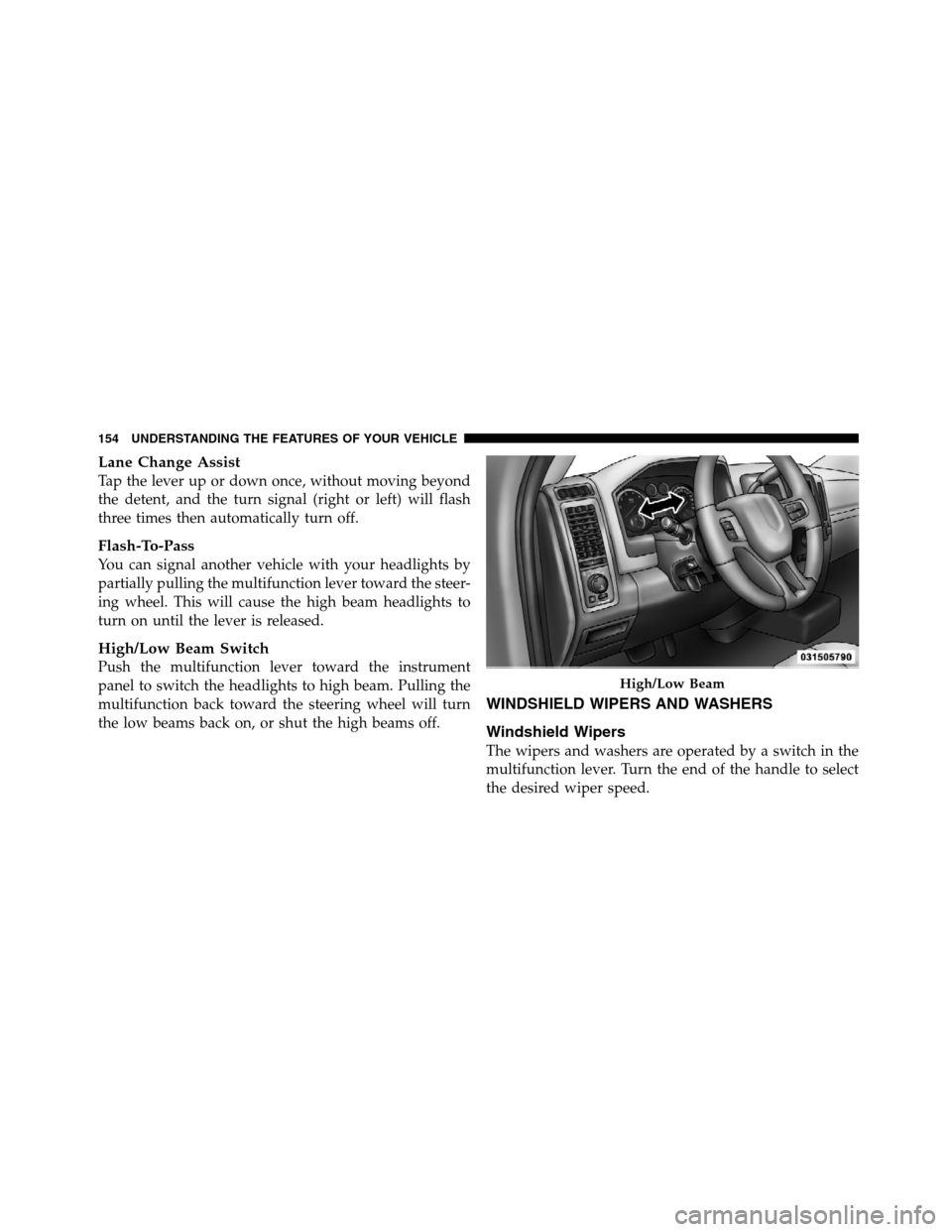

Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
Flash-To-Pass
You can signal another vehicle with your headlights by
partially pulling the multifunction lever toward the steer-
ing wheel. This will cause the high beam headlights to
turn on until the lever is released.
High/Low Beam Switch
Push the multifunction lever toward the instrument
panel to switch the headlights to high beam. Pulling the
multifunction back toward the steering wheel will turn
the low beams back on, or shut the high beams off.
WINDSHIELD WIPERS AND WASHERS
Windshield Wipers
The wipers and washers are operated by a switch in the
multifunction lever. Turn the end of the handle to select
the desired wiper speed.
High/Low Beam
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Windshield Washers
To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to
the second detent. Washer fluid will be sprayed and the
wiper will operate for two to three cycles after the washer
knob is released from this position. If the washer knob is
depressed while in the delay range, the wiper will
operate for several seconds after the washer knob is
released. It will then resume the intermittent interval
previously selected. If the washer knob is pushed while
in the off position, the wiper will turn on and cycle
approximately three times after the wash knob is re-
leased.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist Feature
When a single wipe to clear off road mist or spray from
a passing vehicle is needed, push the washer knob,
located on the end of the multifunction lever, inward to
the first detent and release. The wipers will cycle one
time and automatically shut off.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease, such as
MOPARSpray White Lube or equivalent, to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and
grit. After lubricating, excess oil and grease should be
removed. Particular attention should also be given to
hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a smallamount of a high quality lubricant such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
7
MAINTAINING YOUR VEHICLE 417

Drain, Flush, and Refill................ 422
Inspection.......................... 425
Points to Remember.................. 426
Pressure Cap........................ 424
Radiator Cap....................... 424
Selection of Coolant (Antifreeze).......422,454
Cupholders............................ 172
Customer Assistance..................... 477
Data Recorder, Event...................... 64
Daytime Running Lights................... 153
Dealer Service.......................... 409
Defroster, Rear Window................... 180
Defroster, Windshield................ 80,265,271
Delay (Intermittent) Wipers................. 155
Differential, Limited-Slip.................. 304
Dipsticks
Automatic Transmission................ 433
Power Steering...................... 309Disabled Vehicle Towing................... 399
Disposal
Antifreeze (Engine Coolant)............. 425
Door Locks............................. 29
Door Locks, Automatic.................... 31
Driving
Through Flowing, Rising, or Shallow
Standing Water...................... 306
Dual Rear Wheels.....................340,388
Electric Rear Window Defrost............... 180
Electrical Power Outlets................... 165
Electronic Range Select (ERS)............... 290
Electronic Speed Control (Cruise Control)...... 160
Electronic Vehicle Information Center (EVIC).... 204
Electronically Shifted Transfer Case........... 298
Emergency Brake........................ 310
10
INDEX 489

UCI Connector......................... 249
Uconnect™ (Hands-Free Phone).............. 93
Uniform Tire Quality Grades................ 483
Universal Consumer Interface (UCI) Connector . . . 249
Variance, Compass....................... 217
Vehicle Identification Number (VIN)............ 6
Vehicle Loading......................321,347
Vehicle Modifications/Alterations.............. 7
Vehicle Storage.......................273,445
Voice Recognition System (VR).............. 124
Voltmeter............................. 198
Warning Lights
(Instrument Cluster Description)............. 190
Warnings and Cautions..................... 6
Warranty Information..................... 480
Washers, Windshield..................156,418
Washing Vehicle......................... 435Water
Driving Through..................... 306
Wheel and Wheel Trim.................... 437
Wheel and Wheel Trim Care................ 437
Wheel Cover........................... 387
Wheel Nut Torque....................386,391
WindBuffeting .......................... 39
Window Fogging........................ 273
Windows.............................. 35
Power............................. 35
Rear Sliding........................ 181
Windshield Defroster...................... 80
Windshield Washers................154,156,418
Fluid ..........................154,418
Windshield Wiper Blades.................. 417
Windshield Wipers....................... 154
Wiper Blade Replacement.................. 417
Wipers, Intermittent...................... 155
502 INDEX
