Daytime Running Lights — If Equipped
The headlights on your vehicle will illuminate when the
engine is started and the transmission is in any gear
except PARK. This provides a constantLights ON
condition until the ignition is turned OFF. The lights
illuminate at less than 50% of normal intensity. If the
parking brake is applied, the Daytime Running Lights
(DRL) will turn OFF. Also, if a turn signal is activated, the
DRL lamp on the same side of the vehicle will turn off for
the duration of the turn signal activation. Once the turn
signal is no longer active, the DRL lamp will illuminate.
Multifunction Lever
The multifunction lever is located on the left side of the
steering column.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.NOTE:If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
Turn Signal Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153

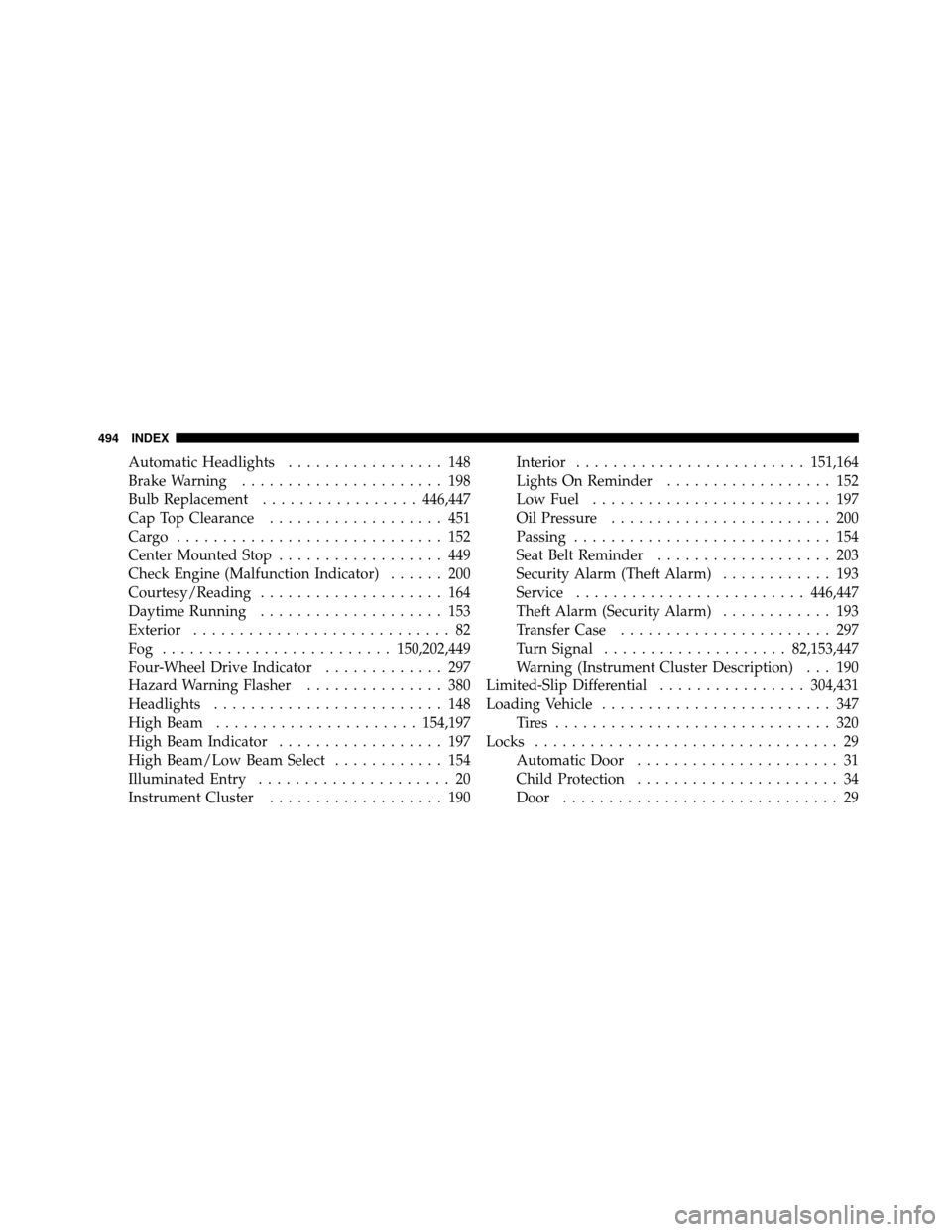

Automatic Headlights................. 148
Brake Warning...................... 198
Bulb Replacement.................446,447
Cap Top Clearance................... 451
Cargo ............................. 152
Center Mounted Stop.................. 449
Check Engine (Malfunction Indicator)...... 200
Courtesy/Reading.................... 164
Daytime Running.................... 153
Exterior............................ 82
Fog .........................150,202,449
Four-Wheel Drive Indicator............. 297
Hazard Warning Flasher............... 380
Headlights......................... 148
High Beam......................154,197
High Beam Indicator.................. 197
High Beam/Low Beam Select............ 154
Illuminated Entry..................... 20
Instrument Cluster................... 190Interior.........................151,164
Lights On Reminder.................. 152
Low Fuel.......................... 197
Oil Pressure........................ 200
Passing............................ 154
Seat Belt Reminder................... 203
Security Alarm (Theft Alarm)............ 193
Service.........................446,447
Theft Alarm (Security Alarm)............ 193
Transfer Case....................... 297
Turn Signal.................... 82,153,447
Warning (Instrument Cluster Description) . . . 190
Limited-Slip Differential................304,431
Loading Vehicle......................... 347
Tires .............................. 320
Locks................................. 29
Automatic Door...................... 31
Child Protection...................... 34
Door.............................. 29
494 INDEX
