2012 Ram 5500 Chassis Cab octane

CAUTION! (Continued)
•When replacing a flat, the spare tire may have to
be remounted on the rim or installed at a different
location to maintain the correct placement of the
tire on the wheel relative to the tire/wheel position
on the vehicle. For example, if the spare is used to
replace an outer rear tire it will have to be re-
mounted on the rim so that the wheel is dished
inward. That way the tread design of asymmetrical
tires will maintain proper position.
FUEL REQUIREMENTS
The 5.7L engine is designed to meet all
emissions regulations and provide satisfac-
tory fuel economy and performance when
using high-quality unleaded gasoline hav-
ing an octane range of 87 to 89. The manu-
facturer recommends the use of 89 octanefor optimum performance. The use of premium gasoline
is not recommended, as it will not provide any benefit
over regular gasoline in these engines.
Light spark knock at low engine speeds is not harmful to
your engine. However, continued heavy spark knock at
high speeds can cause damage and immediate service is
required.
Poor quality gasoline can cause problems such as hard
starting, stalling and hesitations. If you experience these
symptoms, try another brand of “regular” gasoline be-
fore considering service for the vehicle.
Over 40 auto manufacturers worldwide have issued and
endorsed consistent gasoline specifications (the World-
wide Fuel Charter, WWFC) to define fuel properties
necessary to deliver enhanced emissions, performance
and durability for your vehicle. We recommend the use
of gasolines that meet the WWFC specifications if they
are available.
5
STARTING AND OPERATING 341

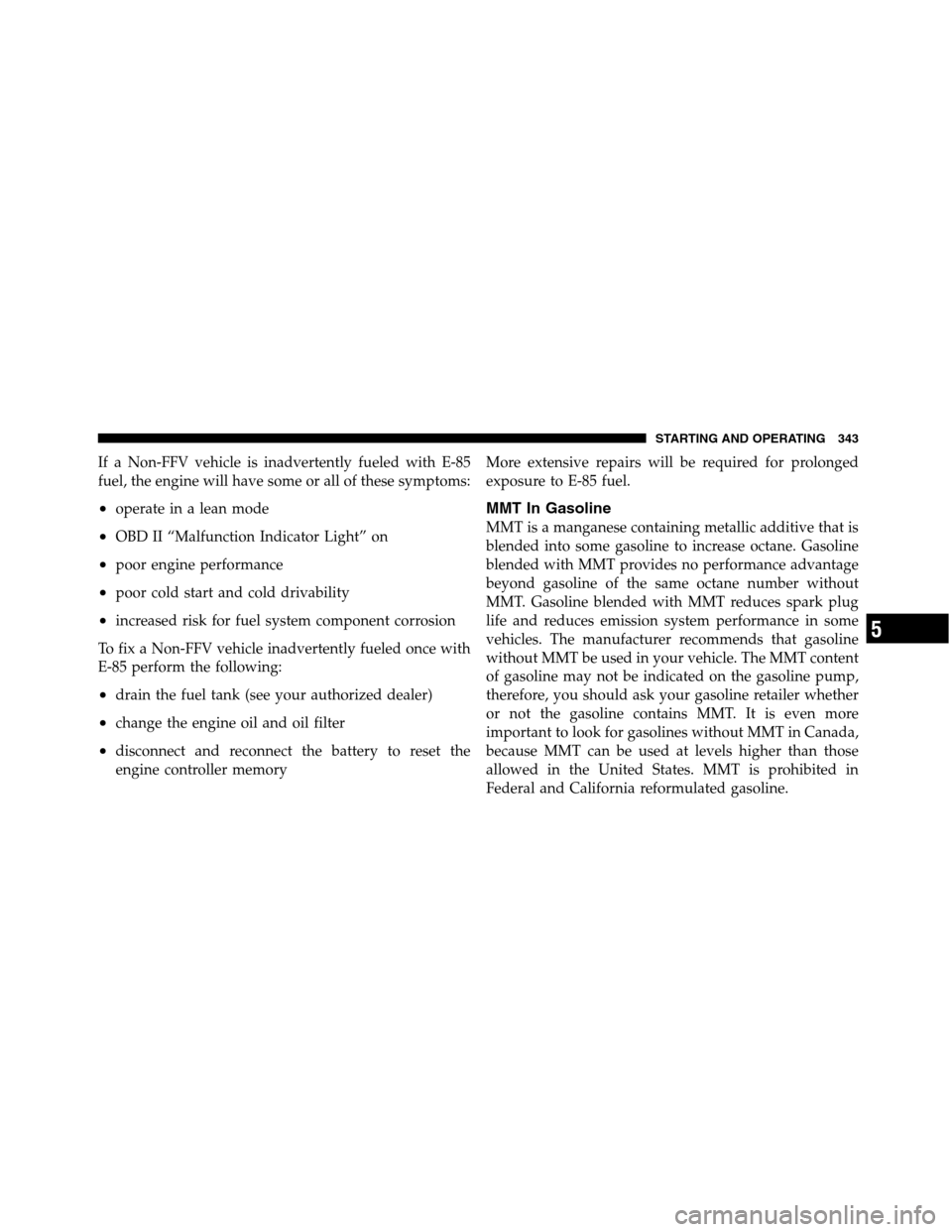

If a Non-FFV vehicle is inadvertently fueled with E-85
fuel, the engine will have some or all of these symptoms:
•operate in a lean mode
•OBD II “Malfunction Indicator Light” on
•poor engine performance
•poor cold start and cold drivability
•increased risk for fuel system component corrosion
To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
•drain the fuel tank (see your authorized dealer)
•change the engine oil and oil filter
•disconnect and reconnect the battery to reset the
engine controller memoryMore extensive repairs will be required for prolonged
exposure to E-85 fuel.
MMT In Gasoline
MMT is a manganese containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug
life and reduces emission system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump,
therefore, you should ask your gasoline retailer whether
or not the gasoline contains MMT. It is even more
important to look for gasolines without MMT in Canada,
because MMT can be used at levels higher than those
allowed in the United States. MMT is prohibited in
Federal and California reformulated gasoline.
5
STARTING AND OPERATING 343

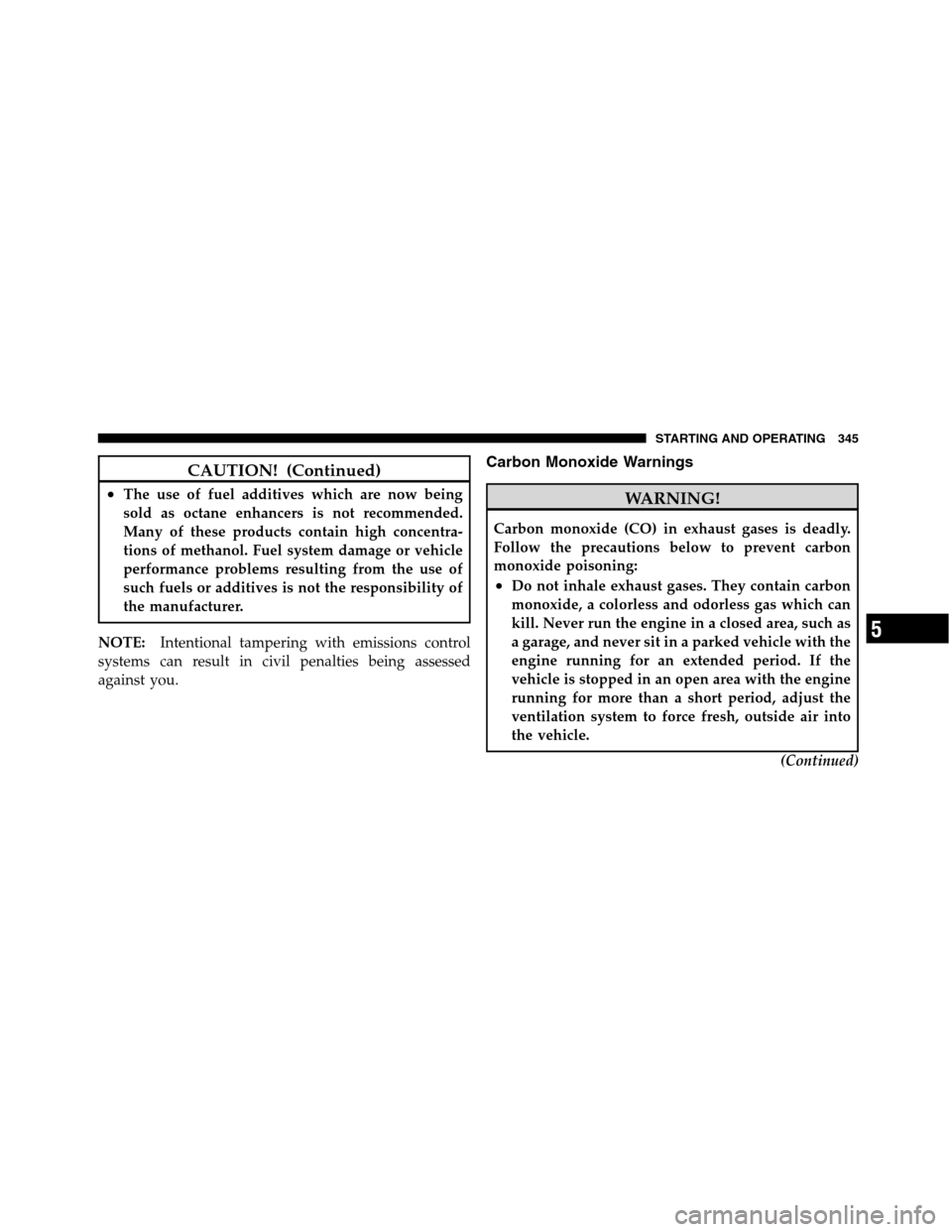

CAUTION! (Continued)
•The use of fuel additives which are now being
sold as octane enhancers is not recommended.
Many of these products contain high concentra-
tions of methanol. Fuel system damage or vehicle
performance problems resulting from the use of
such fuels or additives is not the responsibility of
the manufacturer.
NOTE:Intentional tampering with emissions control
systems can result in civil penalties being assessed
against you.
Carbon Monoxide Warnings
WARNING!
Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon
monoxide poisoning:
•Do not inhale exhaust gases. They contain carbon
monoxide, a colorless and odorless gas which can
kill. Never run the engine in a closed area, such as
a garage, and never sit in a parked vehicle with the
engine running for an extended period. If the
vehicle is stopped in an open area with the engine
running for more than a short period, adjust the
ventilation system to force fresh, outside air into
the vehicle.
(Continued)
5
STARTING AND OPERATING 345

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5–Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent.
Engine Oil – 5.7L Engine Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter – 5.7L Engine MOPAREngine Oil Filter or equivalent.
Spark Plugs – 5.7L Engine LZFR5C–11 (Gap 0.043 in [1.1 mm])
Fuel Selection – 5.7L Engine 87 Octane Acceptable - 89 Octane Recommended
454 MAINTAINING YOUR VEHICLE

Fluid Leaks............................. 82
Fluid Level Checks
Automatic Transmission................ 433
Brake............................. 428
Power Steering...................... 309
Fluid, Brake........................... 455
Fluids, Lubricants and Genuine Parts.......... 454
Fog Lights.......................150,202,449
Four Wheel Drive....................... 294
Four-Way Hazard Flasher.................. 380
Freeing A Stuck Vehicle................... 396
Front Axle (Differential)................... 430
Fuel................................. 341
Adding........................... 346
Diesel............................. 454
Filler Cap (Gas Cap).................. 347
Filter ............................. 454
Gauge............................ 190
Light ............................. 197Octane Rating....................... 341
Requirements....................... 341
Tank Capacity....................... 453
Fuses................................ 440
Gas Cap (Fuel Filler Cap)...............347,406
Gasoline (Fuel)......................... 341
Gasoline, Reformulated................... 342
Gauges
Coolant Temperature.................. 190
Fuel.............................. 190
Oil Pressure........................ 193
Speedometer........................ 191
Tachometer......................... 190
Voltmeter.......................... 198
Gear Ranges........................... 285
Gear Select Lever Override................. 398
General Information.................. 18,25,124
Glass Cleaning.......................... 439
10
INDEX 491

Power Door......................... 30
Lower Anchors and Tether for CHildren
(LATCH).............................. 69
Lubrication, Body....................... 417
Lug Nuts...........................386,388
Maintenance Free Battery.................. 414
Maintenance Procedures................... 409
Maintenance Schedule.................... 458
Malfunction Indicator Light (Check Engine)..... 407
Manual Transmission
Fluid Level Check.................... 431
Lubricant Selection................... 455
Manual, Service......................... 481
Memory Seat........................... 141
Mini-Trip Computer...................... 213
Mirrors ................................ 87
Automatic Dimming................... 87
Electric Powered...................... 90Heated............................. 91
Memory........................... 141
Outside............................ 88
Rearview........................... 87
TrailerTowing ....................... 92
Modifications/Alterations, Vehicle............. 7
Mopar Parts.........................408,480
Multi-Function Control Lever............... 153
New Vehicle Break-In Period................ 78
Occupant Restraints................... 39,58,61
Occupant Restraints (Sedan)................. 58
Octane Rating, Gasoline (Fuel).............. 341
Odometer..........................193,194
Trip ...........................193,194
Oil Change Indicator..................196,212
Oil Change Indicator, Reset..............196,212
10
INDEX 495
