Page 81 of 336
3/
EASE OF USE and COMFORT

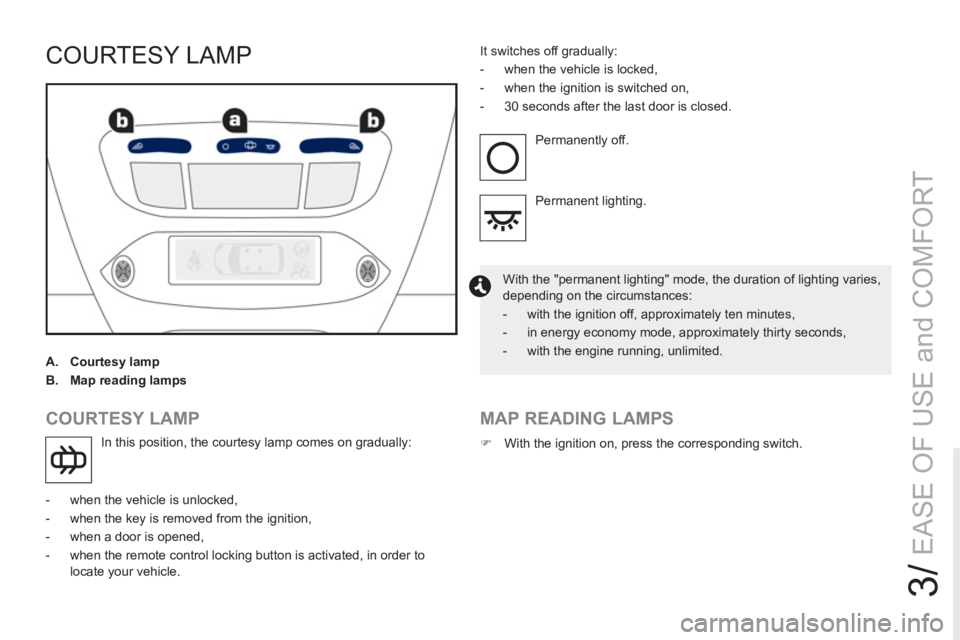

COURTESY LAMP
A.
Courtesy lamp
B.
Map reading lamps
COURTESY LAMP
In this position, the courtesy lamp comes on gradually:
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when a door is opened,
- when the remote control locking button is activated, in order to
locate your vehicle. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
With the "permanent lighting" mode, the duration of lighting varies,
depending on the circumstances:
- with the ignition off, approximately ten minutes,
- in energy economy mode, approximately thirty seconds,
- with the engine running, unlimited.
MAP READING LAMPS
)
With the ignition on, press the corresponding switch.
Page 91 of 336
3/
EASE OF USE and COMFORT
The duration of lighting varies, depending on the context:
- when the ignition is off, approximately ten minutes,
- in energy economy mode, approximately thirty seconds,
- when the engine is running, no limit.
STORAGE BOX
This has areas for storing a box of spare bulbs, a fi rst aid kit, the
temporary puncture repair kit, a warning triangle, the removable ball of
the towbar system...
BOOT LAMPS
Your vehicle is fi tted with two boot lamps; one in the right-hand boot
side trim and a second in the centre under the rear shelf.
They come on automatically when the boot is opened and switch off
automatically when the boot is closed.
They cannot be deactivated manually.
A second warning triangle can be stored in the boot lid trim. It also contains the vehicle's handbook pack.
For access to it:
)
raise the fl oor using the strap,
)
secure it in the vertical position behind the stops, located on the sides of the boot.
Page 95 of 336
4/
VISIBILITY

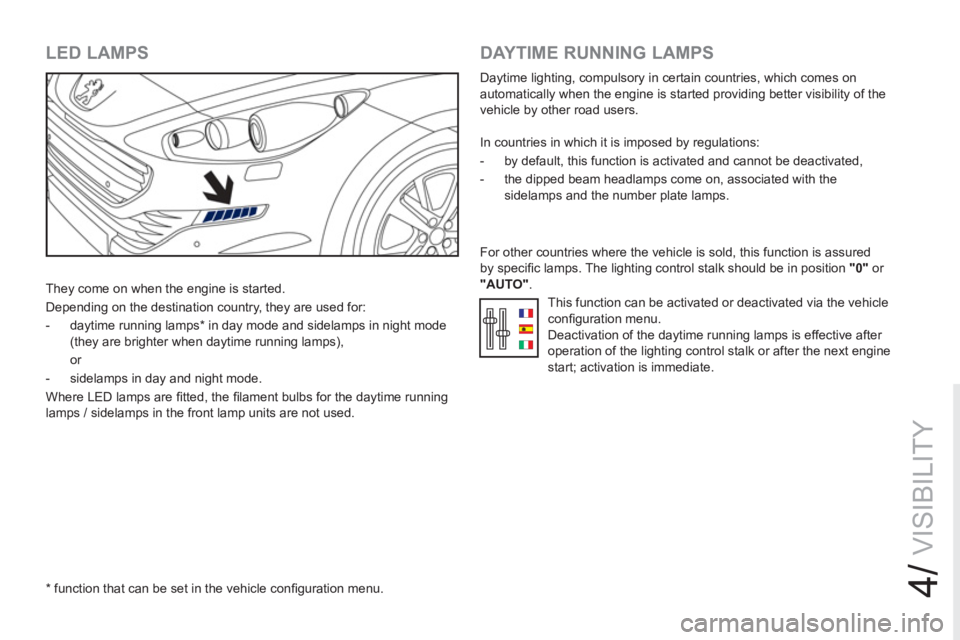

DAYTIME RUNNING LAMPS
Daytime lighting, compulsory in certain countries, which comes on
automatically when the engine is started providing better visibility of the
vehicle by other road users.
In countries in which it is imposed by regulations:
- by default, this function is activated and cannot be deactivated,
- the dipped beam headlamps come on, associated with the
sidelamps and the number plate lamps.
For other countries where the vehicle is sold, this function is assured
by specifi c lamps. The lighting control stalk should be in position "0"
or
"AUTO"
.
This function can be activated or deactivated via the vehicle
confi guration menu.
Deactivation of the daytime running lamps is effective after
operation of the lighting control stalk or after the next engine
start; activation is immediate.
LED LAMPS
They come on when the engine is started.
Depending on the destination country, they are used for:
- daytime running lamps * in day mode and sidelamps in night mode
(they are brighter when daytime running lamps),
or
- sidelamps in day and night mode.
Where LED lamps are fi tted, the fi lament bulbs for the daytime running
lamps / sidelamps in the front lamp units are not used.
* function that can be set in the vehicle confi guration menu.
Page 108 of 336
106
TRAJECTORY CONTROL SYSTEMS
ANTI-SLIP REGULATION (ASR) AND
ELECTRONIC STABILITY CONTROL (ESC)
The anti-slip regulation (also known as traction control) optimises
traction to prevent skidding of the wheels, by acting on the brakes of the
driving wheels and on the engine.
The electronic stability control acts on the brake of one or more wheels
and on the engine to keep the vehicle on the trajectory required by the
driver, within the limits of the laws of physics.
Activation
These systems are activated automatically each time the vehicle is
started.
They come into operation in the event of a grip or trajectory problem.
This is indicated by fl ashing of this warning lamp in the
instrument panel.
SNOW DRIVING ASSISTANCE
(INTELLIGENT TRACTION CONTROL)
Your vehicle has a system to help driving on snow: Intelligent Traction
Control.
This automatic system continuously checks for situations of diffi cult
surface adhesion that could make it diffi cult to move off or make
progress on deep fresh snow or compacted snow.
In these situations, Intelligent Traction Control
limits the amount of
wheel slip to provide the best traction and trajectory control.
In extremely severe conditions (deep snow, mud…), it can be useful to
temporarily deactivate the dynamic stability control and wheel anti-
slip
systems to allow a degree of wheel spin and so recover grip.
It is recommended that the system be reactivated as soon as possible.
Snow tyres are strongly recommended on surfaces offering low levels
of adhesion.
Page 114 of 336
11 2
REAR SEAT BELTS
The rear seats are each fi tted with a three-point inertia reel seat belt
with force limiter.
Fastening
1.
Pull the strap and insert the tongue F
in the black buckle F
, in the
centre of the bench seat.
2.
Insert the tongue G
in the outer red buckle G
.
3.
Check that each buckle is fastened correctly by pulling the strap.
Unfastening
1.
Press the red button on the buckle G
, then the black button on the
buckle F
.
2.
Guide the strap as it reels in and bring the tongue G
, then the
tongue F
to the corresponding securing point on the backrest.
Seat belt unfastened warning lamps display
A.
Rear seat belts unfastened warning lamp.
D.
Rear right seat belt warning lamp.
E.
Rear left seat belt warning lamp.
The warning lamp A
comes on, either on in the seat belt and
passenger's front airbag warning lamps display, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h), this warning lamp fl ashes for
two minutes accompanied by an audible signal of increasing volume.
Once these two minutes have elapsed, this warning lamp remains on
until the one or more rear passengers fasten their seat belt.
When the ignition is switched on, with the engine running or the vehicle
moving at a speed below approximately 12 mph (20 km/h),
the corresponding warning lamps D
and E
come on in red for
approximately 30 seconds, if the seat belt is not fastened.
When the vehicle is moving at a speed of more than approximately
12 mph (20 km/h), the corresponding warning lamp D
or E
comes on in
red, accompanied by an audible signal and a message in the screen,
if a rear passenger has unfastened their seat belt.
Unfastening is detected on both buckles of the seat belt. The
corresponding warning lamp comes on when at least one of the
two buckles is unfastened.
Page 129 of 336
6/
DRIVING
IGNITION SWITCH
ELECTRONIC ENGINE IMMOBILISER
STARTING THE VEHICLE
)
Insert the key in the ignition switch.
The system recognises the starting code.
)
Turn the key fully towards the dashboard to position 3 (Starting)
.
)
When the engine starts, release the key.
SWITCHING THE VEHICLE OFF
)
Immobilise the vehicle.
)
Turn the key fully towards you to position 1 (Stop)
.
)
Remove the key from the ignition switch.
Key left in the "Ignition on" position
On opening the driver's door, an alert message is displayed,
accompanied by an audible signal, to remind you that the key is
still in the ignition switch at position 1 (Stop)
.
If the key has been left in the ignition switch at position 2 (Ignition
on)
, the ignition will be switched off automatically after one hour.
To switch the ignition back on, turn the key to position 1 (Stop)
,
then back to position 2 (Ignition on)
.
The key contains an electronic chip which has a special code. When
the ignition is switched on, this code must be recognised in order for
starting to be possible.
A few minutes after the ignition is switched off, this electronic engine
immobiliser locks the engine management system and prevents starting
of the engine by anyone who does not have the key.
In the event of a malfunction, you are informed by lighting of this
warning lamp, an audible signal and a message on the screen.
In this case, your vehicle does not start; contact a PEUGEOT
dealer as soon as possible.
Page 131 of 336
6/
DRIVING
HILL START ASSIST
System which keeps your vehicle immobilised temporarily
(approximately 2 seconds) when starting on a gradient, the time it takes
to move your foot from the brake pedal to the accelerator pedal.
OPERATION
This function is only active when:
- the vehicle is completely stationary, with your foot on the brake
pedal,
- certain conditions of slope are met,
- with the driver’s door closed.
The hill start assist system cannot be deactivated.
Do not exit the vehicle while it is being held in the hill start assist
phase.
OPERATING FAULT
On an ascending slope, with the vehicle stationary, the vehicle is
held for a brief moment when you release the brake pedal:
- provided you are in fi rst gear or neutral on a manual gearbox,
- provided you are in position D
or M
on an automatic gearbox.
On a descending slope, with the vehicle stationary and reverse
gear engaged, the vehicle is held for a brief moment when you
release the brake pedal.
If you need to exit the vehicle with the engine running,
apply the parking brake and then check that the
corresponding warning lamp in the instrument panel is on.
If a malfunction of the system occurs, these warning lamps come on.
Have it checked by a PEUGEOT dealer or a qualifi ed workshop.
Page 132 of 336
130

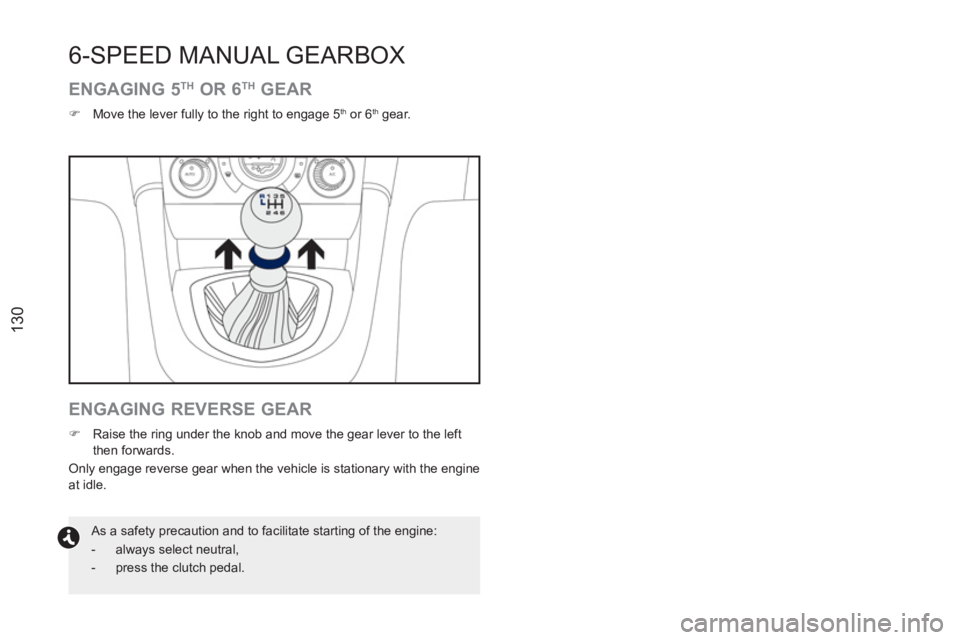

6-SPEED MANUAL GEARBOX
ENGAGING 5 TH
OR 6 TH
GEAR
)
Move the lever fully to the right to engage 5 th
or 6 th
gear.
ENGAGING REVERSE GEAR
)
Raise the ring under the knob and move the gear lever to the left
then forwards.
Only engage reverse gear when the vehicle is stationary with the engine
at idle.
As a safety precaution and to facilitate starting of the engine:
- always select neutral,
- press the clutch pedal.
