1/
INSTRUMENTS and CONTROLS
Warning lamp
is on
Cause
Action / Observations
STOP
fi xed, alone
or associated
with another
warning lamp,
accompanied by
an audible signal
and a message
in the screen. Illumination of this warning
lamp is associated with a
serious braking system, power
steering, engine lubrication or
cooling system malfunction or a
punctured tyre. Stop as soon as it is safe to do so as there is a risk that the
engine will cut out while driving.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualifi ed workshop.
Maximum
coolant
temperature
fi xed with the
needle in the red
zone. The temperature of the cooling
system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping up
the level, if necessary.
If the problem persists, contact a PEUGEOT dealer or a
qualifi ed workshop.
Braking
fi xed, associated
with the STOP
warning lamp. The braking system fl uid level is
too low. You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualifi ed workshop.
+
fi xed, associated
with the STOP
and ABS warning
lamp. The electronic brake force
distribution (EBFD) system has
a fault. You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualifi ed
workshop.
Page 30 of 336
28
Engine
autodiagnosis
system
fl ashing. The engine management system
has a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a qualifi ed
workshop.
fi xed. The emission control system has
a fault. The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or qualifi ed
workshop without delay.
Low fuel level
fi xed with the
needle in the
red zone,
accompanied by
an audible signal
and a message. When it fi rst comes on there
remains approximately 5 litres
of
fuel in the tank.
At this point, you begin to use the
fuel reserve. Refuel as soon as possible to avoid running out of fuel.
Until suffi cient fuel has been added, this warning lamp
will come on every time the ignition is switched on,
accompanied by an audible signal and a message.
The audible signal and message are repeated with
increasing frequency as the fuel level drops towards "0"
.
Fuel tank capacity: approximately 55 litres
.
Never continue to drive until you run out of fuel, as this
could damage the emission control and injection systems.
Warning lamp
is on
Cause
Action / Observations
Service
temporarily,
accompanied by
a message. Minor faults have occurred for
which there is no specifi c warning
lamp. Identify the fault by reading the message displayed in the
screen, such as:
- doors, boot or bonnet open,
- low engine oil level,
- low screenwash/headlamp wash reservoir level,
- remote control battery fl at,
- low tyre pressures,
- saturation of the particle emission fi lter on Diesel
vehicles (see "Checks" - "Checking levels / Particle
emissions fi lter" section).
For any other faults, contact a PEUGEOT dealer or a
qualifi ed workshop.
fi xed,
accompanied by
a message and
an audible signal. Major faults have occurred for
which there is no specifi c warning
lamp. Identify the fault by reading the message shown in the
screen and you must then contact
a PEUGEOT dealer or
a qualifi ed workshop.
Page 33 of 336
1/
INSTRUMENTS and CONTROLS
Warning lamp
is on
Cause
Action / Observations
Rear foglamp
fi xed. The rear foglamp is switched on. Turn the ring on the stalk rearwards to switch off the rear
foglamp.
Diesel engine
pre-heating
fi xed. The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp has switched off before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.
Parking
brake
fi xed. The parking brake is applied or
not properly released. Release the parking brake to switch off the warning lamp,
keeping your foot on the brake pedal.
Observe the safety recommendations.
For further information on the parking brake, refer to the
"Parking brake" section.
Passenger's
front airbag
fi xed on the
seat belt and
passenger's front
airbag warning
lamps display. The control switch, located on
the passenger's side of the
dashboard, has been placed in
the "ON"
position.
The passenger's front airbag is
activated.
In this case, do not install
a "rear facing" child seat. While you do not have a rear-facing child seat fi tted to
the front passenger seat, it is recommended that the
passenger's front airbag be activated.
On the other hand, before fi tting a rear-facing child seat,
you must turn the control switch to the "OFF"
position.
Page 35 of 336
1/
INSTRUMENTS and CONTROLS
COOLANT TEMPERATURE INDICATOR
With the engine running, when the needle is:
- in zone A
, the temperature is correct,
- in zone B
, the temperature is too high; the maximum temperature
warning lamp and the central STOP
warning lamp come on,
accompanied by an audible signal and an alert message in the
screen.
You MUST stop as soon as it is safe to do so.
Wait a few minutes before switching off the engine.
Contact a PEUGEOT dealer or a qualifi ed workshop.
ENGINE OIL LEVEL INDICATOR
This information is displayed for a few seconds when the ignition is
switched on, at the same time as the service information.
The vehicle must be on level ground and the engine must have
been off for more than 30 minutes for this level check to be
accurate. After driving for a few minutes, the temperature and pressure in the
cooling system increase.
To top up the level:
)
wait for the engine to cool,
)
unscrew the cap by two turns to allow the pressure to drop,
)
when the pressure has dropped, remove the cap,
)
top up the level to the "MAX" mark.
Page 36 of 336
34
Oil level correct
This is indicated by the fl ashing of "OIL"
or an alert message in the
instrument panel, accompanied by illumination of the service warning
lamp and an audible signal.
If the lack of oil is confi rmed by a check using the dipstick, it is essential
that the level is topped up to prevent damage to the engine.
This is indicated by the fl ashing of "OIL--"
or the appearance of an alert
message in the instrument panel. Contact a PEUGEOT dealer or a
qualifi ed workshop.
Lack of oil
Oil level indicator fault
Dipstick
Refer to the "Checks" section to locate the dipstick and the oil fi ller cap
on your engine.
There are 2 marks on the dipstick:
- A
= max; never exceed this level (risk of damage
to the engine),
- B
= min; top up the level via the oil fi ller cap, using
the correct grade of oil for your engine.
Page 39 of 336
1/
INSTRUMENTS and CONTROLS
MANUAL CHECK
This function allows you to check the status of the vehicle (reminder of
the active alert warnings) and the service information.
)
With the engine running, to start a manual check, briefl y press the
"CHECK/000"
button on the instrument panel.
If no faults have been detected, "CHECK OK"
appears in the
instrument panel central screen.
If a "minor" fault has been detected, the warning lamp concerned then
"CHECK OK"
appear in the instrument panel central screen. Contact a
PEUGEOT or a qualifi ed workshop.
If a "major" fault has been detected, only the warning lamps concerned
appear in the instrument panel central screen. Have it checked by a
PEUGEOT dealer or a qualifi ed workshop.
DISTANCE RECORDERS
The total and trip distances are displayed for thirty seconds when the
ignition is switched off, when the driver's door is opened and when the
vehicle is locked or unlocked.
Measures the total distance travelled by the vehicle since its fi rst
registration.
Total distance recorder
)
With the ignition on, press and hold this button until zeros appear.
Trip distance recorder
Measures the distance travelled since it was last reset to zero by the
driver.
Page 57 of 336
2/
ACCESS
LOST KEYS
Visit a PEUGEOT dealer with the vehicle's registration document, your personal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transponder code required to order a new key.
LOCKING THE VEHICLE
Driving with the doors locked may make access to the passenger compartment by the emergency services more diffi cult in an emergency.
However, the vehicle unlocks automatically in the event of a serious impact causing airbag deployment.
As a safety precaution, never leave children alone in the vehicle, except for a very short period.
In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.
REMOTE CONTROL
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock
the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.
ANTI-THEFT PROTECTION
Do not make any modifi cations to the electronic engine immobiliser system; this could cause malfunctions.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
WHEN PURCHASING A SECOND-HAND VEHICLE
Have the pairing of all of the keys in your possession checked by a PEUGEOT dealer, to ensure that only your keys can be used to open and
start the vehicle.
Page 64 of 336
62

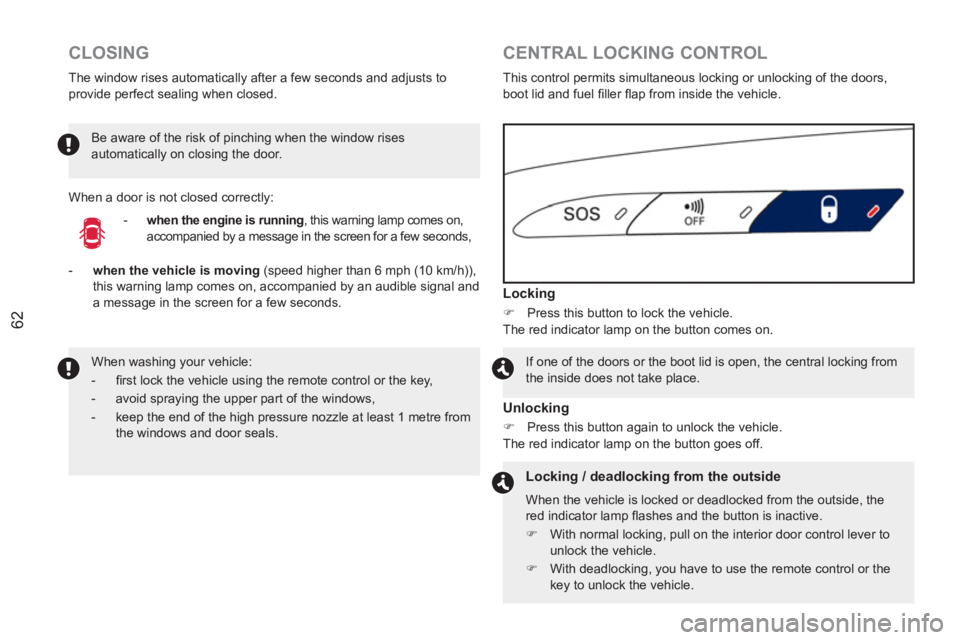

CLOSING
The window rises automatically after a few seconds and adjusts to
provide perfect sealing when closed.
- when the engine is running
, this warning lamp comes on,
accompanied by a message in the screen for a few seconds,
CENTRAL LOCKING CONTROL
This control permits simultaneous locking or unlocking of the doors,
boot lid and fuel fi ller fl ap from inside the vehicle.
Locking
)
Press this button to lock the vehicle.
The red indicator lamp on the button comes on.
If one of the doors or the boot lid is open, the central locking from
the inside does not take place.
Unlocking
)
Press this button again to unlock the vehicle.
The red indicator lamp on the button goes off.
Locking / deadlocking from the outside
When the vehicle is locked or deadlocked from the outside, the
red indicator lamp fl ashes and the button is inactive.
)
With normal locking, pull on the interior door control lever to
unlock the vehicle.
)
With deadlocking, you have to use the remote control or the
key to unlock the vehicle.
When washing your vehicle:
- fi rst lock the vehicle using the remote control or the key,
- avoid spraying the upper part of the windows,
- keep the end of the high pressure nozzle at least 1 metre from
the windows and door seals.
When a door is not closed correctly: Be aware of the risk of pinching when the window rises
automatically on closing the door.
- when the vehicle is moving
(speed higher than 6 mph (10 km/h)),
this warning lamp comes on, accompanied by an audible signal and
a message in the screen for a few seconds.
