2012 PEUGEOT RCZ glove box

FAMILIARISATION
INSTRUMENTS AND CONTROLS


1.
Door mirror controls.
Electric window controls.

2.
Lighting and direction indicator control
stalk.

3.
Steering wheel adjustment control.

4.
Cruise control / speed limiter switches.

5.
Bonnet release lever.

6.
Fusebox.

7.
Glove box / Audio/video sockets.

8.
Passenger's airbag.

9.
Front side window demisting vent.

10.
Windscreen demisting vent.

11 .
Sunshine sensor.

12.
Central adjustable air vents.

82

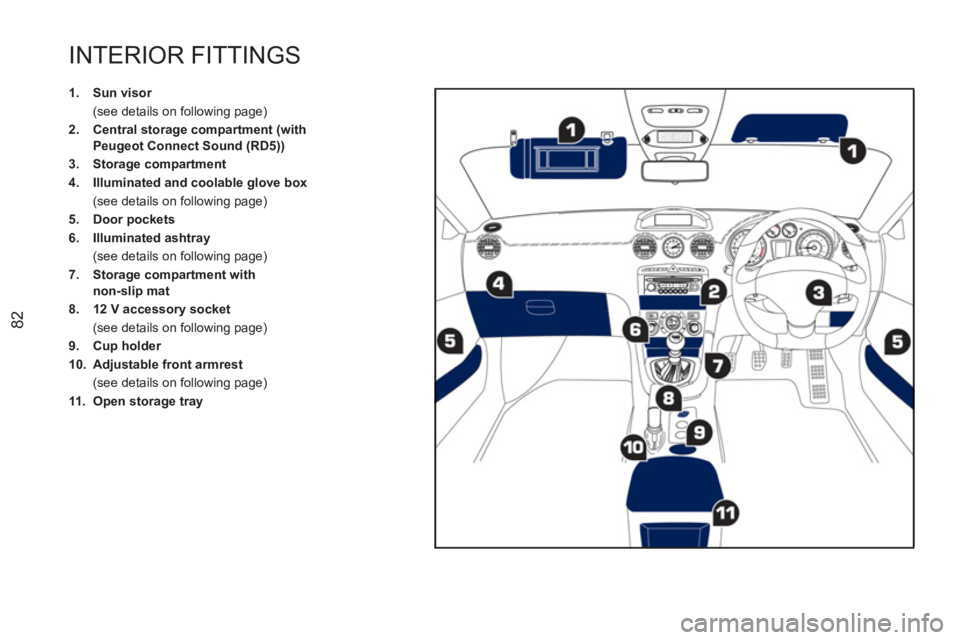

INTERIOR FITTINGS


1.
Sun visor

(see details on following page)

2.
Central storage compartment (with

Peugeot Connect Sound (RD5) )

3.
Storage compartment


4.
Illuminated and
coolable
glove box

(see details on following page)

5.
Door
pockets


6.
Illuminated ashtray

(see details on following page)

7.
Storage compartment with
non-slip mat


8.
12 V
accessory
socket

(see details on following page)

9.
Cup holder


10.
Adjustable front armrest

(see details on following page)

11 .
Open storage tray

3/
EASE OF USE and COMFORT
SUN VISOR
Component which protects against sunlight from the front or the side,
also equipped with an illuminated courtesy mirror.


)
With the ignition on, raise the concealing fl ap; the mirror is lit
automatically.
This sun visor is also equipped with a ticket holder.
ILLUMINATED AND COOLABLE
GL
OVEBOX
Its lid has areas for storing a pen, a pair of spectacles, tokens, cards, a
can...


)
To open the glove box, raise the handle.
The lamp comes on when the lid is opened.
The glove box is equipped with an air vent, which can be opened or
closed. This distributes the same conditioned air as the vents in the
passenger compartment.
It also provides access to the dashboard fusebox (refer to the section
"Practical information - Changing a fuse").

5/
SAFETY















FRONT AIRBAGS

System which protects the driver and front passenger in the event of
a serious front impact in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fi tted in the centre of the steering wheel; the front
passenger's airbag is fi tted in the dashboard above the glove box.


Deployment

The airbags are deployed, except the passenger's front airbag if it is
deactivated, in the event of a serious front impact to all or part of the
front impact zone A
, in the longitudinal centreline of the vehicle on a
horizontal plane and directed from the front to the rear of the vehicle.
The front airbag infl ates between the thorax and head of the front
occupant of the vehicle and the steering wheel, driver's side, and the
dashboard, passenger's side to cushion their forward movement.


Deactivation

Only the passenger's front airbag can be deactivated:


)
with the ignition off
, insert the key in the passenger airbag
deactivation switch,

)
turn it to the "OFF"
position,

)
then, remove the key keeping the switch in the new position.
To assure the safety of your child, the passenger's front airbag
must be deactivated when you install a "rear facing" child seat on
the front passenger seat.
Otherwise, the child would risk being seriously injured or killed if
the airbag were deployed. This warning lamp comes on in the passenger's front airbag
warning lamps display when the ignition is on and until the
airbag is reactivated.

8/
PRACTICAL INFORMATION
CHANGING A WHEEL


Parking the vehicle

Immobilise the vehicle where it does not block traffi c: the ground
must be level, stable and non-slippery ground.
Apply the parking brake, switch off the ignition and engage fi rst
gear (position P
for the automatic gearbox) to lock the wheels.
It is imperative that you ensure that the occupants get out of the
vehicle and wait where they are safe.
If necessary, place a chock under the wheel diagonally opposite
the wheel to be changed.
Never go underneath a vehicle raised using a jack; use an axle
stand.
Security socket: for adaptation of the
wheelbrace to the special "security" bolts.
Specifi c to your vehicle, it is stored in the
glove box.
Wheelbrace: for removal of the wheel fi xing
bolts.
Jack with integrated handle: for lifting the
vehicle.

TOOLS REQUIRED *

Bolt cover removal tool: for removal of the
bolt fi nishers (covers) on alloy wheels.

*
Depending on the country of sale, the vehicle may be equipped with
the tools needed to change a wheel and a spare wheel (see following
pages).

180
CHANGING A FUSE

ACCESS TO TOOLS

The extraction tweezer is fi tted to the back of the dashboard fusebox
cover. For access to it:


)
open the glove box lid,

)
push the opening guide to the left to pass the fi rst notch,

)
open the glove box lid fully,

)
turn the screw a quarter of a turn to the left,

)
unclip the fusebox cover by pulling at the top right,

)
disconnect the cover completely and turn it over,

)
extract the carrier on the back of which fi tted the tweezer.

182

DASHBOARD FUSES

The fusebox is placed in the lower part of the dashboard (left hand side,
inside the glove box). It consists of two boxes.

Access to the fuses



)
refer to the paragraph "Access to tools".



Fuse tables



Fuse N°



Rating


Functions



F1



-

Not used.


F2



30 A

Locking and deadlocking earth.


F3



5 A

Airbags, active bonnet and pretensioners
control unit.


F4



10 A

Clutch pedal switch, electrochrome
rear view mirror, automatic gearbox,
switching and protection unit.


F5



30 A

One-touch electric windows, folding
mirrors supply.


F6



-

Not used.


F7



5 A

Front and rear courtesy lamps, map
reading lamps, sun visor lighting, glove
box lighting.


F8



20 A

Audio equipment, audio/telephone,
multifunction screen, tyre under-infl ation
detection, clock.


F9



30 A

12 V socket.


F10



15 A

Steering mounted controls.


F11



15 A

Low current ignition switch.


F12



15 A

Instrument panel, air conditioning,
driver's seat memory unit, rain /
sunshine sensor, airbags.

Box 1

232
07
MEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
MEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
RADIONAV TRAFFICMEDIA
RADIONAV TRAFFICMEDIA
Connect the portable device (MP3 player, camcorder, camera…) to
the RCA sockets (white and red for audio; yellow for video) in the glove box using a JACK/RCA audio cable.

Press the MEDIA button then press
it again or select the Media Menu function and press OK to confi rm.

Select the AUX music source and press OK to confi rm. Play begins
automatically.
Select "Select media" then "External
device (AV)" and press OK to activate it.
External device

The display and management of the controls is via the portable device.

USING AN EXTERNAL DEVICE (AUX)


If the external input is not activated, select "Ext. Device (Aux)management" to activate it.
VIEWING A VIDEO DVD


Select the video source required ("DVD-Video", "External device(AV)"). Press OK to confi rm. Play begins.

Press the MEDIA button to gainaccess to the DVD menu at any time,or to the functions of the Media Menuwhich adjust the video (brightness/contrast, image format…). If the DVD does not a
ppear on thescreen, press the MODE button to gain access to the "MEDIA" screen
which displays the DVD screen.
Insert the DVD in the pla
yer. Play begins
automatically.

The 4-direction navi
gator and the chromed ring allow you
to move the DVD selection cursor. Change chapter by pressingthe or  button.

MUSIC MEDIA PLAYERS


AUDIO / VIDEO / RCA CABLE NOT SUPPLIED
