11 FAMILIARISATION
-

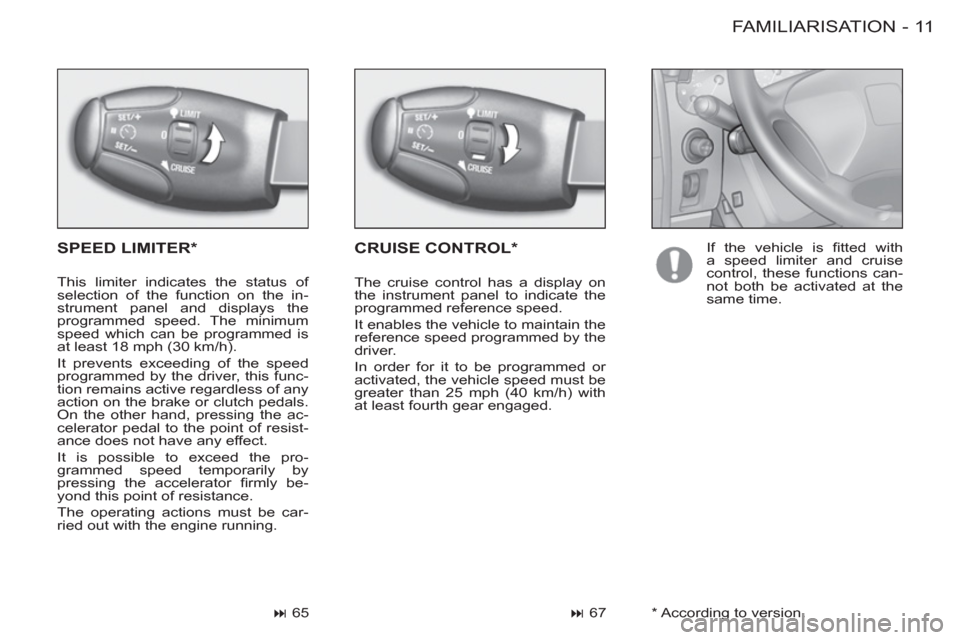

SPEED LIMITER * CRUISE CONTROL *




67



65 If the vehicle is fi tted with
a speed limiter and cruise
control, these functions can-
not both be activated at the
same time. This limiter indicates the status of
selection of the function on the in-
strument panel and displays the
programmed speed. The minimum
speed which can be programmed is
at least 18 mph (30 km/h).
It prevents exceeding of the speed
programmed by the driver, this func-
tion remains active regardless of any
action on the brake or clutch pedals.
On the other hand, pressing the ac-
celerator pedal to the point of resist-
ance does not have any effect.
It is possible to exceed the pro-
grammed speed temporarily by
pressing the accelerator fi rmly be-
yond this point of resistance.
The operating actions must be car-
ried out with the engine running. The cruise control has a display on
the instrument panel to indicate the
programmed reference speed.
It enables the vehicle to maintain the
reference speed programmed by the
driver.
In order for it to be programmed or
activated, the vehicle speed must be
greater than 25 mph (40 km/h) with
at least fourth gear engaged.
*
According to version.

17 FAMILIARISATION
-
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off
gently, change up without waiting
and drive by changing up quite soon.
If your vehicle has the system, the
gear effi ciency indicator invites you
to change up; it is displayed in the
instrument panel, follow its instruc-
tions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
,
according to the type of gearbox,
without pressing the accelerator ped-
al heavily or suddenly.



Drive smoothly


Maintain a safe distance between vehi-
cles, use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contrib-
ute towards a reduction in fuel consump-
tion and CO
2 emissions and also helps
reduce the background traffi c noise.


If your vehicle has cruise control,
make use of the system at speeds
above 25 mph (40 km/h) when the
traffi c is fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents
open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sunroof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.

As a passenger, if you avoid con-
necting your multimedia devices
(fi lm, music, video game...), you will
contribute towards limiting the con-
sumption of electrical energy, and so
of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

INSTRUMENTS, CONTROLS and DISPLAYS
20 -


1.
Seat belt not fastened warning
lamp

2.
Passenger’s airbag deactivated
warning lamp

3.
Front and lateral airbags warning
lamp

4.
Front foglamps warning lamp

5.
Anti-lock braking system (ABS)
warning lamp

6.
Rear foglamp warning lamp

7.
Diesel pre-heater warning lamp

8.
Left hand direction indicator
9.
Total distance recorder, service
indicator and engine oil level
indicator

10.
Right hand direction indicator

11 .
Emission control system warning
lamp

12.

Main beam headlamps warning lamp


13.
Parking brake, low brake fl uid
level and electronic brake force
distribution fault warning lamp

14.
Dipped beam headlamps
warning lamp

15.
Battery charge warning lamp

16.
Engine oil pressure and
temperature warning lamp
17.
Water in Diesel fi lter warning
lamp

18.
Low coolant level warning lamp

19.
Coolant temperature indicator

20.
Total distance recorder button

21.
Central (STOP) warning lamp

22.
Speedometer *

23.
Rev counter

24.
Lighting dimmer button

25.
Fuel gauge

26.
Low fuel level warning lamp

27.
Speed limiter/cruise control screen

INSTRUMENT PANEL: PETROL - DIESEL


*
Version indicating in miles or kilometres
according to country of sale.

21 INSTRUMENTS, CONTROLS and DISPLAYS
-
MONITORING OPERATION


A warning lamp on fi xed or fl ash-
ing, with the engine running, in-
dicates an fault in the operation
of the unit concerned. The illumi-
nation of certain warning lamps
may be accompanied by an audi-
ble signal and a message in the
screen. Do not ignore this warn-
ing: consult a
PEUGEOT dealer
as soon as possible.


If the central STOP warning lamp
comes on when you are driving,
stop your vehicle immediately,
where it is safe to do so.



Central (STOP)
warning lamp
Engine oil pressure
and temperature
warning lamp
Linked to the central (STOP) warn-
ing lamp.

You must stop.

This warning lamp indicates one of
the following:


- low oil pressure indicated by the
message "Oil pressure insuffi -
cient"
in the screen.

- low engine oil level. Top up the
level.

- oil temperature too high. To lower
the oil temperature, reduce your
speed.
Illumination of the warning lamp is
accompanied by an audible signal.
Consult a PEUGEOT dealer.


Low engine coolant
level warning lamp
Linked to the central (STOP)
warning lamp.
This comes on for a few seconds
when the ignition is switched on.
Illumination of this warning lamp is
accompanied by an audible signal
and the message "Top up engine
fl uid level"
in the screen.

You must stop as soon as it is safe
to do so.

Wait for the engine to cool before
topping up the level.
The cooling system is pressurised.


Parking brake, low
brake fluid level and
Electronic Brake Force
Distribution system
fault warning lamp
Linked to the central (STOP) warning
lamp.
This comes on each time the ignition
is switched on.
Illumination of this warning lamp is
accompanied by an audible signal
and a message in the screen indicat-
ing the cause of the warning:


- "Handbrake on",
if the parking
brake is applied or not fully re-
leased.

- "Brake fl uid level low"
if there is
an excessive drop in brake fl uid
level (if the warning lamp remains
on even when the parking brake
is released).

- "Braking fault"
is displayed to-
gether with the ABS warning
lamp, indicating a fault with the
Electronic Brake Force Distribu-
tion system. You must stop as
soon as it is safe to do so.


Consult a PEUGEOT dealer. If a check is required, to prevent
any risk of burns
unscrew the cap
by two turns to allow the pressure to
drop.
When the pressure has dropped, re-
move the cap and top up the level.
Consult a PEUGEOT dealer.
Linked to the warning lamps for:


- ''engine oil pressure and temper-
ature'',

- ''low coolant level'',

- "parking brake'',

- ''low brake fl uid level'',

- ''electronic brake force distribu-
tion system fault''.
Linked with the "coolant tempera-
ture" gauge.

You must stop if the lamp fl ashes
with the engine running.

Consult a PEUGEOT dealer.

INSTRUMENTS, CONTROLS and DISPLAYS
22 -

Battery charge warning
lamp
This comes on for a few sec-
onds when the ignition is
switched on. Illumination of this warn-
ing lamp, when the engine is running,
accompanied by an audible signal
and the message "Battery charge
fault"
in the screen, indicates one of
the following:


- malfunction of the charging
circuit,

- loose battery or starter terminals,

- a cut or loose alternator belt,

- an alternator failure.
Consult a PEUGEOT dealer.


Emission control
system warning lamp
This comes on for a few sec-
onds each time the ignition is
switched on.
If it comes on with the engine run-
ning, accompanied by an audible sig-
nal and the message in the screen:


- "Antipollution fault",
this indi-
cates a fault with the emission
control system

- "Catalytic converter fault",
this
indicates a fault with the injection
or ignition system. There is a risk
of damage to the catalytic con-
verter (petrol engine only).
Consult a PEUGEOT dealer.


Diesel engine
pre-heater warning
lamp
Wait until the warning lamp goes out
before starting the engine.
If the temperature is high enough,
the warning lamp comes on for less
than one second. You can start the
engine without waiting.


Low fuel level
warning lamp
This comes on for a few
seconds when the igni-
tion is switched on.
When the ignition is on, it is accom-
panied by an audible signal and the
message "Fuel level low"
in the
screen.
If it fl ashes with the fuel gauge nee-
dle in the lowest position, when the
ignition is on, this indicates a fault
with the fuel gauge.
When this warning lamp comes on,
you have enough fuel left to drive ap-
proximately 30 miles (50 km)
.
Capacity of the tank:


- approximately 55 litres for petrol
engines,

- approximately 60 litres for Diesel
engines.



Water in Diesel filter
warning lamp *

There is a risk of damage to the in-
jection system.
Contact a PEUGEOT dealer as soon
as possible.


Anti-lock braking
system (ABS) warning
lamp
This comes on for a few seconds each
time the ignition is switched on.
If the warning lamp remains on or
comes on above 8 mph (12 km/h),
this indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Illumination of this warning lamp,
accompanied by an audible signal
and the message "ABS fault"
in the
screen, indicates an ABS fault.
Consult a PEUGEOT dealer.

*
According to country.

23 INSTRUMENTS, CONTROLS and DISPLAYS
-

Seat belt not fastened
warning lamp *

When the ignition is switched
on, this warning lamp comes
on if the driver has not fastened their
seat belt.
Above 12 mph (20 km/h), the warn-
ing lamp fl ashes for two minutes.
Once the two minutes have elapsed,
the warning lamp remains on until
the driver fastens their seat belt.


Coolant temperature indicator



- needle in zone (A)
, the tempera-
ture is correct,

- needle in zone (B)
, the tempera-
ture is too high. The central STOP

warning light fl ashes, accompa-
nied by an audible signal and the
message "Engine coolant temp.
too high"
on the display.

You must stop.


Consult a PEUGEOT dealer.

* According to country.


Passenger's airbag
deactivated warning
lamp *

Illumination of this warning lamp
is accompanied by the message
"Passenger airbag deactivated"
in
the screen.
If the passenger's airbag is deacti-
vated, the warning lamp comes on
when the ignition is switched on and
it remains on.
Always consult a PEUGEOT dealer if
the warning lamp fl ashes.


Front and lateral
airbags warning lamp
This comes on for a few sec-
onds when the ignition is
switched on.
With the engine running, illumination
of this warning lamp accompanied by
an audible signal and the message
"Airbag fault"
in the multifunction
screen, indicates a fault with the air-
bags.
Consult a PEUGEOT dealer.

INSTRUMENTS, CONTROLS and DISPLAYS
24 -

Service indicator

This is a visual reminder of when the
next service is due. This service is to
be carried out according to the man-
ufacturer's servicing schedule. 5 seconds after the ignition is
switched on, the total distance re-
corder resumes normal operation
and the screen shows the total or trip
distances.


The distance remaining before the next
service is less than 1 000 km (600 miles).

Example:
900 km (560 miles) remain before
the next service is due.
When switching on the ignition and for 5 sec-
onds, the screen shows:
5 seconds after the ignition is
switched on, the total distance re-
corder resumes normal operation
and the symbol remains on.
This indicates that a service should
be carried out shortly. The screen
shows the total or trip distances.
The service is overdue.
Each time the ignition is switched on
and for 5 seconds, the symbol and
the excess distance fl ash.

Example:
the service is overdue
by 300 km (186 miles). The service
should be carried out very shortly.
When the ignition is switched on and
for 5 seconds, the display shows:
5 seconds after the ignition is
switched on, the total distance re-
corder resumes normal operation and
the symbol remains on. The screen
shows the total or trip distances.

Note:
the spanner comes on if the
two-year interval has been exceeded.


INSTRUMENT PANEL DISPLAY

After switching on the ignition, three
functions are shown in succession:


- service indicator,

- engine oil level indicator,

- total distance recorder/total and
trip distances.

Note
: the total and trip distances are
displayed for 30 seconds when the
ignition is switched off, on opening
the driver's door, as well as on lock-
ing and unlocking the vehicle.

Example:
4 800 km (2 980 miles) re-
main before the next service is due.
When the ignition comes on and for
5 seconds the display shows:
Operation
As soon as the ignition is switched on
and for 5 seconds, the spanner sym-
bolising ''service operation'' comes on.
The trip recorder display shows the
distance remaining (in round fi gures)
before the next service.
