152
Weights
TOWED LOADS
Body type
Engine
With braked trailer
Platform / Chassis
330
HDi 100
2 000
HDi 120
2 500
HDi 160
2 500
HDi 180
-
333
HDi 100
2 000
HDi 120
2 500
HDi 160
2 500
HDi 180
-
335
HDi 100
2 000
HDi 120
2 500 *
3 000 **
HDi 160
2 500 *
3 000 **
HDi 180
-
435 / 440
HDi 120
2 500
HDi 160
2500
HDi 180
-
*
15 inch wheels.
**
16 inch wheels.
154

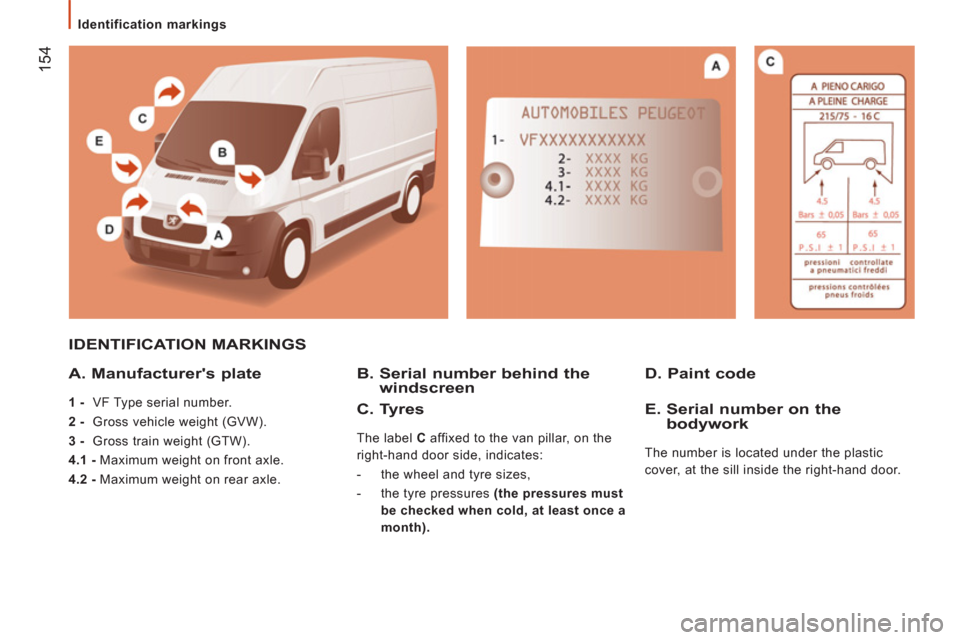

Identification markings
IDENTIFICATION MARKINGS
A. Manufacturer's plate
1 -
VF Type serial number.
2 -
Gross vehicle weight (GVW).
3 -
Gross train weight (GTW).
4.1 -
Maximum weight on front axle.
4.2 -
Maximum weight on rear axle.
B. Serial number behind the
windscreen D. Paint code
C. T
yres
The label C
affixed to the van pillar, on the
right-hand door side, indicates:
- the wheel and tyre sizes,
- the tyre pressures (the pressures must
be checked when cold, at least once a
month).
E. Serial number on the
bodywork
The number is located under the plastic
cover, at the sill inside the right-hand door.
159
Technical data - Maintenance
10
VISUAL SEARCH
Screenwash/headlamp wash, level 119
Bulbs, lighting,
changing bulbs 131-133
Opening the bonnet, stay 116
Under the bonnet 117
Identifi cation markings,
serial number, paint, tyres 154 Changing a wiper blade 139 Levels 118-119
●
dipstick,
●
power steering fluid,
●
brake fluid,
●
coolant.
Water bleed, Diesel fi lter 120
Checks 120-121
●
battery,
●
air/passenger compartment filter,
●
oil filter,
●
parking brake,
●
particle filter,
●
brake pads.
Emission control 36
Engine fuses 135, 138
TECHNICAL DATA - MAINTENANCE
Engine technical data 149
Dimensions 142-148
Weights 150-153
