2012 Peugeot Boxer height

61
3
EASE OF USE
and
COMFOR
T

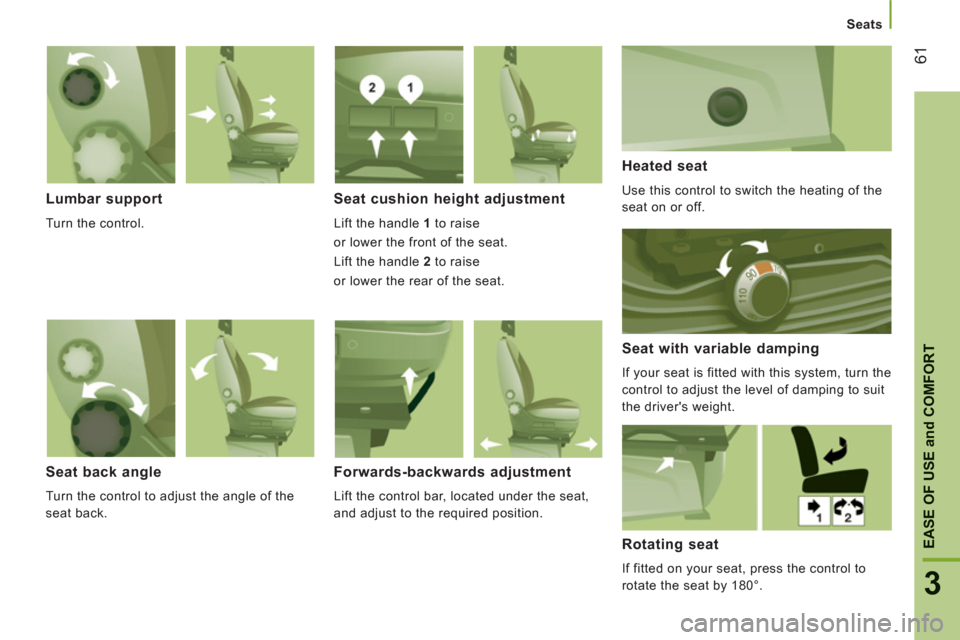

Seats
Lumbar support
Turn the control.


Seat cushion height adjustment

Lift the handle 1
to raise
or lower the front of the seat.
Lift the handle 2
to raise
or lower the rear of the seat.
Heated seat

Use this control to switch the heating of the
seat on or off.
Seat with variable damping

If your seat is fitted with this system, turn the
control to adjust the level of damping to suit
the driver's weight.
Seat back angle

Turn the control to adjust the angle of the
seat back.

Forwards-backwards adjustment

Lift the control bar, located under the seat,
and adjust to the required position.
Rotating seat

If fitted on your seat, press the control to
rotate the seat by 180°.

3
EASE OF USE
and
COMFOR
T
Practical information
Sliding side windows
Depending on the vehicle's
equipment, the side windows of
row 2 can be opened.
Squeeze the two controls then
slide the window.
While driving, the window must be closed or
secured in an intermediate position.


Step

To make access and exit easier, your vehicle
may be fitted with a step which unfolds when
the sliding side door is opened.
Courtesy lamps

If fitted on your vehicle, one or two courtesy
lamps are located above the rear and side
doors.
They can be activated by:


- tilting the courtesy lamp (to the left or to
the right),

- opening or closing the rear or side
doors.
This lighting switches off automatically, after
a few minutes, if the doors are left open.
Reading lamps

They are located above each row of seats.


Roof box

This is a storage compartment located in the
load space, above the cab roof. Its capacity
varies depending on the height of the van
roof.


Torch

If provided in your vehicle.


Ladder type vertical partition

Behind the driver's seat, a ladder type
vertical partition protects the driver against
the risk of load movement.


Load retainer

On the floor, behind the front seats, a
horizontal partition protects the driver and
front passengers against the risk of load
movement.


Glazed separation partition

Use the control to open/close the sliding
window of the separation partition.

81
4
TECHNOLOGY ON BOARD

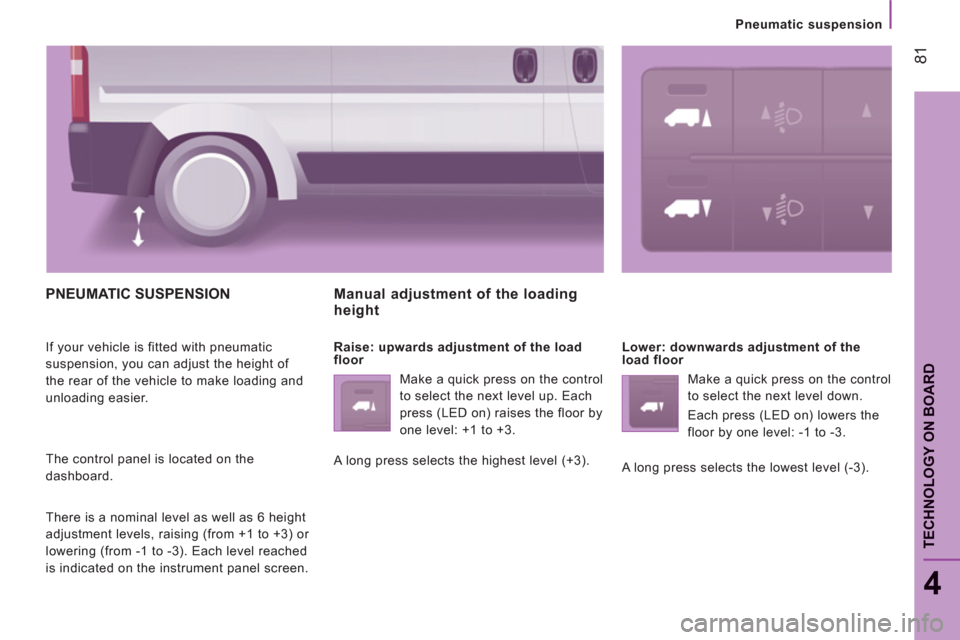

Pneumatic suspension
PNEUMATIC SUSPENSION
If your vehicle is fitted with pneumatic
suspension, you can adjust the height of
the rear of the vehicle to make loading and
unloading easier.
The control panel is located on the
dashboard.
There is a nominal level as well as 6 height
adjustment levels, raising (from +1 to +3) or
lowering (from -1 to -3). Each level reached
is indicated on the instrument panel screen.

Manual adjustment of the loadingheight


Raise: upwards adjustment of the load
floor
Make a quick press on the control
to select the next level up. Each
press (LED on) raises the floor by
one level: +1 to +3.
A long press selects the highest level (+3).
Lower: downwards adjustment of the
load floor
Make a quick press on the control
to select the next level down.
Each press (LED on) lowers the
floor by one level: -1 to -3.
A long press selects the lowest level (-3).

Pneumatic suspension


Deactivation
Make a long press on both controls
simultaneously to deactivate the system.
The LEDs remain on.

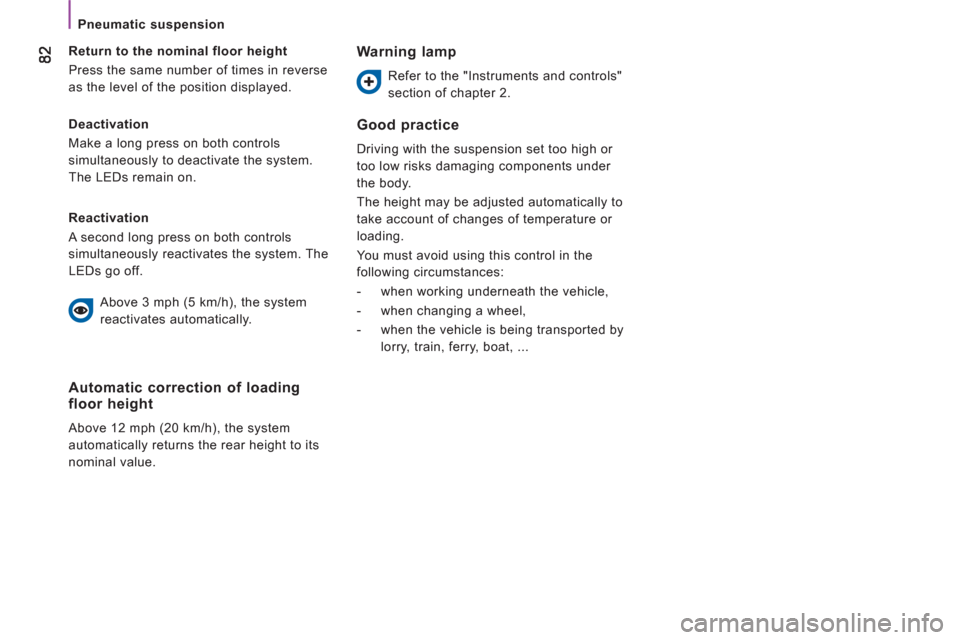

Return to the nominal floor height
Press the same number of times in reverse
as the level of the position displayed.

Reactivation
A second long press on both controls
simultaneously reactivates the system. The
LEDs go off.

Automatic correction of loading
floor height
Above 12 mph (20 km/h), the system
automatically returns the rear height to its
nominal value.
Warning lamp

Refer to the "Instruments and controls"
section of chapter 2.
Good practice

Driving with the suspension set too high or
too low risks damaging components under
the body.
The height may be adjusted automatically to
take account of changes of temperature or
loading.
You must avoid using this control in the
following circumstances:


- when working underneath the vehicle,

- when changing a wheel,

- when the vehicle is being transported by
lorry, train, ferry, boat, ...
Above 3 mph (5 km/h), the system
reactivates automatically.

Seat belts
98

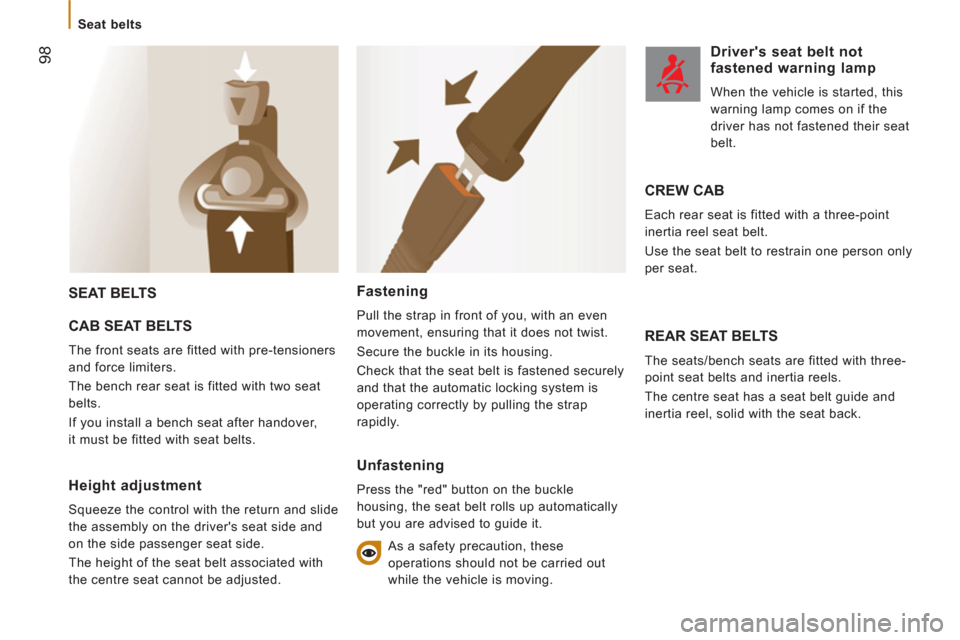

SEAT BELTS
CAB SEAT BELTS

The front seats are fitted with pre-tensioners
and force limiters.
The bench rear seat is fitted with two seat
belts.
If you install a bench seat after handover,
it must be fitted with seat belts. REAR SEAT BELTS

The seats/bench seats are fitted with three-
point seat belts and inertia reels.
The centre seat has a seat belt guide and
inertia reel, solid with the seat back.

Height adjustment

Squeeze the control with the return and slide
the assembly on the driver's seat side and
on the side passenger seat side.
The height of the seat belt associated with
the centre seat cannot be adjusted.
Fastening

Pull the strap in front of you, with an even
movement, ensuring that it does not twist.
Secure the buckle in its housing.
Check that the seat belt is fastened securely
and that the automatic locking system is
operating correctly by pulling the strap
rapidly.
Unfastening

Press the "red" button on the buckle
housing, the seat belt rolls up automatically
but you are advised to guide it.


As a safety precaution, these
operations should not be carried out
while the vehicle is moving.

Driver's seat belt not
fastened warning lamp
When the vehicle is started, this
warning lamp comes on if the
driver has not fastened their seat
belt.
CREW CAB

Each rear seat is fitted with a three-point
inertia reel seat belt.
Use the seat belt to restrain one person only
per seat.

11 4


Equipment


ROOF BARS

To install the transverse roof bars, use the
fixings provided for this purpose. Refer to the "Dimensions" section
of chapter 9 for further information
regarding the length (L1 to L4) and the
height (H1 to H3) of the vehicle. Never exceed the maximum weight of the
vehicle when loaded (GVW).
OTHER ACCESSORIES
These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your vehicle.
A wide recommended range and original
parts are offered.

Range of professional equipment
Maximum useful load on the roof bars:
100 kg distributed, regardless of the type of
vehicle.
The roof bars can only be installed on the
H1 and H2 vehicles. Parts and Service technical information
publishes an accessories catalogue offering
various equipment and fittings, such as:
Roof bars for short, medium and long
wheelbase (load retainers for all models).
Foot board, loading roller, step.
Towbar, 7/13 pin, 7/7 pin, 13 pin towbar
harness: trailer towbar which must be fitted
by the PEUGEOT network.
Roof bars for the various heights, additional
roof bar.
Separation partitions, protective floor,
non-slip floor.

14
3
9
TECHNI
CAL DAT
A
Dimensions
DIMENSIONS
Your vehicle is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:


Va n


L1
L2
L3
L4

H1
H1
H2
H2
H3
H2
H3

L Overall length
4 963
5 413
5 998
6 363

H Overall height
2 254
2 254
2 524
2 524
2 764
2 524
2 764

A Wheelbase
3 000
3 450
4 035

B Front overhang

948

C Rear overhang
1 015
1 380

D Overall width (excluding mirrors)
2 050

E Width of front track
1 810

F Width of rear track
1 790

G Height of load floor
535 to 565

I Length of interior floor
2 670
3 120
3 705
4 070

J Maximum interior load height
1 662
1 662
1 932
1 932
2 172
1 932
2 172

K Maximum interior width
1 870

M Interior width between wheel arches
1 422

Volume (m
3)

8


10


11 . 5


13


15


15


17

144


Dimensions



REAR DOORS


L1
L2
L3
L4

H1
H1
H2
H2
H3
H2
H3

N Rear door aperture height
1 520
1 520
1 790
1 790
2 030
1 790
2 030

O Rear door aperture width
1 562
