5
EXTERIOR


Visual and audible front and/or rear
parking sensors
This system warns you if an obstacle is
detected behind or in front of the vehicle
in reverse or forward gear.
167

Parking space sensor
This system measures the size of the
parking space available between two ve-
hicles or obstacles.
169

Temporary puncture repair kit
This kit is a complete system, consisting
of a compressor and an integrated seal-
ant product, for the temporary repair of
a tyre.
179
When washing your vehicle in a car
wash:


- remove the aerial,

- fold back the mirrors.

FA
M
9
INSTRUMENTS AND CONTROLS


1.
Cruise control/speed limiter switches.

2.
Steering wheel adjustment.

3.
Lighting and direction indicator stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
12 V accessories socket.

9.
Panoramic sunroof control.

10.

Owner's Handbook storage compartment.


11 .
Bonnet release.

12.
Door mirror controls.
Electric window controls.
Child lock.

13.
Manual headlamp height adjustment.
Instrument panel navigator associated
with the Peugeot Connect Media
Navigation (NG4 3D).

14.
Alarm button.
Parking sensors button.
Dynamic stability control
(ESP/ASR) button.
Stop & Start.

15.

Front door window demist/defrost vent.


16.
Windscreen demist/defrost vent.

FA
M
16

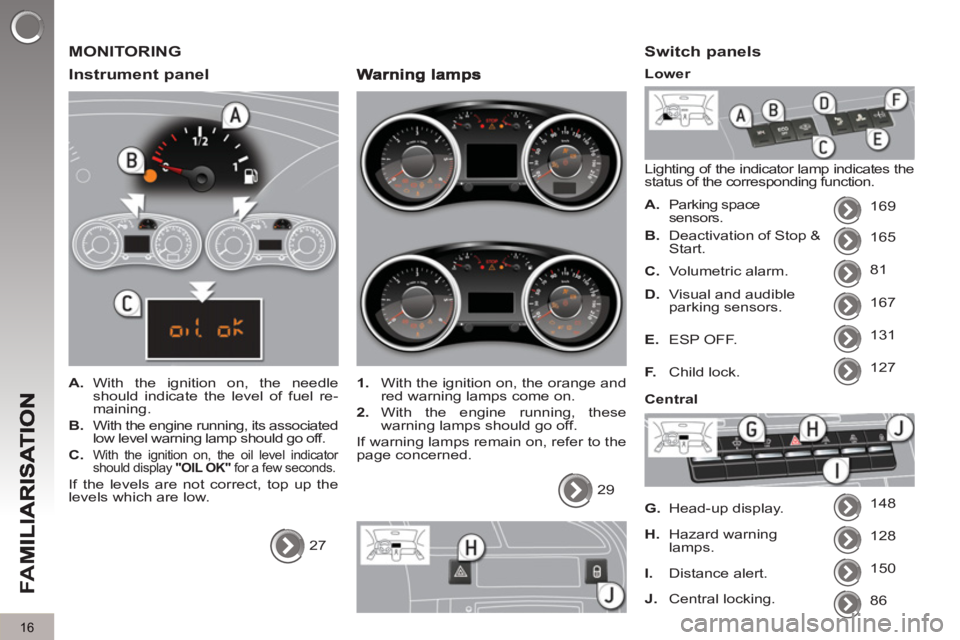

MONITORING

Instrument
panel



A.
With the ignition on, the needle
should indicate the level of fuel re-
maining.

B.
With the engine running, its associated
low level warning lamp should go off.

C.

With the ignition on, the oil level indicator
should display "OIL OK"
for a few seconds.

If the levels are not correct, top up the
levels which are low.
27



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
29


Switch panels

Lighting of the indicator lamp indicates the
status of the corresponding function.


A.
Parking space
sensors. 169
165
81
167
131
127
148
128
B.
Deactivation of Stop &
Start.

C.
Volumetric alarm.

D.
Visual and audible
parking sensors.

E.
ESP OFF.

F.
Child lock.

G.
Head-up display.

H.
Hazard warning
lamps.
Lower


Central

150

I.
Distance alert.
86

J.
Central locking.

31
IN
S


Warning lamp



is on



Cause



Action/Observations




Deactivation
of the
automatic
functions of
the electric
parking brake


fi xed. The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty. Activate the function (according to country) via
the vehicle confi guration menu or contact a
PEUGEOT dealer or a qualifi ed workshop.


Foot on the
brake pedal


fi xed. The brake pedal must be
pressed. Press the brake pedal to start the engine with
the 6-speed electronic gear control gearbox
(lever in position N
) or automatic gearbox
(lever in position P
).
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.

fl ashing. In the case of an electronic
gear control gearbox, if you
hold the vehicle on an incline
using the accelerator for too
long, the clutch overheats. Use the brake pedal and/or the electric parking
brake.


Parking space
sensors


fi xed. The parking space sensors
function is active. Press the corresponding button to deactivate it.

fl ashing. The system is measuring the
space. Once the measurement has been done, the
warning lamp comes on fi xed again.




Stop & Start


fi xed. When the vehicle stops (red
lights, traffi c jams, ...) the
Stop & Start system has put
the engine into STOP mode. The warning lamp goes off and the engine
restarts automatically in START mode, as soon
as you want to move off.

fl ashes
for a few
seconds,
then goes
off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for special
cases with STOP mode and START mode.

D
R
167
VISUAL AND AUDIBLE FRONTAND/OR REAR PARKING
SENSORS
System consisting of four proximity sen-
sors, installed in the front and/or rear
bumper.
It detects any obstacle (person, vehicle,
tree, barrier ...) located behind the vehi-
cle, however, it will not be able to detect
obstacles located immediately below
the bumper. The parking sensors are switched on
:


- by engaging reverse gear,

- at a speed below 6 mph (10 km/h) in
forward gear.
This is accompanied by an audible sig-
nal and display of the vehicle in the mul-
tifunction screen.
An object, such as a stake, a
roadworks cone or any other
similar object may be detected
at the start of the manoeuvre but may
no longer be detected when the ve-
hicle moves nearer to it. The proximity information is indicated by:


- an audible signal which becomes
more rapid as the vehicle approach-
es the obstacle,

- a graphic in the multifunction screen,
with blocks which move closer to the
vehicle.
The obstacle is located in relation to the
emission of the audible signal by the
speakers; front or rear and right or left.
When the distance between the vehicle
and the obstacle is less than approxi-
mately thirty centimetres, the audible
signal becomes continuous and/or the
"Danger" symbol appears, depending
on the multifunction screen version.

D
R
I
168
The parking sensor system
cannot, in any circumstances,
replace the need for vigilance
and responsibility on the part
of the driver. The parking sensors are switched off
:


- when you exit reverse gear,

- when the speed is higher than 6 mph
(10 km/h) in forward gear,

- when the vehicle has been station-
ary for more than three seconds in
forward gear.
Deactivation
Operating fault
The system will be deacti-
vated automatically when a
trailer is being towed or when
a bicycle carrier is fi tted (vehicle fi t-
ted with a towbar or bicycle carrier
recommended by PEUGEOT).

Reactivation


)
Press button A
again, the warning
lamp switches off, the system is re-
activated.


)
Press button A
, the warning lamp
comes on, the system is fully deacti-
vated. In bad weather or in winter, en-
sure that the sensors are not
covered with mud, ice or snow.
When reverse gear is engaged, an
audible signal (long beep) indicates
that the sensors may be dirty.
When the vehicle is being driven at
a speed below approximately 6 mph
(10 km/h), certain sources of noise
(motorcycles, lorries, pneumatic
drills, ...) may trigger the parking sen-
sor audible signals.
If an operating fault occurs,
this warning lamp is displayed
in the instrument panel and/
or a message appears in
the multifunction screen, ac-
companied by an audible signal (short
beep), when reverse gear is engaged.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.

D
R
169
PARKING SPACE SENSORS

After measuring the parking space avail-
able between two vehicles or obstacles,
this system gives you information on:


- the possibility of fi tting into a free
space, depending on the dimen-
sions of your vehicle and the dis-
tances needed for manoeuvring,

- the level of diffi culty of the manoeu-
vre to be performed.
The system does not measure spaces
which are clearly much smaller or larger
than the size of the vehicle.

Displays in the instrument panel

The parking space sensor
function warning lamp can
have three different states:


- off:
the function is not selected,

- on fi xed:
the function is selected
but the conditions for measurement
are not yet met (direction indicator
not operating, speed too high) or the
measurement phase has ended,

- fl ashing:
measurement is in prog-
ress or the message is being dis-
played. You can activate the "parking space
sensor" function by pressing button A.

The fi xed illumination of the warning
lamp indicates that the function is se-
lected.
