144

Front left seat moved back fully.

In the event of the electric parking brake
malfunctioning or the battery running
fl at, an emergency manual device can
release the parking brake.
Emergency release


)
Immobilise the vehicle (or keep
it stationary, if the brake pedal is
pressed), with the engine running,
by engaging fi rst gear (manual gear-
box), position P
(automatic gearbox)
or M
or R
(6-speed electronic gear
control gearbox).

)
Switch off the engine but leave the
ignition on. If it is impossible to im-
mobilise the vehicle, do not operate
the control and contact a PEUGEOT
dealer or a qualifi ed workshop ur-
gently.

)
Fetch the two vehicle blocks and
the release device, located under
the boot carpet (see "Changing a
wheel" in the "Practical information"
section).

)
Immobilise the vehicle by placing
blocks in front and behind one of the
front wheels.

)
Slide the front left-hand seat back
as far as possible.

)
Lift up the fl oor plug B
in the carpet
under the seat.

)
Pierce the protective cover C
on the
tube D
with the release device.

)

Place the release device in the tube D
.


)
Turn the release device clockwise.

For safety reasons
, it is essential

to continue turning the device as far
as it will go. The parking brake is re-
leased.
)
Remove the release device and store
it with the blocks in the toolbox.


- The operation of the parking
brake reinitialises when the igni-
tion is switched off then on again.
If the reinitialisation of the parking
brake proves impossible, contact
a PEUGEOT dealer or a qualifi ed
workshop.

- The subsequent time required for
application may be longer than dur-
ing normal operation.

For safety reasons, you must
contact a PEUGEOT dealer
as soon as possible to replace
the protective cover.
Following an emergency unlocking,
immobilisation of the vehicle is no
longer guaranteed once the manual
emergency release has been de-
ployed and the manual control does
not allow the re-application of your
parking brake.
Take no action, either on the control
lever A
, or stopping or starting the
engine while the release device is
engaged.
Take care not to allow moisture or
dust in the proximity of the protective
cover.

PRACTICAL INFORMATION

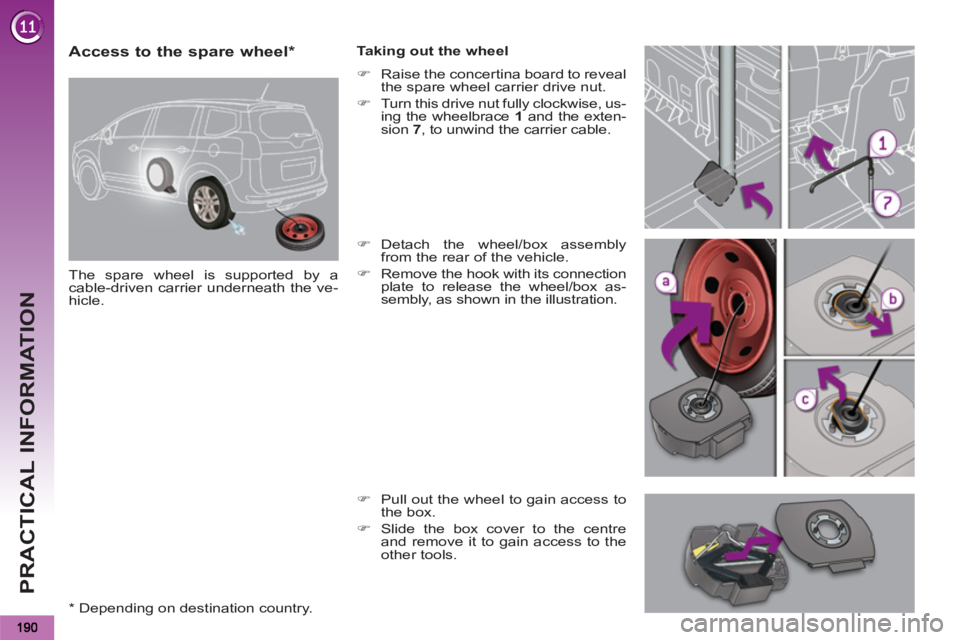

Access to the spare wheel *

The spare wheel is supported by a
cable-driven carrier underneath the ve-
hicle.
Taking out the wheel


)
Raise the concertina board to reveal
the spare wheel carrier drive nut.

)
Turn this drive nut fully clockwise, us-
ing the wheelbrace 1
and the exten-
sion 7
, to unwind the carrier cable.

)
Detach the wheel/box assembly
from the rear of the vehicle.

)
Remove the hook with its connection
plate to release the wheel/box as-
sembly, as shown in the illustration.

)
Pull out the wheel to gain access to
the box.

)
Slide the box cover to the centre
and remove it to gain access to the
other tools.


*
Depending on destination country.

PRACTICAL INFORMATION
191

Tyre under-infl ation
detection
The spare wheel is not fi tted
with a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer or a qualifi ed workshop.

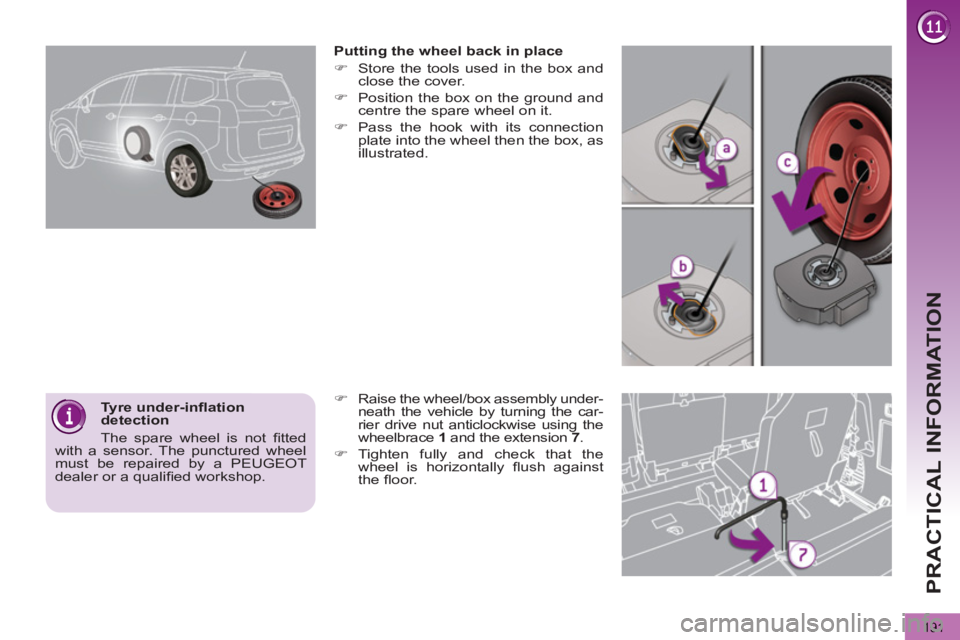

Putting the wheel back in place


)
Store the tools used in the box and
close the cover.

)
Position the box on the ground and
centre the spare wheel on it.

)
Pass the hook with its connection
plate into the wheel then the box, as
illustrated.

)
Raise the wheel/box assembly under-
neath the vehicle by turning the car-
rier drive nut anticlockwise using the
wheelbrace 1
and the extension 7
.

)
Tighten fully and check that the
wheel is horizontally fl ush against
the fl oor.
