2012 PEUGEOT 3008 key

Page reference:

this symbol invites you to re-
fer to the pages which provide
details of the function.


Key

Protection of the
environment:
this symbol accompanies
advice relating to protection of the
environment.


Information:

this symbol draws your at-
tention to additional informa-
tion for better use of your vehicle.


Warning:

this symbol marks warn-
ings which it is essential to
observe for your own safety, for the
safety of others or to avoid any risk
of damaging your vehicle.

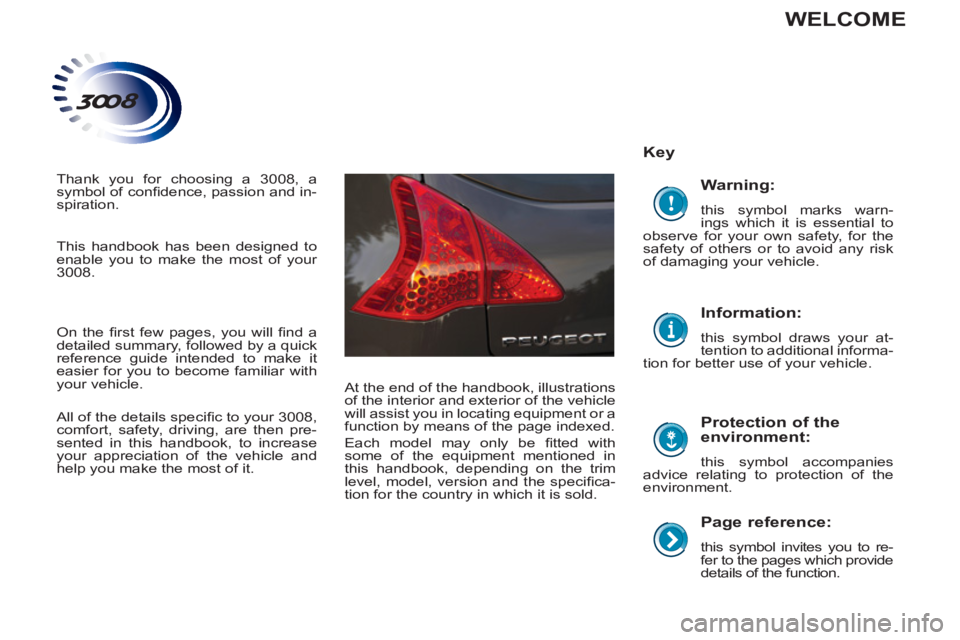

WELCOME


Thank you for choosing a 3008, a
symbol of confi dence, passion and in-
spiration.
This handbook has been designed to
enable you to make the most of your
3008.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your vehicle.
All of the details specifi c to your 3008,
comfort, safety, driving, are then pre-
sented in this handbook, to increase
your appreciation of the vehicle and
help you make the most of it. At the end of the handbook, illustrations
of the interior and exterior of the vehicle
will assist you in locating equipment or a
function by means of the page indexed.
Each model may only be fi tted with
some of the equipment mentioned in
this handbook, depending on the trim
level, model, version and the specifi ca-
tion for the country in which it is sold.

CONTENTS
FAMILIARISATION 4-26
INSTRUMENTS and
CONTROLS 27-41CHILD
SAFETY 113-123
MULTIFUNCTION
SCREENS 42-57SAFETY 124-136 COMFORT 58-73
ACCESS 74-88
VISIBILITY 89-99FITTINGS 100-112
Instrument panels 27
Indicator and warning lamps 29
Indicators 37
Adjustment buttons 41Child seats 113
ISOFIX child seats 120
Child lock 123
Screen A without audio
equipment 42
Screen A with audio equipment 44
Screen C
(Peugeot Connect Sound) 46
16/9 retractable colour screen
(Peugeot Connect Navigation
(RNEG)) 49
16/9 high definition retractable
colour screen
(Peugeot Connect Media) 51
Trip computer 54Direction indicators 124
Hazard warning lamps 124
Horn 124
Tyre under-inflation detection 125
ESC system 126
Grip control 128
Front seat belts 130
Airbags 133 Heating and Ventilation 58
Manual air conditioning 60
Rear screen demist/defrost 61
Dual-zone digital air
conditioning 62
Front seats 65
Rear seats 69
Mirrors 71
Steering wheel adjustment 73
Remote control key 74
Alarm 79
Electric windows 81
Doors 83
Boot 85
Lower tailgate 86
Fuel tank 87
Misfuel prevention 88
Lighting controls 89
Automatic illumination of
headlamps 92
Headlamp adjustment 92
Directional lighting 93
Wiper controls 94
Automatic rain sensitive wipers 96
Courtesy lamps 97
Interior mood lighting 98Interior fittings 100
Front armrest 102
Rear multimedia 104
Panoramic sunroof 106
Boot fittings 107
ECO-DRIVING 25

6
FAMILIARISATION

Remote control key



A.
Unfolding/Folding the key.
Normal locking
(press once; fi xed lighting of
the direction indicators).
Deadlocking the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).
Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators). or
74 When the light is poor, detected by
a sensor, the remote switching on of
the dipped headlamps and sidelamps
makes your approach to the vehicle
easier.
This function can be programmed via
the confi guration menu.
91
87


Fuel tank



1.
Opening the fuel fi ller fl ap.

2.
Opening and hooking the fuel fi ller
cap.
The type of fuel to be used is indicated
on the inner face of the fuel fi ller fl ap.
Capacity of the tank: approximately
60 litres.

Welcome lighting



On Diesel vehicles, the fuel
fi ller neck incorporates a mis-
fuel prevention device which
prevents fi lling with petrol.

OPENING

7
FAMILIARISATION

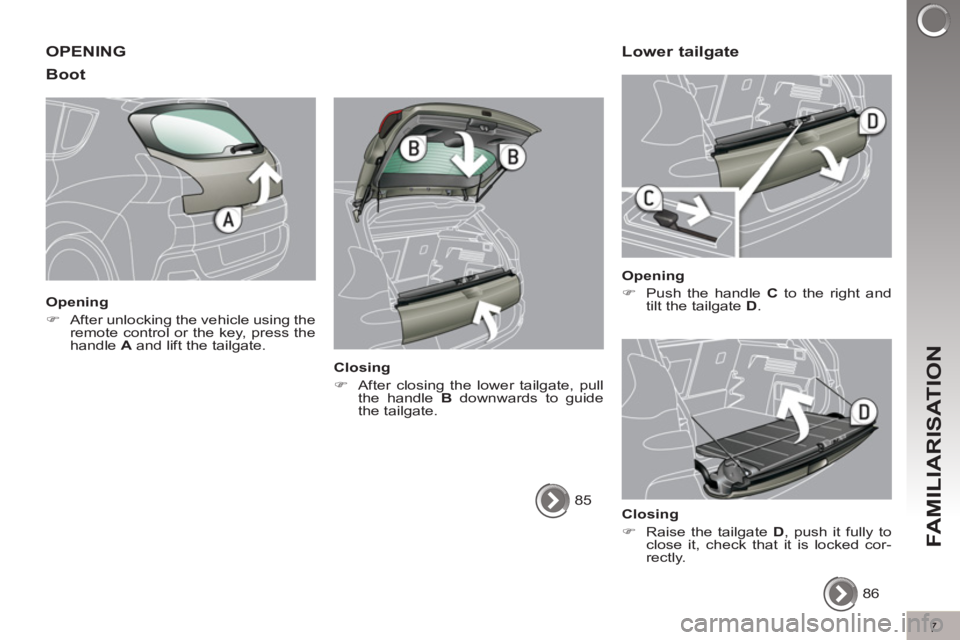

OPENING

Boot


Opening


)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and lift the tailgate.


Closing


)
After closing the lower tailgate, pull
the handle B
downwards to guide
the tailgate.



Lower tailgate

85
Opening


)
Push the handle C
to the right and
tilt the tailgate D
.


Closing


)
Raise the tailgate D
, push it fully to
close it, check that it is locked cor-
rectly.

86

17
FAMILIARISATION

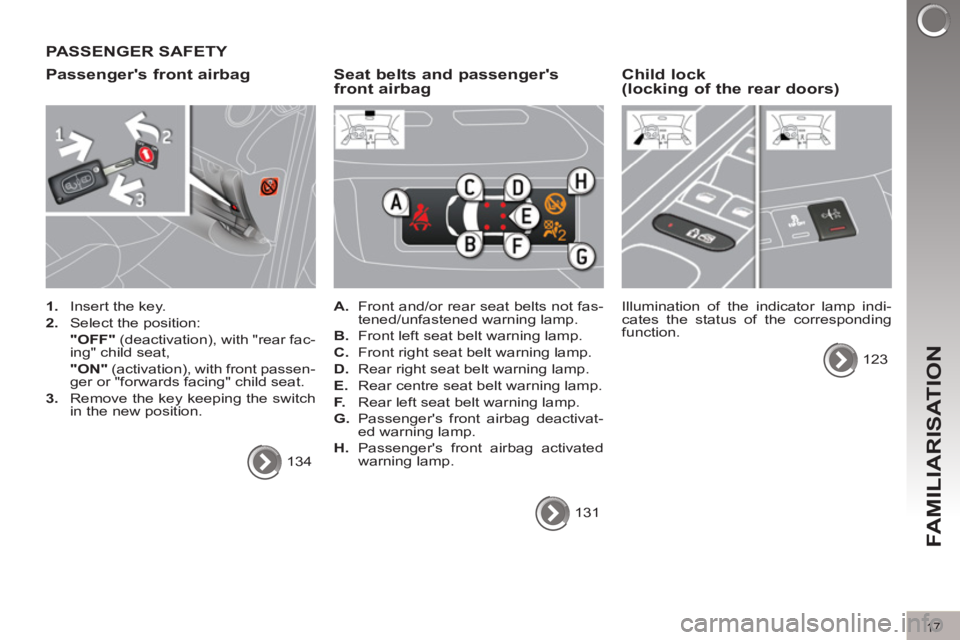

PASSENGER SAFETY

Passenger's front airbag



1.
Insert the key.

2.
Select the position:
"OFF"
(deactivation), with "rear fac-
ing" child seat,
"ON"
(activation), with front passen-
ger or "forwards facing" child seat.

3.
Remove the key keeping the switch
in the new position.
134


Seat belts and passenger's
front airbag


A.
Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp.

E.
Rear centre seat belt warning lamp.

F.
Rear left seat belt warning lamp.

G.
Passenger's front airbag deactivat-
ed warning lamp.

H.
Passenger's front airbag activated
warning lamp.
131


Child lock
(locking of the rear doors)
Illumination of the indicator lamp indi-
cates the status of the corresponding
function.
123

20
FAMILIARISATION
Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition us-
ing the key.

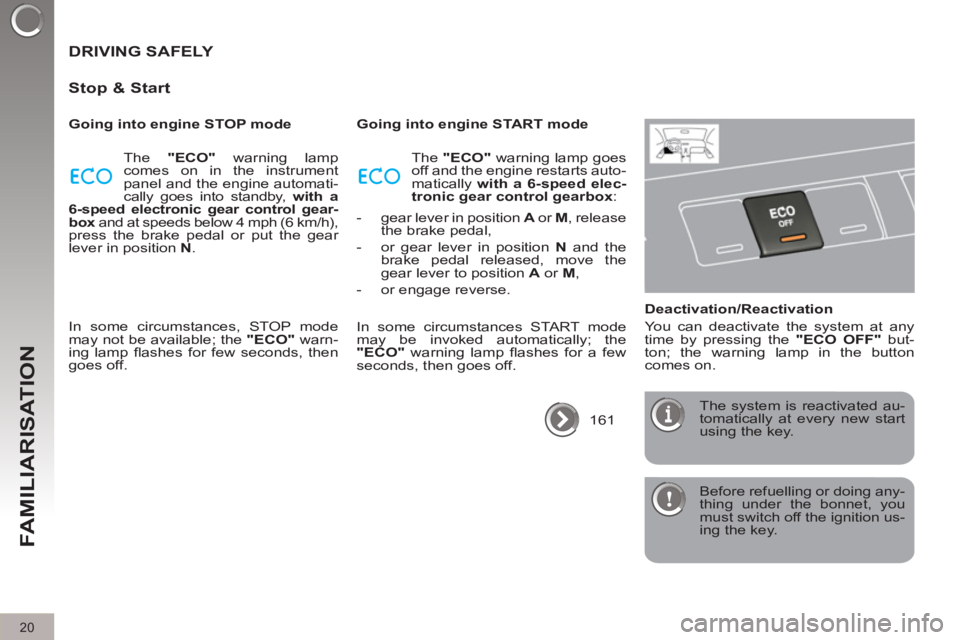

DRIVING SAFELY

Stop & Start


Going into engine STOP mode
The "ECO"
warning lamp
comes on in the instrument
panel and the engine automati-
cally goes into standby, with a
6-speed electronic gear control gear-
box
and at speeds below 4 mph (6 km/h),
press the brake pedal or put the gear
lever in position N
.
Going into engine START mode

Deactivation/Reactivation
You can deactivate the system at any
time by pressing the "ECO OFF"
but-
ton; the warning lamp in the button
comes on.
161 The system is reactivated au-
tomatically at every new start
using the key. The "ECO"
warning lamp goes
off and the engine restarts auto-
matically with a 6-speed elec-
tronic gear control gearbox
:


- gear lever in position A
or M
, release
the brake pedal,

- or gear lever in position N
and the
brake pedal released, move the
gear lever to position A
or M
,

- or engage reverse.
In some circumstances, STOP mode
may not be available; the "ECO"
warn-
ing lamp fl ashes for few seconds, then
goes off. In some circumstances START mode
may be invoked automatically; the
"ECO"
warning lamp fl ashes for a few
seconds, then goes off.

57

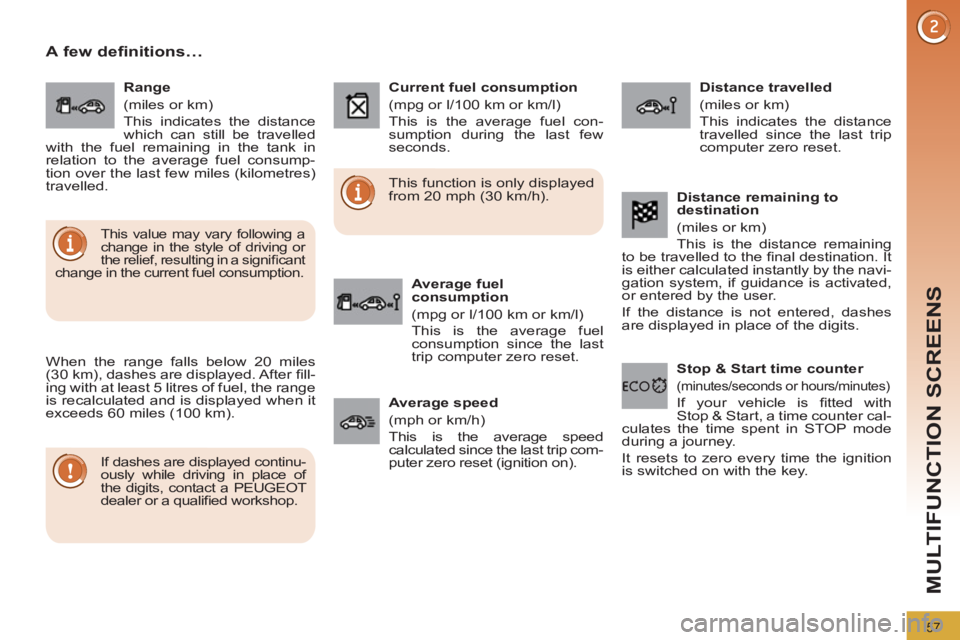

MULTIFUNCTION SCREENS






A few definitions…

When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of
the digits, contact a PEUGEOT
dealer or a qualifi ed workshop. This function is only displayed
from 20 mph (30 km/h).

This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel consumption.

Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.

Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last
trip computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.


Average speed
(mph or km/h)
This is the average speed
calculated since the last trip com-
puter zero reset (ignition on).

Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.








Stop & Start time counter

(minutes/seconds or hours/minutes)

If your vehicle is fi tted with
Stop & Start, a time counter cal-
culates the time spent in STOP mode
during a journey.
It resets to zero every time the ignition
is switched on with the key.

71

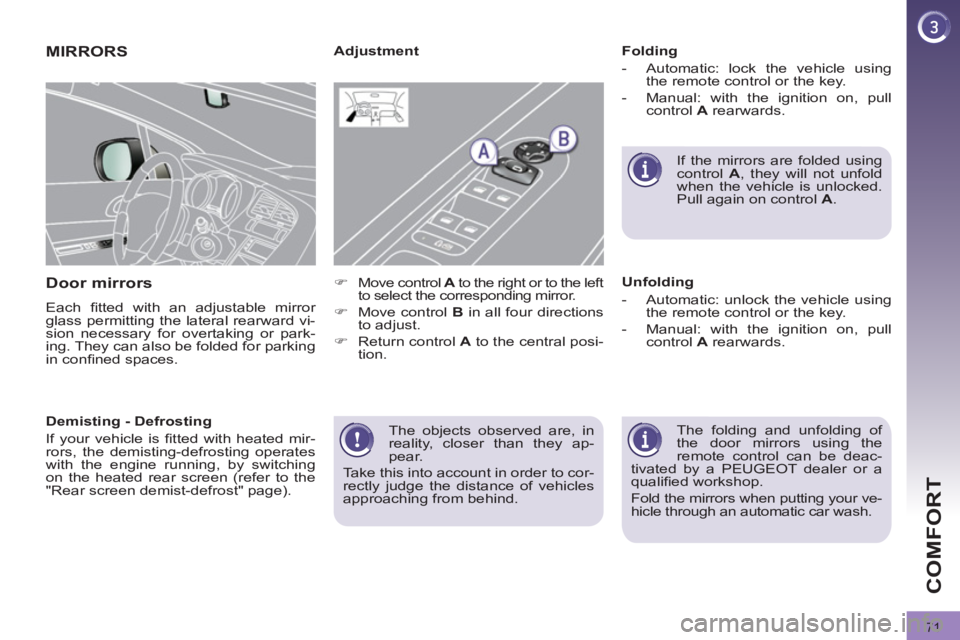

COMFORT
The objects observed are, in
reality, closer than they ap-
pear.

Take this into account in order to cor-
rectly judge the distance of vehicles
approaching from behind.







MIRRORS

Door mirrors

Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces.

Folding


- Automatic: lock the vehicle using
the remote control or the key.

- Manual: with the ignition on, pull
control A
rearwards.

The folding and unfolding of
the door mirrors using the
remote control can be deac-
tivated by a PEUGEOT dealer or a
qualifi ed workshop.
Fold the mirrors when putting your ve-
hicle through an automatic car wash.

Adjustment

Unfolding


- Automatic: unlock the vehicle using
the remote control or the key.

- Manual: with the ignition on, pull
control A
rearwards.

If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.


)
Move control A
to the right or to the left
to select the corresponding mirror.

)
Move control B
in all four directions
to adjust.

)
Return control A
to the central posi-
tion.

Demisting - Defrosting
If your vehicle is fi tted with heated mir-
rors, the demisting-defrosting operates
with the engine running, by switching
on the heated rear screen (refer to the
"Rear screen demist-defrost" page).
