FAMILIARISATION
INSTRUMENTS AND CONTROLS


1.
Cruise control/speed limiter
switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
Front armrest - Peugeot Connect
USB and/or auxiliary socket.

9.
Bonnet release.

10.
Driver's storage compartment
(Handbook).

11 .
Alarm button.
Parking sensors button.
Dynamic stability control button
(ESP/ASR).
Stop & Start deactivation button.

12.
Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media Navigation
(NG4 3D).

13.
Door mirror controls.
Electric window controls.
Child lock.

14.
Front side window demisting vent.

15.
Windscreen demisting vent.

14
FAMILIARISATION
SEEING CLEARLY

Lighting


Ring A
Lighting off.

Ring B Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Automatic illumination of head-
lamps.
89



Direction indicators

Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash for as
long as the stalk remains in this position.

"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.
124



Wipers


Stalk A: windscreen wipers

Switching on "AUTO"


)
Press the stalk down and release it.


Switching off "AUTO"


)
Push the stalk up and return it to po-
sition "0"
.
94

Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
95

16
FAMILIARISATION
MONITORING

Instrument panel



A.
With the ignition on, the needle
should indicate the level of fuel re-
maining.

B.
With the engine running, its associ-
ated low level warning lamp should
go off.

C.
With the ignition on, the oil level in-
dicator should display "OIL OK"
for
a few seconds.
If the levels are not correct, top up the
levels which are low.
27


Warning lamps



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
29


Switch panels

Lighting of the indicator lamp indicates
the status of the corresponding function.


A.
Deactivating the Stop
& Start system. 162
79
164
127
82, 123
145
124
147
B.
Volumetric alarm.

C.
Visual and audible
parking sensors.

D.
ESP OFF (without
Grip control).

E.
Child lock.

F.
Head-up display.

G.
Hazard warning lamps.

H.
Distance alert.
Lower


Central


I.
Central locking. 84

17
FAMILIARISATION
PASSENGER SAFETY

Passenger's front airbag



1.
Insert the key.

2.
Select the position:
"OFF"
(deactivation), with "rear fac-
ing" child seat,
"ON"
(activation), with front passen-
ger or "forwards facing" child seat.

3.
Remove the key keeping the switch
in the new position.
134


Seat belts and passenger's
front airbag


A.
Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp.

E.
Rear centre seat belt warning lamp.

F.
Rear left seat belt warning lamp.

G.
Passenger's front airbag deactivat-
ed warning lamp.

H.
Passenger's front airbag activated
warning lamp.
131


Child lock
(locking of the rear doors)
Illumination of the indicator lamp indi-
cates the status of the corresponding
function.
123

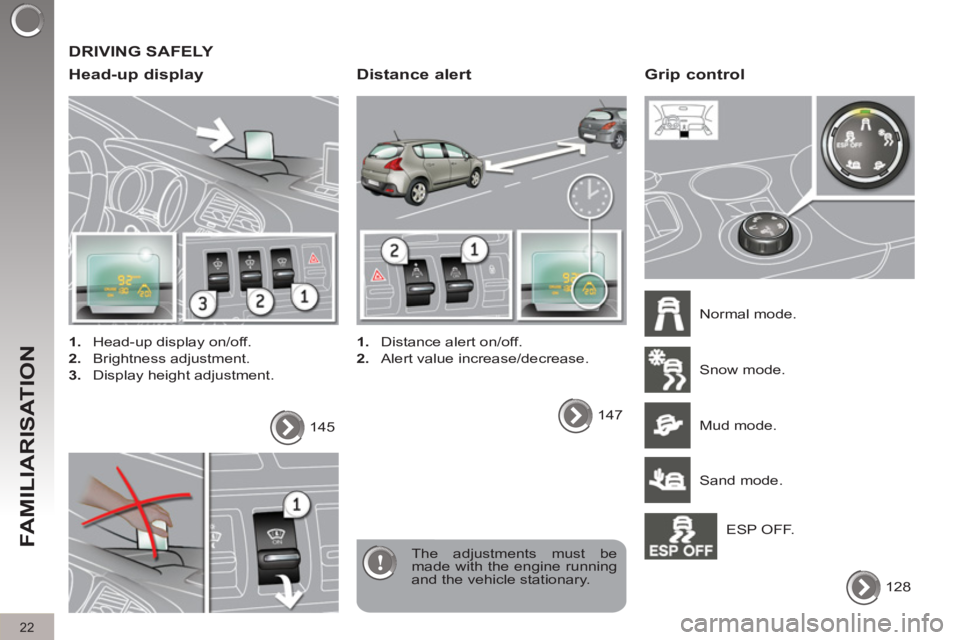

DRIVING SAFELY

Head-up display



1.
Head-up display on/off.

2.
Brightness adjustment.

3.
Display height adjustment.
The adjustments must be
made with the engine running
and the vehicle stationary. 145


Distance alert



1.
Distance alert on/off.

2.
Alert value increase/decrease.
147


Grip control

Normal mode.
128 Snow mode.
Mud mode.
Sand mode.
ESP OFF.
22
FAMILIARISATION

29
INSTRUMENTS and CONTROLS

Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the "Ac-
cess" section),

- guide-me-home and welcome light-
ing (refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section).


Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and fuel consumption (l/100 km, mpg or
km/l).

Choice of language
This menu allows you to select the
display language: Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Türkçe * .
The main menu and its asso-
ciated functions can only be
accessed when stationary, via
buttons 1
to 4
.
A message appears on the screen,
above a certain speed threshold, in-
dicating that the main menu cannot
be displayed.
The trip computer displays can only
be accessed while driving, via but-
tons 2
and 3
(refer to the "Trip com-
puter" paragraph).

Main menu


)
Press button 1
for access to the
main menu and select one of the fol-
lowing functions:


- "Vehicle parameters",

- "Choice of language",

- "Choice of units".

)
Press button 2
or 3
to move in the
screen.

)
Press button 1
again to confi rm the
selection.


*
According to country.










Indicator and warning lamps

Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).

When the ignition is switched on
Certain warning lamps come on for a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.


Associated warnings
The illumination of certain warning
lamps may be accompanied by an au-
dible signal and a message in the multi-
function screen.
The warning lamps may come
on continuously (fi xed) or
fl ash.
Certain warning lamps may come on
in two different modes. Only by re-
lating the type of illumination to the
operating status of the vehicle can
it be ascertained whether the situa-
tion is normal or whether a fault has
occurred.

30
INSTRUMENTS and CONTROLS

Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has come into operation.



Warning lamp



is on



Cause



Action/Observations








Left-hand
direction
indicato

r


fl ashing
with buzzer. The lighting stalk is pushed
down.






Right-hand
direction
indicator


fl ashing
with buzzer. The lighting stalk is pushed
up.






Sidelamps


fi xed. The lighting stalk is in the
"Sidelamps" position.






Dipped beam
headlamps


fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position.






Main beam
headlamps


fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.





Front
foglamps


fi xed. The front foglamps are
switched on. Turn the ring on the stalk rearwards twice to
switch off the front foglamps.





Rear
foglamps


fi xed. The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.

32
INSTRUMENTS and CONTROLS

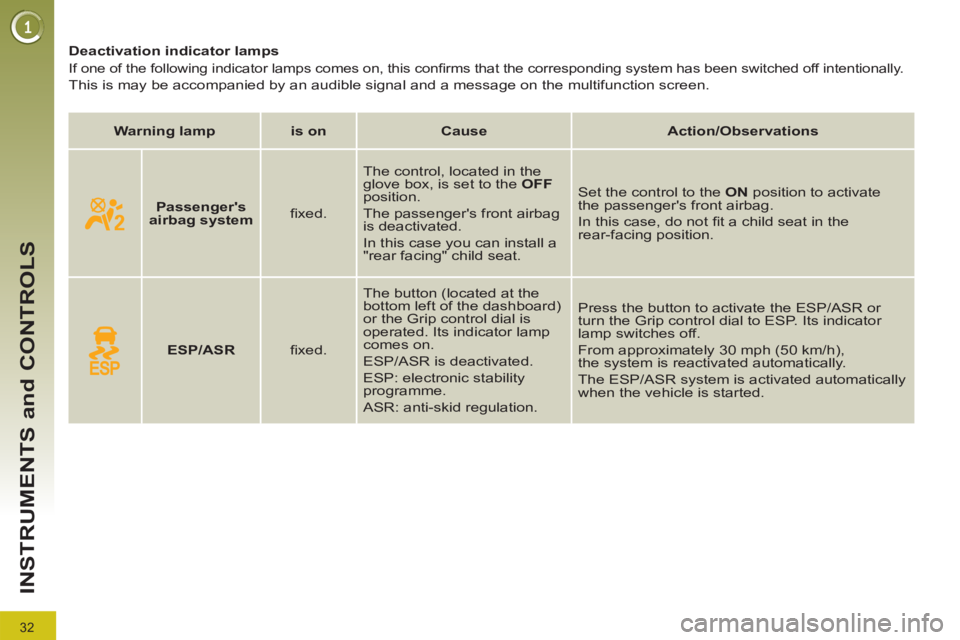

Deactivation indicator lamps

If one of the following indicator lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.



Warning lamp



is on



Cause



Action/Observations








Passenger's
airbag system


fi xed. The control, located in the
glove box, is set to the OFF

position.
The passenger's front airbag
is deactivated.
In this case you can install a
"rear facing" child seat. Set the control to the ON
position to activate
the passenger's front airbag.
In this case, do not fi t a child seat in the
rear-facing position.





ESP/ASR


fi xed. The button (located at the
bottom left of the dashboard)
or the Grip control dial is
operated. Its indicator lamp
comes on.
ESP/ASR is deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation. Press the button to activate the ESP/ASR or
turn the Grip control dial to ESP. Its indicator
lamp switches off.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
The ESP/ASR system is activated automatically
when the vehicle is started.
