FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Audio and telematics system
steering mounted control.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Central adjustable air vents.

5.
Head-up display.

6.
Multifunction screen.

7.
Passenger's airbag.

8.
Side adjustable air vent.

9.
Glove box - Audio/video sockets -
Passenger's airbag deactivation.

10.
Storage compartment with net.

11 .
HYbrid4 mode selector.

12.
12 V accessory socket.

13.
Grab handle.

14.
Heating/air conditioning controls.

15.
Audio and telematics system.

16.
Buttons:
- head-up display,
- hazard warning lamps,
- central locking.

HYBRID SYSTEM
39

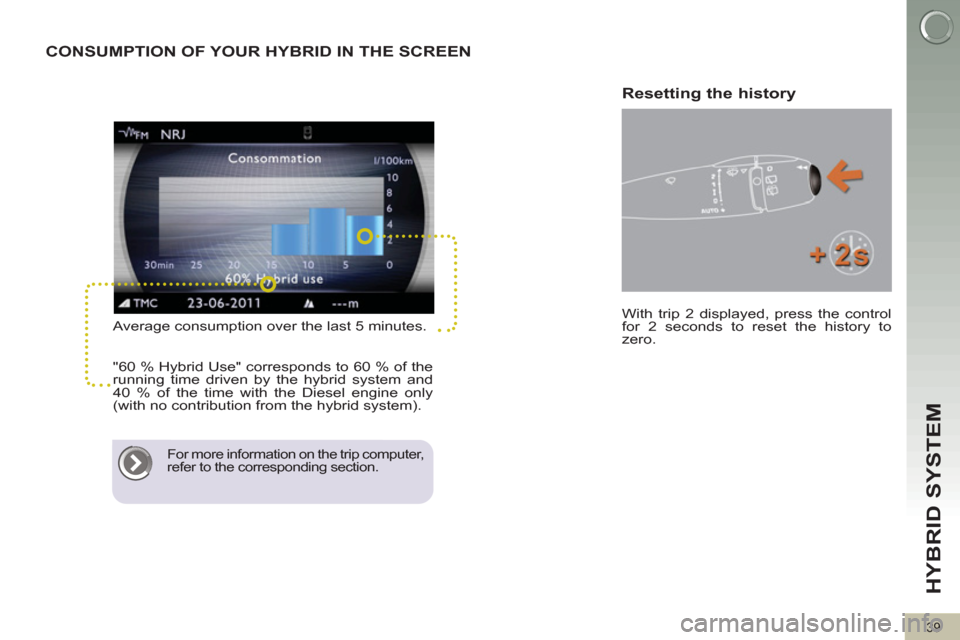

CONSUMPTION OF YOUR HYBRID IN THE SCREEN


Average consumption over the last 5 minutes.
"60 % Hybrid Use" corresponds to 60 % of the
running time driven by the hybrid system and
40 % of the time with the Diesel engine only
(with no contribution from the hybrid system).


For more information on the trip computer,
refer to the corresponding section.


Resetting the history

With trip 2 displayed, press the control
for 2 seconds to reset the history to
zero.

44
INSTRUMENTS and CONTROLS
Panel grouping together the vehicle operation indication dials and warning lamps.


















INSTRUMENT PANELS

For more information, refer to
the paragraph relating to the
button or function and its as-
sociated display.

Dials

6.
Display zero reset or service indi-
cator re-display button.

Resets the selected function to zero
(trip distance recorder or service in-
dicator) or displays the service indi-
cator again.

7.
Instrument panel lighting dimmer.
Adjusts the brightness of the lighting
of the instruments and controls, if the
vehicle lighting is on.

8.
Ready lamp

Indicates that the vehicle is ready to
move off.

1.
Power meter

Indicates the power available as a
percentage .
For more information refer to the
"Hybrid" section.

2.
Coolant temperature gauge.

Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel gauge.


Indicates the quantity of fuel remaining
in the tank.

4.
Speedometer.

Indicates the current speed of the
moving vehicle (mph or km/h).

5.
Screen.

Screen(s)


A.
Speed limiter

or
Cruise control.

(mph or km/h)

B.
Trip distance recorder.

(miles or km)

C.
Service indicator.

(miles or km) or,
Engine oil level indicator.

or
Distance recorder.

(miles or km)

D.
6-speed electronic gear control
gearbox.


E. - Electrical fl ow or
- Warning messages and function
status messages or
- Trip computer or
- Satellite navigation information or
-
Menus (with Peugeot Connect
Media Navigation (NG4 3D)).

45
INSTRUMENTS and CONTROLS
The main menu and its asso-
ciated functions can only be
accessed when stationary, via
buttons 1
to 4
.
A message appears on the screen,
above a certain speed threshold, in-
dicating that the main menu cannot
be displayed.
The trip computer displays can only
be accessed while driving, via but-
tons 2
and 3
(refer to the "Trip com-
puter" paragraph).

Main menu


)
Press button 1
for access to the
main menu and select one of the
following functions:


- "Vehicle parameters",

- "Choice of language",

- "Choice of units".

)
Press button 2
or 3
to move in the
screen.

)
Press button 1
again to confi rm the
selection.










Instrument panel navigator associated
with the Peugeot Connect Media
This group of buttons permits:


- when stationary
, confi guration
of the vehicle's equipment and
the screen settings (languages,
units...),

- while driving
, scrolling of the active
functions (trip computer, naviga-
tion...).
Controls
There are four buttons to control the
large 16/9 screen in the instrument
panel:


1.
access the main menu, confi rm the
selection,

2.
move up through the menu,

3.
move down through the menu,

4.
return to the previous display, exit
from the menu.

MULTIFUNCTION SCREENS
59










MONOCHROME SCREEN C
(WITH PEUGEOT CONNECT SOUND)
Main menu

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature * (this fl ashes if
there is a risk of ice),

- status of the openings (doors,
boot...),

- audio sources (radio, CD...),

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the " ESC
" button.


"Audio functions" menu

With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText) or the CD or CD changer
(introscan, shuffl e, CD repeat).


Controls

From the audio equipment control panel,
you can:


)
press the " MENU
" button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the " MODE
" button to change
the permanent application (trip com-
puter, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the " OK
" button to confi rm,
or

)
press the " ESC
" button to abandon
the operation in progress.


)
Press the "MENU"
button for ac-
cess to the main menu
:


- audio functions,

- trip computer (refer to the end of
the section),

- personalisation-confi guration,

- telephone (Bluetooth system).



)
Press the"
" or "
" button to select
the menu required, then confi rm by
pressing the " OK
" button.


*
With air conditioning only. For more information on the
"Audio functions" application,
refer to the Peugeot Connect
Sound part of the "Audio and
Telematics" section.

MULTIFUNCTION SCREENS
60

"Trip computer" menu



)
Press the "MENU"
button to gain
access to the general menu.

)
Press the arrows, then the "OK"
but-
ton to select the "Trip computer"

menu.

)
On the "Trip computer"
menu,
select one of the following applica-
tions:


Alert log
This summarises the active warning
messages, displaying them in succes-
sion in the multifunction screen Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
the functions...).

Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment (according to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

- guide-me-home lighting (refer to the
"Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...

"Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:


- defi ne the vehicle parameters,

- display confi guration,

- choice of language.


Status of functions
This summarises the active or inactive
status of the functions present on the
vehicle.

Enter the distance to the destination
This allows you to enter an approximate
value for the distance to the fi nal desti-
nation.

MULTIFUNCTION SCREENS
65

Monochrome screen C


Instrument panel screen with Peugeot
Connect Media Navigation (NG4 3D)











TRIP COMPUTER

System which provides current infor-
mation concerning the trip (range, con-
sumption…).
Depending on your vehicle's
equipment, the trip computer
information appears in the
multifunction screen or in the instru-
ment panel screen.
Information displays


)
Press the button, located at the end
of the wiper stalk
, to display the
various trip computer tabs in suc-
cession.


With the instrument panel screen
(Peugeot
Connect Media Navigation (NG4 3D))



)
This navigator, associated with the
Peugeot Connect Media Navigation
(NG4 3D), also allows the various
trip computer tabs to be displayed
in the instrument panel screen, by
pressing the up and down arrows.

MULTIFUNCTION SCREENS
67






A few definitions…

When the range falls below 20 miles
(30 km), zeros are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed contin-
uously while driving in place of
the digits, contact a PEUGEOT
dealer. This function is only displayed
from 20 mph (30 km/h).
This value may vary following
a change in the style of driving
or the relief, resulting in a sig-
nifi cant change in the current
fuel consumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.

Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.


Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).

Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.


The hybrid system and its
electric motor do not provide
additional range; follow the in-
dications of the trip computer.
