OPENING

Retractable roof

When washing your vehicle:


- lock the vehicle,

- avoid spraying the upper part
of the windows,

- keep the end of the high-pres-
sure nozzle at least 1 metre
from the windows and door
seals.
After washing the vehicle or fol-
lowing rain, wait until the roof has
dried before opening it. The roof is operated under the
sole responsibility of the driver.
During operation of the roof, to
avoid the risk of injury, ensure that
no one is in the vicinity of the mov-
ing parts.
You are strongly advised not to op-
erate the roof in strong winds. It is preferable to operate the roof
with the engine running.
The roof can be operated at
speeds below 6 mph (10 km/h).
It is only possible to carry out the
operation twice with the engine off,
to avoid discharging the battery.
Preliminary conditions


)
Switch on the ignition.

)
Ensure that:


- the vehicle is not in energy economy
mode (refer to the corresponding
section),

- the battery voltage is suffi cient
(switching on of the indicator lamp
on the roof control),

- the roof fuse is in good condition (re-
fer to the corresponding section),

- the electric windows are initialised
(refer to the corresponding section),

- the ambient temperature is above
-15 °C.

Precautions to be taken before
operating the roof


)
Park the vehicle on level ground.

)
Check that no object could hinder
the operation of the roof:


- nothing should be placed on the
moving rear shelf 1
or on the net 2
.

- if luggage is being carried in the
boot, it must not raise the net,

)
Ensure that the net 2
is secure.

)
Close the boot correctly.

Maintenance
Carry out a complete opening
and closing operation of the roof
at least once a month to keep it in
good working order.

i
!
!
7
FAMILIARISATION
OPENING

Retractable roof operation


Opening the roof


)
Pull this control until the roof
is fully open.

Closing the roof


)
Press this control until the
roof is fully closed.
Do not release the roof control
during operation of the roof.
However, in the event of danger,
release the control, the roof stops;
then, when the danger is no lon-
ger present, complete the required
operation.
If the operation has not completely
fi nished, you will be warned by an
audible signal and a message on
the multifunction screen. These will
be repeated as the vehicle passes
a number of speed thresholds.
Changing to "cabriolet"
confi guration:


- the four windows lower,

- the boot opens,

- the roof folds into the boot,

- the boot closes.

If you continue to pull or press this
control after the end of the opera-
tion, the four windows rise.
The electric window controls and
the control for the four windows
are deactivated during operation
of the roof.
The roof electronic control unit may
interrupt the operation in progress
as a precaution (for example: door
movement and roof operation in
quick succession). In this case,
release the control then operate
it again to complete the required
operation.

Operating fault
If a malfunction of the roof occurs,
apply the parking brake, switch
off the ignition, restart the engine,
then start the required operation
again.
If the problem persists, contact a
PEUGEOT dealer.
Changing to "coupé" confi guration:


- the four windows lower,

- the boot opens,

- the roof opens out and locks auto-
matically,

- the boot closes. The end of the operation is confi rmed
by an audible signal and a message on
the multifunction screen.
The end of the operation is confi rmed
by an audible signal and a message on
the multifunction screen.

15
FAMILIARISATION

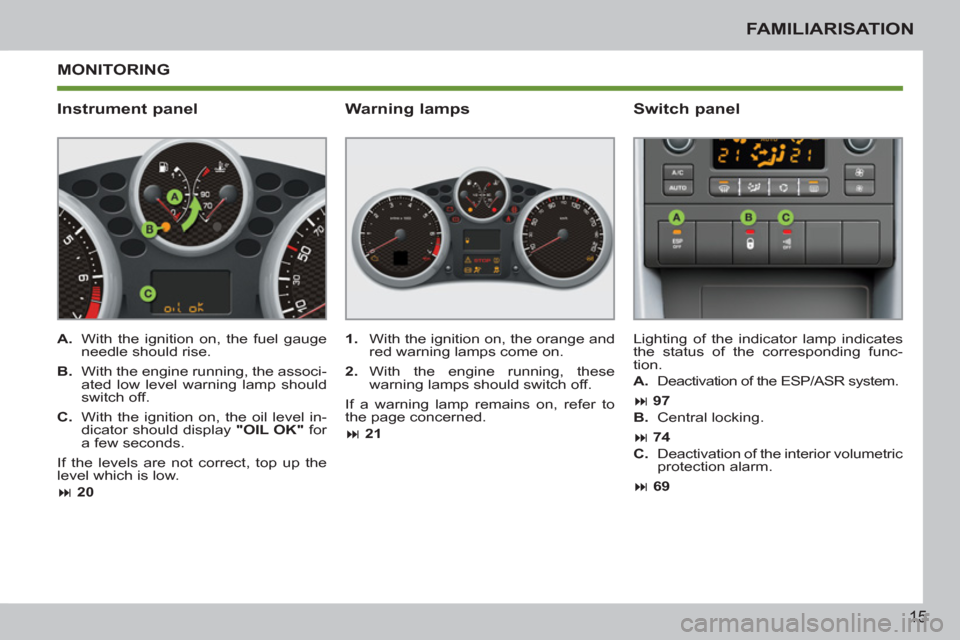

MONITORING

Instrument panel
Switch panel


A.
With the ignition on, the fuel gauge
needle should rise.

B.
With the engine running, the associ-
ated low level warning lamp should
switch off.

C.
With the ignition on, the oil level in-
dicator should display "OIL OK"
for
a few seconds.
If the levels are not correct, top up the
level which is low.



20
Lighting of the indicator lamp indicates
the status of the corresponding func-
tion.


A.
Deactivation of the ESP/ASR system.



97

B.
Central locking.



74

C.
Deactivation of the interior volumetric
protection alarm.



69



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should switch off.
If a warning lamp remains on, refer to
the page concerned.



21



Warning lamps

17
FAMILIARISATION
DRIVING SAFELY

Speed limiter "LIMIT"
Instrument panel display



1.
Selecting/Switching off speed limiter
mode.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter on/off.
The values must be set with the engine
running.



110
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

1.
Selecting/Switching off cruise con-
trol mode.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Off/return to cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear on the automatic gear-
box).



112



Cruise control "CRUISE"


Cruise control

Speed limiter

18
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emis-
sions.

Optimise the use of your
gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change up;
it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traf-
fi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun-
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front fo-
glamps when the level of light does not
require their use.
Avoid running the engine before mov-
ing off, particularly in winter; your ve-
hicle will warm up much faster while
driving.

As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, mu-
sic, video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

19

Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and ob-
serve the schedule of operations rec-
ommended by the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

1INSTRUMENTS and CONTROLS
20
PETROL - DIESEL, MANUAL OR AUTOMATIC GEARBOX,
INSTRUMENT PANELS
Panel which groups together the vehicle operation dials and indicator lamps.

5.
Screen.


6.
Display zero reset button.


Resets the selected function to
zero (trip distance recorder or
service indicator).

7.
Instrument panel lighting button.


Adjusts the brightness of the
lighting of the instruments and
controls.

8.
Automatic gearbox.


Indicates the programme selected
and the gear engaged.


Dials



1.
Rev counter.


Indicates the speed of rotation of
the engine (x 1 000 rpm).

2.
Fuel gauge.


Indicates the quantity of fuel
remaining in the tank.

3.
Coolant temperature.


Indicates the temperature of the
engine coolant (°Celsius).

4.
Speedometer.


Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Speed limiter


or
Cruise control.


(mph or km/h)

B.
Trip distance recorder.


(miles or km/h)

C.
Service indicator.


(miles or km/h) then,
Engine oil level indicator.



then
Distance recorder.


(km or miles)
These three functions are displayed
in succession when the ignition is
switched on.
For more information, refer to the section
which corresponds to the function and to
the display associated with it.

Screen
