CONTENTS
Instrument panels 20
Indicator and warning lamps 21
Indicators 28
Adjustment buttons 32
Screens without audio
equipment 33
Screens with audio equipment 35
16/9 colour screen (Peugeot
Connect Navigation) 40
Trip computer 42■
■
■
■
■
■
■
■
Ventilation 45
Heating 47
Manual air conditioning 47
Rear screen demist - defrost 49
Digital air conditioning 50
Seats 52
Steering wheel adjustment 54
Mirrors 55
Interior fi ttings 57
Windstop 62■
■
■
■
■
■
■
■
■
■
COMFORT 45 Î 64
Remote control key 65
Alarm 69
Window controls 71
Doors 73
Boot 76
Fuel tank 77
Misfuel prevention (Diesel) 79■
■
■
■
■
■
■
ACCESS 65 Î 79
Lighting control stalk 80
Static directional lighting 83
Headlamp adjustment 83
Wiper control stalk 84
Courtesy lamp 85■
■
■
■
■
VISIBILITY 80 Î 85
Conventional child seats 86
ISOFIX child seats 90■
■
CHILD
SAFETY 86 Î 92 FAMILIARISATION 4 Î 17
INSTRUMENTS
and CONTROLS 20 Î 445
4
3
2
1
ECO-DRIVING 18 Î 19
Page 7 of 224
ii
5
FAMILIARISATION
OPENING
Remote control key
A.
Unfolding/Folding the key.
B.
Unlocking the vehicle.
C.
Unlocking and partially opening the
boot.
65
Also...
D.
Normal locking
or
Deadlocking of the vehicle.
Fuel tank
1.
Opening the fuel fi ller fl ap.
2.
Opening and hooking the fuel fi ller
cap.
Capacity of the tank: approximately
50 litres (petrol) or 48 litres (Diesel).
77
Boot
From outside
From inside
1.
Unlocking the complete vehicle or
unlocking the boot and the vehicle.
2.
Opening the boot lid.
1.
Key in the ignition switch.
2.
Unlocking using the manual cen-
tralised control or the door opening
control.
76
On Diesel vehicles, the fuel fi ller
neck incorporates a misfuel preven-
tion device which prevents fi lling
with petrol.
79
Page 8 of 224
! !
i
6
FAMILIARISATION
OPENING
Retractable roof
When washing your vehicle:
- lock the vehicle,
- avoid spraying the upper part
of the windows,
- keep the end of the high-pres-
sure nozzle at least 1 metre
from the windows and door
seals.
After washing the vehicle or fol-
lowing rain, wait until the roof has
dried before opening it. The roof is operated under the
sole responsibility of the driver.
During operation of the roof, to
avoid the risk of injury, ensure that
no one is in the vicinity of the mov-
ing parts.
You are strongly advised not to op-
erate the roof in strong winds. It is preferable to operate the roof
with the engine running.
The roof can be operated at
speeds below 6 mph (10 km/h).
It is only possible to carry out the
operation twice with the engine off,
to avoid discharging the battery.
Preliminary conditions
)
Switch on the ignition.
)
Ensure that:
- the vehicle is not in energy economy
mode (refer to the corresponding
section),
- the battery voltage is suffi cient
(switching on of the indicator lamp
on the roof control),
- the roof fuse is in good condition (re-
fer to the corresponding section),
- the electric windows are initialised
(refer to the corresponding section),
- the ambient temperature is above
-15 °C.
Precautions to be taken before
operating the roof
)
Park the vehicle on level ground.
)
Check that no object could hinder
the operation of the roof:
- nothing should be placed on the
moving rear shelf 1
or on the net 2
.
- if luggage is being carried in the
boot, it must not raise the net,
)
Ensure that the net 2
is secure.
)
Close the boot correctly.
Maintenance
Carry out a complete opening
and closing operation of the roof
at least once a month to keep it in
good working order.
Page 9 of 224
i
!
!
7
FAMILIARISATION
OPENING
Retractable roof operation
Opening the roof
)
Pull this control until the roof
is fully open.
Closing the roof
)
Press this control until the
roof is fully closed.
Do not release the roof control
during operation of the roof.
However, in the event of danger,
release the control, the roof stops;
then, when the danger is no lon-
ger present, complete the required
operation.
If the operation has not completely
fi nished, you will be warned by an
audible signal and a message on
the multifunction screen. These will
be repeated as the vehicle passes
a number of speed thresholds.
Changing to "cabriolet"
confi guration:
- the four windows lower,
- the boot opens,
- the roof folds into the boot,
- the boot closes.
If you continue to pull or press this
control after the end of the opera-
tion, the four windows rise.
The electric window controls and
the control for the four windows
are deactivated during operation
of the roof.
The roof electronic control unit may
interrupt the operation in progress
as a precaution (for example: door
movement and roof operation in
quick succession). In this case,
release the control then operate
it again to complete the required
operation.
Operating fault
If a malfunction of the roof occurs,
apply the parking brake, switch
off the ignition, restart the engine,
then start the required operation
again.
If the problem persists, contact a
PEUGEOT dealer.
Changing to "coupé" confi guration:
- the four windows lower,
- the boot opens,
- the roof opens out and locks auto-
matically,
- the boot closes. The end of the operation is confi rmed
by an audible signal and a message on
the multifunction screen.
The end of the operation is confi rmed
by an audible signal and a message on
the multifunction screen.
Page 21 of 224
19
Limit the causes of excess
consumption
Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.
At the end of winter, remove snow
tyres and refi t your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and ob-
serve the schedule of operations rec-
ommended by the manufacturer.
When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.
At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.
Page 28 of 224
1INSTRUMENTS and CONTROLS
26
Warning lamp
is on
Cause
Action/Observations
Maximum
coolant
temperature
fi xed red. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a PEUGEOT
dealer or qualifi ed workshop.
Engine oil
pressure
fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.
Battery
charge
*
fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or a qualifi ed workshop.
Door(s)
open
fi xed if the
speed is
below 6 mph
(10 km/h).
A door, the boot or the rear
screen is still open. Close the door or boot.
fi xed and
accompanied
by an audible
signal if the
speed is
above 6 mph
(10 km/h).
*
According to destination country.
Page 35 of 224
1INSTRUMENTS and CONTROLS
33

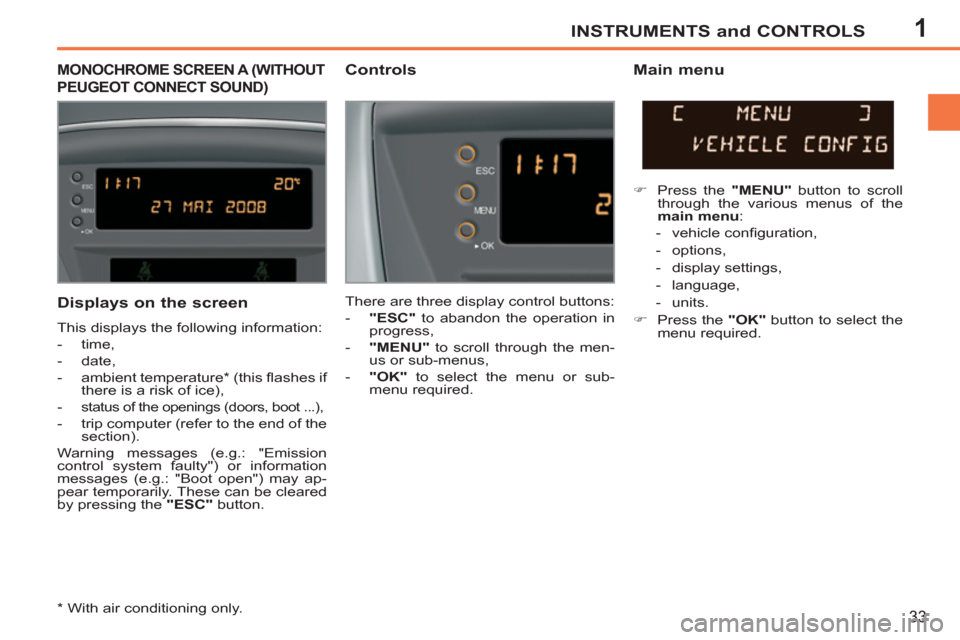

MONOCHROME SCREEN A (WITHOUT
PEUGEOT CONNECT SOUND)
Controls
Main menu
There are three display control buttons:
- "ESC"
to abandon the operation in
progress,
- "MENU"
to scroll through the men-
us or sub-menus,
- "OK"
to select the menu or sub-
menu required.
)
Press the "MENU"
button to scroll
through the various menus of the
main menu
:
- vehicle confi guration,
- options,
- display settings,
- language,
- units.
)
Press the "OK"
button to select the
menu required.
*
With air conditioning only.
Displays on the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if
there is a risk of ice),
-
status of the openings (doors, boot ...),
- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button.
Page 37 of 224
1INSTRUMENTS and CONTROLS
35
MONOCHROME SCREEN A
Controls
Displays on the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if
there is a risk of ice),
- status of the openings (doors,
boot...),
- audio sources (radio, CD...),
- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button.
Main menu
)
Press the "MENU"
button to gain
access to the main menu
, then
press the "
" or "
" buttons to
scroll through the various menus:
- radio-CD,
- vehicle confi guration,
- options,
- display settings,
- language,
- units.
)
Press the "OK"
button to select the
menu required. From your Peugeot Connect Sound
control panel, you can:
)
press the "MENU"
button to gain
access to the main menu,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the "MODE"
button to change
the permanent application (trip com-
puter, audio source...),
)
press the "
" or "
" buttons to
change a setting value,
)
press the "OK"
button to confi rm,
or
)
press the "ESC"
button to abandon
the operation in progress.
Radio-CD
With the Peugeot Connect Sound
switched on, once the "Radio-CD"
menu has been selected you can acti-
vate or deactivate the functions linked
with use of the radio (RDS, REG) or the
CD (introscan, shuffl e, CD repeat).
For more information on the "Radio-
CD" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.
*
With air conditioning only.
