2012 Peugeot 207 CC boot
[x] Cancel search: bootPage 133 of 224
9
i
PRACTICAL INFORMATION
131
After changing a wheel
Using the "space-saver" spare wheel:
)
do not fi t the wheel trim,
)
do not exceed a speed of 50 mph
(80 km/h).
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.

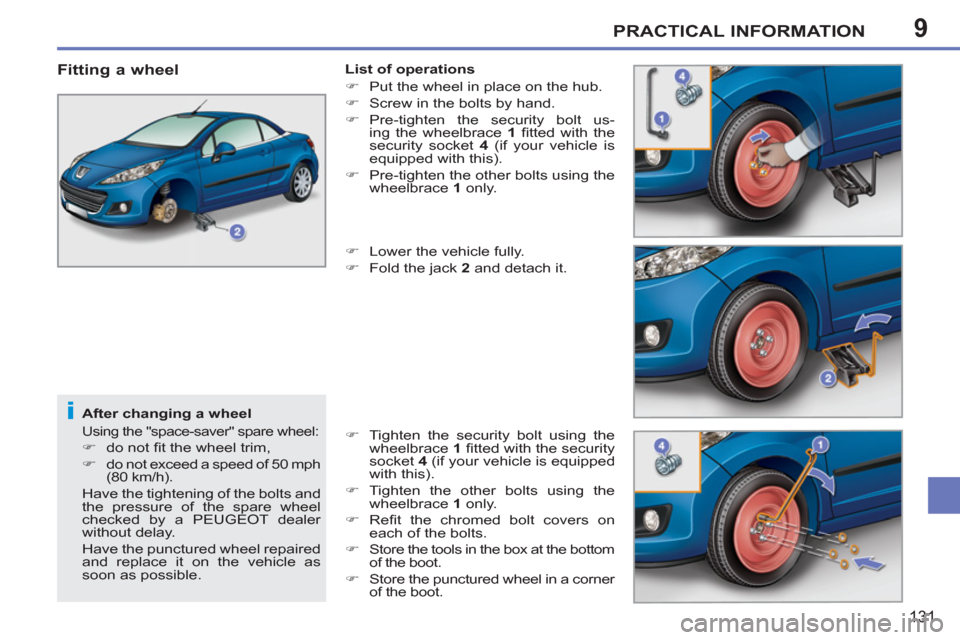

Fitting a wheel
List of operations
)
Put the wheel in place on the hub.
)
Screw in the bolts by hand.
)
Pre-tighten the security bolt us-
ing the wheelbrace 1
fi tted with the
security socket 4
(if your vehicle is
equipped with this).
)
Pre-tighten the other bolts using the
wheelbrace 1
only.
)
Lower the vehicle fully.
)
Fold the jack 2
and detach it.
)
Tighten the security bolt using the
wheelbrace 1
fi tted with the security
socket 4
(if your vehicle is equipped
with this).
)
Tighten the other bolts using the
wheelbrace 1
only.
)
Refi t the chromed bolt covers on
each of the bolts.
)
Store the tools in the box at the bottom
of the boot.
)
Store the punctured wheel in a corner
of the boot.
Page 136 of 224
9
i
PRACTICAL INFORMATION
134

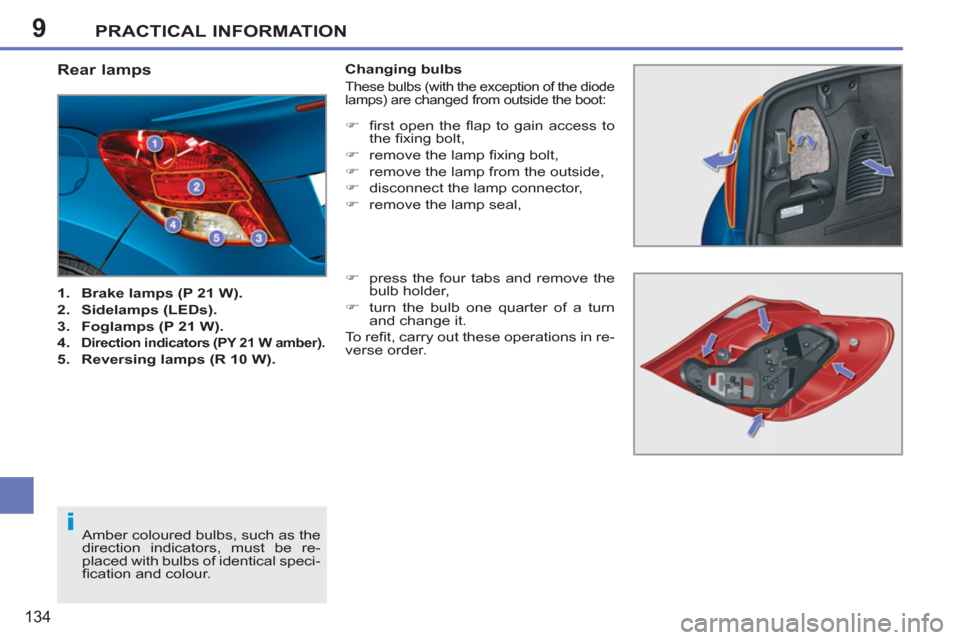

Rear lamps
1.
Brake lamps (P 21 W).
2.
Sidelamps (LEDs).
3.
Foglamps (P 21 W).
4.
Direction indicators (PY 21 W amber).
5.
Reversing lamps (R 10 W).
Changing bulbs
These bulbs (with the exception of the diode
lamps) are changed from outside the boot:
)
fi rst open the fl ap to gain access to
the fi xing bolt,
)
remove the lamp fi xing bolt,
)
remove the lamp from the outside,
)
disconnect the lamp connector,
)
remove the lamp seal,
)
press the four tabs and remove the
bulb holder,
)
turn the bulb one quarter of a turn
and change it.
To r efi t, carry out these operations in re-
verse order.
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi cation and colour.
Page 146 of 224
9
i
PRACTICAL INFORMATION
144

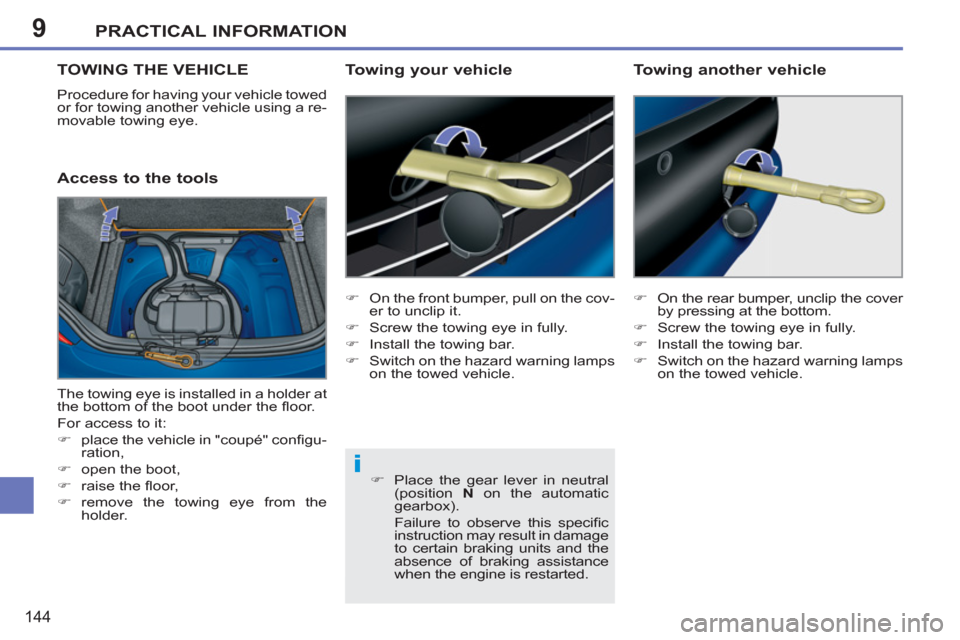

TOWING THE VEHICLE
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Access to the tools Towin
g your vehicle
)
On the front bumper, pull on the cov-
er to unclip it.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps
on the towed vehicle.
)
On the rear bumper, unclip the cover
by pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed in a holder at
the bottom of the boot under the fl oor.
For access to it:
)
place the vehicle in "coupé" confi gu-
ration,
)
open the boot,
)
raise the fl oor,
)
remove the towing eye from the
holder.
)
Place the gear lever in neutral
(position N
on the automatic
gearbox).
Failure to observe this specifi c
instruction may result in damage
to certain braking units and the
absence of braking assistance
when the engine is restarted.
Page 148 of 224
9
i
!
PRACTICAL INFORMATION
146
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.
Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
The rear parking sensors will be de-
activated automatically if a genuine
PEUGEOT towbar is used.
In all cases, keep a check on the cool-
ant temperature.
Lighting
)
Check the electrical lighting and
signalling on the trailer. BOOT LUGGAGE CARRIER
A boot luggage carrier, designed specifi -
cally for your coupé-cabriolet, is available
from your PEUGEOT dealer as an ac-
cessory.
Follow the manufacturer's recommen-
dations for fi tting and use.
When loading the boot luggage car-
rier, take care not to cover the third
brake lamp and the number plate.
The retractable roof must not not
operated when the boot luggage
carrier is fi tted.
Page 149 of 224
9
i
!
i
PRACTICAL INFORMATION
147
ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
Depending on the legislation in
force in the country, it may be com-
pulsory to have a high visibility
safety vest, warning triangle and
spare bulbs and fuses available in
the vehicle.
The fi tting of electrical equipment or
accessories which are not recom-
mended by PEUGEOT may result
in a failure of your vehicle's elec-
tronic system and excessive electri-
cal consumption.
Please note this precaution. You
are advised to contact a PEUGEOT
representative to be shown the range
of recommended equipment and
accessories.
"Comfort":
door defl ectors, side blinds and rear
blind, coat hanger fi xed to head re-
straint, front centre armrest, under shelf
storage, front and rear parking sen-
sors...
Installation of radio
communication transmitters
Before installing any after-market
radio communication transmitter,
you can contact a PEUGEOT deal-
er for the specifi cation of transmit-
ters which can be fi tted (frequency,
maximum power, aerial position,
specifi c installation requirements),
in line with the Vehicle Electro-
magnetic Compatibility Directive
(2004/104/EC).
"Transport solutions":
boot liner, luggage net, cigarette lighter,
roof bars, bicycle carrier on roof bars,
ski carrier, roof box...
Tow bar, which mst be fi tted by PEUGEOT
dealer or a qualifi ed workshop.
"Styling":
aluminium gear lever knob, spoiler, styling
strips, alloy wheels, trims, chromed mirror
shells, body kit...
*
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
and secured correctly,
- never fi t one mat on top of another.
"Security":
anti-theft alarm, window engraving,
wheel security bolts, child seats and
booster cushions, breathalyzer, fi rst aid
kit, warning triangle, high visibility jacket,
stolen vehicle tracking system, tempo-
rary puncture repair kit, snow chains,
non-slip covers, front foglamps kit...
"Protection":
mats * , seat covers compatible with lateral
airbags, aluminium or PVC door aperture
fi nishers...
"Multimedia":
audio systems, satellite navigation
systems, hands-free kit, CD changer,
speakers, DVD player, connection kit
for MP3 or CD player, USB Box...
You can also obtain products for cleaning
and maintenance (exterior and interior),
topping up (screenwash...),and refi lls
(cartridge for the temporary puncture re-
pair kit...) by visiting a PEUGEOT dealer.
Page 213 of 224
211
VISUAL SEARCH
EXTERIOR
Door mirrors ................................ 55 Lighting controls ....................80-82
Static directional lighting ............. 83
Headlamp adjustment................. 80
Changing bulbs..................132-133
- front lamps
- foglamps
- direction indicator repeaters
Electric windows,
quarter lights ........................71-72 Doors .....................................73-75
- opening/closing
- central locking
- emergency control
Alarm .....................................69-70 Remote control key................65-68
- opening/closing
- anti-theft protection
- starting
- battery
Accessories .............................. 147
Retractable roof .........................6-7
Fuel tank ..................................... 77
Misfuel prevention ...................... 79 Boot ............................................ 76
Temporary tyre
repair kit ...........................123-127
Changing a wheel ..............128-131
- tools
- removal
Boot luggage carrier ................. 146
Visual and audible
rear parking sensors ........ 114-115
Towbar ...................................... 145
Towing ...................................... 144 Changing bulbs..................134-135
- rear lamps
- 3rd brake lamp
- number plate lamps
Braking assistance ..................... 96
Trajectory control ........................ 97
Tyre under-in
fl ation detection ..... 95
Tyre pressure............................ 153
Page 214 of 224
212
VISUAL SEARCH
INTERIOR
Boot fi ttings ............................60-61
- load space cover
- anti-swirl net (windstop)
- luggage retaining strap
Installing the
anti-swirl net ........................62-64
Child seats .............................86-88 Front seats.............................52-54
Rear seats .................................. 54
Seat belts.............................98-100 Airbags ..............................101-104
Glove box ................................... 59
Deactivating the passenger's
airbag ...................................... 102 Roll-over bars ............................. 98
Isofi x mountings.....................90-92
Page 217 of 224
215
ALPHABETICAL INDEX
Accessories ....................................147Accessory socket, 12V.....................59Access to rear seats.........................52Adjusting headlamps ........................83Adjusting the steering wheel............54Airbag, knee...................................103Airbags...........................................101Airbags, front ..................................101Airbags, lateral ...............................103Air conditioning.................................18Air conditioning, digital ...............46,50Air conditioning, manual.............46,47Air distribution adjustment..........47,50Air filter...........................................r121Air flow..............................................18Air flow adjustment .....................47,50Air intake....................................47,50Air recirculation ...........................47,50Air vents ...........................................45Alarm ................................................69Anti-swirl net...............................61,62Anti-theft...........................................66Assistance call ..........................93,156Audible warning................................94Audio streaming (Bluetooth) ...........201Automatic illumination of
headlamps .....................................82Automatic operation of hazard
warning lamps...............................94Auxiliary socket..............................176Auxiliary sockets...............59,196,198
Child seats, conventional .....86,88,89Closing the boot ...............................76Closing the retractable roof................f4Connectors,audio......................59,176,196,198Control for retractable roof.................f4Control for the four windows............71Control panel ..................................158Coolant level ...................................120Coolant temperature indicator..........r31Courtesy mirror.................................r57Cruise control.................................112Cup holder........................................r58
Battery....................................121, 141Battery, charging............................141Battery, remote control ...............67, 68Bluetooth (hands-free)....177,178, 199Bluetooth (telephone) .............177, 178Bonnet ............................................117Bonnet stay ....................................117Boot..................................................76Boot luggage carrier.......................r146Brake discs .....................................121Brake lamps ...................................134
Brake pads .....................................121Braking assistance system...............96
AB
Capacity, fuel tank............................77CD MP3..................................175, 195Central locking..................................74Changing a bulb.....................132, 134Changing a fuse.............................136Changing a wheel...........................128Changing a wiper blade.................143Changing the date..................180, 203Changing the remote control battery...............................67Changing the time............33,180, 203Checking levels......................118–120Checking the engine oil level...........30Checking tyre pressures (using the kit)...............................123Checks............................118, 119, 121Children..........................88,89, 91, 92
C
Date (setting)..................180,202,203Daytime running lamps.....................80Deactivating the passenger
airbag..........................................101Deadlocking......................................65Defrosting...................................47,49Demisting..........................................47Dials and gauges..............................20Diesel additive level........................120Dimensions.....................................152Dipped beam............................80,132Dipstick.............................................30Directional lighting, static..................83Direction indicators...........93,132,134Doors................................................73Doors emergency control.................75Door trays.........................................58
D
