2012 Peugeot 207 CC Navigation

187
QUESTIONANSWER SOLUTION
TA is selected. However, certain traffi c jams
along the route are not
indicated in real time.
On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received correctly (displaying of the traffi c information symbols on the map).
In certain countries, onl
y major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
I receive a speed camera
alert for a camera which
is not on my route.The s
ystem announces all speed cameras located in a conical zoneforward of the vehicle. It may detect speed cameras on nearby or parallel roads. Zoom the map to view the exact position o
f thespeed camera.

The audible speedcamera alert is not
working.
Audible alerts are not active. Activate audible alerts in Navigation Menu, Settings, Set parameters for risk areas.
Th
e alert volume level is set to minimum. Increase the speed camera alert volume.

The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes toreceive more than 3 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least
3 satellites (long press on the SETUP button, then select GPS coverage).
Dependin
g on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS si
gnal.
Th
e route is notcalculated successfully.The exclusion criteria may confl ict with the current location (exclusion of
toll roads on a motorway with tolls). Check the exclusion criteria.

188
QUESTIONANSWER SOLUTION
There is a long waiting
time after inserting a CD. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.

I cannot connect myBluetooth telephone.The telephone's Bluetooth function may be deactivated or the equipment
may not be visible.
- Check that your telephone's Bluetoothfunction is activated.

-
Check that your telephone is visible.

A telephone connected by Bluetooth is inaudible.The volume level depends on both the system and the telephone. Increase the Peugeot Connect Navigation volume setting, possibly to maximum, and increase the
telephone volume level if necessary.

197
3
4
05
2
1
LISTREFRESH
LISTREFRESH

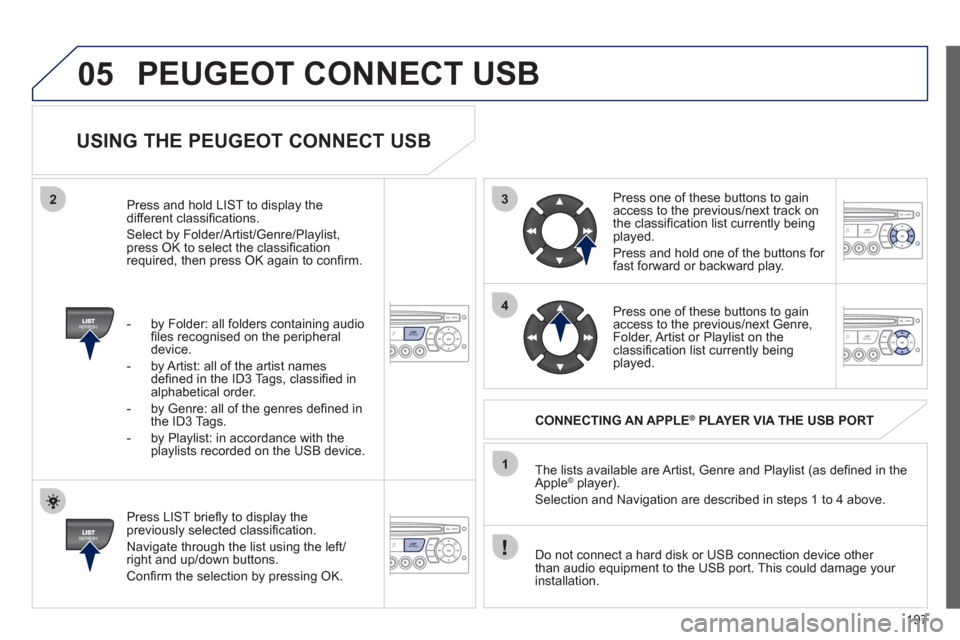

USING THE PEUGEOT CONNECT USB


Press LIST briefl y to display thepreviously selected classifi cation.
Navi
gate through the list using the left/right and up/down buttons.

Confi rm the selection by pressing OK. The lists available are Artist, Genre and Pla
ylist (as defi ned in the
Apple ®player).

Selection and Navigation are described in steps 1 to 4 above.

Do not connect a hard disk or
USB connection device other
than audio equipment to the USB port. This could damage your
installation.

CONNECTING AN APPLE®PLAYER VIA THE USB PORT®

Press one of these buttons to gain
access to the previous/next track on
the classifi cation list currently beingplayed.
Pr
ess and hold one of the buttons for fast forward or backward play.

Press one of these buttons to
gain
access to the previous/next Genre,
Folder, Artist or Playlist on theclassifi cation list currently being played.
Press and hold LI
ST to display the different classifi cations.
Select b
y Folder/Artist/Genre/Playlist, press OK to select the classifi cation required, then press OK again to confi rm.


- b
y Folder: all folders containing audio fi les recognised on the peripheraldevice.

- by Artist: all o
f the artist names
defi ned in the ID3 Tags, classifi ed in alphabetical order.

- b
y Genre: all of the genres defi ned in
the ID3 Tags.

- b
y Playlist: in accordance with the
playlists recorded on the USB device.

PEUGEOT CONNECT USB

213
VISUAL SEARCH
INSTRUMENTS AND CONTROLS
Multifunction screens .............33-41
Seat belt warning lamps ............. 99
Hazard warning lamps ................ 94
Instrument panels ....................... 20
Warning lamps .......................21-27
Indicators ...............................28-31
Gear shift
indicator .................................. 106
Buttons ....................................... 32


- trip distance recorder

- lighting dimmer
Lighting controls ....................80-82
Headlamp adjustment................. 83
Speed limiter...................... 110-111
Cruise control .................... 112-113 Door mirrors ................................ 55
Electric windows ....................71-72
Dashboard
fuses ................................136-138
Opening the bonnet .................. 117
Steering wheel adjustment ......... 54
Horn ............................................ 94 Courtesy lamp ............................ 85
Rear view mirror ......................... 56
Sun visor..................................... 57
Wiper controls........................84-85
Trip computer ........................42-44
Peugeot Connect Navigation
(RNEG) ............................157-188
Setting the date/time................. 180

Peugeot Connect Sound (RD5) ...189-210
Setting the date/time......... 202, 203
Emergency or
assistance call .................. 93, 155
Ventilation ..............................45-46
Heating ..................................47-48
Manual air conditioning..........47-49
Digital air
conditioning .........................50-51
Interior fi ttings ........................58-59


- glove box

- 12 V accessories socket/USB port
Gearbox .............................105-106
Parking brake ........................... 105
Retractable roof
control ......................................6-7
Control for all four windows ........ 72

217
ALPHABETICAL INDEX
Level, headlamp wash....................120Lighting .............................................80Lighting, guide-me home............80,82Lighting, interior................................r85Lighting bulbs (replacement)..........132Lighting control stalk.........................80Lighting dimmer................................r32Lighting on reminder.........................80Loading .....................................18,146Load reduction mode......................143Locating your vehicle........................66Locking from the inside....................74Locking the boot ...............................76Locking the doors.............................65Luggage retaining strap....................60
Main beam ................................80,132Maintenance.....................................18Map reading lamps ...........................85Markings, identification ...................153Mat....................................................57Menu, main.....................................192Mini fuel level....................................77Mirror, rear view................................56Mirrors, door.....................................r55Misfuel prevention............................79Motorway function(direction indicators) ......................93Mountings for ISOFIX seats .............90MP3 CD..................................175,195Music media players.......................174
Oil change......................................120Oil filter...........................................r121Oil level.....................................30, 120Opening the bonnet........................117Opening the boot..............................76Opening the doors......................73, 75Opening the fuel filler flap................77Opening the retractable roof..............f4Openin g the windows......................71Operation indicator lamps..........21, 23
Navigation.......................................163Net ....................................................61Number plate lamps.......................134
Paint colour code............................153Parking brake.........................105, 121Parking sensors..............................114Parking sensors, audible and visual...114Particle emission filter....................r121Passenger compartment filter........r121PEUGEOT CONNECT ASSISTA NCE...156Peugeot Connect Navigation(RNEG)..................40,158,160, 181PEUGEOT CONNECT SOS..........156Peugeot Connect Sound (RD5)...........................189,204, 206Peugeot Connect USB.....................59Player, CD MP3......................175, 195Port, USB.................................59, 196
Radio......................................173,193Rear screen (demisting)...................49Recharging the battery...................141Reduction of electrical load............143Regeneration of the particle emissions filter............................r121Reinitialising partial opening of the windows..............................71Reinitialising the electric windows....71Reinitialising the remote control.......67Remote control...........................65,68Removing a wheel..........................128Removing the mat............................57Repair kit, puncture........................123Replacing bulbs......................132,134Replacing fuses..............................136Replacing the air filter....................r121Replacing the oil filter.....................r121Replacing the passenger compartment filter.......................r121Replacing wiper blades..................143Resetting the service indicator.........r29Resetting the trip recorder................r32Retractable roof..................................f4Rev counter......................................r20Reversing lamps.............................134Risk areas (update)........................170Roll-over bars...................................98Routine checks...............................121Running out of fuel (Diesel)............117
P
M
N
OR
Priming the fuel system ..................117Protecting children .................86, 88-92Puncture .................................123,128

218
ALPHABETICAL INDEX
Screen, colour 16/9..........40,160,181Screen, monochrome.....192,204,206Screen, multifunction (with audioequipment)........................35,37,40Screen, multifunction (without audio equipment)....................................33Screen menu map..........181,204,206Screenwash......................................84Screenwash fluid level....................120Seat adjustment...............................52Seat belts.................................98,100Seats, rear..................................r54,98Serial number, vehicle....................153Service indicator.........................r28,29Servicing...............................18,28,29Setting the clock.............180,202,203Short-cut menus.....................161,162Sidelamps.........................80,132,134Side repeater..................................r132Spare wheel...................................128Speed limiter..................................r110Speedometer....................................r20Stability control (ESP)......................97Starting the vehicle...................67,107Steering mounted controls, audio....191Stopping the vehicle.................67,107Storage.............................................58Sun visor..........................................r57Synchronising the remote control.....67System, navigation.........................163Systems, ASR and ESP...................97
Table of weights......................148, 150Tables of engines...................148, 150Tables of fuses...............................136Tank, fuel....................................77, 79Technical data........................148, 150Telephone...............................177, 178Temperature adjustment.............47, 50Temperature control for heated seats..................................52Temporary tyre repair kit................123Third brake lamp............................134Ticket holder.....................................r58Time..................................................33TMC (Traffic info)............................171Total distance recorder.....................r32Towbar............................................r145Towed loads...........................148, 150To w i ng another vehicle...................144Traction control (ASR)......................97Traffic information (TA).....172,173, 194Traffic information (TMC)........171, 172Trailer.............................................r145Trip computer.............................r42, 43Trip distance recorder......................r32Tyre pressures................................153Tyres.................................................18Tyre under-inflation detection...........95
Warning lamps..................................24Weights...................................148,150Wheel, changing.............................128Wheelbrace....................................128Window controls...............................71Windstop.....................................61,62Wiper control stalk............................84Wipers..............................................84
Ventilation...................................45,46
Under-inflation (detection)................95Unlocking..........................................65Unlocking from the inside.................74Unlocking the boot......................65,76Update risk areas...........................170Updating the date...................202,203Updating the time...................202,203USB (Peugeot Connect).................196
SU
V
T
W
