2012 Peugeot 207 CC key

3
i
ACCESS
77
The key cannot be removed from
the lock until the cap is refi tted.
FUEL TANK


Fuel tank capacity: approximately
50 litres (petrol) or 48 litres (Diesel).

Opening the fi ller cap may create a
noise caused by an inrush of air. This
vacuum is entirely normal, resulting
from the sealing of the fuel system.
To fi ll the tank safely:


)
the engine must be switched off,


)
open the fuel fi ller fl ap,

)
insert the key in the cap, then turn it
to the left,
When you have fi lled the tank:


)
put the cap back in place,

)
turn the key to the right, then remove
it from the cap,

)
close the fl ap.

)
remove the cap and hook it onto
the clip located on the inside of the
fl ap,

)
fi ll the tank, but do not continue
after the 3rd cut-off of the pump
;
this could cause malfunctions.


Low fuel level

When the fuel tank minimum
level is reached this warning
lamp comes on on the instru-
ment panel. When it fi rst comes
on there remains approximate-
ly 5 litres
of fuel in the tank.
You must refuel as soon as possible to
avoid running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.


Filling

A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used depending on your engine.
Additions of fuel must be of at least
5 litres, in order to be taken into account
by the fuel gauge.

4
i
85
VISIBILITY


Special position of the windscreen
wipers
In the minute following switching off of
the ignition, any action on the stalk po-
sitions the wipers vertically on the wind-
screen.
This action enables you to position the
wiper blades for winter parking.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
COURTESY LAMP



A.
Courtesy lamp


B.
Map reading lamps

In this position, the courtesy
lamp comes on gradually:

Map reading lamps



)
With the ignition on, press the cor-
responding switch.
With the "permanent lighting" mode,
the duration of lighting varies, de-
pending on the circumstances:


- with the ignition off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- with the engine running, unlimited.




- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when a door is opened,

- when the remote control locking but-
ton is activated, in order to locate
your vehicle.
It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

-
30 seconds after the last door is closed.

Permanently off.
Permanent lighting.


Courtesy lamp

5
!
CHILD SAFETY
89
ADVICE ON CHILD SEATS
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts
or the child seat harnesses keeping

the slack
in relation to the child's
body to a minimum
, even for short
journeys.
To install a child seat with the seat
belt, check that the belt has tight-
ened on the child seat and that the
child seat is held fi rmly against the
vehicle's seat. If your passenger
seat is adjustable, move it forwards
if necessary.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in con-
tact with the back of the vehicle's
seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder with-
out touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level. As a safety precaution, do not leave:


- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.

Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless the
rear seats are already occupied by other
children, cannot be used or are absent.
Deactivate the passenger airbag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate.

6
!
!

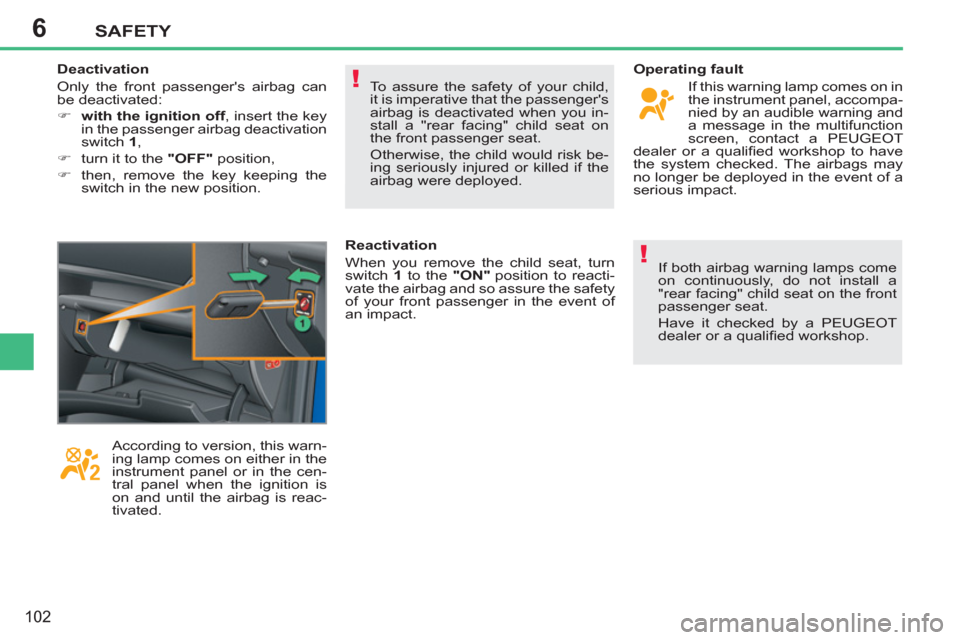

SAFETY
102
To assure the safety of your child,
it is imperative that the passenger's
airbag is deactivated when you in-
stall a "rear facing" child seat on
the front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were deployed.
If both airbag warning lamps come
on continuously, do not install a
"rear facing" child seat on the front
passenger seat.
Have it checked by a PEUGEOT
dealer or a qualifi ed workshop.

Deactivation
Only the front passenger's airbag can
be deactivated:


)
with the ignition off
, insert the key
in the passenger airbag deactivation
switch 1
,

)
turn it to the "OFF"
position,

)
then, remove the key keeping the
switch in the new position.
According to version, this warn-
ing lamp comes on either in the
instrument panel or in the cen-
tral panel when the ignition is
on and until the airbag is reac-
tivated.
Reactivation
When you remove the child seat, turn
switch 1
to the "ON"
position to reacti-
vate the airbag and so assure the safety
of your front passenger in the event of
an impact.
Operating fault
If this warning lamp comes on in
the instrument panel, accompa-
nied by an audible warning and
a message in the multifunction
screen, contact a PEUGEOT
dealer or a qualifi ed workshop to have
the system checked. The airbags may
no longer be deployed in the event of a
serious impact.

9
!
i
PRACTICAL INFORMATION
142
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not disconnect the terminals
while the engine is running.
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.

Charging the battery using a
battery charger


)
Disconnect the battery from the ve-
hicle.

)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.

)
Reconnect starting with the nega-
tive terminal (-).

)
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month.
Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.

Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit ini-
tialisation of the electronic systems.
However, if slight diffi culties are en-
countered following this operation,
contact a PEUGEOT dealer or a
qualifi ed workshop.
Referring to the corresponding sec-
tion, you must yourself reinitialise:


- the remote control key,

- the one-touch electric windows,

- the GPS satellite navigation
system.



Disconnecting the cables
Reconnecting the cables


)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 1
to posi-
tion it correctly against the battery.

)
Lock the clip by spreading the position-
ing lug and then lowering the tab 2
.
Do not force the tab as locking will not
be possible if the clip is not positioned
correctly; start the procedure again.



)
Raise the locking tab fully.

163
04
1
2
3
5
6
4
NAVIGATION - GUIDANCE
















SELECTING A DESTINATION
Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.
Select the "Destination in
put"
function and press the dial to
confi rm. Pr
ess the NAV button.

Select the letters of the town one
by one confi rming each time by pressing the dial.
Once the country has been selected,
turn the dial and select the townfunction. Press the dial to confi rm. Insert the
SD card in the front panel reader and leave it there to use the
Navigation functions.
The navi
gation SD card data must not be modifi ed.
Map data updates are available
from PEUGEOT dealers.

A pre-set list (by entering the fi rst few letters) of the towns in thecountry selected can be accessed via the LIST button on the virtual
keypad.
Select the "Address input" function
and press the dial to confi rm.

The list o
f the last 20 destinations appears under the NavigationMenu function.
Navigation Menu
Destination input
Address input

168
04
8
6
7
4
3
5
2
1
NAVIGATION - GUIDANCE

SEARCHING FOR POINTS OF INTEREST
(POI)

Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and press the dial to confi rm.

Select the "POI nearby" function to search for POIs around the vehicle.
Select the "POI search" function and press the dial to confi rm. Navigation Menu
POI search
POI nearby
Select the "POI in city" function tosearch for POIs in the city required.Select the country then enter the name of the city using the virtual
keypad.

Select the "POI near route" function
to search for POIs near the route.
Select the "P
OI in country" function
to search for POIs in the country
required.

Select the "POI near destination"function to search for POIs near thepoint of arrival of the route.
POI near destinationPOI near route
POI in country
POI in city

A list of cities present in the country selected can be accessed via
the LIST button on the virtual keypad. The points o
f interest (POI) indicate all of the service locations in the
vicinity (hotels, various businesses, airports...).

173

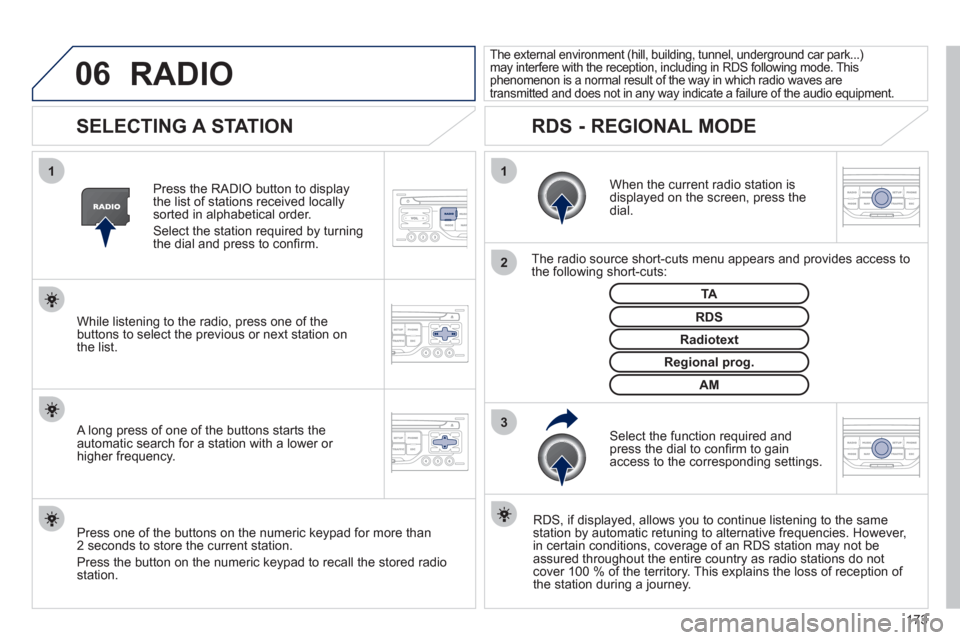

06
3 2 1 1







SELECTING A STATION


When the current radio station isdisplayed on the screen, press thedial.

The radio source short-cuts menu appears and provides access to
the following short-cuts:

Select the function re
quired and press the dial to confi rm to gain
access to the corresponding settings.
TA


RDS, if displayed, allows you to continue listening to the same station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do notcover 100 % of the territory. This explains the loss of reception of
the station during a journey.
The external environment (hill, building, tunnel, underground car park...)may interfere with the reception, including in RDS following mode. Thisphenomenon is a normal result of the way in which radio waves are
transmitted and does not in any way indicate a failure of the audio equipment.






RDS - REGIONAL MODE
Press the RADIO button to display
the list of stations received locally sorted in alphabetical order.
Select the station required by turningthe dial and press to confi rm.
Re
gional prog.
Radiotext
RDSWhile listening to the radio, press one of the
buttons to select the previous or next station on
the list.
Press one o
f the buttons on the numeric keypad for more than
2 seconds to store the current station.
Press the button on the numeric keypad to recall the stored radio
station.

AM


A long press of one of the buttons starts theautomatic search for a station with a lower or
higher frequency.
RADIO
