CAUTION
●Do not push start this vehicle. The
three-way catalyst may be damaged.
● Automatic transmission models cannot
be push-started or tow-started. At-
tempting to do so may cause transmis-
sion damage.
● For manual transmission models, never
try to start the vehicle by towing it.
When the engine starts, the forward
surge could cause the vehicle to collide
with the tow vehicle.
WARNING
● Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.
● To avoid the danger of being scalded,
never remove the radiator cap while the
engine is still hot. When the radiator
cap is removed, pressurized hot water
will spurt out, possibly causing serious
injury.
● Do not open the hood if steam is com-
ing out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading) , or if
you feel a lack of engine power, detect abnormal
noise, etc. take the following steps. 1. Move the vehicle safely off the road, apply the parking brake and move the shift selector
to N (Neutral) (manual transmission) or to P
(Park) (automatic transmission) .
Do not stop the engine.
2. Turn off the air conditioner. Open all the windows, move the heater or air conditioner
temperature control to maximum hot and fan
control to high speed. 3. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radiator
before opening the hood. (If steam or cool-
ant is escaping, turn off the engine.) Do not
open the hood further until no steam or
coolant can be seen.
4. Open the engine hood.
WARNING
If steam or water is coming from the en-
gine, stand clear to prevent getting
burned.
5.
Visually check drive belts for damage or
looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking, the
water pump belt is missing or loose, or the
cooling fan does not run, stop the engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling
fan can start at any time.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
In case of emergency6-11

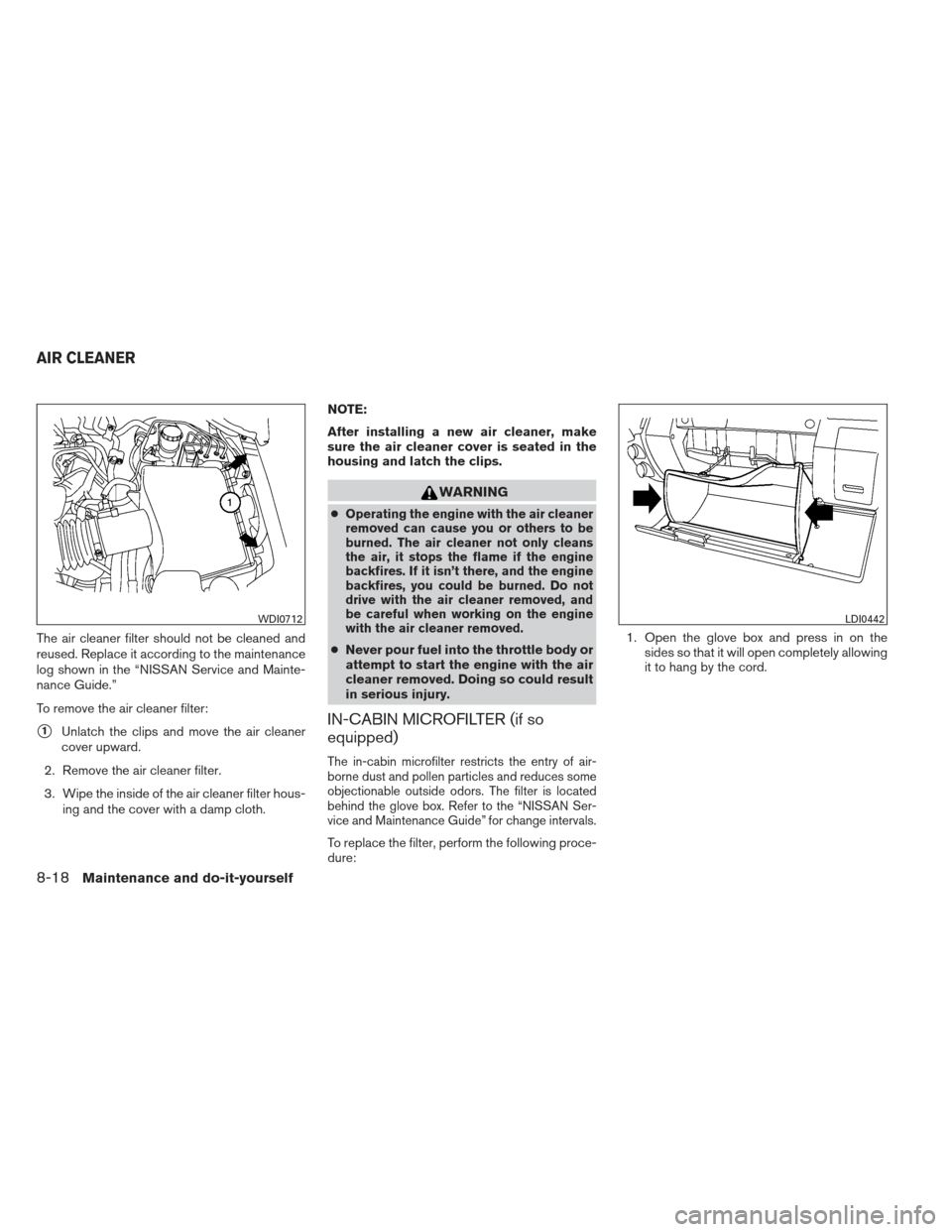

The air cleaner filter should not be cleaned and
reused. Replace it according to the maintenance
log shown in the “NISSAN Service and Mainte-
nance Guide.”
To remove the air cleaner filter:
1Unlatch the clips and move the air cleaner
cover upward.
2. Remove the air cleaner filter.
3. Wipe the inside of the air cleaner filter hous- ing and the cover with a damp cloth. NOTE:
After installing a new air cleaner, make
sure the air cleaner cover is seated in the
housing and latch the clips.
WARNING
●Operating the engine with the air cleaner
removed can cause you or others to be
burned. The air cleaner not only cleans
the air, it stops the flame if the engine
backfires. If it isn’t there, and the engine
backfires, you could be burned. Do not
drive with the air cleaner removed, and
be careful when working on the engine
with the air cleaner removed.
● Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
IN-CABIN MICROFILTER (if so
equipped)
The in-cabin microfilter restricts the entry of air-
borne dust and pollen particles and reduces some
objectionable outside odors. The filter is located
behind the glove box. Refer to the “NISSAN Ser-
vice and Maintenance Guide” for change intervals.
To replace the filter, perform the following proce-
dure: 1. Open the glove box and press in on the
sides so that it will open completely allowing
it to hang by the cord.
WDI0712LDI0442
AIR CLEANER
8-18Maintenance and do-it-yourself

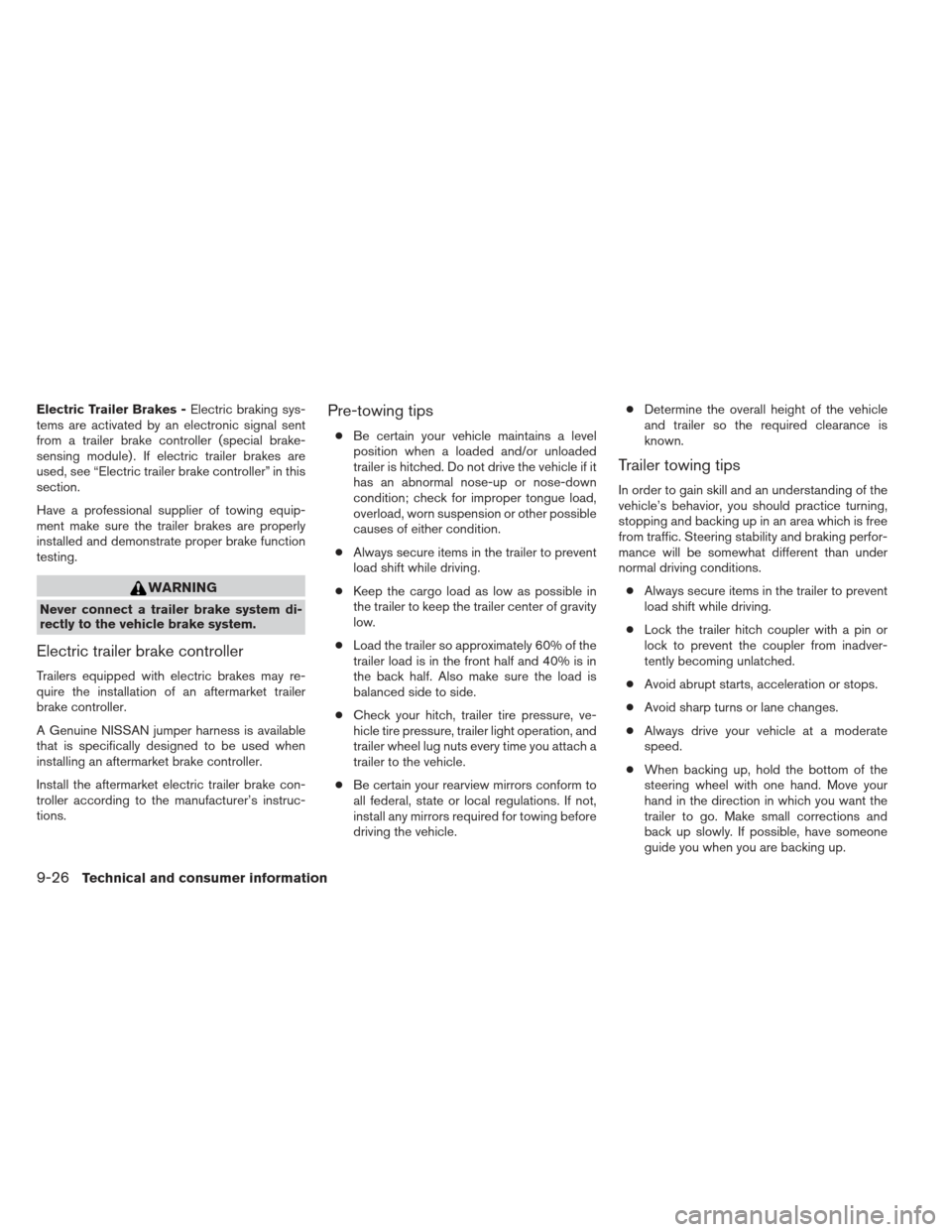

Electric Trailer Brakes -Electric braking sys-
tems are activated by an electronic signal sent
from a trailer brake controller (special brake-
sensing module) . If electric trailer brakes are
used, see “Electric trailer brake controller” in this
section.
Have a professional supplier of towing equip-
ment make sure the trailer brakes are properly
installed and demonstrate proper brake function
testing.
WARNING
Never connect a trailer brake system di-
rectly to the vehicle brake system.
Electric trailer brake controller
Trailers equipped with electric brakes may re-
quire the installation of an aftermarket trailer
brake controller.
A Genuine NISSAN jumper harness is available
that is specifically designed to be used when
installing an aftermarket brake controller.
Install the aftermarket electric trailer brake con-
troller according to the manufacturer’s instruc-
tions.
Pre-towing tips
● Be certain your vehicle maintains a level
position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if it
has an abnormal nose-up or nose-down
condition; check for improper tongue load,
overload, worn suspension or other possible
causes of either condition.
● Always secure items in the trailer to prevent
load shift while driving.
● Keep the cargo load as low as possible in
the trailer to keep the trailer center of gravity
low.
● Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side.
● Check your hitch, trailer tire pressure, ve-
hicle tire pressure, trailer light operation, and
trailer wheel lug nuts every time you attach a
trailer to the vehicle.
● Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle. ●
Determine the overall height of the vehicle
and trailer so the required clearance is
known.
Trailer towing tips
In order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability and braking perfor-
mance will be somewhat different than under
normal driving conditions.
● Always secure items in the trailer to prevent
load shift while driving.
● Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate
speed.
● When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
9-26Technical and consumer information

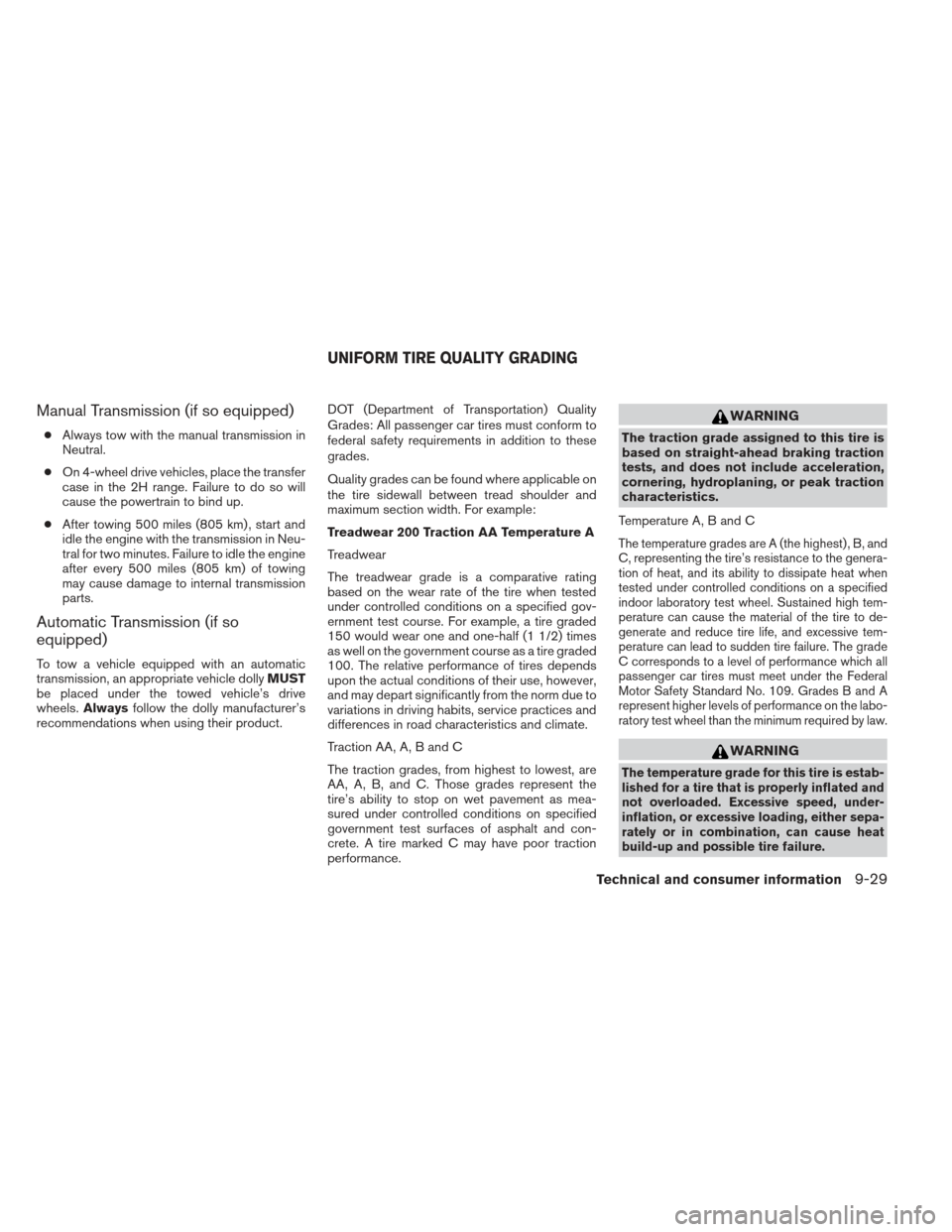

Manual Transmission (if so equipped)
●Always tow with the manual transmission in
Neutral.
● On 4-wheel drive vehicles, place the transfer
case in the 2H range. Failure to do so will
cause the powertrain to bind up.
● After towing 500 miles (805 km) , start and
idle the engine with the transmission in Neu-
tral for two minutes. Failure to idle the engine
after every 500 miles (805 km) of towing
may cause damage to internal transmission
parts.
Automatic Transmission (if so
equipped)
To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly MUST
be placed under the towed vehicle’s drive
wheels. Always follow the dolly manufacturer’s
recommendations when using their product. DOT (Department of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable on
the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, however,
and may depart significantly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.
Traction AA, A, B and C
The traction grades, from highest to lowest, are
AA, A, B, and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specified
government test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temperature A, B and C
The temperature grades are A (the highest) , B, and
C, representing the tire’s resistance to the genera-
tion of heat, and its ability to dissipate heat when
tested under controlled conditions on a specified
indoor laboratory test wheel. Sustained high tem-
perature can cause the material of the tire to de-
generate and reduce tire life, and excessive tem-
perature can lead to sudden tire failure. The grade
C corresponds to a level of performance which all
passenger car tires must meet under the Federal
Motor Safety Standard No. 109. Grades B and A
represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.
WARNING
The temperature grade for this tire is estab-
lished for a tire that is properly inflated and
not overloaded. Excessive speed, under-
inflation, or excessive loading, either sepa-
rately or in combination, can cause heat
build-up and possible tire failure.
UNIFORM TIRE QUALITY GRADING
Technical and consumer information9-29

10 Index
4WDwarninglight...............2-16A
Active brake limited slip (ABLS) system . . .5-34
Air bag (See supplemental restraint
system) .....................1-44
Air bag system Front (See supplemental front impact
air bag system) ...............1-51
Airbagwarninglabels.............1-58
Airbagwarninglight...........1-59,2-18
Air cleaner housing filter ............8-18
Air conditioner Air conditioner operation .......4-5,4-12
Air conditioner service ...........4-17
Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Heater and air conditioner controls. .4-2, 4-10
Servicing air conditioner ..........4-17
Airflowcharts...............4-6,4-13
Alarm system
(See vehicle security system) .........2-23
Anchor point locations .............1-30
Antenna.....................4-37
Anti-lock brake warning light ..........2-14
Anti-lock Braking System (ABS) ........5-33
Audible reminders ...............2-22
Audio system ..................4-17
Compact Disc (CD) changer ....4-29,4-33
Compact disc (CD) player .........4-27 FM-AM radio with compact disc (CD)
changer
...................4-29
FM/AM radio with compact disc (CD)
player ....................4-25
Radio ....................4-17
Steering wheel audio control switch . . .4-36
Automatic Automatic power window switch .....2-47
Automatic transmission position indicator
light .....................2-19
Driving with automatic transmission ....5-13
Automatic anti-glare inside mirror .......3-14
Automatic door locks ..............3-4
AUXjack ....................4-34
B
Battery ......................8-14
Chargewarninglight............2-15
Before starting the engine ...........5-12
Belt (See drive belt) ..............8-16
Block heater Engine ....................5-39
Bluetooth hands-free phone system .....4-38
Boosterseats..................1-40
Brake Anti-lock Braking System (ABS) ......5-33
Brake fluid ..................8-12
Brake light (See stop light) .........8-29
Brake system ................5-32
Brake warning light .............2-15
Brake wear indicators ........2-22,8-22 Parking brake operation
..........5-19
Self-adjusting brakes ............8-22
Brakes ......................8-22
Break-inschedule ...............5-22
Brightness control Instrument panel ..............2-29
Bulb check/instrument panel ..........2-14
Bulbreplacement................8-29
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargolight ...................2-49
Cargonet....................2-42
Cargo (See vehicle loading information) . . .9-13
CarphoneorCBradio.............4-37
CDcareandcleaning .............4-35
CD changer (See audio system) ....4-29,4-33
CD player (See audio system) .........4-27
Check tire press .................2-5
Child restraints .......1-24,1-25,1-26,1-28
Precautions on child
restraints ........1-26,1-32,1-37,1-40
Top tether strap anchor point locations . .1-30
Child restraint with top tether strap ......1-30
Child safety rear door lock ............3-5
Chimes,audiblereminders...........2-22
Cleaning exterior and interior ..........7-2
Clock ......................4-26
Clutch Clutchfluid.................8-13

G
Gascap .....................3-10
Gauge Engine coolant temperature gauge .....2-6
Engine oil pressure gauge ..........2-8
Fuel gauge ...................2-7
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-6
Trip computer .................2-9
Trip odometer .................2-4
Voltmeter....................2-8
Generalmaintenance...............8-2
Glovebox.....................2-37
H
Hands-free phone system, Bluetooth .....4-38
Hazard warning flasher switch .........2-31
Headlightandturnsignalswitch........2-27
Headlightcontrolswitch ............2-27
Headlights....................8-27
Heater Heater and air conditioner controls . .4-2, 4-10
Heater operation ............4-4,4-11
Hill descent control switch ...........2-32
Hill descent control system ...........5-36
Hill start assist system ..............5-37
Hood release ...................3-9
Hook Luggage hook ................2-40
Horn .......................2-31 I
Ignition switch ..................5-10
Immobilizer system .........2-24,3-2,5-11
Important vehicle information label .......9-11
In-cabin microfilter ................8-18
Increasing fuel economy .............5-22
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)....................2-13
Inside automatic anti-glare mirror ........3-14
Inside mirror ...................3-13
Instrument brightness control ..........2-29
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-29
Interiorlight....................2-47
ISOFIX child restraints .............1-28
J
Jump starting ...................6-9
K
Key.........................3-2
Keyfob battery replacement ...........8-26
Keyless entry system
(See remote keyless entry system) ........3-5
L
Labels Air conditioner specification label .....9-12C.M.V.S.S. certification label
........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-58
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-28
License plate Installing the license plate ..........9-12
Liftgate ......................3-9
Light Airbagwarninglight.........1-59, 2-18
Brake light (See stop light) .........8-29
Bulb

check/instrument panel ........2-14
Bulbreplacement..............8-29
Charge warning light ............2-15
Fog light switch ...............2-30
Headlightandturnsignalswitch......2-27
Headlight control switch ..........2-27
Headlights..................8-27
Interiorlight..................2-47
Lightbulbs..................8-27
Low tire pressure warning light .......2-16
Low windshield-washer fluid warning
light......................2-18
Off road lamps switch ............2-30
Passenger air bag and status light .....1-53
Security indicator light ............2-21
Warning/indicator lights and audible
reminders...................2-13
Lights Maplights ..................2-48
Lock Child safety rear door lock ..........3-5
10-3

Rear window and outside mirror defroster
switch.......................2-27
Rear window wiper and washer switches . . .2-26
Recorders Eventdata..................9-31
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Remote keyless entry system ...........3-5
Reporting safety defects (US only) .......9-30
Roof rack .....................2-43
S
Safety Child safety rear door lock ..........3-5
Child seat belts .....1-26,1-32,1-37,1-40
Reporting safety defects (US only) .....9-30
Seat adjustment Front manual seat adjustment ........1-2
Seatback pockets ................2-39
Seat belt Child safety ..................1-24
Infantsandsmallchildren..........1-25
Injured Person ................1-16
Largerchildren................1-25
Precautionsonseatbeltusage.......1-13
Pregnant women ...............1-16
Pre-tensioner seat belt system .......1-57
Rear center seat belt ............1-19
Seat belt extenders .............1-23
Seat belt maintenance ............1-23
Seat belts ...................1-13
Shoulder belt height adjustment ......1-22
Three-point type with retractor .......1-16
Seatbeltwarninglight..............2-18 Seats
Adjustment ...................1-2
Frontseats...................1-2
Manual front seat adjustment .........1-2
Security indicator light ..............2-21
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-24,3-2,5-11
Self-adjusting brakes ..............8-22
Service manual order form ...........9-32
Servicing air conditioner .............4-17
Shifting Automatic transmission ...........5-14
Manual transmission .............5-18
Shiftlockrelease.................5-16
Shoulder belt height adjustment ........1-22
Side air bag system (See supplemental side air
bag, curtain and rollover air bag systems) . . .1-56
Sparkplugreplacement.............8-17
Speedometer ...................2-4
SRSwarninglabel................1-58
Starting Before starting the engine ..........5-12
Jump starting .................6-9
Precautions when starting and driving ....5-2
Push starting .................6-11
Starting the engine .............5-12
Steering Power steering fluid .............8-12
Power steering system ...........5-32
Tilting steering wheel ............3-12
Steering wheel audio control switch ......4-36
Stoplight.....................8-29
Storage......................2-36
Storagebin....................2-40
Storage tray ...................2-36
Sunglassescase.................2-38 Sun visors
....................3-12
Supplemental air bag warning labels ......1-58
Supplemental air bag warning light . . .1-59, 2-18
Supplemental front impact air bag system . . .1-51
Supplemental restraint system Information and warning labels .......1-58
Precautions

on supplemental restraint
system ....................1-44
Supplemental restraint system
(Supplemental air bag system) .........1-44
Switch Automatic power window switch ......2-47
Clutch interlock (clutch start) switch ....2-34
Electronic locking rear differential (E-Lock)
system switch ................2-33
Fog light switch ...............2-30
Hazard warning flasher switch .......2-31
Headlightandturnsignalswitch......2-27
Headlight control switch ..........2-27
Hill descent control switch .........2-32
Ignition switch ................5-10
Overdrive switch ...............5-17
Power door lock switch ............3-4
Rear window and outside mirror defroster
switch .....................2-27
Rear window wiper and washer
switches...................2-26
Turnsignalswitch..............2-29
Vehicle dynamic control (VDC) off
switch .....................2-32
Windshield wiper and washer switch . . .2-25
T
Tachometer ....................2-6
10-5
