2012 NISSAN VERSA HATCHBACK light

*See your Owner’s Manual for information.
heAdLiGht And tuRn SiGnAL cOntROL
LOW tiRe PReSSuRe WARninG LiGht
tWin tRiP OdOMeteR*
WindShieLd WiPeR / WASheR SWitch SteeRinG WheeL SWitcheS fOR
AudiO* / nAViGAtiOn / bLuetOOth
®
cRuiSe cOntROL
SteeRinG WheeL tiLt AdJuStMent*
VehicLe dYnAMic cOntROL (Vdc)
Off SWitch* OutSide MiRROR cOntROL SWitch
inStRuMent bRiGhtneSS cOntROL
(behind steering wheel)*
fueL-fiLLeR dOOR ReLeASe
hOOd ReLeASe*
iPOd
® / uSb PORt*
fROnt PASSenGeR AiR bAG
StAtuS LiGht*
AudiO And nAViGAtiOn SYSteM
cLiMAte cOntROL SYSteM
01020304
05
09
13
06
10
141516
07
11
08
12
02
03
01
04
05
09
15
06
12
16
07
13
08
14
11
10

tAbLe Of cOntentS
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
for more information, refer to the “Safety — Seats, seat belts and
supplemental restraint system (section 1)”,
“Display screen, heater,
air conditioner, audio and phone systems (section 4)” and “Starting
and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also
available in your Owner’s Manual, navigation System Owner’s Manual and at www.nissanusa.com.
to view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2012/versahatchback or snap this barcode with an appropriate barcode reader.
E SSE ntial i nformation
Loose Fuel Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 2
tire Pressure Monitoring System (tPMS) ...........................2
fir St DrivE fEatur ES
niSSAn intelligent key
® System (if so equipped) .................... 3
Rear Hatch Release (NISSAN Intelligent Key® models only) ........... 3
Seat Adjustments .............................................. 4
Outside Mirror Control Switch .................................... 4
Starting/Stopping the Engine ..................................... 4
headlight control .............................................. 5
Windshield Wiper/Washer Switch ................................ 6
Climate Control (if so equipped) .................................. 6
fM/AM/XM
® Satellite Radio with CD Player (if so equipped) ...........8
Cruise Control (if so equipped) ................................... 9
fuel-filler door ................................................. 9
Sy StEm GuiDE
bluetooth
® Hands-free Phone System (if so equipped) ...............10
Navigation System (if so equipped) ............................... 12

tirE Pr ESSurE monitorin G SyStE m (tPm S)
The TPMS monitors tire pressure. If the TPMS is not
functioning properly, the low tire pressure warning light

01 will flash for approximately 1 minute and remain

on. Have the system checked by a NISSAN dealer.

If the low tire pressure warning light illuminates but
does not flash, check the tire pressure in your tires.
Adjust the tire pressure to the recommended COLD
tire pressure shown on the Tire and Loading Information
label.
• The tires are considered cold after the vehicle has been parked for 3 hours or more or
driven less than 1 mile (1.6km) at moderate speeds.

After tire pressures are adjusted, the vehicle will need to be driven at speeds above 16MPH
(25km/h) to activate the TPMS and turn off the low tire pressure warning light.

Tire pressure rises and falls depending on the heat caused by the vehicle’s operation and the
outside temperature. Low outside temperature can lower the temperature of the air inside the
tire, which can cause a lower tire inflation pressure. This may cause the low tire pressure
warning light to illuminate. If the warning light illuminates in low ambient temperature, check
the tire pressure in your tires.
• Check the tire pressure (including the spare tire) often and always prior to long distance trips.

The Tire and Loading Information label contains valuable information. Please refer to section 9,
“Technical and consumer information”, in your Owner’s Manual for the location of the Tire and
Loading information label.
for more information, refer to the “instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
2
essential information
looSE fu El C aP
A LOOSe fueL cAP warning message will display in
the odometer

01 when the fuel-filler cap is not
tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The warning message will disappear when the vehicle
detects the fuel-filler cap is properly tightened and the
reset button

02 is pressed for more than 1 second.

If the cap is not fully tightened, the Malfunction Indicator Light
may also illuminate.
for more information, refer to the “instruments and controls (section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
0102
01

To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
StartinG/StoPPin G tHE EnG in E
cOntinuOuSLY VARiAbLe tRAnSMiSSiOn (cVt)
(niSSAn intelligent key® models only - if so equipped)

Depress the brake pedal.

Push the ignition switch in.

confirm the intelligent key system warning light is
illuminated green.

Turn the ignition switch to start the engine.

4
first drive features
SEat aDJ uStm EntS
Pull up on the lever
01 under the front of the seat and
slide forward or backward. Release the lever to lock the
seat in position.

Pull up on the lever
02 and lean back to recline the

seatback. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever to
lock the seatback in position.
SeAt LifteR (if so equipped for driver’s seat)

Pull up or push down on the adjusting lever
03
repeatedly to adjust the seat height.
for more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.
01
0203
outS
iDE mirror Control SWit CH
Move the switch
01 right or left to select the right
or left mirror.

Move the control switch
02 up, down, right or left
to adjust the mirror angle.

Move the switch
01 to the middle “neutral” position
to prevent accidentally moving the mirror.
for more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
01
02

HEaDliGHt Control
heAdLiGht cOntROL SWitch

Turn the headlight control switch to the
position


01 to turn on the front parking, tail, license plate and
instrument panel lights. Turn the switch to the

position
02 to turn on the headlights.
hiGh beAM SeLect

Push the headlight control switch forward
03 to
select the high beam function. The blue indicator
light
illuminates in the instrument panel. Pull the
headlight switch back to the original position to select
the low beam. The blue indicator light goes off.

Pull and release the headlight control switch
04 to
flash the headlight high beams on and off.
FOG LIGHT SWITCH (if so equipped)
nOte: the headlights must be on and the low beams
selected for the fog lights to operate.

Turn the switch (inside collar) to the
position
05
to turn the fog lights on.

Turn the switch (inside collar)
to the off position to
turn the fog lights off.
for more information, refer to the “instruments and controls (section 2)”
of your Owner’s Manual.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.5
MANUAL TRANSMISSION (if so equipped)

Depress the brake pedal.

Move the shift lever to n (nE utral).

Depress the clutch pedal to the floor.

Turn the ignition switch to Start.

tuRninG the enGine Off

For Continuously Variable Transmission, apply the brake pedal, move the shift lever to the
P (ParK) position, apply the parking brake and turn the ignition switch to the loCK position.

For manual transmission, apply the brake pedal, place the vehicle in 1st gear, apply the parking
brake and turn the ignition switch to the loCK position.
for more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
05
03
04
01
02

To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.7
03 air floW Control D ial

Turn the dial to select from the following air flow outlets:

Air flows from the center and side vents.

Air flows from the center, side and foot vents.

Air flows mainly from the foot vents.

Air flows from the defroster and foot vents.

Air flows mainly from the defroster vents.
04 DE
froStin G/DEfoGG inG front an D SiDE Win Do WS

Move the air intake lever
07 to the
left position to draw fresh air into the vehicle.

Turn the air flow control dial
03 to the front window defroster mode .

Turn the temperature control dial
02 left or right to set the desired temperature.

To set the defroster on high, turn both the fan speed control dial
01 and the temperature

control dial
02 , all the way to the right.

The A/C will automatically turn on for better performance. this will dehumidify the air and
help defog the windows. The A/C indicator light will not illuminate.
05 rEar Win Do W an D outS iDE mirror DE froStEr SWitCH (if so equipped)

Push the rear window defroster switch
to turn the system on or off. This function

automatically turns off after approximately 15 minutes.
06 a/C Button (if so equipped)

Press the a/C button to manually turn the A/c on or off.
07 air intaKE lEvE r

Move the air intake lever to the
position to draw fresh air into the vehicle.

Move the air intake lever to the position to recirculate air inside the vehicle.

Move the air intake lever to the position for maximum cooling when using the

air conditioner (if so equipped). Using this setting without the A/C system could lead to
window fogging in some circumstances.
for more information, refer to the “instruments and controls (section 2)” and the “Display screen, heater, air conditioner,
audio and phone systems (section 4)” of your Owner’s Manual.

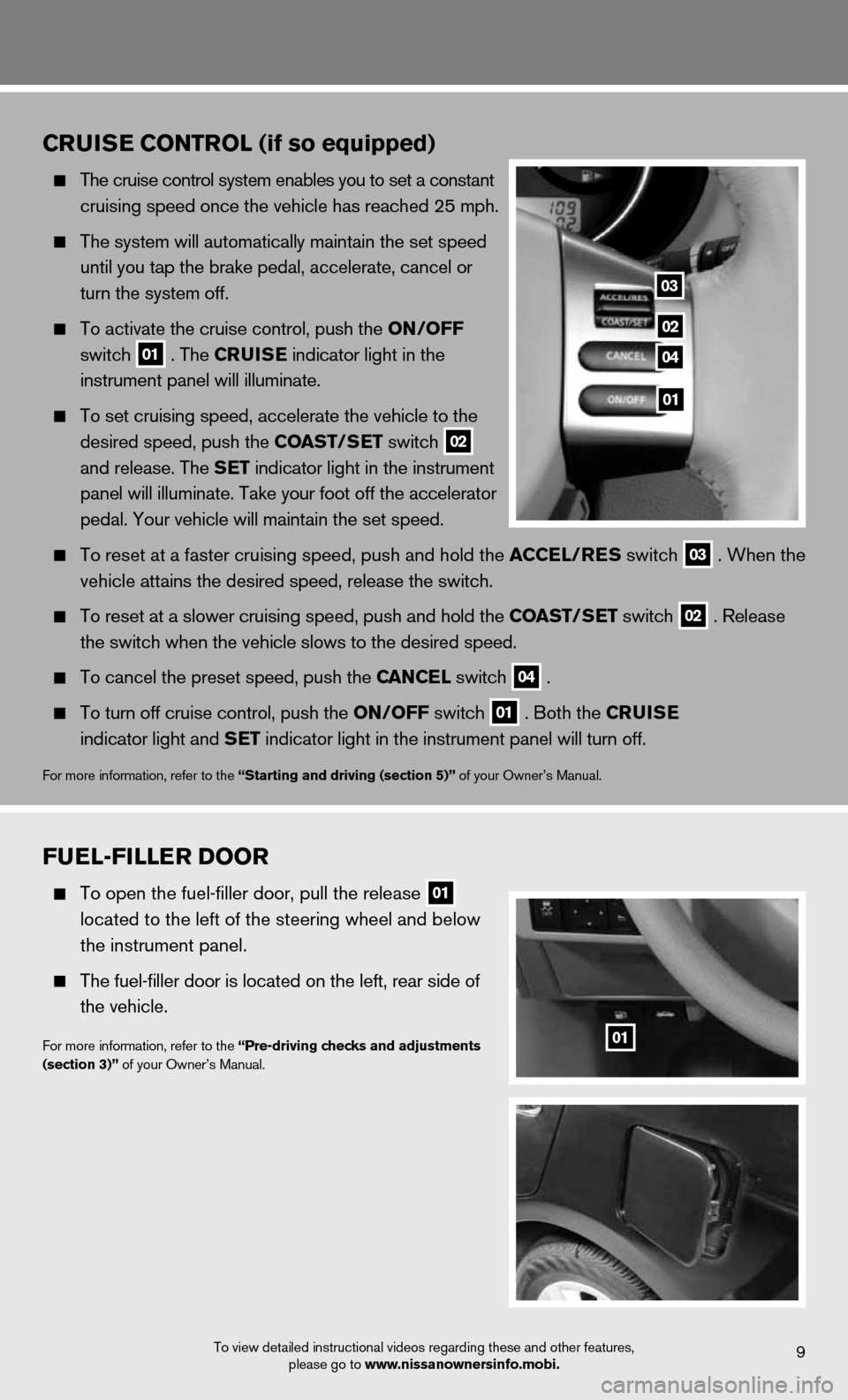

Crui SE C ontrol (if so equipped)
The cruise control system enables you to set a constant
cruising speed once the vehicle has reached 25 mph.

The system will automatically maintain the set speed
until you tap the brake pedal, accelerate, cancel or
turn the system off.

To activate the cruise control, push the on /off
switch

01 . the C
ruiSE indicator light in the
instrument panel will illuminate.

To set cruising speed, accelerate the vehicle to the
desired speed, push the CoaSt/SEt switch

02
and release. the SEt indicator light in the instrument
panel will illuminate. Take your foot off the accelerator
pedal. Your vehicle will maintain the set speed.

To reset at a faster cruising speed, push and hold the aCCEl /rES switch
03 . When the
vehicle attains the desired speed, release the switch.

To reset at a slower cruising speed, push and hold the CoaSt/SEt switch
02 . Release

the switch when the vehicle slows to the desired speed.

To cancel the preset speed, push the C anCEl switch
04 .

To turn off cruise control, push the on /off switch
01 . both the C
ruiSE
indicator light and SEt indicator light in the instrument panel will turn off.
for more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
fuEl-fillE r Door
To open the fuel-filler door, pull the release
01
located to the left of the steering wheel and below
the instrument panel.

The fuel-filler door is located on the left, rear side of
the vehicle.
for more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.01
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.9
03
02
04
01
