2012 NISSAN VERSA HATCHBACK Owners Manual

1. SRS Air Bag Warning Labels (locatedon the sun visors)
SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental front-
impact air bag system are placed in the vehicle as
shown in the illustration.
SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel, moni-
tors the circuits for the air bag systems, preten-
sioners and all related wiring.
When the ignition switch is placed in the ON or
START position, the supplemental air bag warn-
ing light illuminates for about 7 seconds and then
turns off. This means the system is operational. If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing:
● The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag or pretensioner systems may
not operate properly. They must be checked and
repaired. Take your vehicle to the nearest
NISSAN dealer.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or preten-
sioner systems will not operate in an ac-
cident. To help avoid injury to yourself or
others, have your vehicle checked by a
NISSAN dealer as soon as possible.
WRS0897LRS0100
1-48Safety—Seats, seat belts and supplemental restraint system

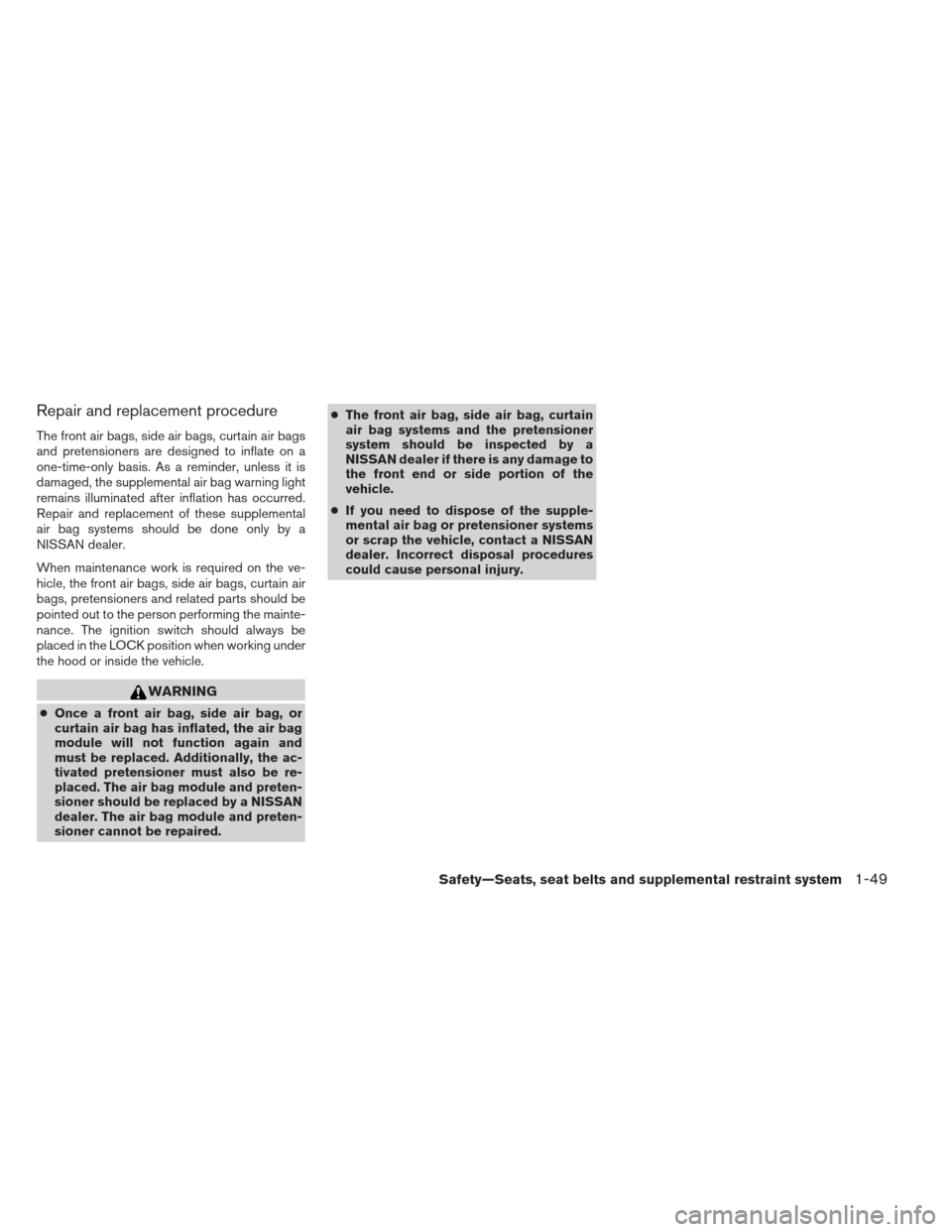

Repair and replacement procedure
The front air bags, side air bags, curtain air bags
and pretensioners are designed to inflate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
remains illuminated after inflation has occurred.
Repair and replacement of these supplemental
air bag systems should be done only by a
NISSAN dealer.
When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain air
bags, pretensioners and related parts should be
pointed out to the person performing the mainte-
nance. The ignition switch should always be
placed in the LOCK position when working under
the hood or inside the vehicle.
WARNING
●Once a front air bag, side air bag, or
curtain air bag has inflated, the air bag
module will not function again and
must be replaced. Additionally, the ac-
tivated pretensioner must also be re-
placed. The air bag module and preten-
sioner should be replaced by a NISSAN
dealer. The air bag module and preten-
sioner cannot be repaired. ●
The front air bag, side air bag, curtain
air bag systems and the pretensioner
system should be inspected by a
NISSAN dealer if there is any damage to
the front end or side portion of the
vehicle.
● If you need to dispose of the supple-
mental air bag or pretensioner systems
or scrap the vehicle, contact a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.
Safety—Seats, seat belts and supplemental restraint system1-49

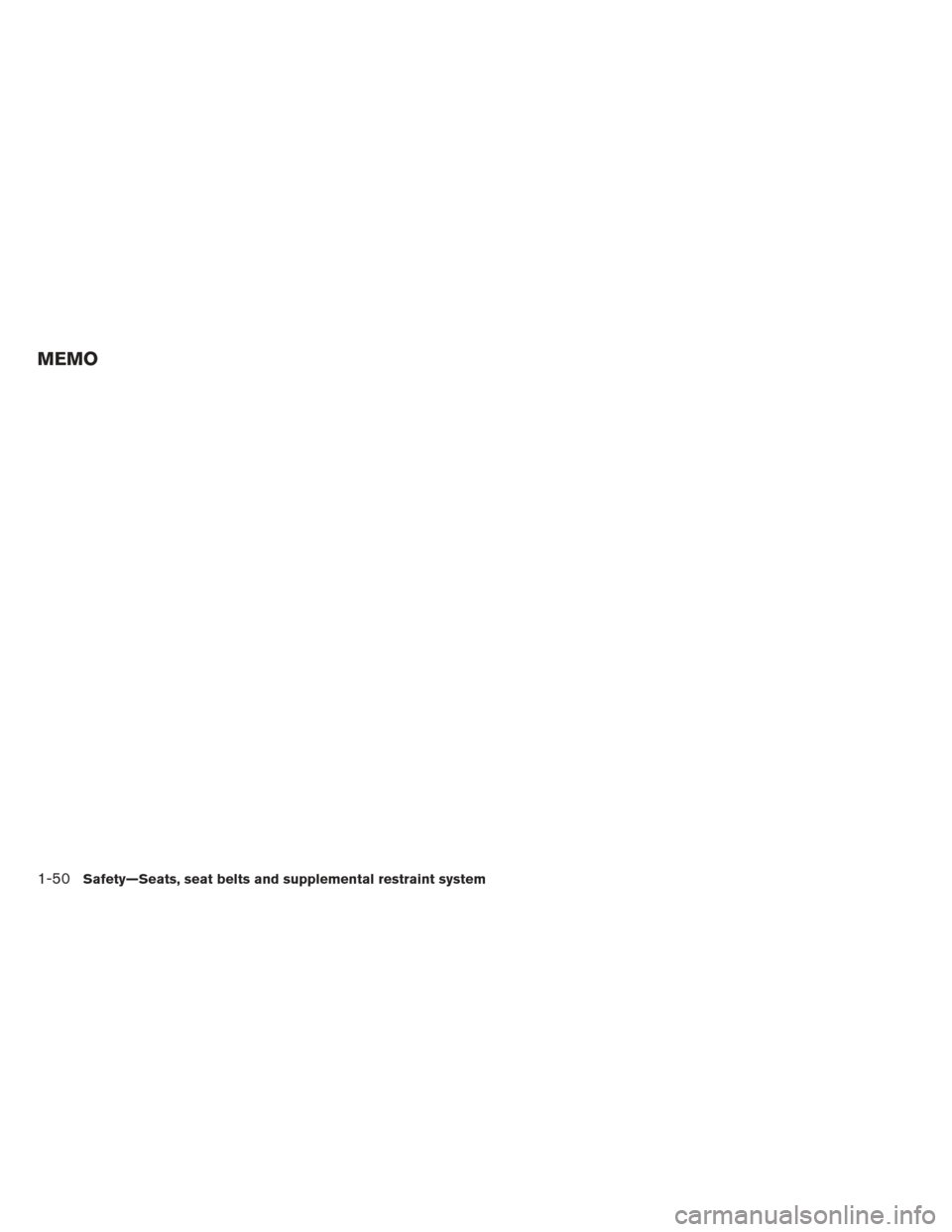

MEMO
1-50Safety—Seats, seat belts and supplemental restraint system

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer . . ...................2-4
Tachometer ....................................2-5
Fuel gauge ....................................2-5
Warning/indicator lights and audible reminders .......2-7
Checking bulbs ................................2-8
Warning lights .................................2-8
Indicator lights ................................ 2-12
Audible reminders ............................. 2-15
Security systems ................................. 2-16
Vehicle security system (if so equipped) ..........2-16
NISSAN vehicle immobilizer system .............2-17
Windshield wiper and washer switch ...............2-18
Switch operation .............................. 2-18
Rear window wiper and washer switch ..............2-19
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-20
Headlight and turn signal switch. . ..................2-20
Headlight control switch ........................ 2-20
Daytime running light system (Canada only) . . ....2-21
Instrument brightness control ...................2-22Turn signal switch
............................. 2-22
Fog light switch (if so equipped) ................2-23
Hazard warning flasher switch .....................2-23
Horn ............................................ 2-24
Vehicle Dynamic Control (VDC) off switch ...........2-24
Power outlet ..................................... 2-25
Storage ......................................... 2-25
Map pockets .................................. 2-25
Storage trays ................................. 2-26
Sunglasses holder (if so equipped) ..............2-27
Cup holders . . . ............................... 2-27
Glove box .................................... 2-29
Console box (if so equipped) ...................2-29
Covered storage bin ........................... 2-29
Cargo cover (if so equipped) ...................2-29
Windows ........................................ 2-31
P
ower windows ............................... 2-31
Moonroof (if so equipped) ......................... 2-33
Automatic moonroof ........................... 2-33
Interior light ...................................... 2-35
Map lights (if so equipped) ........................2-36
Luggage compartment light ........................2-36

1. Outside mirror control switch (P. 3-30)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-20)
3. Steering wheel switch for audio control and
Bluetooth Hands-Free Phone System
(if so equipped) (P. 4-47, 4-49) 4. Driver’s supplemental air bag/horn
(P. 1-34, 2-24)
5. Meters and gauges (P. 2-3)
6. Cruise control main/set switches
(if so equipped) (P. 5-23) 7. Windshield wiper/washer switch (P. 2-18,
2-19)
8. Audio system (if so equipped) (P. 4-17)
9. Covered storage bin (P. 2-25)/iPod outlet
(if so equipped) (P. 4-42)/USB interface
(if so equipped) (P. 4-41)
10. Center ventilator (P. 4-8)
11. Hazard warning flasher switch (P. 2-23)
12. Passenger’s supplemental air bag (P. 1-34)
13. Glove box (P. 2-29)
14. Side ventilator (P. 4-8)
15. Navigation system* (if so equipped) (P. 4-2)
16. Cup holders (P. 2-27)
17. Shift selector (P. 5-13)
18. Defroster switch (P. 2-20)
19. Climate control (P. 4-9)
20. Passenger air bag status light (P. 1-42)
21. Ignition switch (P. 5-7)
22. Tilt steering (P. 3-28)
23. Instrument brightness control (P. 2-22)
24. Hood release lever (P. 3-23)
25. Fuel-filler lid release lever (P. 3-25)
26. Fuse block (P. 8-21)
27. Vehicle Dynamic Control (VDC) off switch
(P. 2-24)
*:Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
WIC1599
INSTRUMENT PANEL
2-2Instruments and controls

1. Tachometer
2. Speedometer
3. Fuel gauge
4. Odometer (total/twin trip)5. Automatic Transmission (A/T)/
Continuously Variable Transmission
(CVT) position indicator (if so
equipped) 6. Trip odometer change button/Loose
fuel cap indicator reset button (if so
equipped)
LIC0961
METERS AND GAUGES
Instruments and controls2-3

SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates the vehicle speed.
Odometer/Twin trip odometer
The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.
The odometer
1records the total distance the
vehicle has been driven.
The twin trip odometer
2records the distance
of individual trips. Changing the display:
Press the change button
3to change the dis-
play as follows:
Trip
→ Trip→Trip
Resetting the trip odometer:
Press the change button
3for more than 1
second to reset the currently displayed trip
odometer to zero.
LIC0962SIC2852
2-4Instruments and controls

Loose fuel cap warning message
Push the reset buttonAfor more than 1 second
to reset the LOOSE FUEL CAP warning mes-
sage after the fuel cap has been tightened. For
additional information see “Fuel-filler cap” in the
“Pre-driving checks and adjustments” section of
this manual.
TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (rpm) . Do not rev the engine
into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.
FUEL GAUGE
The gauge indicates the approximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to E (Empty) after the
ignition switch is placed in the OFF position.
The low fuel warning light comes on when the
amount of fuel in the tank is getting low.
Refill the fuel tank before the gauge regis-
ters E (Empty) .
LRS2001LIC0963LIC0964
Instruments and controls2-5
