2012 NISSAN MAXIMA stop start

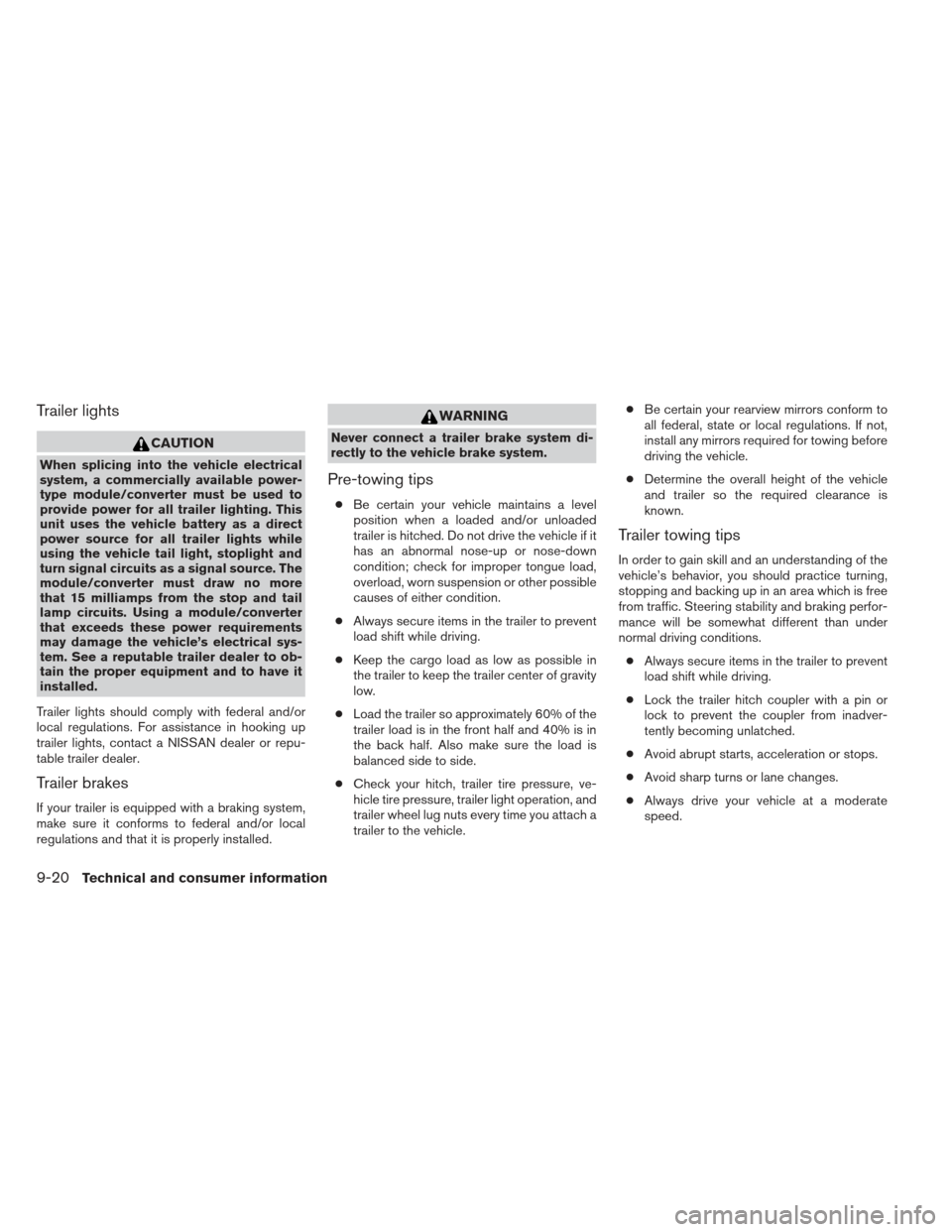

Trailer lights
CAUTION
When splicing into the vehicle electrical
system, a commercially available power-
type module/converter must be used to
provide power for all trailer lighting. This
unit uses the vehicle battery as a direct
power source for all trailer lights while
using the vehicle tail light, stoplight and
turn signal circuits as a signal source. The
module/converter must draw no more
that 15 milliamps from the stop and tail
lamp circuits. Using a module/converter
that exceeds these power requirements
may damage the vehicle’s electrical sys-
tem. See a reputable trailer dealer to ob-
tain the proper equipment and to have it
installed.
Trailer lights should comply with federal and/or
local regulations. For assistance in hooking up
trailer lights, contact a NISSAN dealer or repu-
table trailer dealer.
Trailer brakes
If your trailer is equipped with a braking system,
make sure it conforms to federal and/or local
regulations and that it is properly installed.
WARNING
Never connect a trailer brake system di-
rectly to the vehicle brake system.
Pre-towing tips
● Be certain your vehicle maintains a level
position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if it
has an abnormal nose-up or nose-down
condition; check for improper tongue load,
overload, worn suspension or other possible
causes of either condition.
● Always secure items in the trailer to prevent
load shift while driving.
● Keep the cargo load as low as possible in
the trailer to keep the trailer center of gravity
low.
● Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side.
● Check your hitch, trailer tire pressure, ve-
hicle tire pressure, trailer light operation, and
trailer wheel lug nuts every time you attach a
trailer to the vehicle. ●
Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
● Determine the overall height of the vehicle
and trailer so the required clearance is
known.
Trailer towing tips
In order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability and braking perfor-
mance will be somewhat different than under
normal driving conditions.
● Always secure items in the trailer to prevent
load shift while driving.
● Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate
speed.
9-20Technical and consumer information

10 Index
A
Air bag (See supplemental restraint
system) .....................1-37
Air bag system Front (See supplemental front impact
air bag system) ...............1-44
Airbagwarninglight...........1-51,2-14
Air cleaner housing filter ............8-18
Air conditioner Air conditioner service ...........4-47
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner
controls................4-42,4-45
Servicing air conditioner ..........4-47
Alarm system
(See vehicle security system) .........2-25
Anchor point locations .............1-23
Antenna....................4-114
Anti-lock brake warning light ......2-10,2-11
Anti-lock Braking System (ABS) ........5-23
Armrests .....................1-7
Audible reminders ...............2-16
Audio system ..................4-47
Bluetooth audio.............4-108
Compact Disc (CD) changer .......4-65
Compact disc (CD) player .....4-71,4-79
FM-AM radio with compact disc
(CD) changer ................4-63
FM/AM/SAT radio with CD/DVD player . .4-75 FM/AM/SAT radio with compact disc
(CD) player
.................4-68
Audio System iPod Player .............4-91,4-93
Music Box hard-disk drive audio
system ...............4-96,4-101
Audio system Radio ....................4-47
Audio System Settings ...............4-69,4-75
Audio system Steering wheel audio control switch . . .4-112
USB interface ............4-86,4-87
Autolight switch .................2-31
Automatic Automatic drive positioner .........3-29
Automatic power window switch .....2-45
Automatic transmission position indicator
light .....................2-14
Transmission shift selector lock release . .5-16
Automatic anti-glare inside mirror .......3-26
Automatic door locks ..............3-6
AUXjack ....................4-67
B
Battery ......................8-14
Chargewarninglight............2-11
Before starting the engine ...........5-10
Belt (See drive belt) ..............8-17
Block heater Engine ....................5-27 Bluetooth
audio...............4-108
Bluetooth hands-free phone
system .................4- 115, 4-129
Boosterseats..................1-33
Brake Anti-lock Braking System (ABS) ......5-23
Brakefluid..................8-13
Brakelight(Seestoplight).........8-27
Brake system ................5-22
Brake warning light .............2-11
Brake wear indicators ........2-16,8-20
Parking brake operation ..........5-17
Self-adjusting

brakes ............8-20
Brakes ......................8-20
Break-inschedule ...............5-19
Brightness/contrast button .......4-15,4-31
Brightness control Instrument panel ..............2-33
Bulb check/instrument panel ..........2-10
Bulbreplacement................8-27
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargonet....................2-43
Cargo (See vehicle loading information) . . .9-12
CarphoneorCBradio............4-114
CDcareandcleaning.............4-111
CD changer (See audio system) .......4-65
CD player (See audio system) .....4-71,4-79
Check tire pressure ...............2-25

Phone, Bluetoothhands-free
system.................4- 115, 4-129
Power Power door locks ...............3-5
Power outlet .................2-38
Power rear windows .............2-45
Power steering fluid .............8-12
Power steering system ...........5-22
Power windows ...............2-44
Rear power windows ............2-45
Precautions Maintenanceprecautions...........8-5
Precautions on child
restraints .........1-19,1-25,1-29,1-33
Precautionsonseatbeltusage.......1-11
Precautions on supplemental restraint
system ....................1-37
Precautions when starting and driving ....5-2
Programmable features ..........4-9,4-24
Push starting ....................6-9
R
Radio Car phone or CB radio ..........4-114
Compact Disc (CD) changer ........4-65
FM-AM radio with compact disc
(CD) changer ................4-63
FM/AM/SAT radio with CD/DVD player . .4-75
FM/AM/SAT radio with compact disc
(CD) player ..................4-68
Steering wheel audio control switch . . .4-112
Readiness for inspection maintenance
(I/M) test .....................9-25
Rear power windows ..............2-45 Rearseat......................1-5
Rearsunshade .................2-50
RearViewMonitor................4-34
Rear window and outside mirror defroster
switch
.......................2-29
Recorders Eventdata..................9-25
Refrigerant recommendation ...........9-6
Registering your vehicle in another country . . .9-9
Reporting safety defects (US only) .......9-24
Resetting the fuel economy ........4-7,4-21
S
Safety Child safety rear door lock ..........3-6
Child seat belts .....1-19,1-25,1-29,1-33
Reporting safety defects (US only) .....9-24
Seat adjustment Front power seat adjustment .........1-3
Seatback pockets ................2-39
Seat belt Childsafety..................1-17
Infants and small children ..........1-18
Injured Person ................1-14
Largerchildren................1-18
Precautions on seat belt usage .......1-11
Pregnant women ...............1-14
Seatbeltextenders .............1-17
Seatbeltmaintenance............1-17
Seatbelts...................1-11
Shoulder belt height adjustment ......1-16
Three-point type with retractor .......1-14
Seat belt warning light ..............2-13 Seats
Adjustment ...................1-2
Automatic drive positioner ..........3-29
Frontseats...................1-2
Heated seats .............2-35,2-37
Rearseat....................1-5
Security indicator light ..............2-15
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-26,3-3,5-10
Self-adjusting brakes ..............8-20
Service manual order form ...........9-26
Servicing air conditioner .............4-47
Setting button ...............
4-9,4-24
Shifting Continuously Variable Transmission
(CVT).....................5-13
Shiftlockrelease.................5-16
Shoulder belt height adjustment ........1-16
Spark plug replacement .............8-17
Speedometer ...................2-4
Spotlights(Seemaplight) ...........2-53
SRSwarninglabel................1-51
Starting Before starting the engine ..........5-10
Jump starting .................6-7
Precautions when starting and driving ....5-2
Push starting ..................6-9
Starting the engine .............5-11
Steering Heated steering wheel ...........2-37
Power steering fluid .............8-12
Power steering system ...........5-22
Steering wheel audio control switch .....4-112
Stoplight.....................8-27
Storage......................2-39
Sunglasses case .................2-40
10-5
