2012 NISSAN CUBE window

9

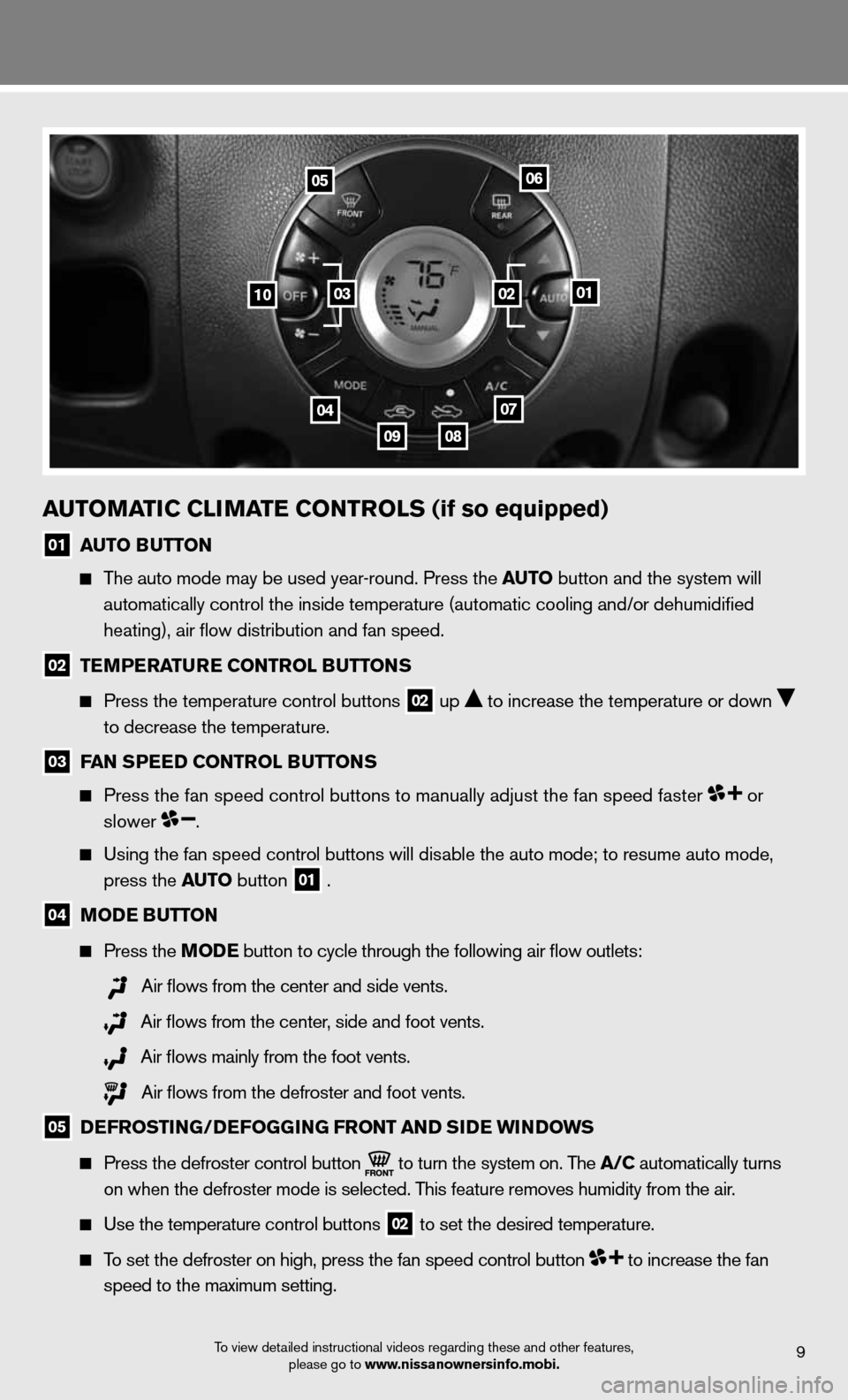

auTOMaTIC CLIMa Te CONTrOLS (if so equipped)
01 auTO B
uTTON

The auto mode may be used year-round. Press the au TO button and the system will
automatically control the inside temperature (automatic cooling and/or \
dehumidified
heating), air flow distribution and fan speed.
02 Te
MPera Ture CONTr OL BuTTONS

Press the temperature control buttons
02 up to increase the temperature or down
to decrease the temperature.
03 F
aN SPee D CONTrOL BuTTONS

Press the fan speed control buttons to manually adjust the fan speed fas\
ter or
slower
.

using the fan speed control buttons will disable the auto mode; to resume auto mode,
press the au TO button

01 .
04 MOD
e BuTTON

Press the MOD e button
to cycle through the following air flow outlets:

Air flows from the center and side vents.

Air flows from the center, side and foot vents.

Air flows mainly from the foot vents.

Air flows from the defroster and foot vents.

05 D
eFr OSTING/D eFOGGING Fr ONT aND SID e wINDOwS

Press the defroster control button
to turn the system on. The a/C automatically turns
on when the defroster mode is selected. This feature removes humidity from the air.

use the temperature control buttons
02 to set the desired temperature.

To set the defroster on high, press the fan speed control button to increase the fan
speed to the maximum setting.
01
05
10
04
0908
07
06
0302
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.

To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.10
first drive features
06 D
eFr OSTING rear wINDO w aND OuTSIDe HeaTeD MI rrOr S (if so equipped)

Push the rear window defroster switch
to turn the system on or off.

This function automatically turns off after approximately 15 minutes.
07 a/C B
uTTON

Press the a/C button to manually turn the A/c on or off.
08 OuTSID
e aIr CI rCu LaTION B uTTON

Press the outside air button to draw fresh air into the vehicle; the indicator light on
the button will illuminate.

Press and hold the outside air circulation button for more than 1.5 seconds to set
automatic outside air circulation mode.
09 aI
r re CIrCu LaTION B uTTON

Press the air recirculation button to recirculate air inside the vehicle; the indicator
light on the button will illuminate. This system is used to avoid outside odors and helps to
adjust the inside vehicle temperature more effectively.

The air recirculation mode can only be selected if the air flow mode co\
ntrol is in the
following positions:
,
or .
10 OFF B
uTTON

Press the OFF button to turn the climate control system off.
for more information, refer to the “Instruments and controls (section 2)” and the “Heater, air conditioner, audio and
phone systems (section 4)” of your Owner’s Manual.

BLueTOOTH® HaNDS-Free PHONe SYSTeM (if so equipped)
With an overhead microphone and sound
transmitted through the audio system speakers,
the Bluetooth
® Hands-free Phone System utilizes
Bluetooth wireless technology and voice recognition
to provide hands-free cellular phone communication.

A cellular telephone should not be used while driving
so full attention may be given to vehicle operation.*
SYSTe M OPeRATin G TiPS
close all windows. Surrounding noises may interfere
with system operation and performance.

Press the
button on the steering wheel to activate
voice recognition.

Wait for the tone before speaking.

Begin speaking a command within 5 seconds of the
tone.

Speak in a clear and natural voice without pausing
between words.

Look straight ahead and avoid speaking too loudly or too softly.

To go back to the previous command, say “Go back” or “correction.”

To cancel a voice recognition session, simply wait 5 seconds, say
“cancel” or “Quit,” or press the
button for 5 seconds.
TrIP COMPuTer
With the ignition switch in the ON position, trip
computer
01 modes can be selected by pressing the
trip computer mode switch 02 on the instrument panel.

The following modes can be selected in the display:

Trip A – measures the distance of one specific trip.

Trip B – measures the distance of a second specific trip.

current fuel consumption – displays the current fuel
consumption.

distance to empty (dte) – displays the estimated distance to empty (dte) the vehicle can be
driven before refueling.

Average fuel consumption – displays the average fuel consumption since the last res\
et.
for more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
01
02
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.14
system guide
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
