2012 NISSAN CUBE display

2
new system features
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

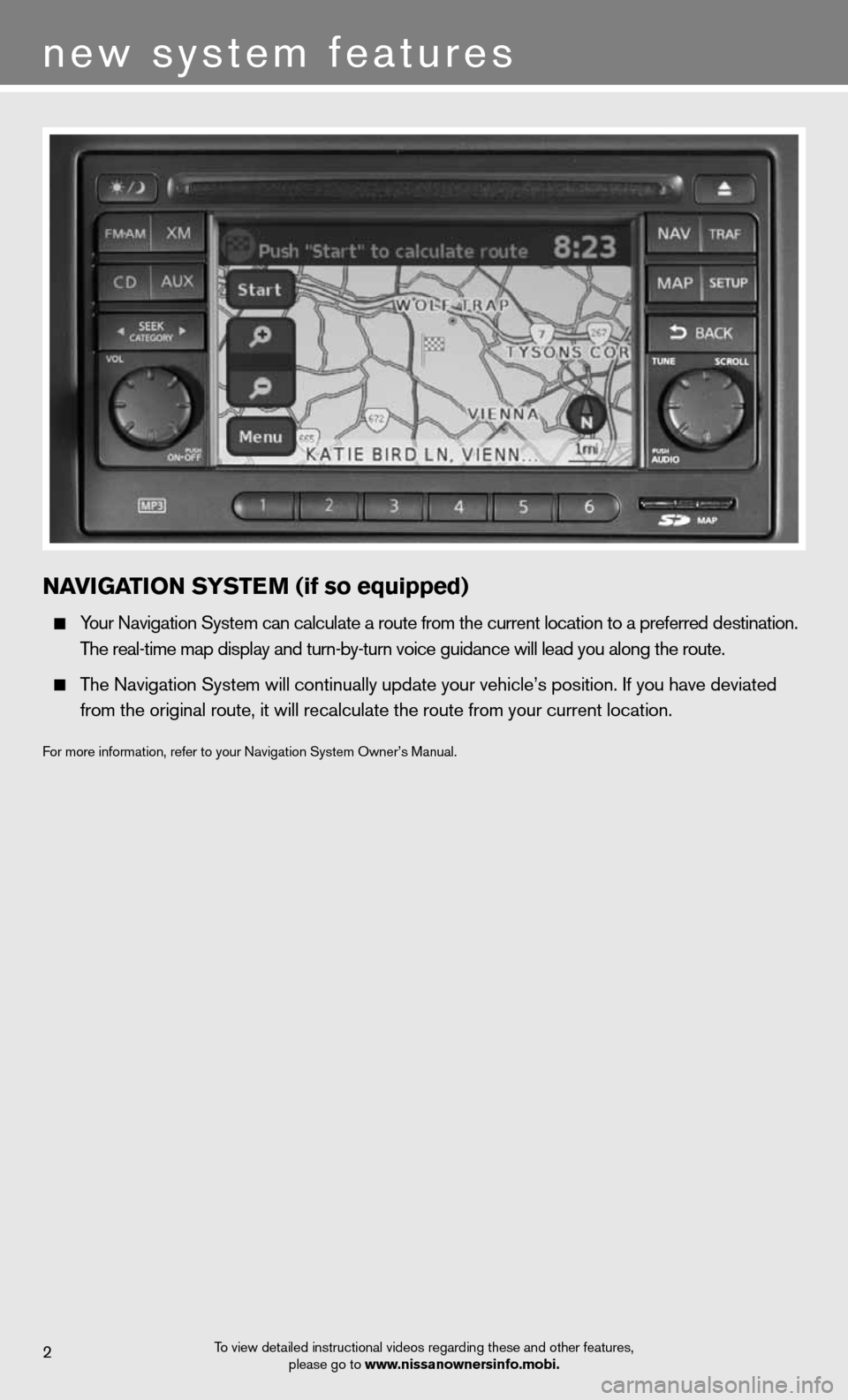

NaVIGa TION SYSTe M (if so equipped)
Your navigation System can calculate a route from the current location to a pr\
eferred destination.
The real-time map display and turn-by-turn voice guidance will lead you a\
long the route.

The navigation System will continually update your vehicle’s position. if you have deviated
from the original route, it will recalculate the route from your current\
location.
for more information, refer to your navigation System Owner’s Manual.

LOOSe Fue L CaP
A LOOS e FueL CaP warning message will appear
in the twin trip odometer display

01 when the fuel-
filler cap is not tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The warning message will disappear when the vehicle
detects the fuel-filler cap is properly tightened and the
reset button

02 is pressed.
if the cap is not properly tightened, the Malfunction
indicator Light
may also illuminate.
f
or more information, refer to the “Instruments and controls (section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
3
essential information
01
02
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
TIre Pre SSure MONITOr ING SYSTeM (TPMS)
A CHeCK… TIre… PreS … warning message 01 will appear

as scrolling text in the twin trip odometer 02 and the low tire

pressure warning light
03 will illuminate when one or more tires

are low on pressure and air is needed.
• The tire pressures should be checked when the tires are cold.
The tires are considered cold after the vehicle has been parked
for 3 hours or more or driven less than 1 mile (1.6km) at
moderate speeds.

After tire pressures are adjusted, drive the vehicle at speeds
above 16 MPH (25km/h). The CH eCK TI re Pre S warning
message and low tire pressure warning light will disappear.

When the low tire pressure warning light
flashes

for approximately 1 minute and then remains on, the
TPMS is not functioning properly. Have the system
checked by a ni SSAn dealer.

Tire pressure rises and falls depending on the heat
caused by the vehicle’s operation and the outside
temperature. Low outside temperature can lower the
temperature of the air inside the tire, which can cause
a lower tire inflation pressure. This may cause the low
tire pressure warning light to illuminate. if the warning
light illuminates in low ambient temperature, check the tire pressure in your tires.
• Check the tire pressures (including the spare tire) often and always prior to long distance trips.

The Tire and Loading information label contains valuable information. Please refer to section 9,
“Technical and consumer information”, in your Owner’s Manual for the location of the Tire and
Loading information label.
for more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
03
01
02

To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.11
0506
03
0102
FM/aM/XM®* SaTeLLITe raDIO wITH CD PLa Yer (if so equipped)
01 VOL/ON•OFF CONTROL KNOB

Press the VOL/ON•OFF control knob to turn the system on or off.

Turn the VOL/ON•OFF control knob to the right or left to increase or decrease the volume.
02 Tu
Ne/SCr OLL/auDIO KNOB

To manually tune the radio, turn the Tu Ne/SCr OLL/auDIO knob left or right.
03
S
ee K/C aTe GOr Y BuTTONS

To scan through each broadcasting station, press the S eeK/C aTe GOr Y buttons.

To skip from one track to another on a cd, press the S eeK/C aTe GOr Y buttons.

When the S eeK/C aTe GOr Y buttons are pressed and held while a cd is playing, the cd
will rewind or fast forward. When the button is released, the cd will play at normal speed.
04 ST
aTION S eLe CT B uTTONS
Twelve stations can be set for the f M band, six for the AM band and eighteen for XM®
satellite radio.

To store a station in a preset, you must first select a radio band by pressing the \
FM•AM

button
05 or XM
button
06 , then tune to the desired AM, f M or XM satellite radio station.

Then press and hold the desired station select button (1 -6 ) until a beep is heard and the
sound is briefly muted. The channel indicator will appear on the display and the sound will
resume. Programming is now complete.

To retrieve a previously set station, select the radio band where the preset was stored
then press the corresponding station select button (1 -6 ).
*XM® Satellite Radio is only available on vehicles equipped with optional XM® satellite subscription service.
for more information, refer to the “Heater, air conditioner, audio and phone systems (section 4)” of your Owner’s Manual.
04

BLueTOOTH® HaNDS-Free PHONe SYSTeM (if so equipped)
With an overhead microphone and sound
transmitted through the audio system speakers,
the Bluetooth
® Hands-free Phone System utilizes
Bluetooth wireless technology and voice recognition
to provide hands-free cellular phone communication.

A cellular telephone should not be used while driving
so full attention may be given to vehicle operation.*
SYSTe M OPeRATin G TiPS
close all windows. Surrounding noises may interfere
with system operation and performance.

Press the
button on the steering wheel to activate
voice recognition.

Wait for the tone before speaking.

Begin speaking a command within 5 seconds of the
tone.

Speak in a clear and natural voice without pausing
between words.

Look straight ahead and avoid speaking too loudly or too softly.

To go back to the previous command, say “Go back” or “correction.”

To cancel a voice recognition session, simply wait 5 seconds, say
“cancel” or “Quit,” or press the
button for 5 seconds.
TrIP COMPuTer
With the ignition switch in the ON position, trip
computer
01 modes can be selected by pressing the
trip computer mode switch 02 on the instrument panel.

The following modes can be selected in the display:

Trip A – measures the distance of one specific trip.

Trip B – measures the distance of a second specific trip.

current fuel consumption – displays the current fuel
consumption.

distance to empty (dte) – displays the estimated distance to empty (dte) the vehicle can be
driven before refueling.

Average fuel consumption – displays the average fuel consumption since the last res\
et.
for more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
01
02
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.14
system guide
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
