2012 NISSAN ALTIMA COUPE navigation system

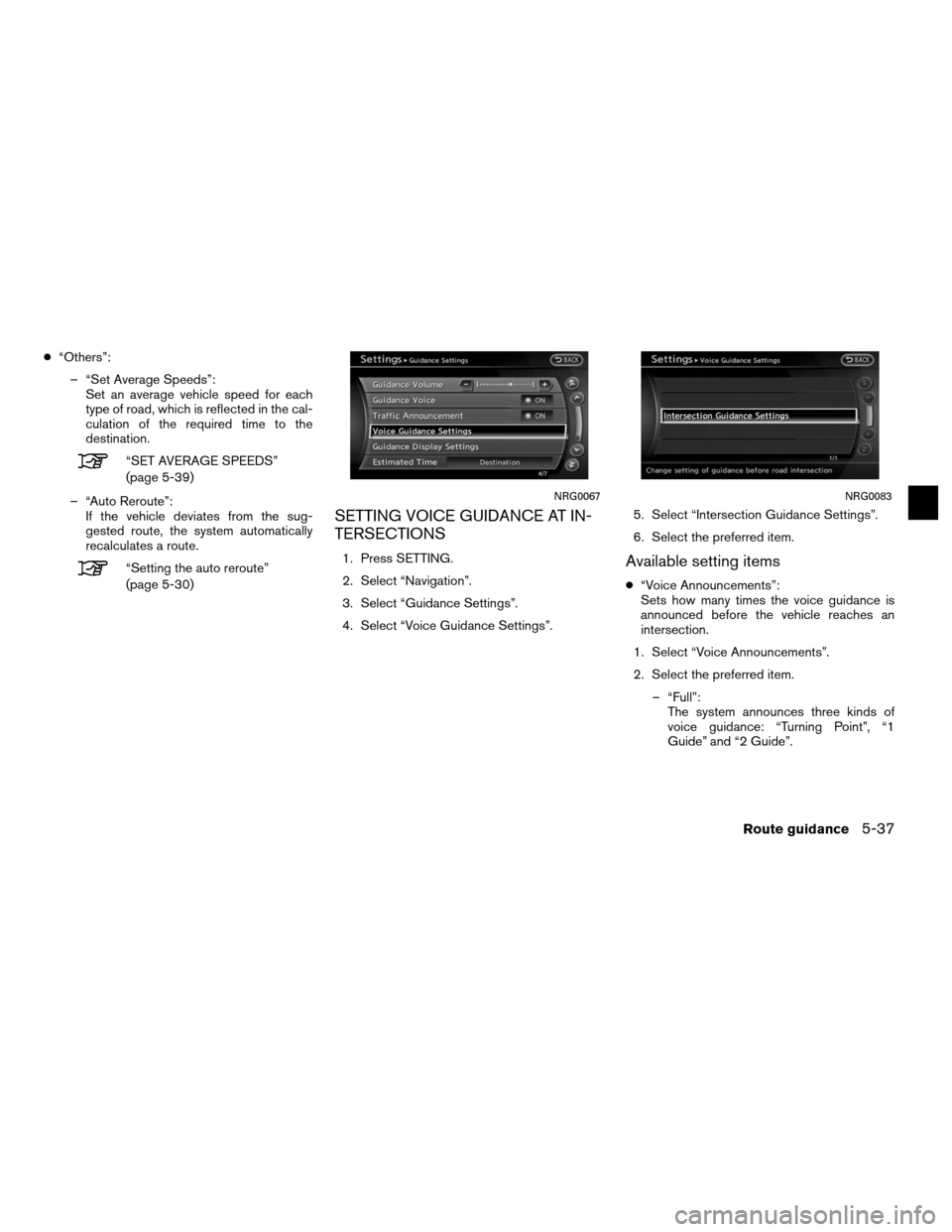

●“Others”:
– “Set Average Speeds”: Set an average vehicle speed for each
type of road, which is reflected in the cal-
culation of the required time to the
destination.
“SET AVERAGE SPEEDS”
(page 5-39)
– “Auto Reroute”: If the vehicle deviates from the sug-
gested route, the system automatically
recalculates a route.
“Setting the auto reroute”
(page 5-30)
SETTING VOICE GUIDANCE AT IN-
TERSECTIONS
1. Press SETTING.
2. Select “Navigation”.
3. Select “Guidance Settings”.
4. Select “Voice Guidance Settings”. 5. Select “Intersection Guidance Settings”.
6. Select the preferred item.Available setting items
●
“Voice Announcements”:
Sets how many times the voice guidance is
announced before the vehicle reaches an
intersection.
1. Select “Voice Announcements”.
2. Select the preferred item. – “Full”:The system announces three kinds of
voice guidance: “Turning Point”, “1
Guide” and “2 Guide”.
NRG0067NRG0083
Route guidance5-37

– “Concise”:The system announces two kinds of
voice guidance: “Turning Point” and “1
Guide”.
– “Turning Point”: Turns on the sound that chimes when a
maneuver is supposed to be occurring.
DISPLAYING SMALL TURN ARROW
ON MAP
The guidance screen displayed when the vehicle
passes through an intersection can be changed. 1. Press SETTING.
2. Select “Navigation”.
3. Select “Guidance Settings”.
4. Select “Guidance Display Settings”.5. Select “Small Turn Arrow on Map to activate
or deactivate Small Turn Arrow on the Map
(simplified turn indicator) displayed in the
upper left corner of the map screen. The in-
dicator illuminates if the Small Turn Arrow
on the Map is displayed.
SWITCHING ESTIMATED ARRIVAL
TIME DISPLAY
The display of the travel time on the map screen
can be switched between the travel time to the
destination and the travel time to the waypoint.
NRG0065NRG0066
5-38Route guidance

Basic operation
1. Press SETTING.
2. Select “Navigation”.
3. Select “Guidance Settings”.
4. Select “Others”.
5. Select “Set Average Speeds”.
6. Select the preferred item.
7. Use the on-screen keys to make anadjustment. The speed can be
increased/decreased by 5 MPH (5 km/h) .
8. After finishing the setting, press ENTER or BACK to activate the setting.
9. Press BACK to return to the previous screen. Press MAP to return to the current
location map screen. Available setting items:
●
“Auto”:
If set to ON, the system automatically calcu-
lates the required time to the destination, the
indicator illuminates and the speed settings
cannot be changed.
● “Freeway”:
Adjust the average vehicle speed on a free-
way by touching [+] or [].
● “Main Road”:
Adjust the average vehicle speed on a main
road by touching [+] or [].
● “Town Road”:
Adjust the average vehicle speed on a town
road by touching [+] or []. ●
“Residential”:
Adjust the average vehicle speed in a residen-
tial area by touching [+] or [].
● “Reset”:
Sets the average vehicle speeds to the de-
fault values.
NRG0071NRG0084
5-40Route guidance

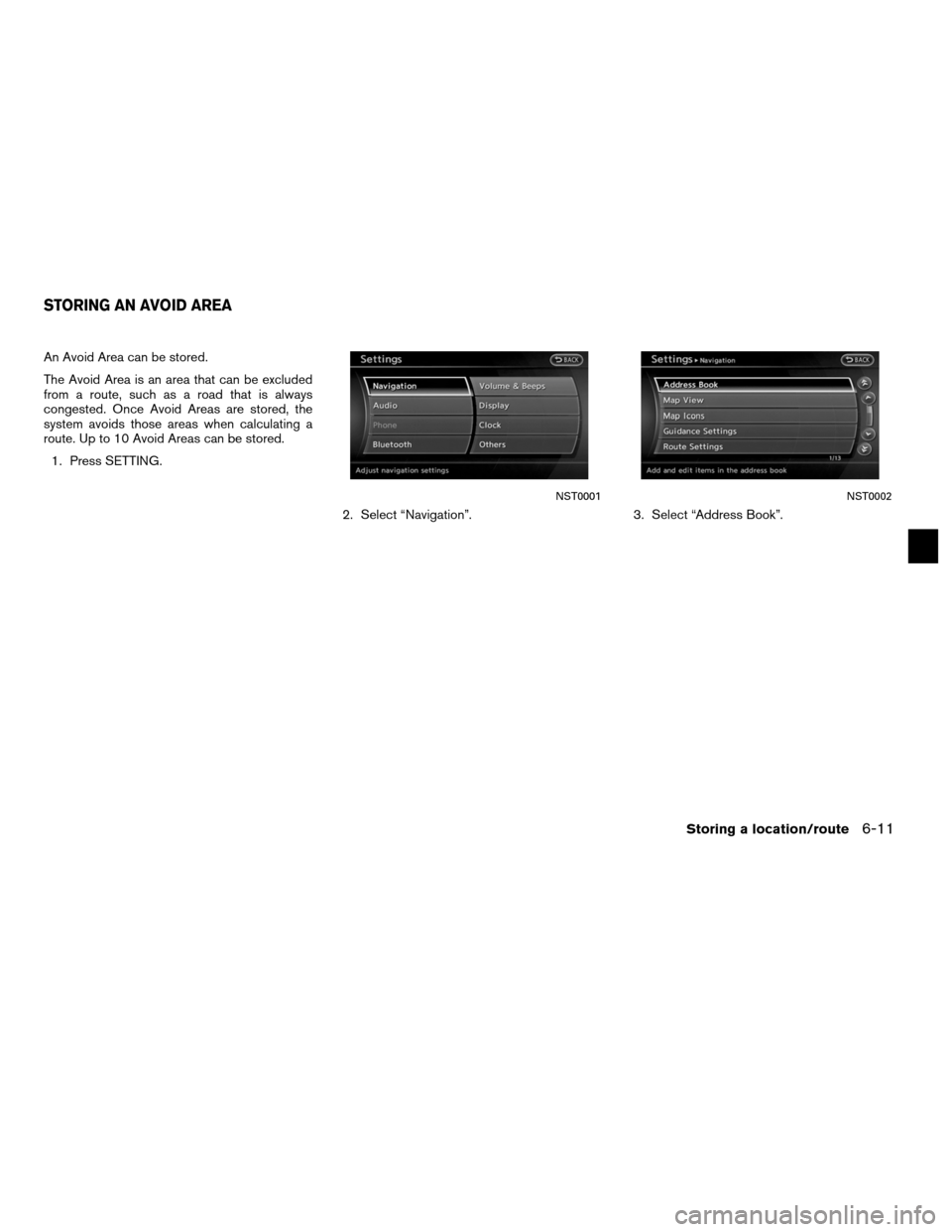

An Avoid Area can be stored.
The Avoid Area is an area that can be excluded
from a route, such as a road that is always
congested. Once Avoid Areas are stored, the
system avoids those areas when calculating a
route. Up to 10 Avoid Areas can be stored.1. Press SETTING.
2. Select “Navigation”. 3. Select “Address Book”.
NST0001NST0002
STORING AN AVOID AREA
Storing a location/route6-11

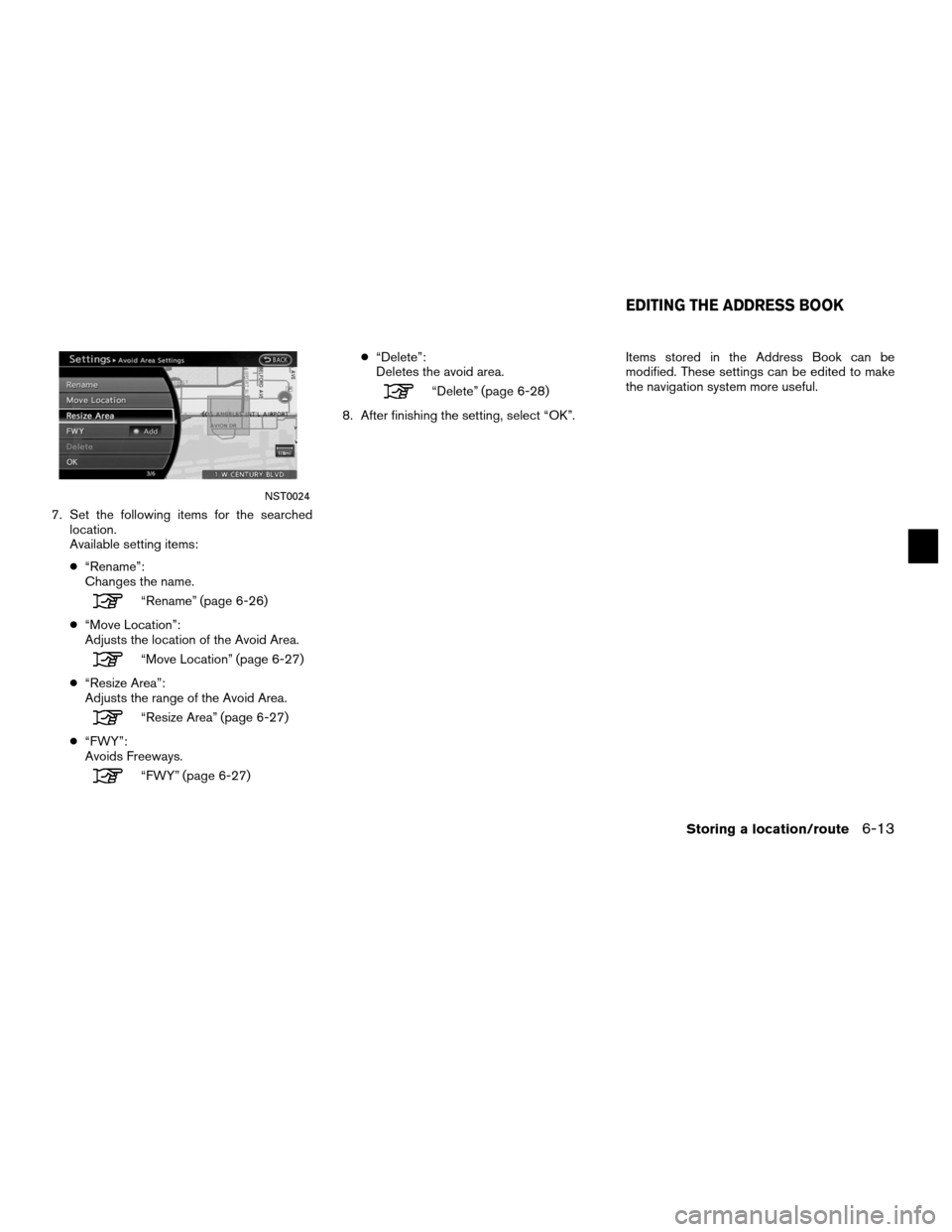

7. Set the following items for the searchedlocation.
Available setting items:
● “Rename”:
Changes the name.
“Rename” (page 6-26)
● “Move Location”:
Adjusts the location of the Avoid Area.
“Move Location” (page 6-27)
● “Resize Area”:
Adjusts the range of the Avoid Area.
“Resize Area” (page 6-27)
● “FWY”:
Avoids Freeways.
“FWY” (page 6-27) ●
“Delete”:
Deletes the avoid area.
“Delete” (page 6-28)
8. After finishing the setting, select “OK”. Items stored in the Address Book can be
modified. These settings can be edited to make
the navigation system more useful.
NST0024
EDITING THE ADDRESS BOOK
Storing a location/route6-13

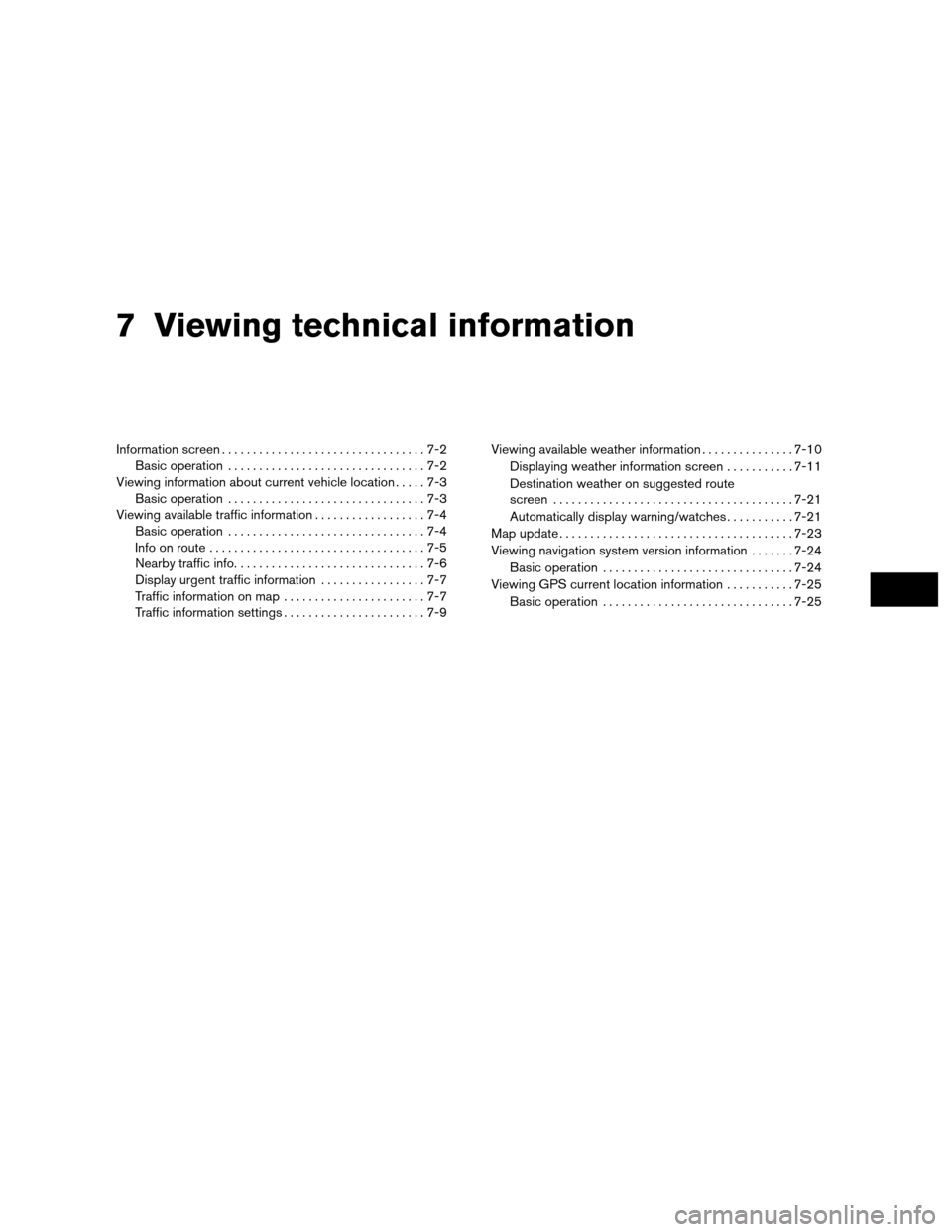

7 Viewing technical information
Information screen.................................7-2
Basic operation ................................7-2
Viewing information about current vehicle location .....7-3
Basic operation ................................7-3
Viewing available traffic information ..................7-4
Basic operation ................................7-4
Info on route ...................................7-5
Nearby traffic info. ..............................7-6
Display urgent traffic information .................7-7
Traffic information on map .......................7-7
Traffic information settings .......................7-9 Viewing available weather information
...............7-10
Displaying weather information screen ...........7-11
Destination weather on suggested route
screen ....................................... 7-21
Automatically display warning/watches ...........7-21
Map update ...................................... 7-23
Viewing navigation system version information .......7-24
Basic operation ............................... 7-24
Viewing GPS current location information ...........7-25
Basic operation ............................... 7-25

This screen sets or displays various information
that is helpful for using the vehicle safely and
comfortably.
Available items include the vehicle information,
Traffic Info. setup, current location information,
GPS information, Voice recognition list and map
version.
INFO:
An XM NavTraffic subscription is necessary to
view Traffic Info.
An XM NavWeather™ subscription is necessary
to view Weather Info.
BASIC OPERATION
1. Press INFO.
2. Select the preferred item.
Available items
● “Where am I?”:
Displays information regarding the current
vehicle location.
“VIEWING INFORMATION
ABOUT CURRENT VEHICLE
LOCATION” (page 7-3)
● “Traffic Info”:
Allows Traffic Info setup.
“VIEWING AVAILABLE TRAFFIC
INFORMATION” (page 7-4) ●
“Weather Info”:
Displays weather information.
“VIEWING AVAILABLE
WEATHER INFORMATION”
(page 7-10)
● “Map Update”:
Display the map version and enable updat-
ing of the map data.
“MAP UPDATE” (page 7-23)
● “Navigation Version”:
Displays the current navigation system
version.
“VIEWING NAVIGATION SYS-
TEM VERSION INFORMATION”
(page 7-24)
● “GPS Position”:
Displays GPS information regarding the
current vehicle location.
“VIEWING GPS CURRENT LO-
CATION INFORMATION”
(page 7-25)
● “Voice Recognition”:
Displays the voice recognition list.
“9. Voice recognition”
LNV2009
INFORMATION SCREEN
7-2Viewing technical information

XM NavTrafficinformation is a subscription ser-
vice offered by XM Satellite Radio.
This service provides real-time information re-
garding traffic flow, accidents, road construction
and other incidents, where available.
XM NavTraffic combines information from com-
mercial and public traffic data providers includ-
ing government departments of transportation,
police, emergency services, road sensors, cam-
eras and aircraft reports. The traffic information
is broadcast to the vehicle by the XM satellites.
Available traffic information on the route the
driver selected is shown on the navigation
screen so traffic conditions between you and the
destination are known. Three types of real-time
traffic information for major roadways are shown
on the navigation system:
● Unscheduled traffic data for example, acci-
dents and disabled vehicles.
● Scheduled traffic data, for example road con-
struction and road closures.
● Traffic flow information (rate of speed data) .
mWARNING
XM NavTraffic information is not a sub-
stitute for attentive driving. Traffic condi-
tions change constantly and emergency
situations can arise without warning. Re-
lying only on XM NavTraffic information
may lead to a collision and could result
in serious personal injury.
NOTE:
Flow information is provided only for
roads equipped with traffic sensors and is
not available in all markets covered by the
service. Flow data may not be available on
portions of a road that is under
construction.
XM NavTraffic information is available in limited
markets. To subscribe or to check if this service
is available in the area:
call 1-800-XM-RADIO (1-800-967-2346) or
see www.xmradio.com/navtraffic
INFO:
If a contract is not completed for XM NavTraffic
traffic information service, a message appears,
and it will not be possible to check the informa-
tion on the traffic information system.
BASIC OPERATION
1. Press INFO.
2. Select “Traffic Info”.
3. Press BACK to return to the previous screen.
Press MAP to return to the current location
map screen.
Available items
● “Info on Route”:
Displays the list of traffic information found
on the recommended route from the current
vehicle location to the destination.
● “Nearby Traffic Info”:
Displays the list of traffic information around
the current vehicle location.
LNV2010
VIEWING AVAILABLE TRAFFIC IN-
FORMATION
7-4Viewing technical information
