2012 NISSAN 370Z COUPE seats

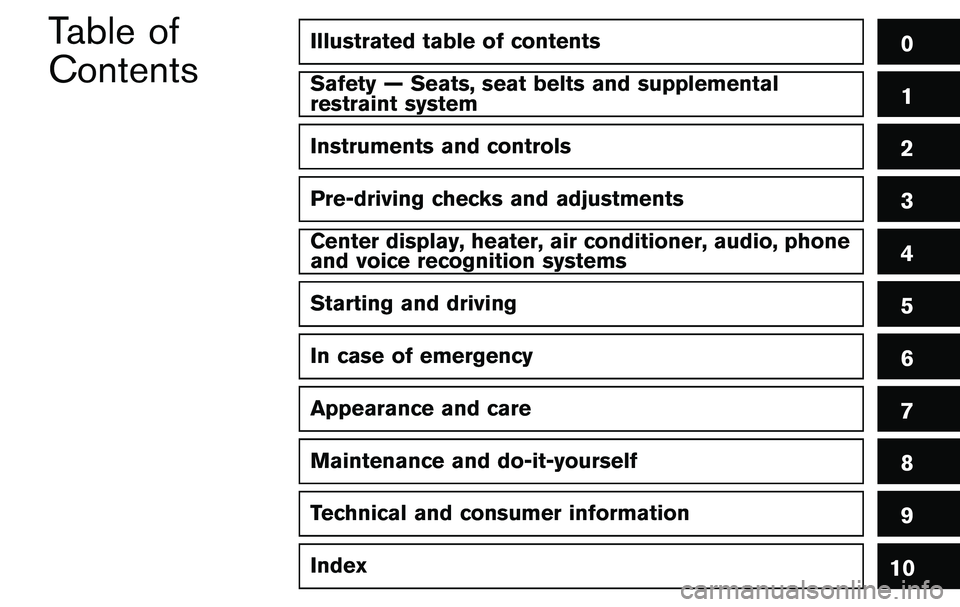

Illustrated table of contents0
Safety — Seats, seat belts and supplemental
restraint system1
Instruments and controls
Pre-driving checks and adjustments
Center display, heater, air conditioner, audio, phone
and voice recognition systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index
2
3
4
5
6
7
8
9
10
Table of
Contents

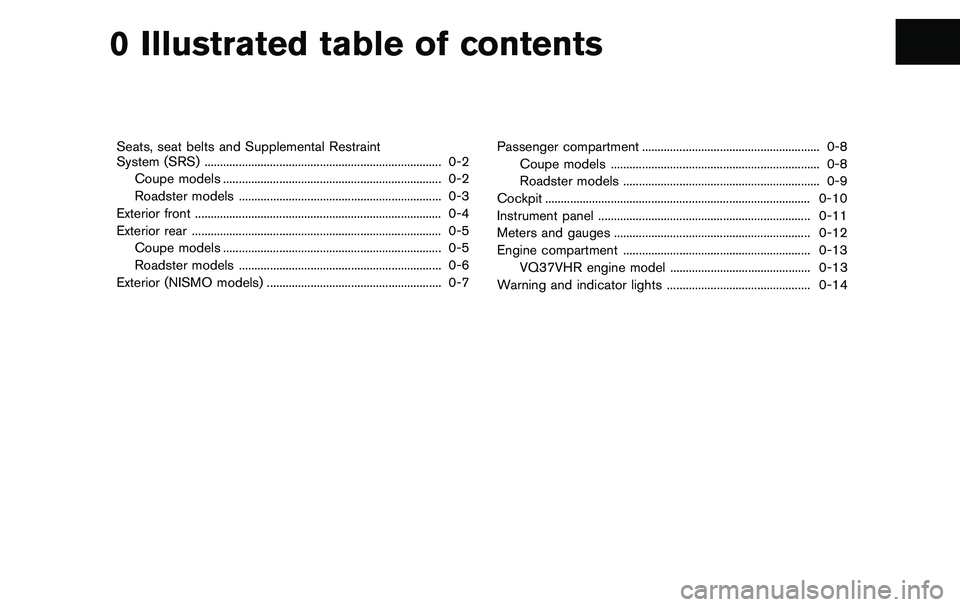

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS) ........................................................................\
.... 0-2Coupe models ...................................................................... 0-2
Roadster models ................................................................. 0-3
Exterior front ........................................................................\
....... 0-4
Exterior rear ........................................................................\
........ 0-5
Coupe models ...................................................................... 0-5
Roadster models ................................................................. 0-6
Exterior (NISMO models) ........................................................ 0-7 Passenger compartment ......................................................... 0-8
Coupe models ................................................................... 0-8
Roadster models ............................................................... 0-9
Cockpit ........................................................................\
............. 0-10
Instrument panel .................................................................... 0-11
Meters and gauges ............................................................... 0-12
Engine compartment ............................................................ 0-13 VQ37VHR engine model ............................................. 0-13
Warning and indicator lights .............................................. 0-14

0-2Illustrated table of contents
SSI0648
COUPE MODELS1. Seat belts (Page 1-9)— Seat belts with pretensioners (P.1-39)
2. Head restraints (P.1-5)
3. Front seat-mounted side-impact supplemental air bags (P.1-28)
4. Roof-mounted curtain side-impact supplemental air bags (P.1-28)
5. Supplemental front-impact air bags (P.1-28)
6. Child restraint anchor point (for top tether strap child restraint) (P.1-19)
7. Occupant classification sensor (pattern sensor) (P.1-33) 8. Front seats (P.1-2)
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

SSI0649
ROADSTER MODELS1. Seat belts (P.1-9)— Seat belts with pretensioners (P.1-39)
2. Head restraints (P.1-5)
3. Front seat-mounted side-impact supplemental air bags (P.1-28) 4. Door-mounted curtain side-impact supplemental
air bags (P.1-28)
5. Supplemental front-impact air bags (P.1-28)
6. Occupant classification sensor (pattern sensor) (P.1-33)
7. Front seats (P.1-2)
Illustrated table of contents0-3

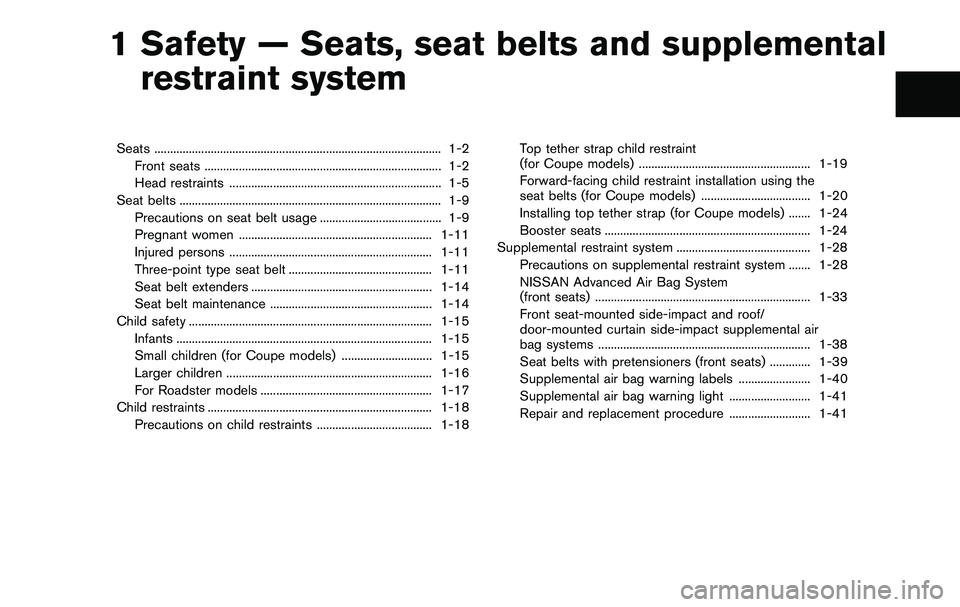

1 Safety — Seats, seat belts and supplementalrestraint system
Seats ........................................................................\
.................... 1-2
Front seats ........................................................................\
.... 1-2
Head restraints .................................................................... 1-5
Seat belts ........................................................................\
............ 1-9 Precautions on seat belt usage ....................................... 1-9
Pregnant women .............................................................. 1-11
Injured persons ................................................................. 1-11
Three-point type seat belt .............................................. 1-11
Seat belt extenders .......................................................... 1-14
Seat belt maintenance .................................................... 1-14
Child safety ........................................................................\
...... 1-15 Infants ........................................................................\
.......... 1-15
Small children (for Coupe models) ............................. 1-15
Larger children .................................................................. 1-16
For Roadster models ....................................................... 1-17
Child restraints ........................................................................\
1-18
Precautions on child restraints ..................................... 1-18 Top tether strap child restraint
(for Coupe models) ....................................................... 1-19
Forward-facing child restraint installation using the
seat belts (for Coupe models) ................................... 1-20
Installing top tether strap (for Coupe models) ....... 1-24
Booster seats .................................................................. 1-24
Supplemental restraint system ........................................... 1-28 Precautions on supplemental restraint system ....... 1-28
NISSAN Advanced Air Bag System
(front seats) ..................................................................... 1-33
Front seat-mounted side-impact and roof/
door-mounted curtain side-impact supplemental air
bag systems .................................................................... 1-38
Seat belts with pretensioners (front seats) ............. 1-39
Supplemental air bag warning labels ....................... 1-40
Supplemental air bag warning light .......................... 1-41
Repair and replacement procedure .......................... 1-41

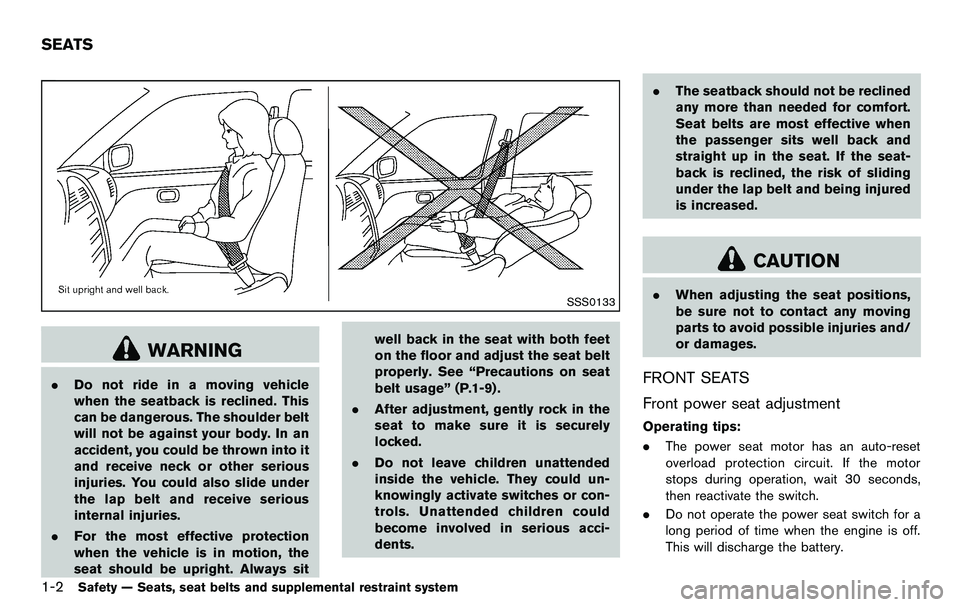

1-2Safety — Seats, seat belts and supplemental restraint system
SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat belt
properly. See “Precautions on seat
belt usage” (P.1-9) .
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
.When adjusting the seat positions,
be sure not to contact any moving
parts to avoid possible injuries and/
or damages.
FRONT SEATS
Front power seat adjustment
Operating tips:
.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
SEATS

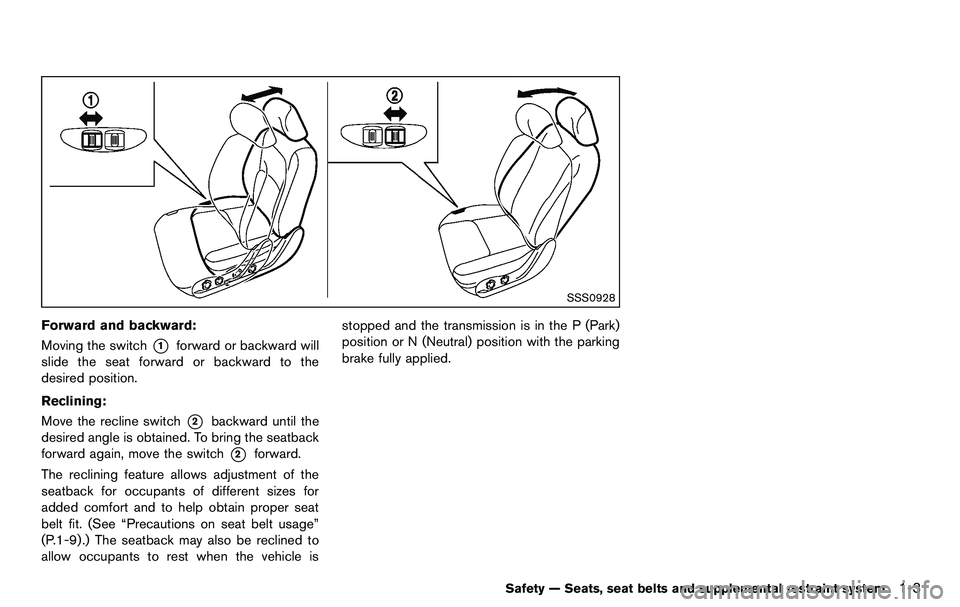

SSS0928
Forward and backward:
Moving the switch
*1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining:
Move the recline switch
*2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-9) .) The seatback may also be reclined to
allow occupants to rest when the vehicle is stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
Safety — Seats, seat belts and supplemental restraint system1-3

1-4Safety — Seats, seat belts and supplemental restraint system
SSS0394
Front manual seat adjustment
Forward and backward:
Pull the lever up
*1while you slide the seat
forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining:
To recline the seatback, pull the lever up
*2and
lean back. To bring the seatback forward again,
pull the lever and move your body forward. The
seatback will move forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” (P.1-9) . The seatback may also be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
SPA1715
Seat lifter (if so equipped)
Turn either dial to adjust the angle and height of
the seat cushion to the desired position.
