3-82 Features and controls
3Inside rearview mirror
N00511600261
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
WA R N I N G
!
After adjusting, make sure the lock lever is secured
in the locked (1) position.
Do not attempt to adjust the steering wheel while
driving. This can be dangerous.
When releasing the tilt lock lever (moving it to the
position (2)), be sure to hold the steering wheel
firmly. Otherwise, the steering wheel may slip down
too suddenly.
WA R N I N G
!
Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
BK0138000US.book 82 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-83
3
NOTE
When the selector lever is in the “R” (REVERSE) posi-
tion with the ignition switch in the “ON” position, the
rear-view camera image will be displayed on the left por-
tion of a type 3 mirror.
For details, refer to “Rear-view camera” on page 3-156.Adjust the inside mirror to maximize the view through the rear
window.
To adjust the vertical mirror positionIt is possible to move the mirror up and down to adjust its posi-
tion.
Ty p e 1
Ty p e 2
Ty p e 3
BK0138000US.book 83 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-84 Features and controls
3

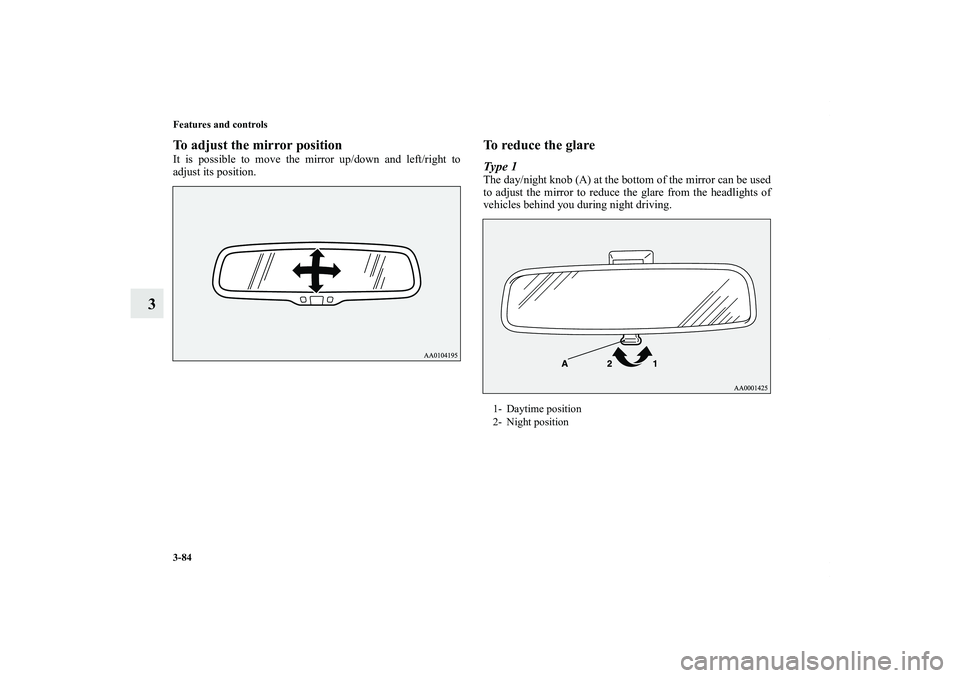

To adjust the mirror positionIt is possible to move the mirror up/down and left/right to
adjust its position.
To reduce the glareType 1The day/night knob (A) at the bottom of the mirror can be used
to adjust the mirror to reduce the glare from the headlights of
vehicles behind you during night driving.1- Daytime position
2- Night position
BK0138000US.book 84 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-85
3
Type 2When the headlights of the vehicles behind you are very bright,
the reflection factor of the rearview mirror is automatically
changed to reduce the glare.
Normally, use the automatic mode. When the ignition switch is
turned to the “ON” position, the reflection factor of the mirror
is automatically changed.NOTE
Do not hang items on, or spray glass cleaner on the sensor
(1), as reduced sensitivity could result.
Type 3When the headlights of the vehicles behind you are very bright,
the reflection factor of the rearview mirror is automatically
changed to reduce the glare.
Normally, use the automatic mode. When the ignition switch is
turned to the “ON” position, the green indicator (1) illuminates
and the reflection factor of the mirror is automatically changed.NOTE
Do not hang items on, or spray glass cleaner on the sen-
sors (2), as reduced sensitivity could result.

If you want to stop automatic mode, press the switch (3)
and the indicator will go off.
To return to automatic mode, press the switch again or
turn the ignition switch to the “ON” position after turning
to “LOCK” or “ACC” position.
(Back side)
BK0138000US.book 85 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-86 Features and controls

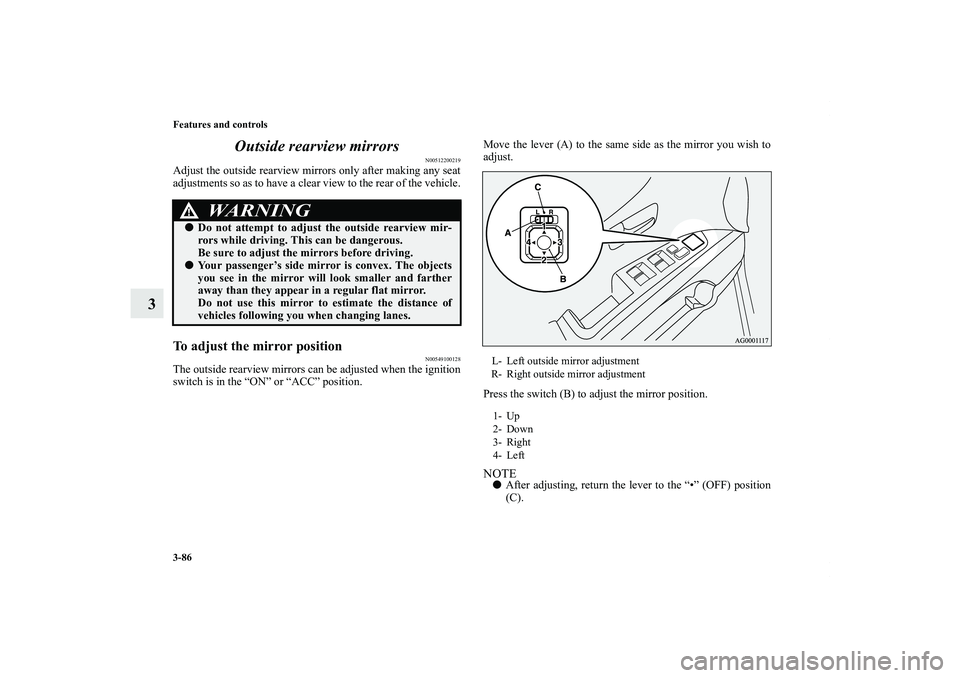

3Outside rearview mirrors
N00512200219
Adjust the outside rearview mirrors only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.To adjust the mirror position
N00549100128
The outside rearview mirrors can be adjusted when the ignition
switch is in the “ON” or “ACC” position.Move the lever (A) to the same side as the mirror you wish to
adjust.
Press the switch (B) to adjust the mirror position.
NOTE
After adjusting, return the lever to the “•” (OFF) position
(C).
WA R N I N G
!
Do not attempt to adjust the outside rearview mir-
rors while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
Your passenger’s side mirror is convex. The objects
you see in the mirror will look smaller and farther
away than they appear in a regular flat mirror.
Do not use this mirror to estimate the distance of
vehicles following you when changing lanes.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
BK0138000US.book 86 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-87
3
To fold the mirror
N00549200073
The outside mirror can be folded in towards the side window to
prevent damage when parking in tight locations.
Door mirror heater
(if so equipped)
N00549300162
When the rear window defogger switch is pressed with the
engine running, the outside rearview mirrors are defogged or
defrosted. Current will flow through the heater element inside
the mirrors, thus clearing away frost or condensation.
The indicator light (A) will illuminate while the defogger is on.
The heater will be turned off automatically in about 20 min-
utes.
BK0138000US.book 87 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-156 Features and controls
3
General information
N00533000180
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS-Gen of the Industry Canada
Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Rear-view camera
(if so equipped)
N00546200098
When the selector lever is in the “R” (REVERSE) position
with the ignition switch in the “ON” position, the rear-view
image will be displayed on the screen of the Mitsubishi Multi-
Communication System in the center panel or on the left por-
tion of the inside rearview mirror.
When the selector lever is shifted out of the “R” (REVERSE)
position, the rear-view image will go off.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
WA R N I N G
!
Never rely solely on the rear-view camera to clear
the area behind your vehicle. Always check visually
behind and all around your vehicle for persons, ani-
mals, obstructions or other vehicles. Failure to do so
can result in vehicle damage, serious injury or
death.
The rear-view camera is an aid system for backing
up, but it is not a substitute for your visual confir-
mation.
The view on the screen is limited, and objects out-
side the view, such as under the bumper or around
either corner of the bumper end, cannot be seen on
the screen.
