2012 MITSUBISHI OUTLANDER XL mirror controls

Features and controls
3-159
3
NOTE
Mirror image is displayed on the screen.

Monitor brightness is adjusted automatically by sensors.

It is possible to change the display language of the screen.
For details, please refer to the separated owner’s manual
for “Mitsubishi Multi-Communication System” or
“Change language or turn off the inside rearview mirror
screen : To change the language of warning text (3)” on
page 3-160.

Under certain circumstances, it may become difficult to
see an image on the screen, even when the system is func-
tioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens.
CAUTION
!
The reference lines for distance and vehicle width
are intended to indicate the distance to a flat object
such as a level, flat road surface. They may not indi-
cate correct distance depending on the shape of an
obstacle.
For example, when there is an object behind the
vehicle that has upper sections projecting in the
direction of the vehicle, the reference lines on the
screen will indicate that point A is the farthest point
and point B is the closest point to the vehicle. In real-
ity, point A and B are actually the same distance
from the vehicle, and point C is farther off than
point A and B.
BK0138000US.book 159 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-160 Features and controls
3
Change language or turn off the inside rearview
mirror screen
N00568900037
It is possible to turn off the screen of the inside rearview mirror
and change the language of the warning messages on the
screen.To temporarily set the non-display modeIf you press the switch (1) while the image appears on the
screen, it goes off temporarily.
To return to display mode, press the switch again or turn the
ignition switch to the “ON” position after turning to “LOCK”
or “ACC” position.
To permanently set the non-display mode1. Turn the ignition switch to the “ON” position.
2. Put the selector lever in the “R” (REVERSE) position.
3. Press and hold down the switch (1) (for about 15 sec-
onds).
While you keep the switch pressed, the orange indicator
(2) comes on. When the image goes off, the non-display
mode setting is completed.
CAUTION
!
For safety reasons, do not perform the following
operations with the engine running.
BK0138000US.book 160 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-236 Features and controls
3Electric rear window defogger switch
N00523700302
The rear window defogger can be used when the engine is run-
ning.
The indicator light (A) will come on when you press the elec-
tric rear window defogger switch. Electric current will flow
through the heating wires on the rear window to help clear
away moisture or frost.
After about 20 minutes of operation, the system will shut off
automatically.
To switch the defogger OFF before 20 minutes have passed,
press the switch again. The indicator light will go out and the
defogger will turn off.
If you need the defogger for more than 20 minutes, press the
switch again. This will add 20 more minutes.
NOTE
If your vehicle is equipped with heated mirrors, mist can
also be removed from the outside rearview mirrors when
the rear window defogger switch is pressed. (Refer to
“Door mirror heater” on page 3-87.)
CAUTION
!
The rear window defogger is not designed to melt
snow. Remove any snow manually before using the
rear window defogger.
Use the rear window defogger only after the engine
has started and is running. Be sure to turn the
defogger switch off immediately after the window is
clear to save on battery power.
Do not place stickers, tape, or other items that are
attached with adhesive over the grid wires on the
rear window.
When cleaning the inside rear window, use a soft
cloth and wipe lightly over the grid wires.
BK0138000US.book 236 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-269

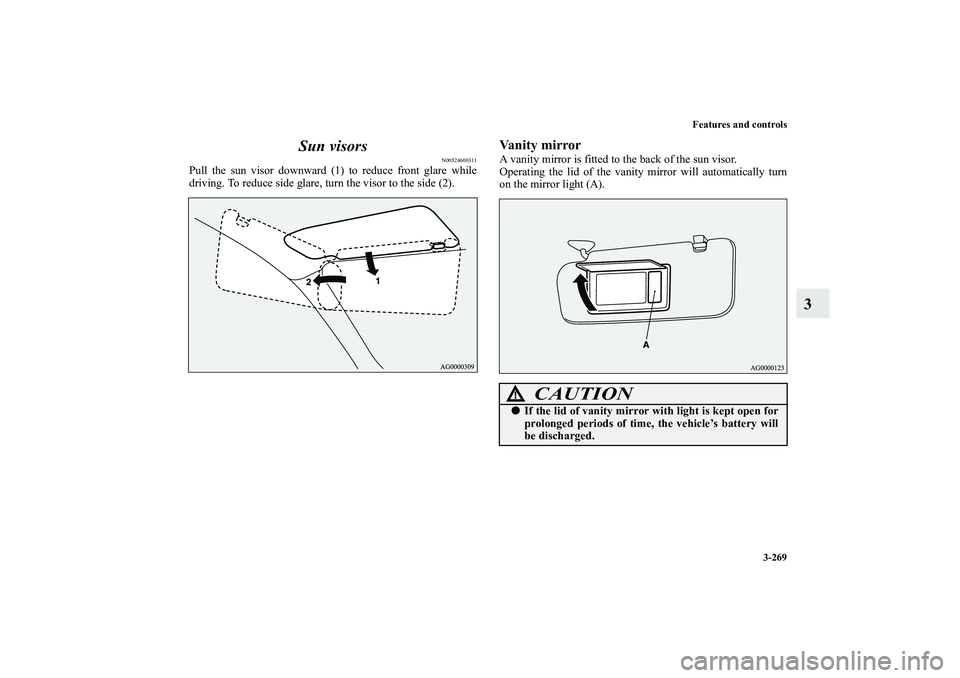

3 Sun visors
N00524600311
Pull the sun visor downward (1) to reduce front glare while
driving. To reduce side glare, turn the visor to the side (2).
Vanity mirrorA vanity mirror is fitted to the back of the sun visor.
Operating the lid of the vanity mirror will automatically turn
on the mirror light (A).
CAUTION
!
If the lid of vanity mirror with light is kept open for
prolonged periods of time, the vehicle’s battery will
be discharged.
BK0138000US.book 269 ページ ２０１１年４月１３日　水曜日　午前１１時１７分
