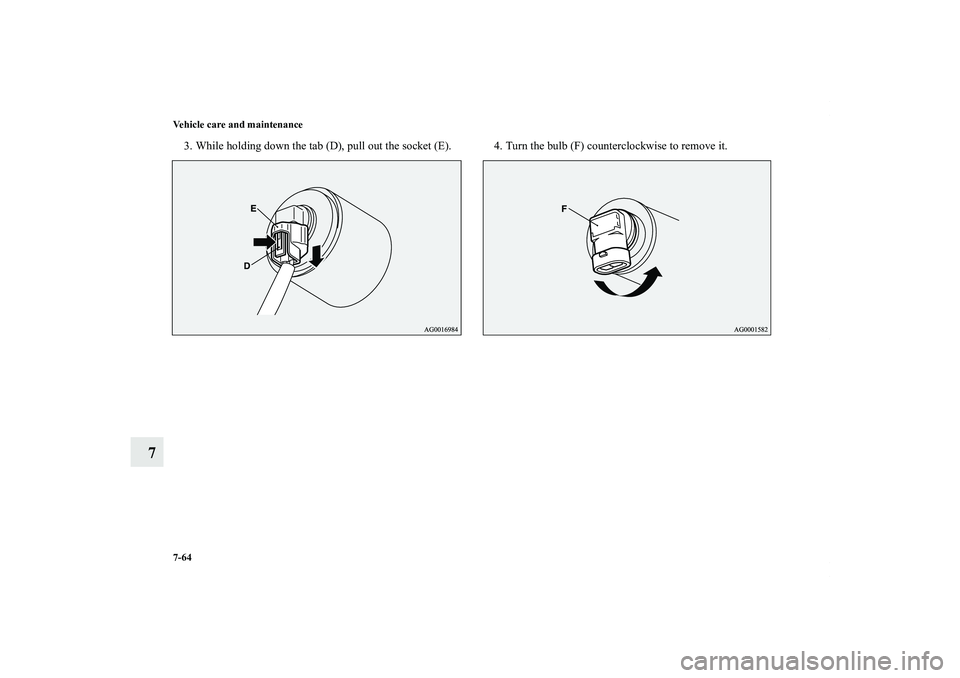

7-64 Vehicle care and maintenance
7
3. While holding down the tab (D), pull out the socket (E). 4. Turn the bulb (F) counterclockwise to remove it.
BK0138000US.book 64 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

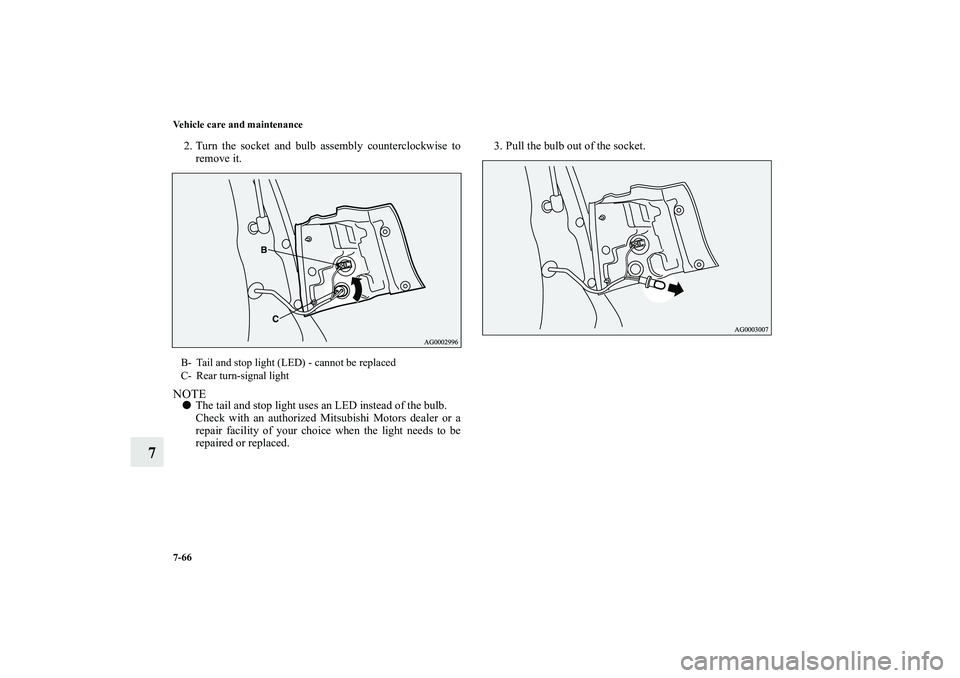

7-66 Vehicle care and maintenance
7
2. Turn the socket and bulb assembly counterclockwise to
remove it.NOTE
The tail and stop light uses an LED instead of the bulb.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.3. Pull the bulb out of the socket.B- Tail and stop light (LED) - cannot be replaced
C- Rear turn-signal light
BK0138000US.book 66 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

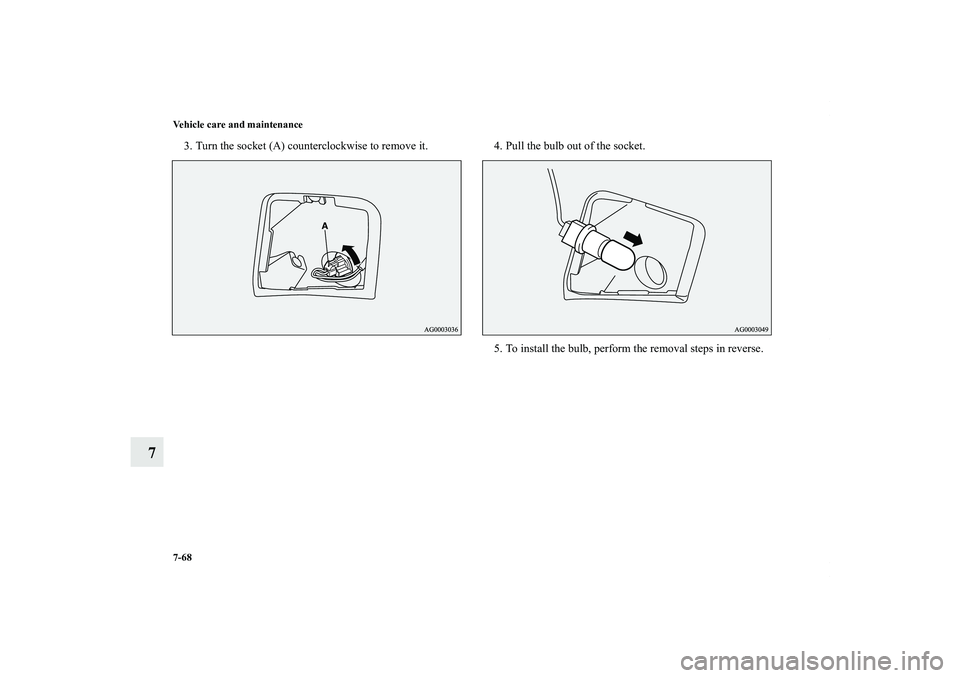

7-68 Vehicle care and maintenance
7
3. Turn the socket (A) counterclockwise to remove it. 4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
BK0138000US.book 68 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

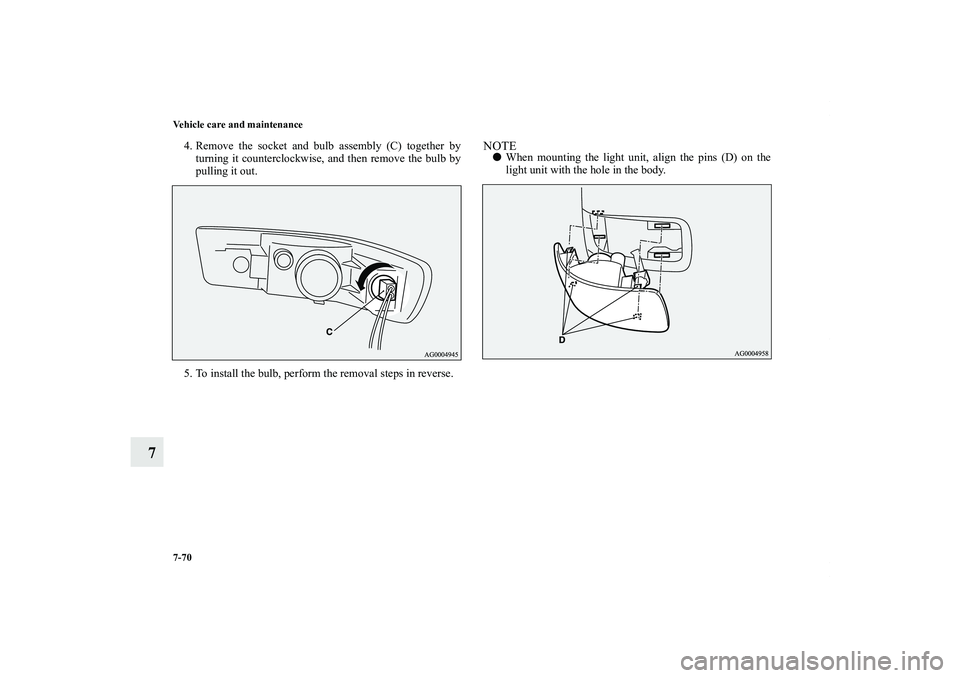

7-70 Vehicle care and maintenance
7
4. Remove the socket and bulb assembly (C) together by
turning it counterclockwise, and then remove the bulb by
pulling it out.
5. To install the bulb, perform the removal steps in reverse.
NOTE
When mounting the light unit, align the pins (D) on the
light unit with the hole in the body.
BK0138000US.book 70 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

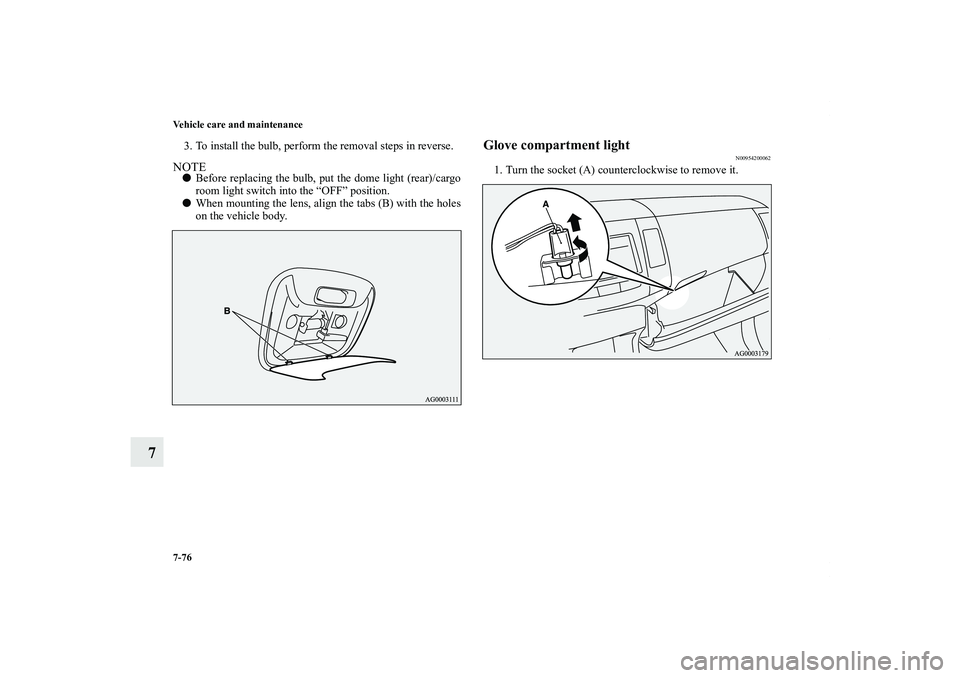

7-76 Vehicle care and maintenance
7
3. To install the bulb, perform the removal steps in reverse.NOTE
Before replacing the bulb, put the dome light (rear)/cargo
room light switch into the “OFF” position.

When mounting the lens, align the tabs (B) with the holes
on the vehicle body.
Glove compartment light
N00954200062
1. Turn the socket (A) counterclockwise to remove it.
BK0138000US.book 76 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Alphabetical index
2Power brakes 3-129
Service brake 3-128
Warning lights 3-210
Break-in recommendations 3-2
Bulb capacity 7-49
C
California Perchlorate Materials Requirements 1-9
Capacities 9-11
Card holder 3-270
Cargo area cover 3-287
Cargo loads 4-13
Cargo room light
Bulb capacity 7-51
Replacement 7-75
Catalytic converter 7-3
Cautions on the handling of all-wheel drive vehicles 3-126
Certification label 9-5
Charging system warning light 3-212
Child restraint systems 2-50
Child safety locks for rear door 3-59
Cleaning
Inside of your vehicle 7-79
Outside of your vehicle 7-81
Clock 5-136
Coat hook 3-290
Consumer information 8-2
Continuously variable transmission (CVT) 3-104
Fluid 7-18
,9-11Selector lever operation 3-104
Selector lever positions 3-109
Sports mode 3-110
Coolant (engine) 7-12
,9-11
Cruise control 3-142
Cup holder 3-283
D
Daytime running lights
Bulb capacity 7-49
Replacement 7-56
Defogger (rear window) 3-236
Defrosting or defogging (windshield, door windows) 5-14
,5-
23
,5-33
,5-43
Dimensions 9-6
Dimmer (high/low beam change) 3-220
Disc brake pads 7-37
Dome light
Bulb capacity 7-51
Replacement 7-73
,7-75
Doors
Lock 3-53
Power door locks 3-57
Driving during cold weather 4-6
Driving precaution 4-2
Driving, alcohol and drugs 4-3
E
Electric rear window defogger switch 3-236
