2012 MITSUBISHI OUTLANDER XL keyless

3-68 Features and controls
3
Alarm stageThe alarm will be activated if any of the following occur while
the vehicle is parked and the system is armed.

One of the doors and the tailgate is opened without using
the keyless entry system or the F.A.S.T.-key operation.

The engine hood is opened.
Also, for vehicles equipped with the interior alarm sensor, the
alarm will be activated if any of the following occur.

Attempt an unauthorized moving of the vehicle. (the vehi-
cle inclination detection function)

Detect a motion in the vehicle. (the interior intrusion
detection function)

Disconnect the battery terminal.
Type of alarmWhen the alarm is activated:
1. The headlights blink on and off for 3 minutes.
After 3 minutes the headlights automatically shut off.
2. The horn (the siren for vehicles equipped with the interior
alarm sensor) will sound intermittently for 3 minutes.NOTE
The alarm will continue to operate for 3 minutes. At the
end of that period, the alarm will automatically shut off to
save battery power. The system will then be rearmed until
the proper disarming step is taken.

The alarm will resume if unauthorized actions are taken
again, even if the alarm has stopped.Horn or siren sounds!
Headlights blink on and off!
BK0138000US.book 68 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-69
3

While the alarm is operating, a warning is displayed on
the information screen in the multi-information display.
Ty p e 1
Ty p e 2Alarm deactivationThe alarm can be deactivated in the following ways.

By using the keyless entry system or the F.A.S.T.-key
operation to lock or unlock the doors and tailgate.

Turn the ignition switch to the “ON” position.
To deactivate the vehicle inclination detection function
and the interior intrusion detection function (vehicles
equipped with the interior alarm sensor)The vehicle inclination detection function and the interior
intrusion detection function can be deactivated when parking in
automated car parks or leaving pets in the vehicle.
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Raise and hold the wiper and washer switch to the
“MIST” position for about 3 seconds. The buzzer will
sound once and the function will be deactivated.
To activate the function again, raise and hold the wiper and
washer switch to the “MIST” position for about 3 seconds.
The buzzer will sound twice and the function will be activated.
BK0138000US.book 69 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-70 Features and controls
3
NOTE
The function will be activated again if the following oper-
ation is performed.
• If the doors and the tailgate are unlocked using the key-
less entry system or the F.A.S.T.-key operation.
• If the ignition switch is turned to the “ON” or “ACC”
position.Disarmed stageThe system will be disarmed if the following operation is per-
formed.

The ignition switch is turned to the “ON” position.

All doors and the tailgate are unlocked by using the key-
less entry system or the F.A.S.T.-key operation.
NOTE
If the UNLOCK button on the remote control transmitter,
or the driver’s or front passenger’s door lock/unlock
switch is pressed when all doors and the tailgate are
closed and no door is opened within approximately 30
seconds, re-arming will automatically occur.

The amount of time after unlocking until the vehicle
relocks automatically can be adjusted. See an authorized
Mitsubishi Motors dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

Once the system has been disarmed, it cannot be rearmed
except by repeating the arming procedure.Testing the theft-alarm systemUse the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flashes for approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob. Open the door.
5. Make sure that the horn (the siren for vehicles equipped
with the interior alarm sensor) sounds intermittently and
the headlights blink when a door is opened.
6. Disarm the system by unlocking all doors and the tailgate
by using the keyless entry system or the F.A.S.T.-key
operation.
Disarm...by using the keyless entry system or F.A.S.T.-key
operationBK0138000US.book 70 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

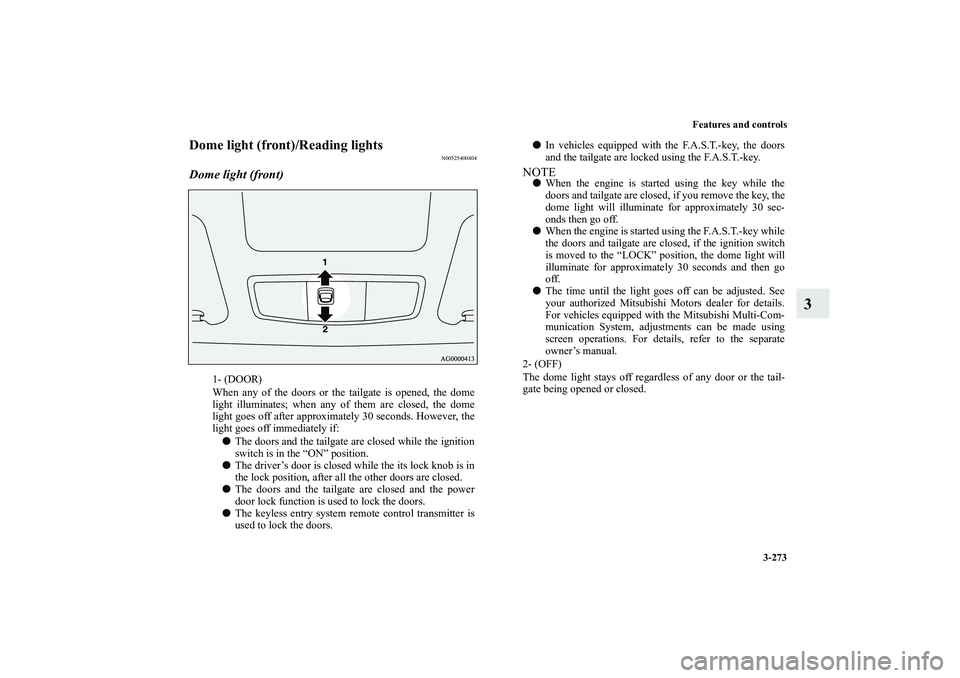

Features and controls
3-273
3
Dome light (front)/Reading lights
N00525400404
Dome light (front)
1- (DOOR)
When any of the doors or the tailgate is opened, the dome
light illuminates; when any of them are closed, the dome
light goes off after approximately 30 seconds. However, the
light goes off immediately if:

The doors and the tailgate are closed while the ignition
switch is in the “ON” position.

The driver’s door is closed while the its lock knob is in
the lock position, after all the other doors are closed.

The doors and the tailgate are closed and the power
door lock function is used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
and the tailgate are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors and tailgate are closed, if you remove the key, the
dome light will illuminate for approximately 30 sec-
onds then go off.

When the engine is started using the F.A.S.T.-key while
the doors and tailgate are closed, if the ignition switch
is moved to the “LOCK” position, the dome light will
illuminate for approximately 30 seconds and then go
off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light stays off regardless of any door or the tail-
gate being opened or closed.
BK0138000US.book 273 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

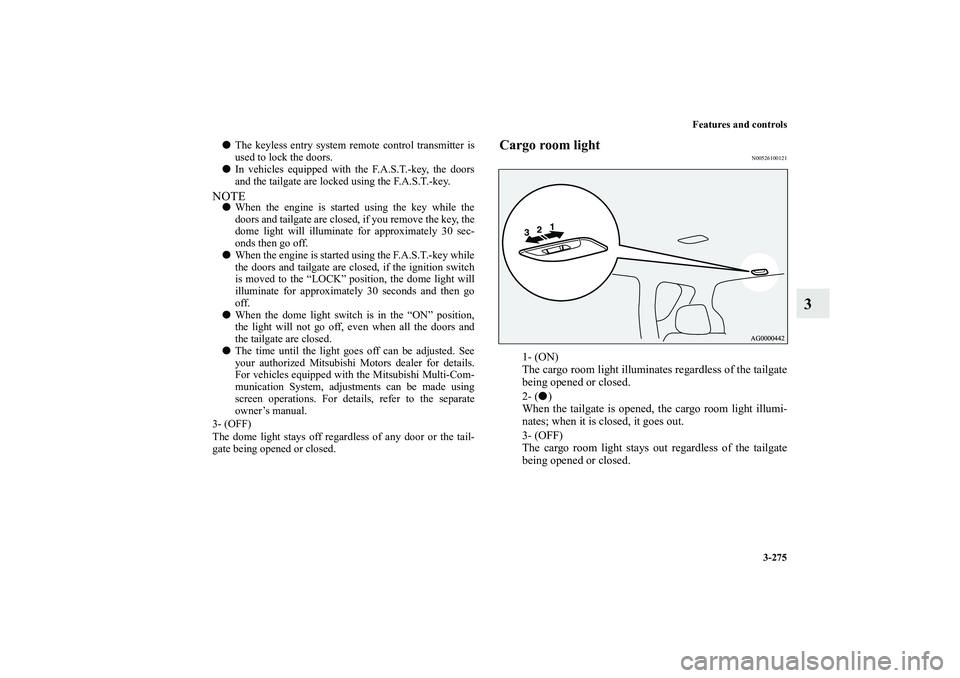

Features and controls
3-275
3
Cargo room light
N00526100121
1- (ON)
The cargo room light illuminates regardless of the tailgate
being opened or closed.
2- (
)
When the tailgate is opened, the cargo room light illumi-
nates; when it is closed, it goes out.
3- (OFF)
The cargo room light stays out regardless of the tailgate
being opened or closed.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
and the tailgate are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors and tailgate are closed, if you remove the key, the
dome light will illuminate for approximately 30 sec-
onds then go off.

When the engine is started using the F.A.S.T.-key while
the doors and tailgate are closed, if the ignition switch
is moved to the “LOCK” position, the dome light will
illuminate for approximately 30 seconds and then go
off.

When the dome light switch is in the “ON” position,
the light will not go off, even when all the doors and
the tailgate are closed.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
3- (OFF)
The dome light stays off regardless of any door or the tail-
gate being opened or closed.
BK0138000US.book 275 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

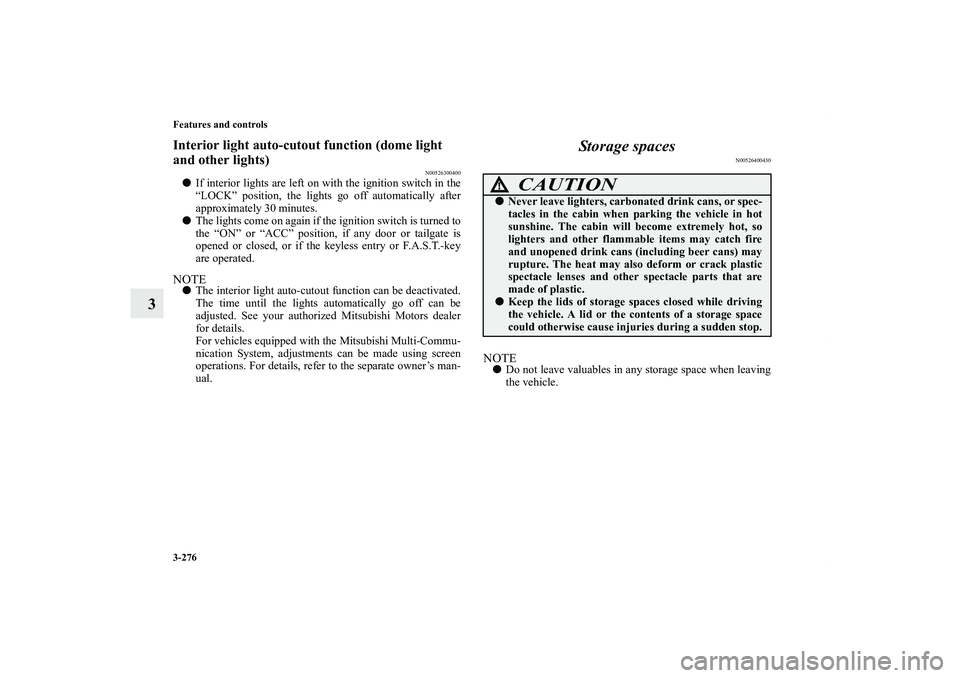

3-276 Features and controls
3
Interior light auto-cutout function (dome light
and other lights)
N00526300400

If interior lights are left on with the ignition switch in the
“LOCK” position, the lights go off automatically after
approximately 30 minutes.

The lights come on again if the ignition switch is turned to
the “ON” or “ACC” position, if any door or tailgate is
opened or closed, or if the keyless entry or F.A.S.T.-key
are operated.NOTE
The interior light auto-cutout function can be deactivated.
The time until the lights automatically go off can be
adjusted. See your authorized Mitsubishi Motors dealer
for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
Storage spaces
N00526400430
NOTE
Do not leave valuables in any storage space when leaving
the vehicle.
CAUTION
!
Never leave lighters, carbonated drink cans, or spec-
tacles in the cabin when parking the vehicle in hot
sunshine. The cabin will become extremely hot, so
lighters and other flammable items may catch fire
and unopened drink cans (including beer cans) may
rupture. The heat may also deform or crack plastic
spectacle lenses and other spectacle parts that are
made of plastic.
Keep the lids of storage spaces closed while driving
the vehicle. A lid or the contents of a storage space
could otherwise cause injuries during a sudden stop.
BK0138000US.book 276 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Alphabetical index
4
H
Hazard warning flasher switch 3-225
Hazard warning lights 3-210
Head restraints 2-26
Headlight leveling switch 3-223
Headlights
Bulb capacity 7-49
Dimmer 3-220
Headlight flasher 3-221
Replacement 7-52
,7-54
Switch 3-216
High beam indicator 3-210
High mount stop light
Bulb capacity 7-49
Hill start assist 3-130
Hood lock release mechanism and safety catch 7-38
Horn switch 3-237
I
If the vehicle breaks down 6-2
Ignition switch 3-25
,3-88
Important facts to know in case of an accident 8-5
Indicators 3-210
Information screen display 3-165
,3-198
Inside rearview mirror 3-82
Inspection and maintenance following rough road operation 3-
126
Instrument cluster 3-161Interior lights 3-272
J
Jack 6-7
Storage 6-7
Jump-starting the engine 6-2
K
Keyless entry system 3-9
,3-45
Keys 3-2
L
Labeling 9-2
License plate light
Bulb capacity 7-49
Replacement 7-71
Link System 3-237
Loading information 4-9
Lubricants 9-11
Luggage floor box 3-283
Luggage hooks 3-290
M
Malfunction indicator light 3-211
Manual air conditioning 5-6
,5-16
MIVEC engine 3-33
,3-41
,3-93
Modification of your vehicle 1-6
Multi-information display 3-165
BK0138000US.book 4 ページ ２０１１年４月１３日　水曜日　午前１１時１７分
