Features and controls
3-165
3 Multi-information display
N00555000223
The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, all-wheel drive operation status, average and momentary fuel consumption,
driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the “OFF” position With ignition switch in the “ON” position
Type 1 Type 2 Type 1 Type 2
1- “!” Warning display screen (With ignition switch in the
“OFF” position) →P. 3 - 1 6 7
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-167
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-169
3- Door ajar warning display screen (With ignition switch in
the “OFF” position) → P.3-1714- Drive mode indicator display screen (if so equipped)
→ P. 3 - 1 7 2
S-AWC control mode display screen (if so equipped)
→ P. 3 - 1 7 2
5- “!” Warning display screen (With ignition switch in the
“ON” position) → P.3-172
6- Active stability control (ASC) OFF display screen (if so
equipped) → P. 3 - 1 7 3
7- Outside temperature display screen → P.3-179
8- ECO mode indicator (if so equipped) → P. 3 - 1 8 0
BK0138000US.book 165 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-166 Features and controls
3
NOTE
The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.

The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-167.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-199.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON”)” on page 3-171.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-173.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-202.Multi-information meter switch
N00555100152
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, odometer (Type1), trip
odometer, service reminder, engine coolant temperature (Type
1), average and momentary fuel consumption, driving range,
and average speed.
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.9- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-173
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-177
10- Fuel remaining display screen → P. 3 - 1 7 9
11- Selector lever position display screen → P.3-178
12- Engine coolant temperature display (if so equipped)
→ P. 3 - 1 7 3
BK0138000US.book 166 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-174 Features and controls
3
NOTE
While driving, the function setting screen is not displayed
even if you operate the multi-information meter switch.
Always park the vehicle in a safe place before operating.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.

When there is information to be announced, such as a sys-
tem fault, the tone sounds and the screen display is
switched.
Refer to “Interrupt display screen (With ignition switch in
the “ON” position)” on page 3-177.

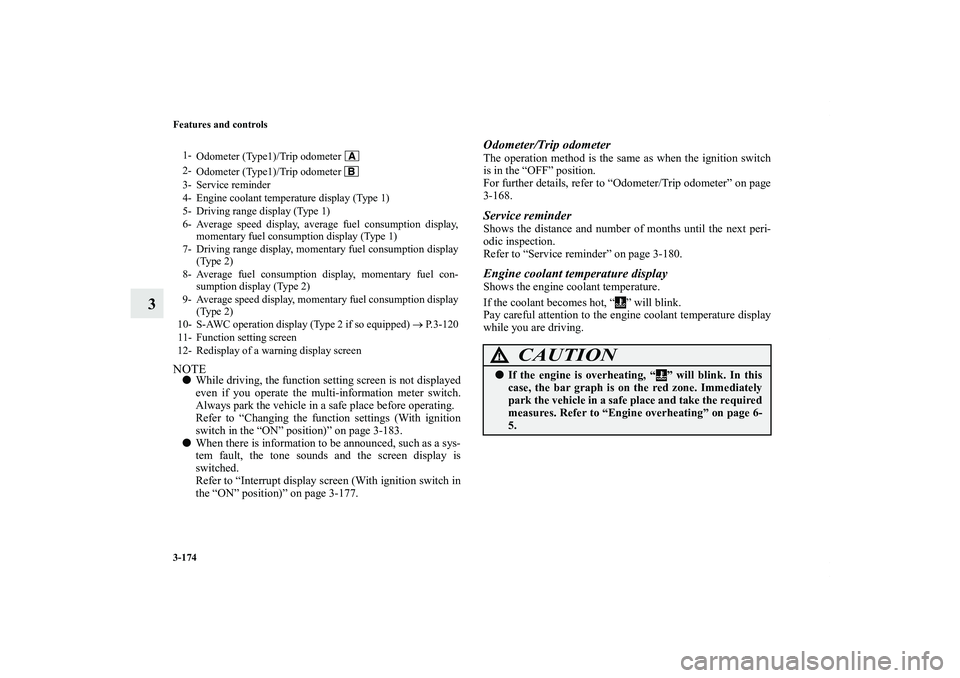

Odometer/Trip odometerThe operation method is the same as when the ignition switch
is in the “OFF” position.
For further details, refer to “Odometer/Trip odometer” on page
3-168.Service reminderShows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-180.Engine coolant temperature displayShows the engine coolant temperature.
If the coolant becomes hot, “ ” will blink.
Pay careful attention to the engine coolant temperature display
while you are driving.
1-
Odometer (Type1)/Trip odometer
2-
Odometer (Type1)/Trip odometer
3- Service reminder
4- Engine coolant temperature display (Type 1)
5- Driving range display (Type 1)
6- Average speed display, average fuel consumption display,
momentary fuel consumption display (Type 1)
7- Driving range display, momentary fuel consumption display
(Type 2)
8- Average fuel consumption display, momentary fuel con-
sumption display (Type 2)
9- Average speed display, momentary fuel consumption display
(Type 2)
10- S-AWC operation display (Type 2 if so equipped) → P.3-120
11- Function setting screen
12- Redisplay of a warning display screen
CAUTION
!
If the engine is overheating, “ ” will blink. In this
case, the bar graph is on the red zone. Immediately
park the vehicle in a safe place and take the required
measures. Refer to “Engine overheating” on page 6-
5.
BK0138000US.book 174 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Driving safety
4-7
4

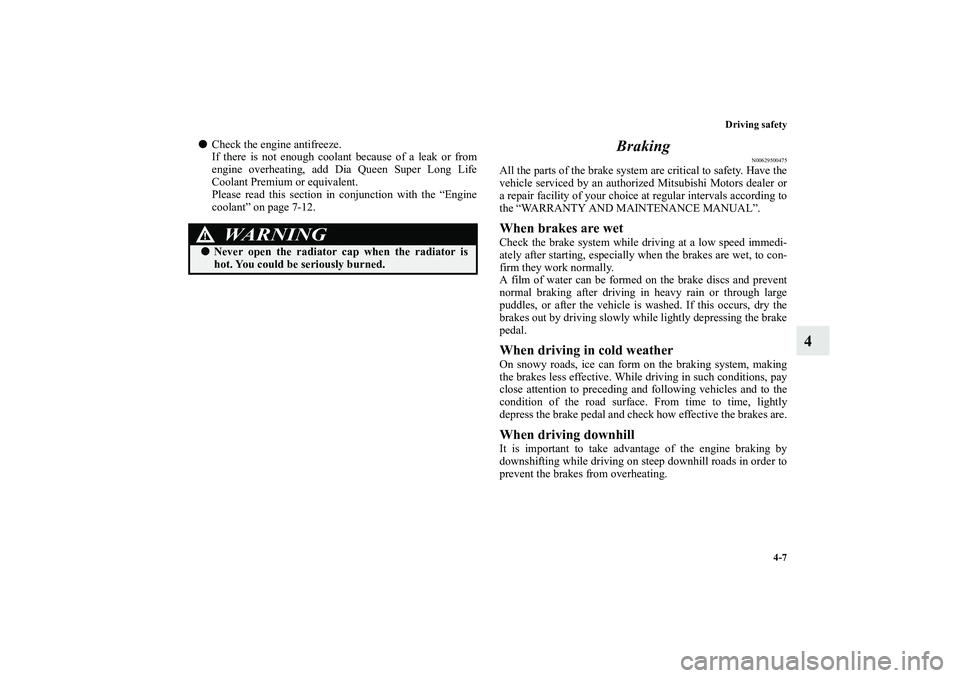

Check the engine antifreeze.
If there is not enough coolant because of a leak or from
engine overheating, add Dia Queen Super Long Life
Coolant Premium or equivalent.
Please read this section in conjunction with the “Engine
coolant” on page 7-12.
Braking
N00629500475
All the parts of the brake system are critical to safety. Have the
vehicle serviced by an authorized Mitsubishi Motors dealer or
a repair facility of your choice at regular intervals according to
the “WARRANTY AND MAINTENANCE MANUAL”.When brakes are wetCheck the brake system while driving at a low speed immedi-
ately after starting, especially when the brakes are wet, to con-
firm they work normally.
A film of water can be formed on the brake discs and prevent
normal braking after driving in heavy rain or through large
puddles, or after the vehicle is washed. If this occurs, dry the
brakes out by driving slowly while lightly depressing the brake
pedal.When driving in cold weatherOn snowy roads, ice can form on the braking system, making
the brakes less effective. While driving in such conditions, pay
close attention to preceding and following vehicles and to the
condition of the road surface. From time to time, lightly
depress the brake pedal and check how effective the brakes are.When driving downhillIt is important to take advantage of the engine braking by
downshifting while driving on steep downhill roads in order to
prevent the brakes from overheating.
WA R N I N G
!
Never open the radiator cap when the radiator is
hot. You could be seriously burned.
BK0138000US.book 7 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

4-22 Driving safety
4

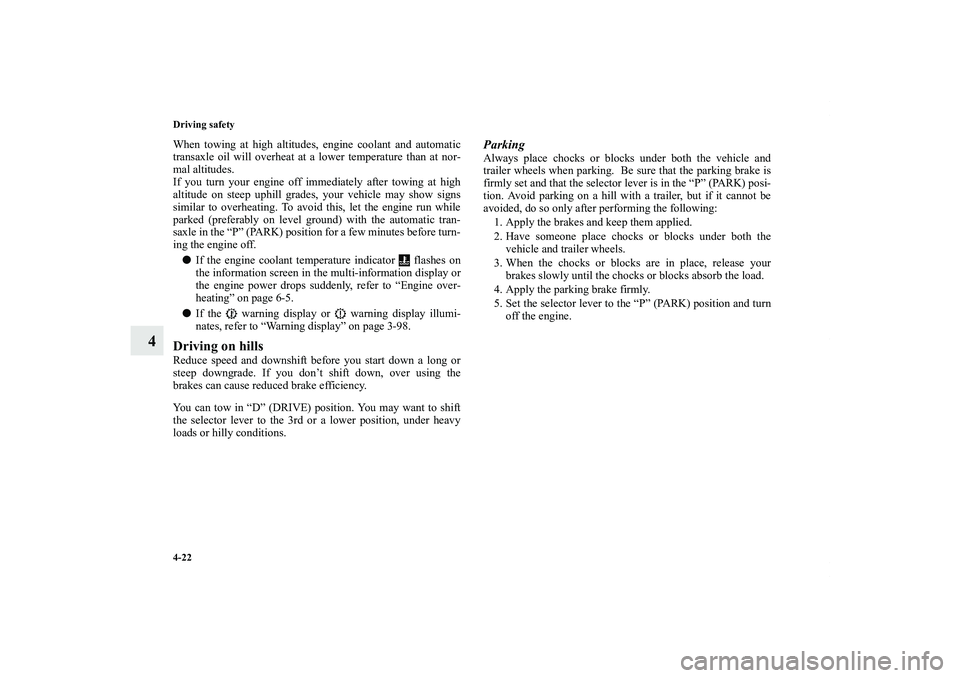

When towing at high altitudes, engine coolant and automatic
transaxle oil will overheat at a lower temperature than at nor-
mal altitudes.
If you turn your engine off immediately after towing at high
altitude on steep uphill grades, your vehicle may show signs
similar to overheating. To avoid this, let the engine run while
parked (preferably on level ground) with the automatic tran-
saxle in the “P” (PARK) position for a few minutes before turn-
ing the engine off.

If the engine coolant temperature indicator flashes on
the information screen in the multi-information display or
the engine power drops suddenly, refer to “Engine over-
heating” on page 6-5.

If the warning display or warning display illumi-
nates, refer to “Warning display” on page 3-98.Driving on hillsReduce speed and downshift before you start down a long or
steep downgrade. If you don’t shift down, over using the
brakes can cause reduced brake efficiency.
You can tow in “D” (DRIVE) position. You may want to shift
the selector lever to the 3rd or a lower position, under heavy
loads or hilly conditions.
ParkingAlways place chocks or blocks under both the vehicle and
trailer wheels when parking. Be sure that the parking brake is
firmly set and that the selector lever is in the “P” (PARK) posi-
tion. Avoid parking on a hill with a trailer, but if it cannot be
avoided, do so only after performing the following:
1. Apply the brakes and keep them applied.
2. Have someone place chocks or blocks under both the
vehicle and trailer wheels.
3. When the chocks or blocks are in place, release your
brakes slowly until the chocks or blocks absorb the load.
4. Apply the parking brake firmly.
5. Set the selector lever to the “P” (PARK) position and turn
off the engine.
BK0138000US.book 22 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Comfort controls
5-7
5

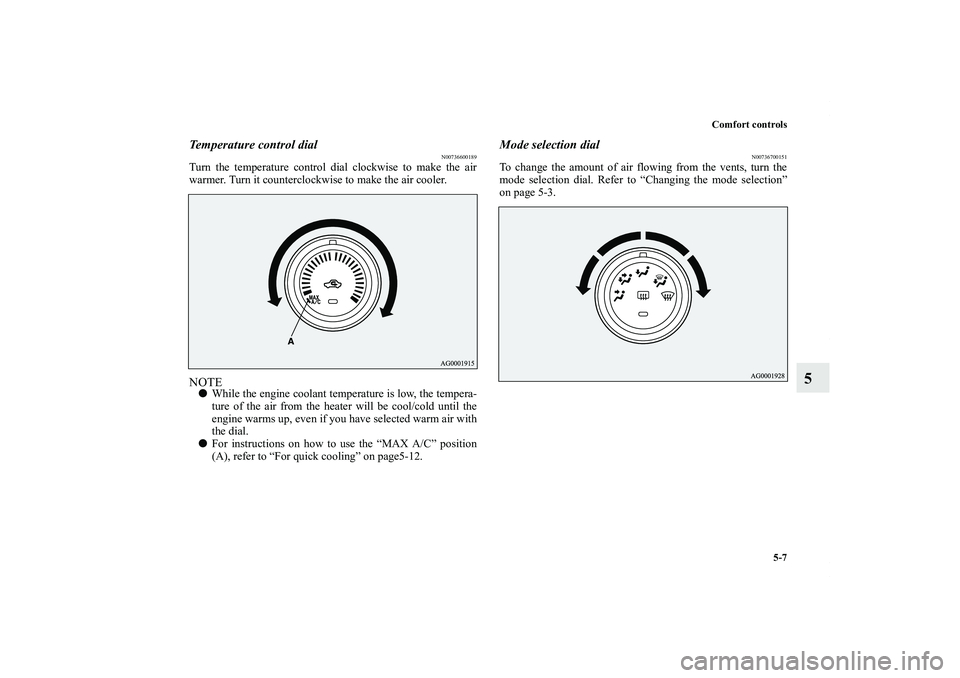

Temperature control dial
N00736600189
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.

For instructions on how to use the “MAX A/C” position
(A), refer to “For quick cooling” on page5-12.
Mode selection dial
N00736700151
To change the amount of air flowing from the vents, turn the
mode selection dial. Refer to “Changing the mode selection”
on page 5-3.
BK0138000US.book 7 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Comfort controls
5-17
5

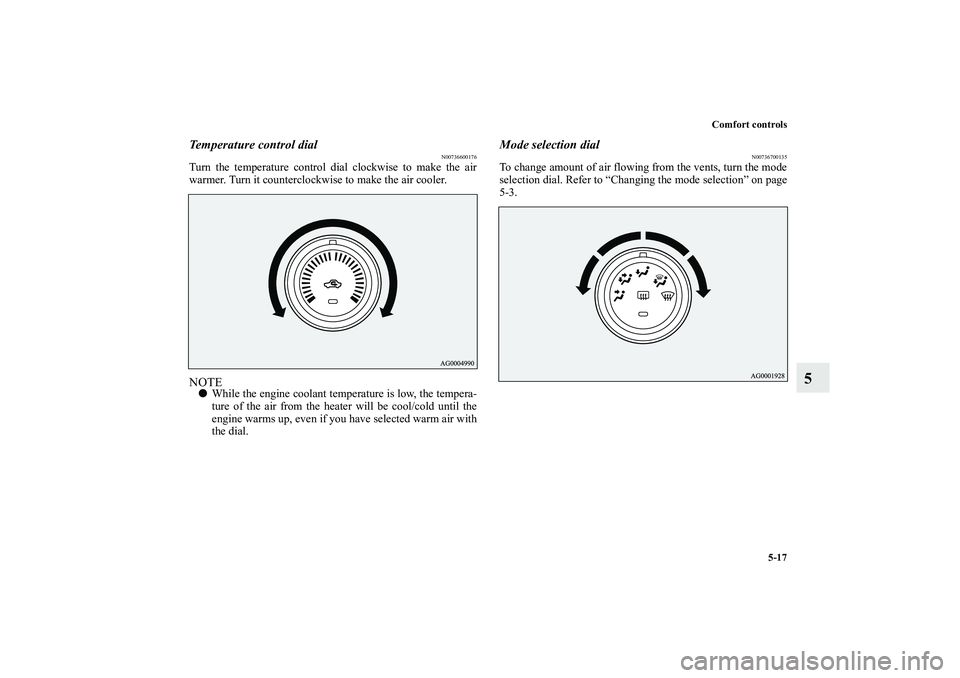

Temperature control dial
N00736600176
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.
Mode selection dial
N00736700135
To change amount of air flowing from the vents, turn the mode
selection dial. Refer to “Changing the mode selection” on page
5-3.
BK0138000US.book 17 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Comfort controls
5-27
5
NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.

When the temperature is set to the highest or the lowest
setting under the AUTO operation, the air selection and
the air conditioning will be automatically changed as fol-
lows.
Also, if the air selection is operated manually after an
automatic changeover, manual operation will be selected.
• Quick Heating (When the temperature is set to the high-
est setting)
Outside air will be introduced and the air conditioning
will stop.
• Quick Cooling (When the temperature is set to the low-
est setting)
Inside air will be recirculated and the air conditioning
will operate.
The above indicates the factory settings. You can personalize
the air selection switch and air conditioning switch to match
your personal preferences.
Contact your Mitsubishi Motors dealer or a repair facility of
your choice for assistance.
Refer to “Personalizing the air conditioning switch (Changing
the function setting)” on page5-31.
Refer to “Personalizing the air selection (Changing the func-
tion setting)” on page5-29.

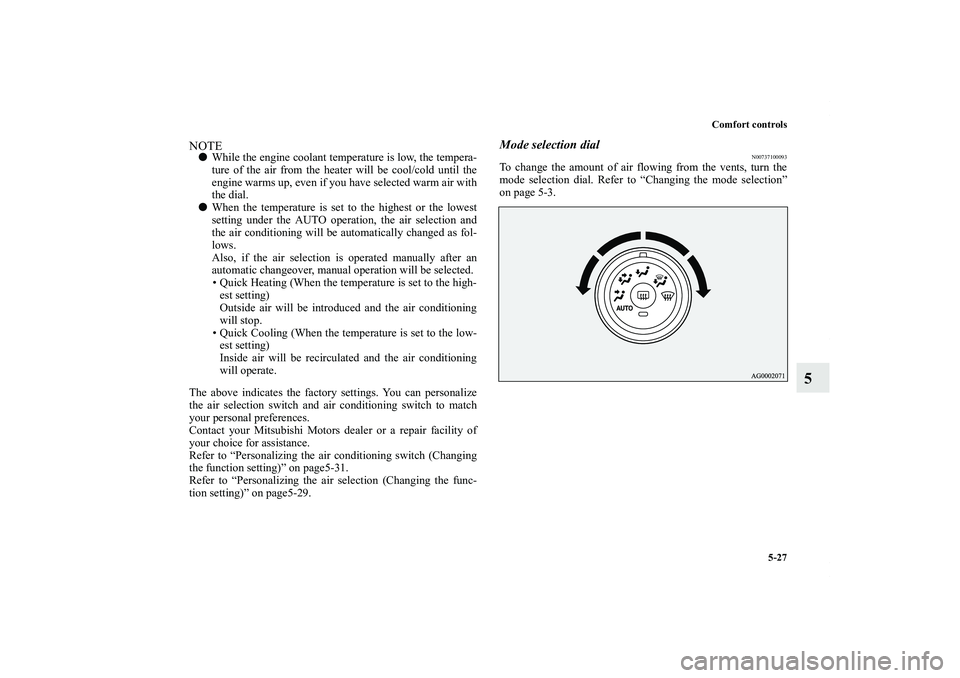

Mode selection dial
N00737100093
To change the amount of air flowing from the vents, turn the
mode selection dial. Refer to “Changing the mode selection”
on page 5-3.
