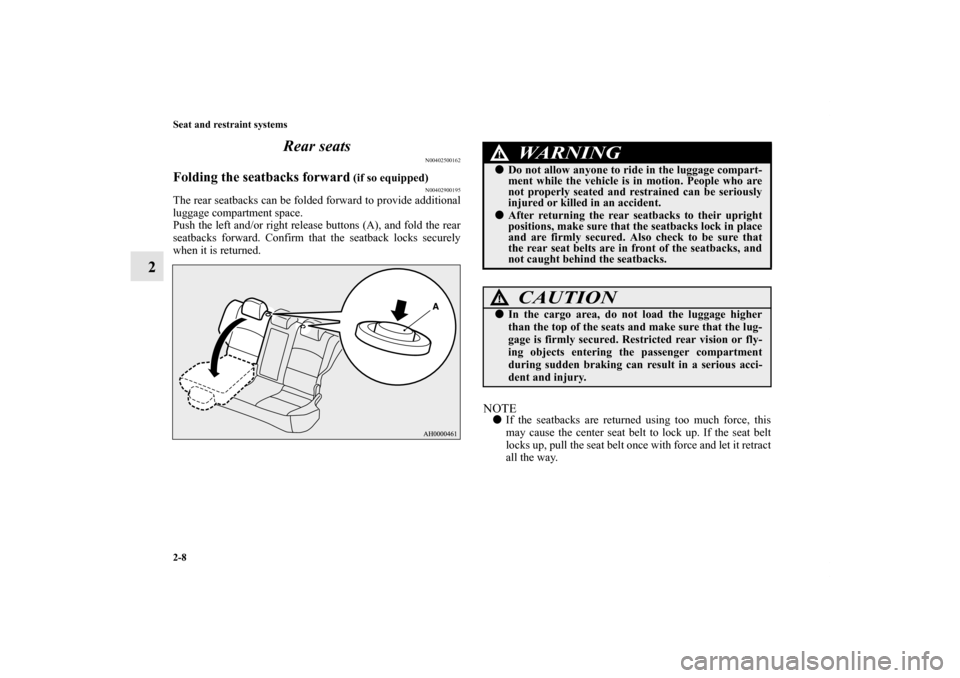

2-8 Seat and restraint systems
2Rear seats
N00402500162
Folding the seatbacks forward
(if so equipped)
N00402900195
The rear seatbacks can be folded forward to provide additional
luggage compartment space.
Push the left and/or right release buttons (A), and fold the rear
seatbacks forward. Confirm that the seatback locks securely
when it is returned.
NOTE
If the seatbacks are returned using too much force, this
may cause the center seat belt to lock up. If the seat belt
locks up, pull the seat belt once with force and let it retract
all the way.
WA R N I N G
!
Do not allow anyone to ride in the luggage compart-
ment while the vehicle is in motion. People who are
not properly seated and restrained can be seriously
injured or killed in an accident.
After returning the rear seatbacks to their upright
positions, make sure that the seatbacks lock in place
and are firmly secured. Also check to be sure that
the rear seat belts are in front of the seatbacks, and
not caught behind the seatbacks.
CAUTION
!
In the cargo area, do not load the luggage higher
than the top of the seats and make sure that the lug-
gage is firmly secured. Restricted rear vision or fly-
ing objects entering the passenger compartment
during sudden braking can result in a serious acci-
dent and injury.
BK0138600US.book 8 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-9
3
General informationYour electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with part 15 of
the FCC Rules and RSS-Gen of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Keyless entry system
(if so equipped)
N00509000763
Press the remote control transmitter buttons to lock or unlock
the doors and to open the trunk lid.
It can also help you signal for attention by setting off the panic
alarm.To lock the doors
N00542700024
Press the LOCK button (1) to lock all the doors.
The turn signal lights will also blink once.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-
Trunk ( ) button
4- PANIC button
5- Indicator light
BK0138600US.book 9 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-11
3
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Changing the setting of the turn signal lights answer-
back functionThe turn signal lights answerback function can be set to the fol-
lowing seven conditions.
Each time the turn signal lights answerback function is set, a
chime will sound to tell you the condition of the answerback
function.
1. Remove the key from the ignition switch.2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Buzzer deactivation/reactivationThe buzzer answerback function can be turned ON or OFF as
required.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Setting of door unlock function
N00543600033
The door unlock function can be set to the following two con-
ditions.
Each time the door unlock function is set, a chime will sound to
tell you the condition of the door unlock function.
Number of chimes
Condition
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
Number of
chimes
Condition
One chime All doors unlock
Two chimes Driver’s door unlock only
BK0138600US.book 11 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-12 Features and controls
3
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Using the panic alarm
N00543700018
If you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (4) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.Replacement remote control transmitters
N00543800019
Only remote control transmitters programmed with the vehi-
cle’s electronics can lock or unlock all doors.
If you lose the remote control transmitter, you can order a
remote control transmitter from your authorized Mitsubishi
Motors dealer by referring to the key number.To prevent vehicle theft, the ID codes for all the remote control
transmitters except the one for the lost key must be pro-
grammed again.
Take your vehicle and all the remaining remote control trans-
mitters to your authorized Mitsubishi Motors dealer to have
your ID codes programmed again.BK0138600US.book 12 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-13
3
Additional remote control transmitters
N00543900010
To add a remote control transmitter, you must already have one
registered remote control transmitter.
Registering the ID code can be done by yourself or by your
authorized Mitsubishi Motors dealer. For you to register the ID
code yourself, follow the “Customer remote control transmitter
programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with two remote control transmitters,
but you may register up to eight remote control transmit-
ters.
Customer remote control transmitter program-
ming
N00544000050
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:
1. Have available all (current and new) remote control trans-
mitters you wish to register.
2. With a valid (already registered) remote control transmit-
ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release
the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door is locked and
unlocked) informs you that the registration mode has been
activated.
4. Within 60 seconds after step 3, complete the following ID
code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i. Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii. Release both the LOCK and UNLOCK buttons for 1
second.
iii. Press the UNLOCK button.
The answerback function informs you that the ID code
registration of the transmitter is completed.
5. To register the ID codes of additional remote control
transmitters, repeat step 4 within 60 seconds after step 4.
BK0138600US.book 13 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-14 Features and controls
3
6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.NOTE
For verification purposes, try to lock and unlock the doors
after the registration is completed.

The indicator light (5) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed when all doors are
locked and no doors are opened within about 30 seconds,
the doors will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

If the following conditions are observed after pressing the
buttons on the remote control transmitter, the battery in
the remote control transmitter may need to be replaced.
• The doors cannot be locked or unlocked.
• The trunk lid cannot be opened.
• The panic alarm cannot be operated.
• The indicator light (5) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of eight remote control transmitters
can be programmed for your vehicle.

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer key programming” on page 3-7.
General information
N00546100068
Your keyless entry system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-Gen of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0138600US.book 14 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-15
3
Procedure for replacing the remote control trans-
mitter battery
N00544100077
1. Before replacing the battery, remove static electricity from
your body by touching a metal grounded object.
2. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.3. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 2.
4. Remove the old battery.
BK0138600US.book 15 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-35
3
To turn from “LOCK” to “ACC”
1. Remove the emergency key from the F.A.S.T.-key.
Refer to “Emergency key” on page 3-33.
2. While pushing the lock release buttons (A), remove the
cover of the ignition switch.3. Insert the emergency key into the ignition switch, and
slowly push and turn.
NOTE
When the ignition switch cannot be turned from the
“LOCK” position to the “ACC” position, turn the ignition
switch while turning the steering wheel in both directions.
BK0138600US.book 35 ページ ２０１１年７月１７日　日曜日　午後２時３２分
