3-146 Features and controls
3
NOTE
In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure rec-
ommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label. (If your vehicle has tires of a
different size than the size indicated on the vehicle placard or
tire inflation pressure label, you should determine the proper
tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped
with a tire pressure monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates,
you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat and can lead to
tire failure.
Under-inflation also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver’s responsibility to maintain
correct tire pressure, even if under-inflation has not reached the
level to trigger illumination of the TPMS low tire pressure tell-
tale.
Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale.
When the system detects a malfunction, the telltale will flash
for approximately one minute and then remain continuously
illuminated. This sequence will continue upon subsequent
vehicle start-ups as long as the malfunction exists.
BK0142300US.book 146 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-147
3
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, includ-
ing the installation of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction telltale after replac-
ing one or more tires or wheels on your vehicle to ensure that
the replacement or alternate tires and wheels allow the TPMS
to continue to function properly.
If the warning light/display illuminates while
driving
N00532800439
1. If the tire pressure monitoring system warning light illu-
minates, avoid hard braking, sharp steering maneuvers
and high speeds. You should stop and adjust the tires to
the proper inflation pressure as soon as possible. Adjust
the spare tire at the same time. Refer to “Tires” on page 7-
19.NOTE
In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.

When inspecting or adjusting the tire pressure, do not
apply excessive force to the valve stem to avoid breakage.

After inspecting or adjusting the tire pressure, always
reinstall the valve cap on the valve stem.
Without the valve cap, dirt or moisture could get into the
valve, resulting in damage to the tire inflation pressure
sensor.

Do not use metal valve caps, which may cause a metal
reaction, resulting in corrosion and damage of the tire
inflation pressure sensors.

Once adjustments have been made, the warning light will
go off after a few minutes of driving.
2. If the tire pressure monitoring system warning light
remains illuminated after you have been driving for about
20 minutes after you adjust the tire inflation pressure, one
or more of the tires may have a puncture. Inspect the tire
and if it has a puncture, have it repaired by an authorized
Mitsubishi Motors dealer as soon as possible.
BK0142300US.book 147 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-148 Features and controls
3
NOTE
To avoid the risk of damage to the tire inflation pressure
sensors, have any punctured tire repaired by an authorized
Mitsubishi Motors dealer. If the tire repair is not done by
an authorized Mitsubishi Motors dealer, it is not covered
by your warranty.

Do not use an aerosol puncture-repair product on any tire.
Such a spray could damage the tire inflation pressure sen-
sors. Have any puncture repaired by an authorized
Mitsubishi Motors dealer.The tire pressure monitoring system may not work normally in
the following circumstances:

A wireless facility or device using the same frequency is
near the vehicle.

Snow or ice is stuck inside the fenders and/or on the
wheels.

The tire inflation pressure sensor’s battery is dead.

Wheels other than Mitsubishi genuine wheels are being
used.

Wheels that are not fitted with tire inflation pressure sen-
sors are being used.

Wheels whose ID codes are not memorized by the vehicle
are used.

Compact spare tire is fitted on a road wheel.

A window tint that affects the radio wave signals is
installed.
NOTE
Tire inflation pressures vary with the ambient tempera-
ture. If the vehicle is subjected to large variations in ambi-
ent temperature, the tire inflation pressures may be under-
inflated (causing the warning light/display to come on)
when the ambient temperature is relatively low. If the
warning light/display comes on, adjust the tire inflation
pressure.
WA R N I N G
!
If the warning light/display illuminates while you
are driving, avoid hard braking, sharp steering
maneuvers and high speeds. Driving with an under-
inflated tire adversely affects vehicle performance
and can result in an accident.
CAUTION
!
If a tire has a puncture, replace that tire with the
spare tire. Driving on a punctured tire could lead to
an accident.
The warning light/display may not illuminate imme-
diately in the event of a tire blowout or rapid leak.
BK0142300US.book 148 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-150 Features and controls
3Instrument cluster
N00519000317
Speedometer
N00519100220
The speedometer shows the vehicle speed in miles per hour
(mph) or kilometers per hour (km/h).
1- Tachometer → P.3-151
2- Multi-information display → P.3-153
Information screen display list → P.3-185
3- Speedometer → P.3-150
4- Rheostat meter illumination button → P.3-152
Ty p e 1
BK0142300US.book 150 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-152 Features and controls
3

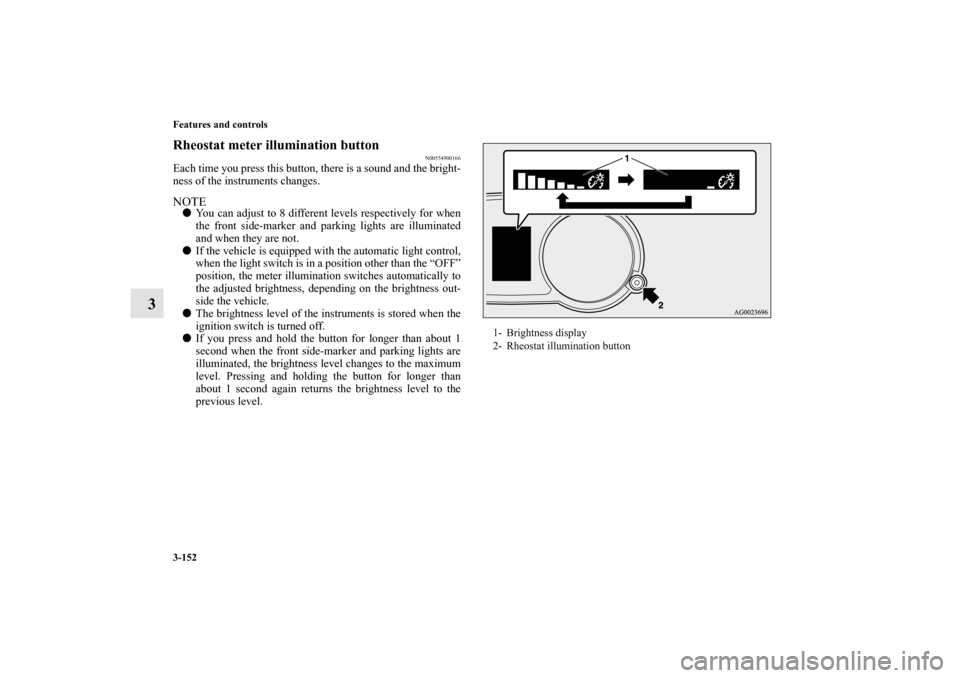

Rheostat meter illumination button
N00554900166
Each time you press this button, there is a sound and the bright-
ness of the instruments changes.NOTE
You can adjust to 8 different levels respectively for when
the front side-marker and parking lights are illuminated
and when they are not.

If the vehicle is equipped with the automatic light control,
when the light switch is in a position other than the “OFF”
position, the meter illumination switches automatically to
the adjusted brightness, depending on the brightness out-
side the vehicle.

The brightness level of the instruments is stored when the
ignition switch is turned off.

If you press and hold the button for longer than about 1
second when the front side-marker and parking lights are
illuminated, the brightness level changes to the maximum
level. Pressing and holding the button for longer than
about 1 second again returns the brightness level to the
previous level.
1- Brightness display
2- Rheostat illumination button
BK0142300US.book 152 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-153
3 Multi-information display
N00555000207
The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, Twin Clutch SST control mode, S-AWC (Super-All Wheel Control) control mode, gearshift lever
position, average and momentary fuel consumption, driving range, average speed, S-AWC (Super-All Wheel Control) operation
display, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the
“OFF” positionWith ignition switch in the “ON”
position (Twin Clutch SST)With ignition switch in the “ON”
position (manual transaxle)
1- “!” Warning display screen (With ignition switch in the
“OFF” position) →P. 3 - 1 5 5
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-155
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-157
3- Door ajar warning display screen (With ignition switch in
the “OFF” position) → P.3-158
4- S-AWC control mode display screen → P.3-160
5- Outside temperature display screen → P.3-1686- “!” Warning display screen (With ignition switch in the
“ON” position) → P.3-160
7- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-161
Interrupt display screen (With ignition switch in the “ON”
position) → P. 3 - 1 6 6
8- Fuel remaining display screen → P.3-168
9- Twin Clutch SST control mode display screen (if so
equipped) → P. 3 - 1 6 8
BK0142300US.book 153 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-154 Features and controls
3
NOTE
The trip computer function fuel units, temperature units,
display language, and other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.

The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-155.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-186.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON”)” on page 3-159.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-161.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-189.
Multi-information meter switch
N00555100165
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, service reminder, aver-
age and momentary fuel consumption, driving range, average
speed, and S-AWC operation display.
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
10- Gearshift lever position display screen (if so equipped)
→ P. 3 - 1 6 7
11- Active stability control (ASC) OFF display screen
→ P. 3 - 1 3 1
12- Engine coolant temperature display
→ P. 3 - 1 6 1BK0142300US.book 154 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-155
3
“!” Warning display screen (With ignition switch
in the “OFF” position)
N00555200078
If you press the multi-information meter switch and return
from the warning display screen to the previous screen, the “!”
warning is displayed.
Refer to “Returning to the display screen from before the warn-
ing display” on page 3-157.
This mark is also displayed if there is another warning other
than the one displayed. When the cause of the warning display
is eliminated, the “!” warning goes out automatically.NOTE
When the “!” warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-155.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-161.
Information screen (With ignition switch in the
“OFF” position)
N00555300141
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.1-
Trip odometer
2-
Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
BK0142300US.book 155 ページ ２０１１年８月７日　日曜日　午前１０時４４分
