2012 MITSUBISHI GALANT features and controls

Table of contents
1
2
3
4
5
6
7
8
9
Overview
Quick index
General information
Seat and restraint systems
Features and controls
Driving safety
Comfort controls
For emergencies
Vehicle care and maintenance
Customer assistance/
Reporting Safety Defects
Specifications
BK0139500US.book 1 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .3- 3
Keyless entry system . . . . . . . . . . . . . . . . . . . . . . .3- 7
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 12
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 14
“Child safety locks” for rear door . . . . . . . . . . . . .3- 15
Trunk lid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Inside emergency trunk lid release. . . . . . . . . . . . .3- 18
Theft-alarm system (if so equipped) . . . . . . . . . . .3- 20
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 23
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . .3- 26
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 28
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . .3- 29
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . .3- 30
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 32
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 34
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . .3- 36
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 37
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . .3- 39
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 47
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 49
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 51
Power steering system . . . . . . . . . . . . . . . . . . . . . .3- 56
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 57
Tire pressure monitoring system . . . . . . . . . . . . . .3- 63
Rear-view camera (if so equipped) . . . . . . . . . . . .3- 69Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 72
Indicator and warning light package . . . . . . . . . . . 3- 77
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 78
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 78
Combination headlights and dimmer switch . . . . . 3- 81
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 84
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 85
Fog light switch (if so equipped). . . . . . . . . . . . . . 3- 86
Instrument panel light dimmer control . . . . . . . . . 3- 87
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 87
Electric rear window defogger switch. . . . . . . . . . 3- 90
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 91
Hands-free Bluetooth
® cellular phone interface
system with voice recognition (if so equipped) . 3- 92
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 121
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 122
Power outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 122
Digital clock (if so equipped) . . . . . . . . . . . . . . . . 3- 123
HomeLink
® Wireless Control System
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 124
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 128
Accessory boxes . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 131
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . 3- 131
Floor console box/Tissue holder/Pen holders . . . . 3- 132
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 133
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 134
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 134
BK0139500US.book 1 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3-2 Features and controls
3Break-in recommendations
N00508700226
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine.

Avoid rough driving such as fast starts, sudden accelera-
tion, prolonged high-speed driving and sudden braking.
These would have a detrimental effect on the engine and
also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
gear.

Do not overload the vehicle. Observe the seating capacity
(See “Cargo load precautions” on page 4-13).

Do not use this vehicle for trailer towing.
Keys
N00508800546
Two keys are provided.
The keys fit all locks. Keep one in a safe place as a spare key.
BK0139500US.book 2 ページ ２０１１年４月１９日　火曜日　午後１時４８分

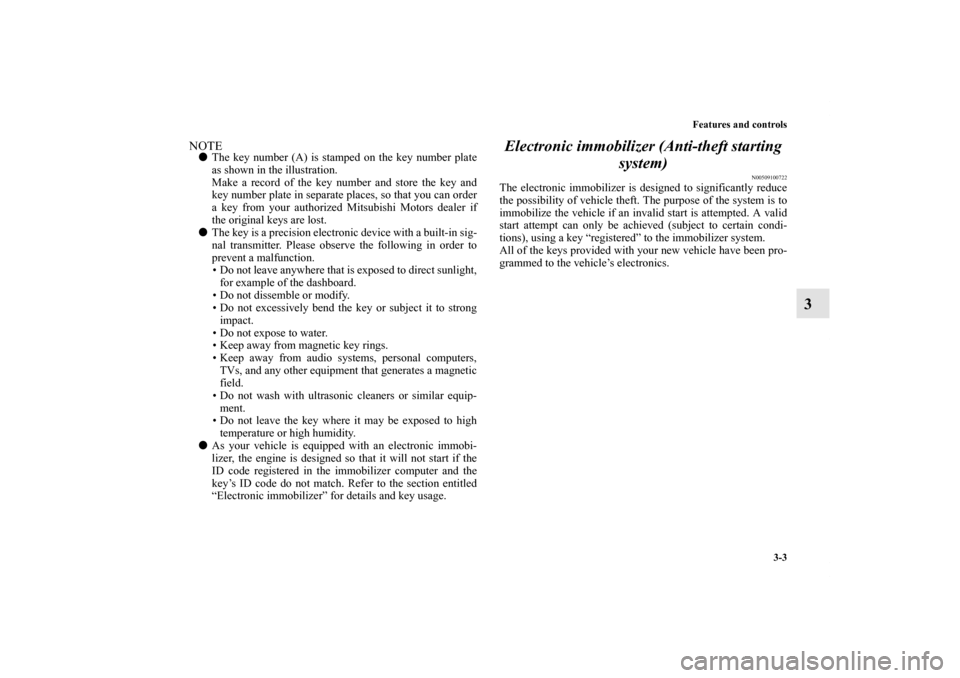

Features and controls
3-3
3
NOTE
The key number (A) is stamped on the key number plate
as shown in the illustration.
Make a record of the key number and store the key and
key number plate in separate places, so that you can order
a key from your authorized Mitsubishi Motors dealer if
the original keys are lost.

The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent a malfunction.
• Do not leave anywhere that is exposed to direct sunlight,
for example of the dashboard.
• Do not dissemble or modify.
• Do not excessively bend the key or subject it to strong
impact.
• Do not expose to water.
• Keep away from magnetic key rings.
• Keep away from audio systems, personal computers,
TVs, and any other equipment that generates a magnetic
field.
• Do not wash with ultrasonic cleaners or similar equip-
ment.
• Do not leave the key where it may be exposed to high
temperature or high humidity.

As your vehicle is equipped with an electronic immobi-
lizer, the engine is designed so that it will not start if the
ID code registered in the immobilizer computer and the
key’s ID code do not match. Refer to the section entitled
“Electronic immobilizer” for details and key usage.
Electronic immobilizer (Anti-theft starting
system)
N00509100722
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions), using a key “registered” to the immobilizer system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
BK0139500US.book 3 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3-4 Features and controls
3
NOTE
In the following cases, the vehicle may not be able to rec-
ognize the registered ID code from the key. This means
the engine will not start even when the key is turned to the
“START” position.
• When the key contacts a key ring or other metallic or
magnetic object (Type A)
• When the key grip contacts metal of another key
(Type B)
• When the key contacts or is close to other immobilizing
keys (including keys of other vehicles) (Type C)

In cases like the above, move the offending object(s) away
from the key and turn the key back to the “ACC” or
“LOCK” position. Then try to start the engine again. If the
engine does not start, contact an authorized Mitsubishi
Motors dealer.
BK0139500US.book 4 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-5
3
NOTE
Electronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
vehicle starting problems and a loss of security protection.
Use only Mitsubishi Motors authorized accessories.

A system failure is suspected when the ignition key is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.Replacement keysOnly keys that have been programmed to the vehicle electron-
ics can be used to start the vehicle.
If you lose a key, you can order a key from your authorized
Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must
be changed.
Take your vehicle and all remaining keys to your authorized
Mitsubishi Motors dealer to have your ID code changed.
Additional keysTo add a key, you need to register the ID code to the vehicle.
Registering the ID code can be done by your authorized Mit-
subishi Motors dealer. Or it can be done by yourself (except for
vehicles sold in Canada).
For you to register the ID code yourself, follow the “Customer
key programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and any remain-
ing keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 keys, but you may add up to 6
more keys.Customer key programming (Except for vehicles
sold in Canada)You can program new keys to the system if you have two valid
(already registered) keys and blank (not registered) immobi-
lizer key (specially cut for your vehicle at your Mitsubishi
Motors dealer) by doing the following:
1. Insert the first valid key into the ignition and turn the igni-
tion to the “ON” position for 5 seconds.
2. Turn the ignition to the “LOCK” position and remove the
first key.
3. Within 30 seconds of turning the first key to the “LOCK”
position, insert the second valid key into the ignition and
turn it to the “ON” position. About 10 seconds later, the
immobilizer indicator will start blinking.
CAUTION
!
Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0139500US.book 5 ページ ２０１１年４月１９日　火曜日　午後１時４８分

3-6 Features and controls
3
4. When the immobilizer indicator starts blinking, turn the
second valid key to the “LOCK” position and remove it.
Within 30 seconds after doing so, insert a blank immobi-
lizer key into the ignition and turn it to the “ON” position.
Perform this operation no more than 30 seconds after the
immobilizer indicator starts blinking. When registration
of the ID code is complete, the immobilizer indicator will
come on for 3 seconds then go off. If an error occurs, the
immobilizer indicator will go off during the procedure.5. If you wish to register another key, perform the process
again from step 1.
NOTE
It is not possible to register a key if:
• the immobilizer indicator goes off during the procedure
• the immobilizer indicator does not come on for 3 sec-
onds after step 4

The procedure will be terminated automatically if:
• a period of 30 seconds or longer elapses from the
moment when the first key is turned to the “LOCK”
position to the moment when the second key is turned to
the “ON” position
• a period of 30 seconds or longer elapses from the
moment when the second key is turned to the “LOCK”
position to the moment when the blank immobilizer key
(specially cut for your vehicle at your Mitsubishi Motors
dealer) is turned to the “ON” position
• more than 30 seconds elapse after the immobilizer indi-
cator starts blinking
BK0139500US.book 6 ページ ２０１１年４月１９日　火曜日　午後１時４８分

Features and controls
3-7
3
General informationYour electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Keyless entry system
N00509000880
Press the remote control transmitter buttons to lock or unlock
the doors and to open the trunk lid.
It can also help you signal for attention by setting off the panic
alarm.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-
Trunk ( ) button
4- PANIC button
5- Indicator light
BK0139500US.book 7 ページ ２０１１年４月１９日　火曜日　午後１時４８分
