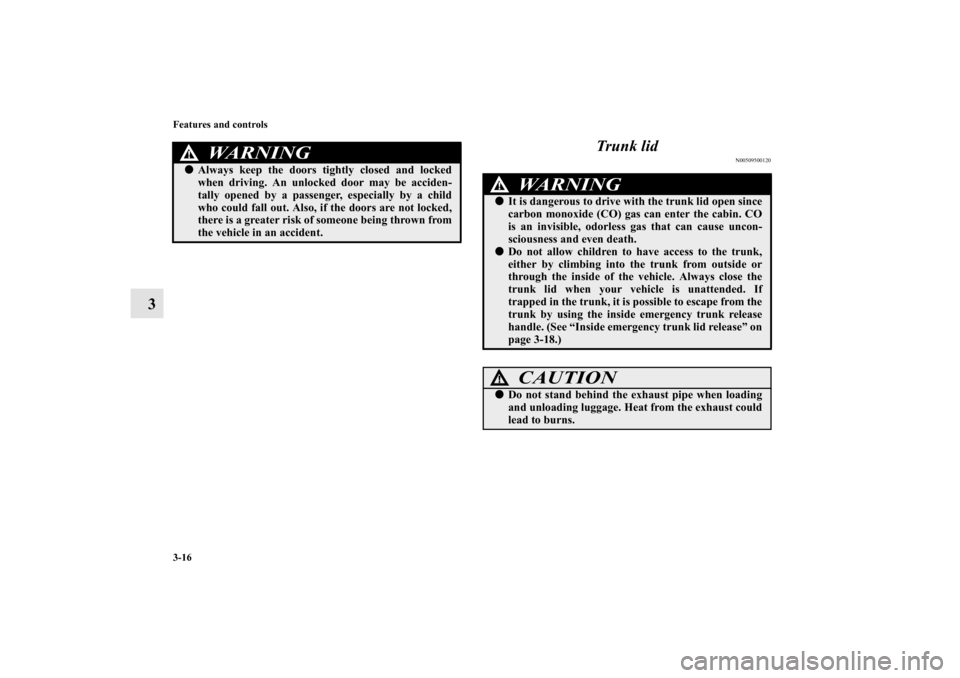

Page 105 of 424

3-16 Features and controls
3Trunk lid
N00509500120
WA R N I N G
!Always keep the doors tightly closed and locked
when driving. An unlocked door may be acciden-
tally opened by a passenger, especially by a child
who could fall out. Also, if the doors are not locked,
there is a greater risk of someone being thrown from
the vehicle in an accident.
WA R N I N G
!It is dangerous to drive with the trunk lid open since
carbon monoxide (CO) gas can enter the cabin. CO
is an invisible, odorless gas that can cause uncon-
sciousness and even death.Do not allow children to have access to the trunk,
either by climbing into the trunk from outside or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. If
trapped in the trunk, it is possible to escape from the
trunk by using the inside emergency trunk release
handle. (See “Inside emergency trunk lid release” on
page 3-18.)
CAUTION
!Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
BK0139500US.book 16 ページ 2011年4月19日 火曜日 午後1時48分
Page 106 of 424

Features and controls
3-17
3
To open
N00545200020
Operation from outside the vehicleUse the remote control transmitter to open. Press the trunk but-
ton. (See “Keyless entry system” on page 3-7.)
The trunk lid will pop up slightly. Lift it to open the trunk.Operation from inside the vehiclePull the trunk lid release lever, located to the left of the driver’s
seat, up to open the trunk.
NOTEThe trunk light comes on when the trunk lid is opened,
and goes out when it is closed.To close
N00545300034
If your vehicle is equipped with a trunk lid grip, pull the trunk
lid grip (A) downward as illustrated and let it go before the
trunk lid closes completely.
Gently close the trunk lid from the outside so that it is com-
pletely closed.
CAUTION
!Do not use the trunk lid release lever while the vehi-
cle is moving. If the trunk lid is opened, objects in
the trunk could fall onto the road and cause an acci-
dent.
CAUTION
!To avoid injuring your hand or arm, do not attempt
to close the trunk lid without letting go of the trunk
lid grip.
BK0139500US.book 17 ページ 2011年4月19日 火曜日 午後1時48分
Page 107 of 424
3-18 Features and controls
3Inside emergency trunk lid release
N00509800123
The emergency trunk lid release is designed to provide a way
to open the trunk lid from inside the trunk. It was developed to
help prevent death and serious injuries, to children who might
become locked inside a vehicle trunk.
The luminous “T” shaped yellow emergency trunk lid release
handle (see illustration) is mounted near the latch inside the
trunk.
The handle glows in the dark after exposure to sunlight.
Before starting the vehicle, be sure to confirm that
the trunk lid is closed. If the trunk lid opens while
driving the vehicle, objects stored in the trunk could
fall out onto the road.
CAUTION
!
BK0139500US.book 18 ページ 2011年4月19日 火曜日 午後1時48分
Page 108 of 424

Features and controls
3-19
3
You and your family should familiarize yourselves with the
location and operation of the emergency trunk lid release han-
dle. Children should be taught not to play in or around vehi-
cles.To open the trunk from the inside, pull the handle in the direc-
tion of the arrow on the handle. Push up on the trunk lid to
open the trunk and climb out.
WA R N I N G
!Children should never be left unsupervised in or
around vehicles.Unsupervised children could lock themselves in an
open vehicle or trunk.People trapped inside a vehicle or trunk, even if only
for a short period of time, can quickly die from suf-
focation or heat stroke, especially on hot days. Inte-
rior temperatures in vehicles can rise in minutes.Keep your vehicle doors locked and the trunk lid
closed when not in use. Keep your vehicle keys away
from children.
CAUTION
!When loading the trunk, place your things so that
they will not touch the emergency trunk lid release
handle when you close the trunk. Otherwise you
could damage the handle and make it unusable.Always keep the handle in its holder when driving so
that your cargo cannot accidentally bump it and
open the trunk.
Handle
Holder
BK0139500US.book 19 ページ 2011年4月19日 火曜日 午後1時48分
Page 109 of 424

3-20 Features and controls
3Theft-alarm system
(if so equipped)
N00510200042
The theft-alarm system is designed to provide protection from
unauthorized entry into the vehicle. This system is operated in
three stages: the first is the “armed” stage, the second is the
“alarm” stage, and third is the “disarmed” stage. If triggered,
the system provides both audible and visual alarm signals.Armed stage
N00510300072
Park the vehicle and stop the engine. Arm the system as
described below.
1. Remove the key from the ignition switch.
2. Make sure that the engine hood is locked.
3. Lock all doors by using the remote control transmitter.
NOTEThe system is also armed by locking your vehicle using
the following procedures when you leave the vehicle.
• With either the driver’s door or passenger’s door open,
set the inside lock knobs on both doors to the locked
position and then close the door.
• With either the driver’s door or passenger’s door open,
lock all doors using the power door lock switch and then
close the door.
After completion of the steps above, the theft-alarm indicator
(A) will illuminate for approximately 20 seconds and keeps
blinking on and off, indicating that the system is armed.
Arm the system and leave.BK0139500US.book 20 ページ 2011年4月19日 火曜日 午後1時48分
Page 110 of 424

Features and controls
3-21
3
NOTEThe system will be armed even if the engine hood is open,
but when the system is set, be sure that the engine hood is
locked.
The system will be disarmed if, while the theft-alarm indi-
cator (located in the front center of the dashboard) is illu-
minated, all doors are unlocked by remote control
transmitter.
The system will be disarmed if, while the theft-alarm indi-
cator is illuminated, the ignition key is turned to the “ON”
or “ACC”.
The system will not be armed if a door is not completely
closed. If this happens, rearm the system as described
above.
The trunk lid can only be opened by remote control trans-
mitter without triggering or disarming the system even
after the system has been armed. When it is closed, the
system will be rearmed.
The driver should not arm the system until first confirm-
ing that all passengers have left the vehicle. If the driver
arms the system with passenger(s) in the vehicle, the
alarm may be activated when the passenger(s) open the
door.Alarm stage
N00510400116
The alarm will be activated if any of the following occur while
the vehicle is parked and the system is armed.
1. One of the doors or the trunk is opened without the remote
control transmitter.
2. The engine hood is opened from the outside.
Type of alarmWhen the alarm is activated:
1. The headlights blink on and off for 3 minutes.
After 3 minutes the headlights automatically shut off.
2. The horn will sound intermittently for 3 minutes.NOTEThe alarm will continue to operate for 3 minutes. At the
end of that period, the alarm will automatically shut off to
save battery power. The system will then be rearmed until
the proper disarming step is taken.Alarm deactivationThe alarm can be deactivated in the following ways.
By using the remote control transmitter to lock or unlock
the door or to open the trunk lid.
Turn the ignition key to the “ON” position.Horn sounds!
Headlights blink on and off!
BK0139500US.book 21 ページ 2011年4月19日 火曜日 午後1時48分
Page 111 of 424

3-22 Features and controls
3
Disarmed stage
N00510500074
The system will be disarmed when either of the following steps
are taken:
1. All doors are unlocked by the remote control transmitter.
2. The ignition key is turned to the “ACC” or “ON” position.
3. If the UNLOCK button is pressed when all doors are
closed and no door is opened within approximately 30
seconds, re-arming will automatically occur.NOTEOnce the system has been disarmed, it cannot be rearmed
except by repeating the arming procedure.
Testing the theft-alarm system
N00510600046
Use the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flash in approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob and opening the door.
5. Check to be sure that the horn sounds intermittently and
the headlights blink on and off when the door is opened.
6. Disarm the system by unlocking all doors by the remote
control transmitter or using the key.NOTETo make sure the alarm sounds when the engine hood is
opened, open the engine hood by using the engine hood
release lever when the system is in the “armed” stage.
Disarm…by remote control transmitterBK0139500US.book 22 ページ 2011年4月19日 火曜日 午後1時48分
Page 112 of 424
Features and controls
3-23
3 Power windows
N00510800312
NOTENever try to operate the main switch and sub switch in dif-
ferent directions at the same time. This will freeze the
window in position.
Operating the power windows repeatedly with the engine
stopped will run down the battery. Use the window
switches only while the engine is running. 1- Open (down)
2- Close (up)
WA R N I N G
!Before operating the power windows, make sure
that nothing can be trapped (head, hands, fingers,
etc.) in the window. Never leave the vehicle without removing the key. Never leave a child alone in the vehicle.
